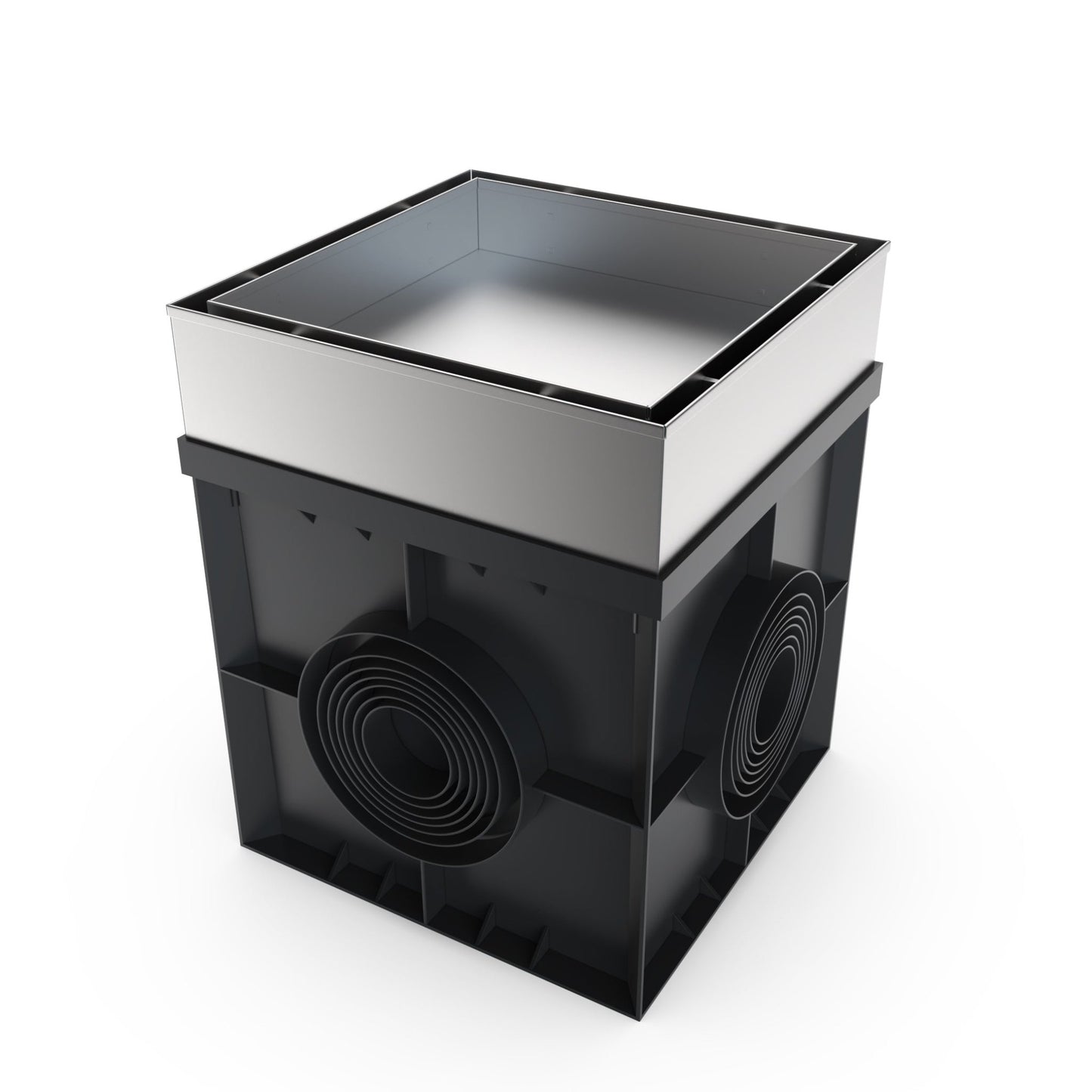

16x16 Fillable Slot Basin Package

16x16 Fillable Slot Basin Package

Skip to product information
1 of 4
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • Heel Proof and ADA Compliant
  • Connects to 4,6 and 8" PVC or Corrugated piping
  • Pipe connection on all four sides

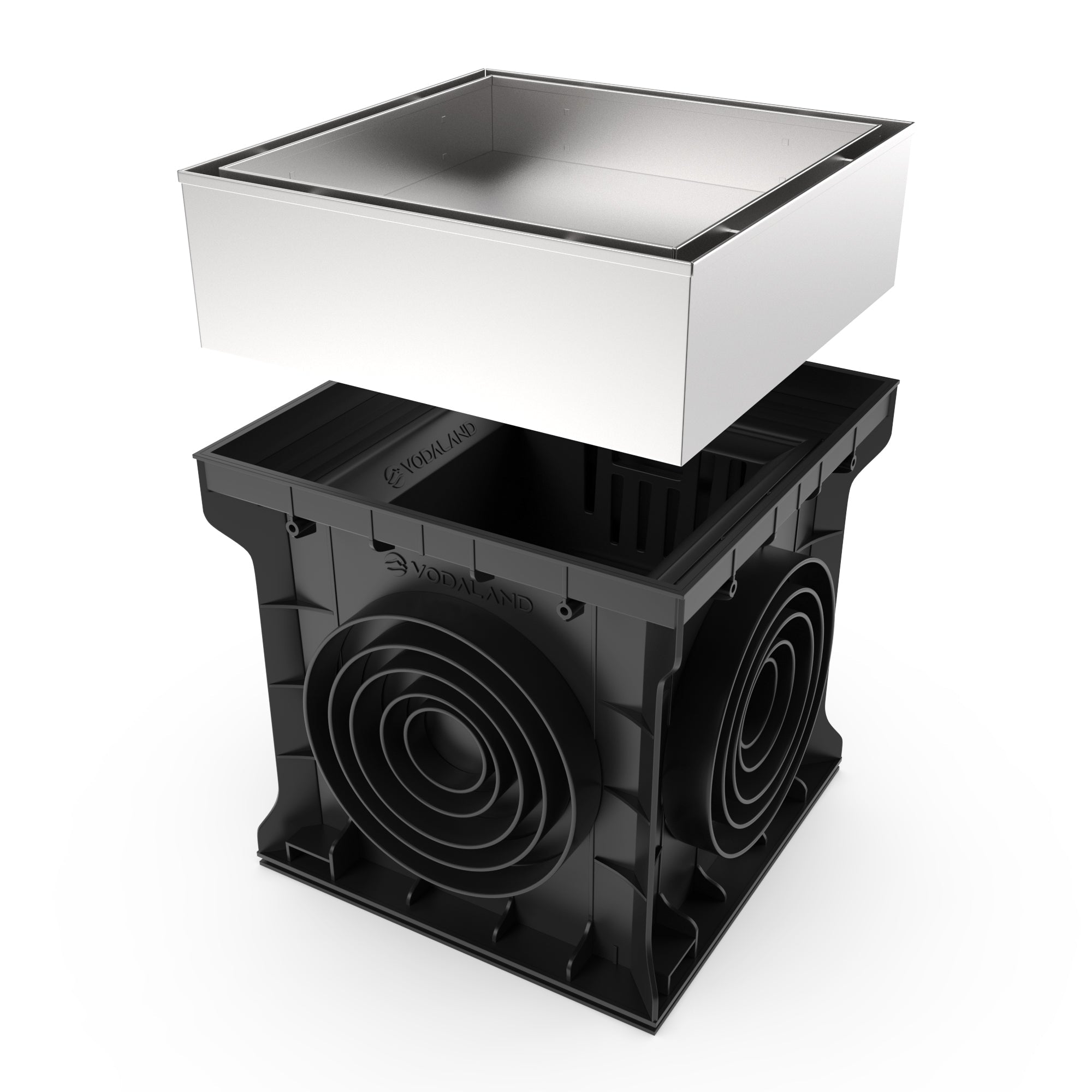

INCLUDED IN PACKAGE

1 - 16x16 Catch Basin

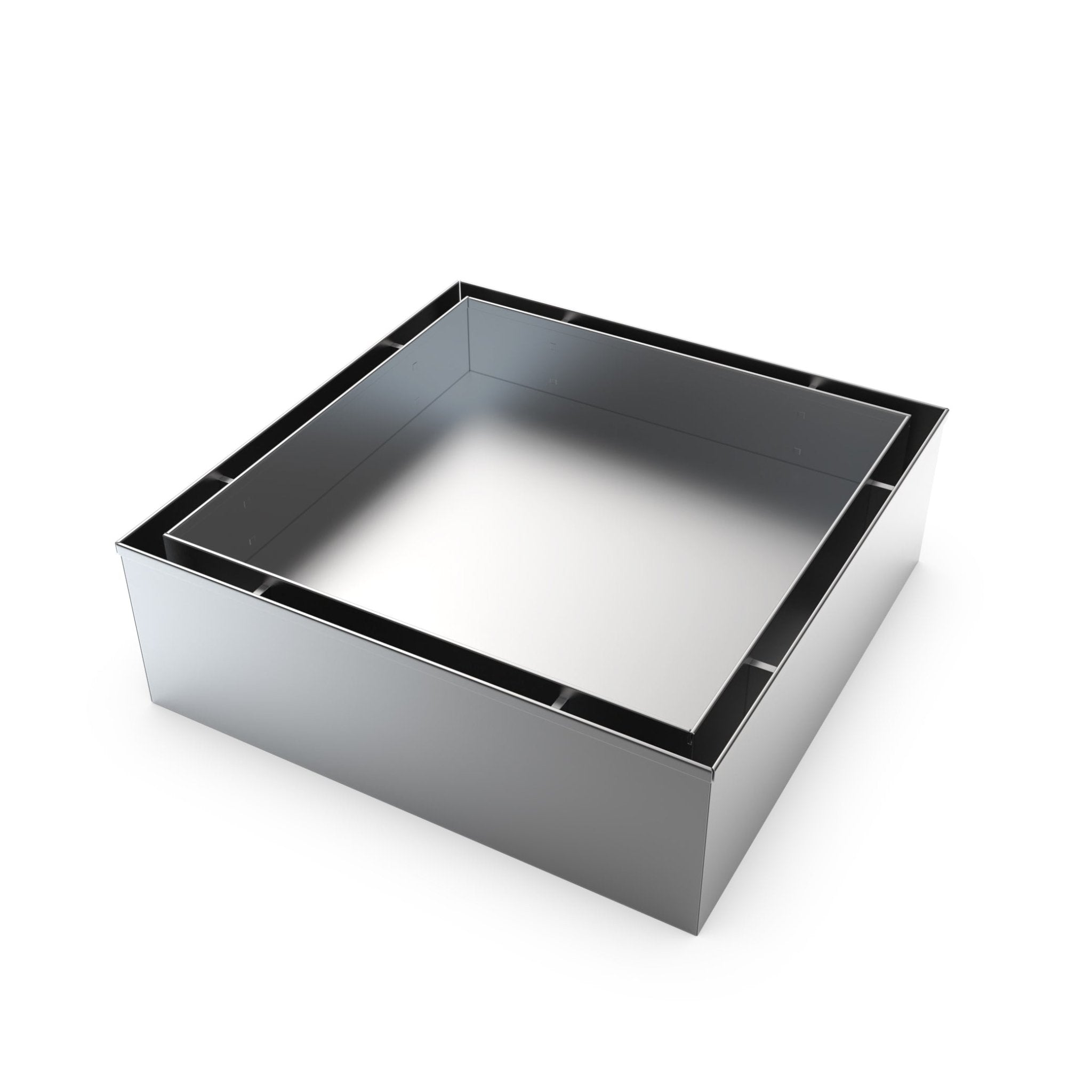

- Stainless Steel Grate

- Debris Basket - Galvanized Stamped Steel

For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Catch Basin Specification Sheet
PDF :
DWG :
Slot Grate Specification Sheet
PDF :
Installation Guide
PDF :

Product Description

Product Description

16x16 Fillable Slot Basin Package / C Load Class

A heavy duty Catch Basin Package designed to provide a one point drainage solution in driveways, garages, parking lots, walkways, and more.

Key Features:
C load Class - Supports up to 56,200 LBS per foot
ADA Compliant- Ensures a safe, trip free surface
Multiple Connection Sizes- Connects to 4,6 and 8 inch piping on all 4 sides
Debris Basket- Galvanized Debris basket to catch leaves and debris
Removable Grate- Easy access to debris basket

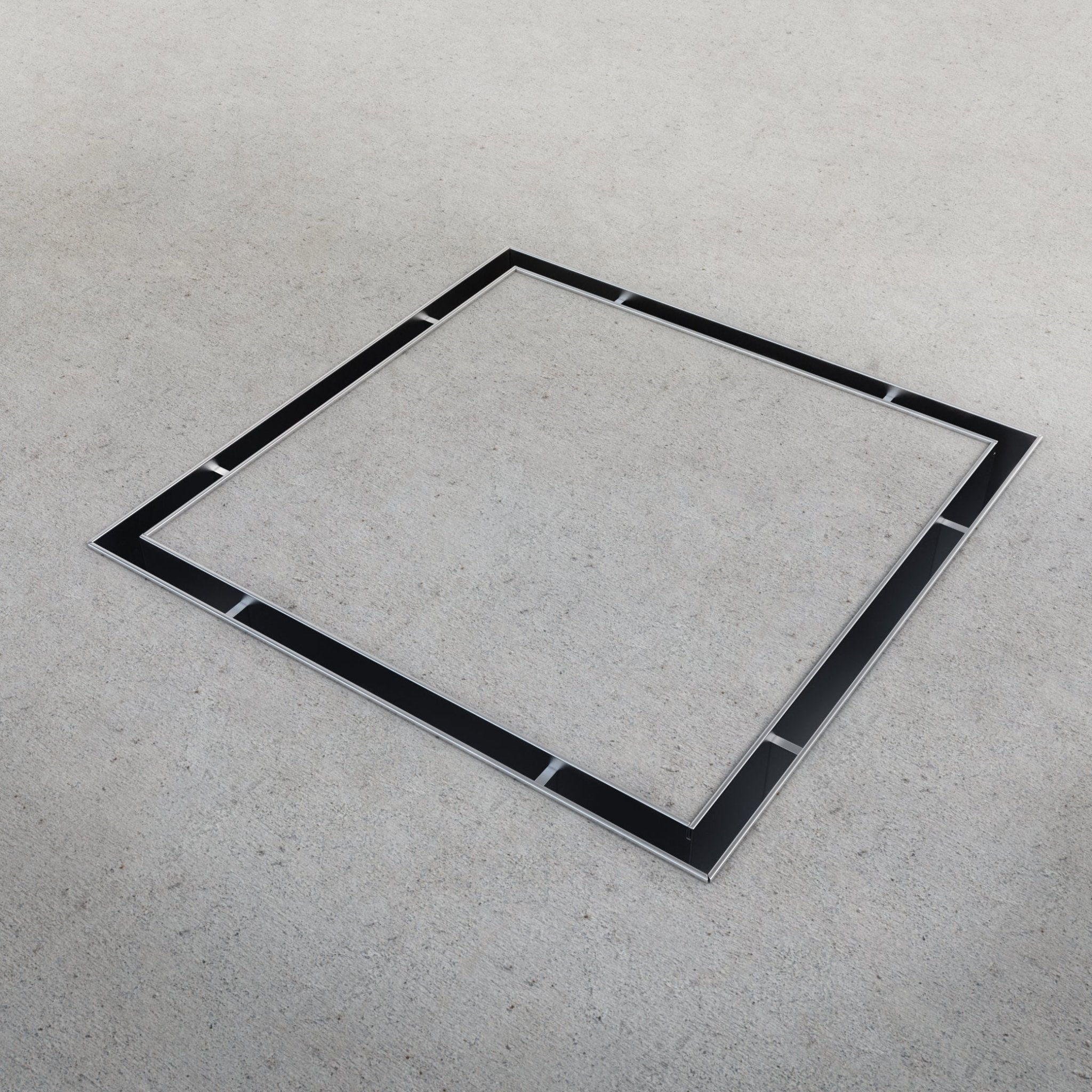

Fillable Grate- Can be blended in w/surroundings

The 16x16 Fillable Slot Basin Package is designed to fit and work with all your drainage needs. In addition to 4,6 and 8" pipe outlet connections, the 16x16 Fillable Slot Basin Package will come with two partitions and a galvanized debris basket to catch those leaves and debris from getting into your system. This Stainless Steel Grating is fillable and designed to create a discrete but functional catch basin.

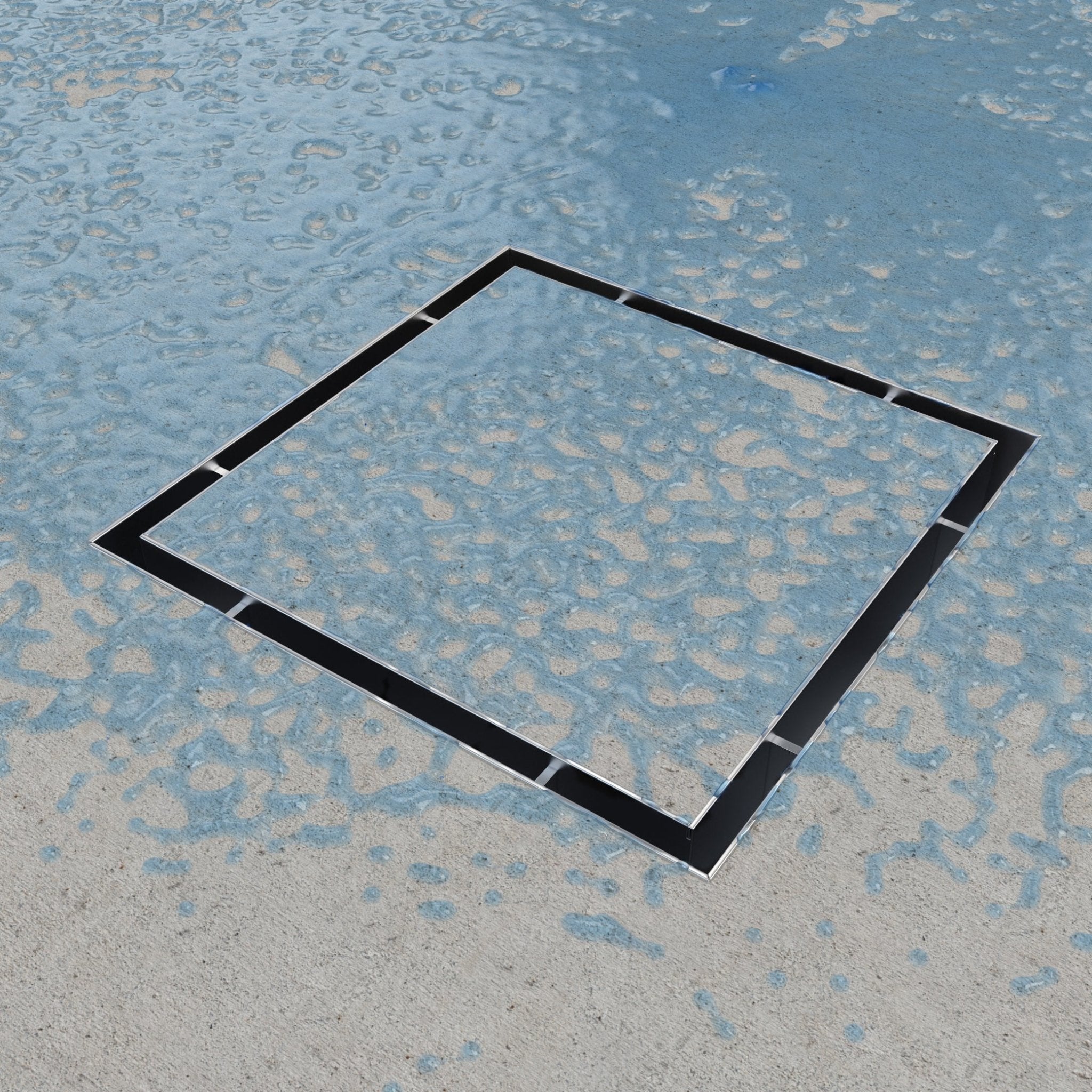

The center of this grating can be filled with concrete, gravel, or anything else to help it blend in with the surroundings. We pride ourselves with our unique grating options and style.

Common Installations:
Driveways
Garages
Parking Lots
Walkways

Technical Specifications:
Size- Basin: 16" L x 16" W x 16" H, Grate: 15x15,x 5” - ⅝ ” Opening
Material- PPE Plastic Basin w/Galvanized Debris Basket / 304 Stainless Steel Fillable Grate
Load Class- C Load Class
Outlet Size- 4,6 and 8"

Technical Resources: Load Class Compliance
