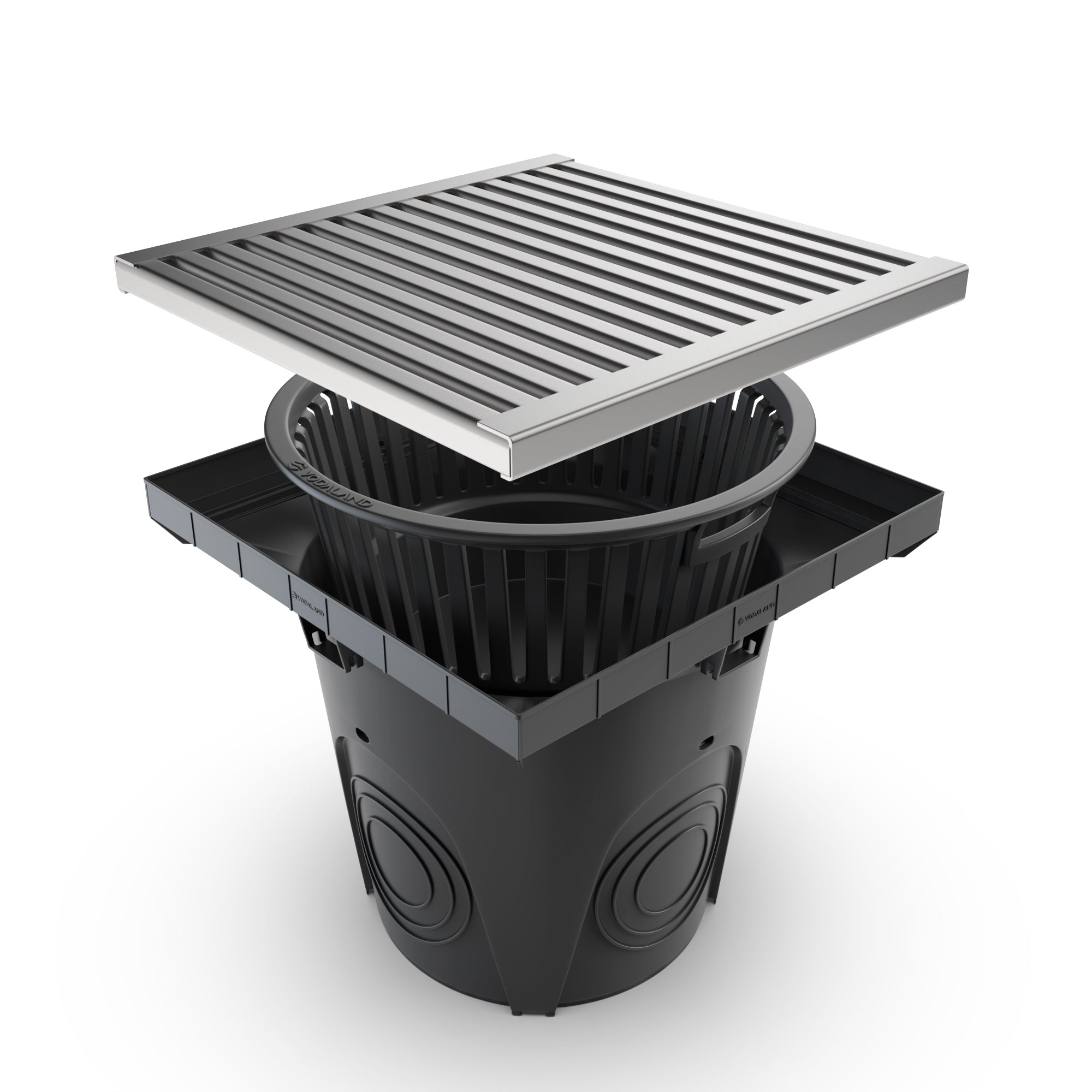

22x22 NEO Basin Stainless Steel ADA/Heel Proof Package
- PPE Plastic / Stainless Steel
- 21 ⅜" L x 21 ⅜" W x 19 ⅝" H
- B - Load Class
- Driveways, Garages, Roads and more
- More Product Information Below
At Vodaland, we ship all orders within one business day. Our team ensures your order is packed accurately and shipped quickly.
Standard: 3–5 business days from St. Louis, MO.
Pallets: 5–7 business days, delivery scheduled by carrier.
Expedited: Next-day or 2-day shipping via FedEx Express (extra fee, weekends excluded).
22x22 NEO Basin Nozzle and Siphon Package
$20.00
22x22 NEO Basin Stainless Steel ADA/Heel Proof Package
Sale price$601.00
Product Details
- PRODUCT OVERVIEW
- SPECIFICATIONS
- INSTALLATION VIDEOS
SPECIFICATIONS
Description
22x22 NEO Basin Stainless Steel ADA/Heel Proof Package - B-Class
The 22x22 NEO Basin Stainless Steel ADA/Heel Proof Package is a light traffic-rated catch basin system designed to provide an efficient single-point drainage solution for driveways, garages, roads, and other vehicle traffic applications. Featuring a durable 304 stainless steel, ADA-compliant, and Heel Proof grate, this system combines heavy-duty performance with pedestrian safety and long-term corrosion resistance.
Key Features:
● B Load Class Rated – Supports up to 28,100 lbs per foot for vehicle and light commercial traffic applications.
● ADA Compliant / Heel Proof – Ensures a safe, trip-free walking surface.
● Multiple Connection Sizes – Connects to 4", 6", and 8" piping on all four sides.
● Removable Grate – Allows easy access for cleaning and maintenance.
● 304 Stainless Steel Grate – Provides exceptional corrosion resistance and long-term durability.
Expanded Product Overview:
The 22x22 NEO Basin Stainless Steel ADA/Heel Proof Package is designed to meet the drainage demands of residential, commercial, and municipal applications. Built around a durable PPE plastic basin, the system features side outlet connections for 4", 6", and 8" piping, along with bottom outlet options for 6", 8", 10", and 12" piping, allowing for flexible installation configurations.
Its B Load Class rating supports up to 28,100 lbs per foot, making it suitable for driveways, garages, roads, parking areas, and other applications exposed to vehicle traffic. The 304 stainless steel grate is engineered to be ADA compliant and heel proof, providing a safe walking surface while maintaining excellent drainage performance.
Common Installations:
● Driveways
● Garages
● Roads
Technical Specifications:
● Size- Basin: 21 ⅜" L x 21 ⅜" W x 19 ⅝" H. Grate Sizing: 21"x21"
● Material- PPE Plastic Basin / 304 Stainless Steel Grating
● Nozzle Outlet Sizes – 4", 6", and 8"
● Bottom Outlet Size - 6", 8", 10", and 12"
● Load Class- B Load Class
Technical Resources: Load Class Compliance
