22x22 Catch Basin Galvanized Steel Package

22x22 Catch Basin Galvanized Steel Package

Skip to product information
1 of 2
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

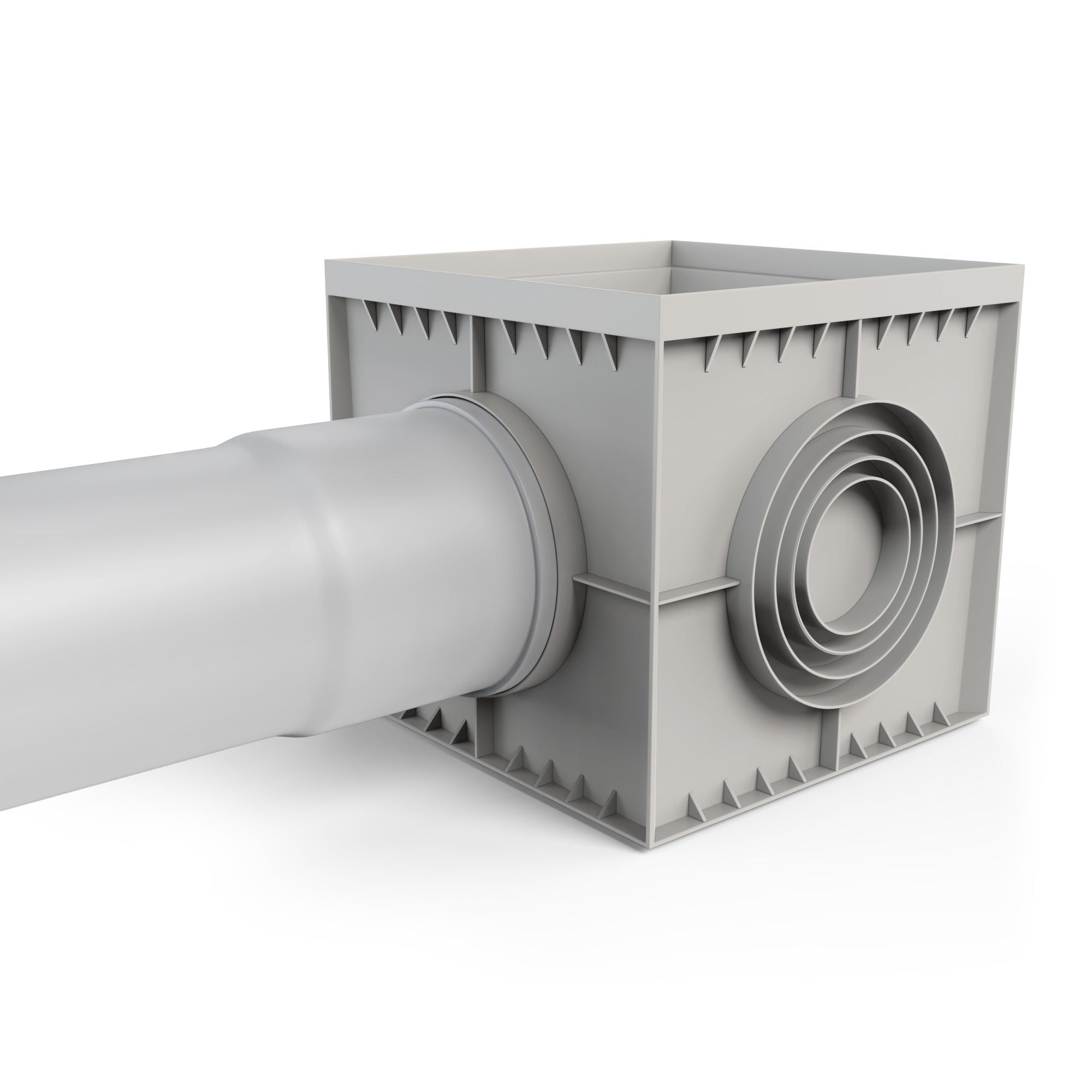

  • Connects to 6, 8, 10, and 12 inch pipe on all 4 sides
  • ADA compliant grating
  • Sediment basket available as optional purchase

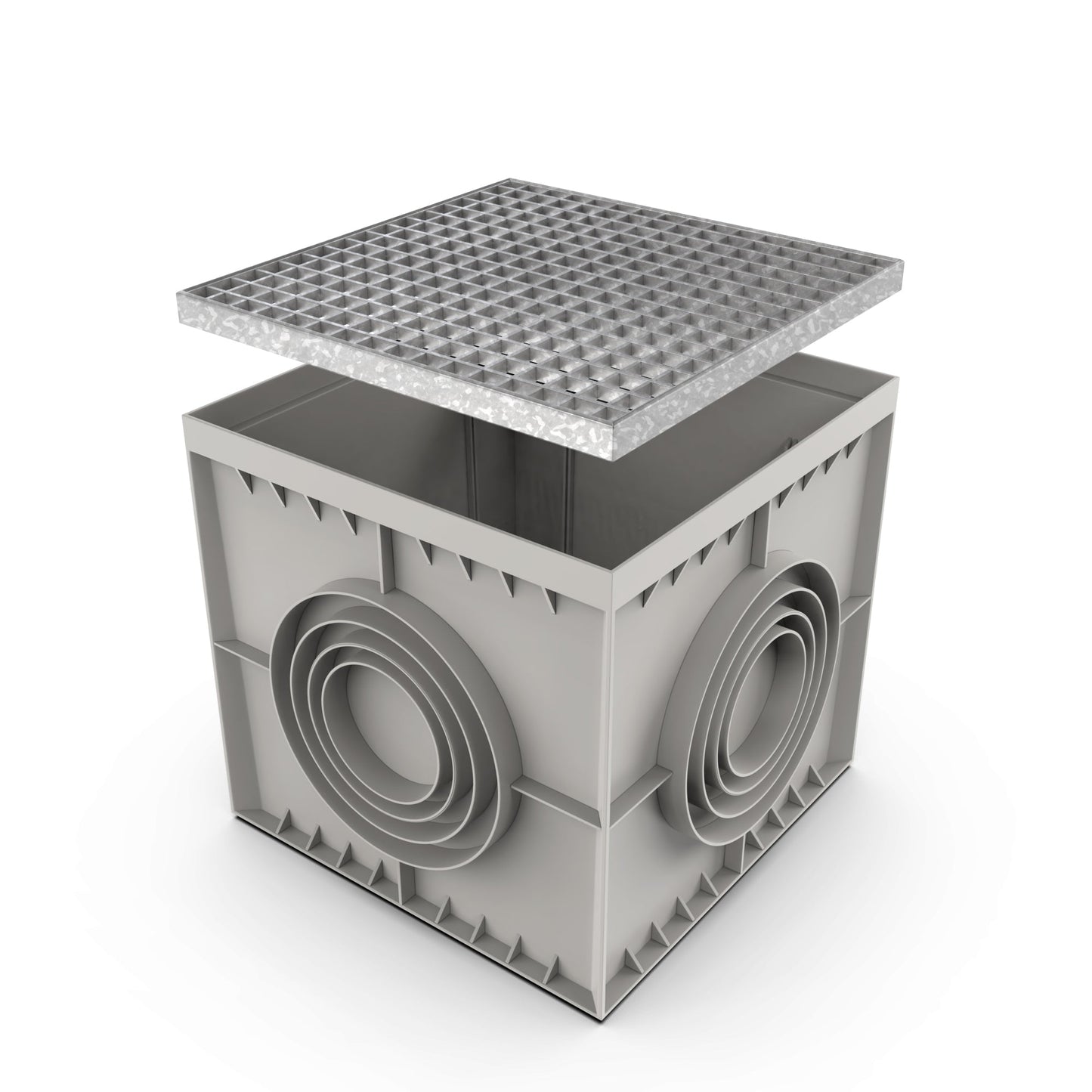

  • INCLUDED IN PACKAGE

    1 - 22x22 Catch Basin

    - Galvanized Stamped Steel Grating

  • For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Specification Sheet
PDF :
DWG :
Grate Specification Sheet
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

22x22 Catch Basin Galvanized Steel Package / A Load Class

This 22X22 Catch Basin Package is designed to provide a one point drainage catch basin solution in patios, porches, walkways and more.

Key Features:
A load Class - Supports up to 3,372 lbs per foot
ADA Compliant- Ensures a safe, trip free surface
Multiple Connection Sizes- Connects to 6,8,10, and 12 inch piping on all 4 sides
Removable Grate

Expanded Product Overview:
The 22x22 Catch Basin Galvanized Steel Package is designed to fit and work with all your drainage needs. In addition to 6,8,10, and 12 inch pipe outlet connections, 22x22 Catch Basin Galvanized Steel Package is ADA Compliant. Please note that a Schedule 40 adapter is recommended for the outlet connections. We pride ourselves with our unique grating options and style.

Common Installations:
Patios
Porches
Walkways

Technical Specifications:
Size- Basin: 22" L x 22" W x 22" H Grate: 21”x21"
Material- PPE Plastic Basin / Galvanized Stamped Steel Grate
Load Class- A-Load Class
Outlet Size- 6,8,10, and 12 inch

Technical Resources: Load Class Compliance

Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
