Specifications and Downloads
- 4" Internal width stamped steel grating package
- Comes with steel grate, channel, fasteners and end caps
- Pedestrian load rated
- Connect multiple channels for longer run
- 4" PVC or corrugated pipe bottom outlet option on each channel with schedule 40 adapter
- 4" PVC or corrugate pipe outlet option out of end caps (with the 6", and 8" depth channels)
For our Pre Slope Packages all end caps have a 4" outlet
- More product details below
- Pre Slope Specification PDF
- grating pdf
- 2 inch channel depth pdf
- 2 inch channel depth cad
- 3 inch channel depth pdf
- 3 inch channel depth cad
- 4 inch channel depth pdf
- 4 inch channel depth cad
- 6 inch channel depth pdf
- 6 inch channel depth cad
- 8 inch channel depth pdf
- 8 inch channel depth cad
- installation brochure

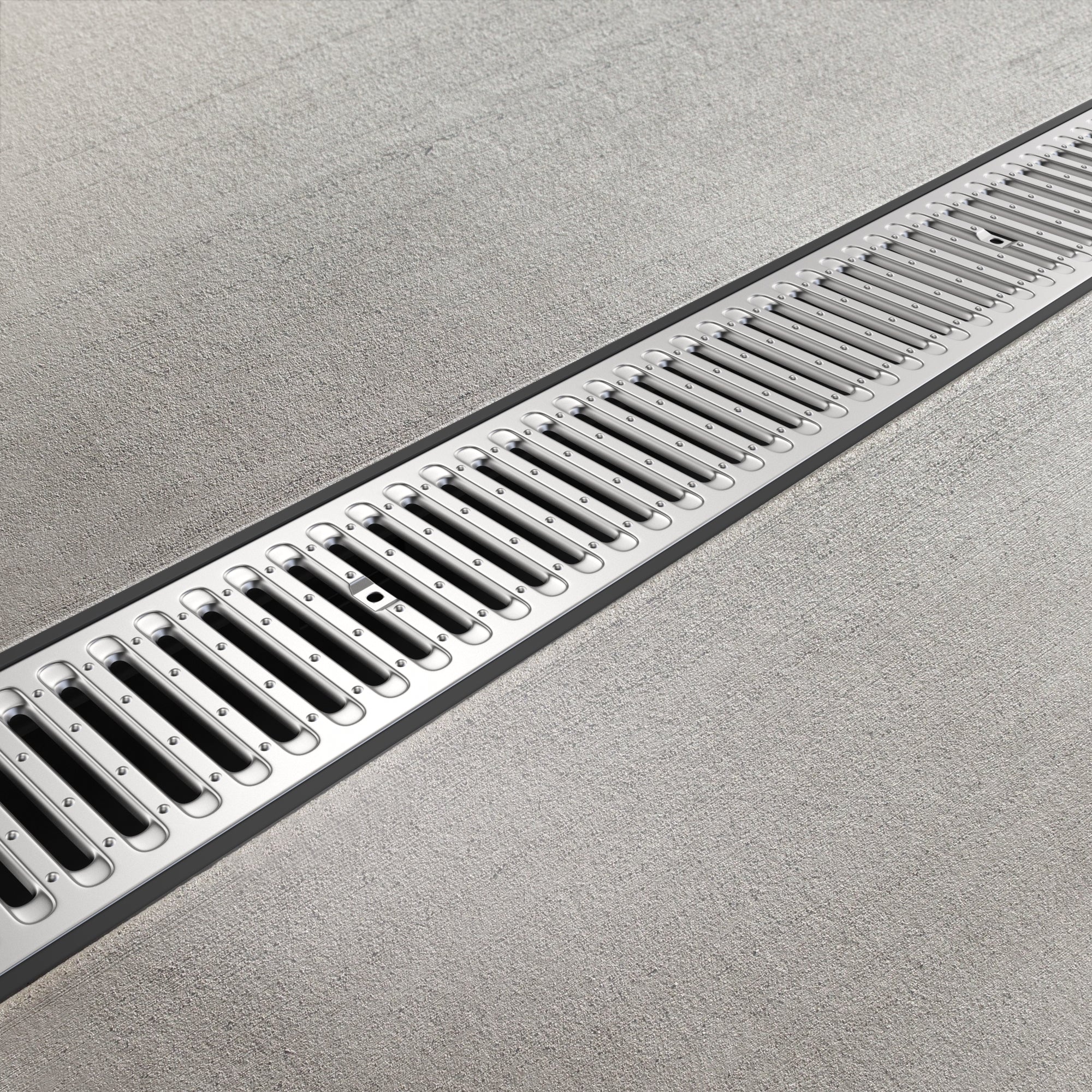

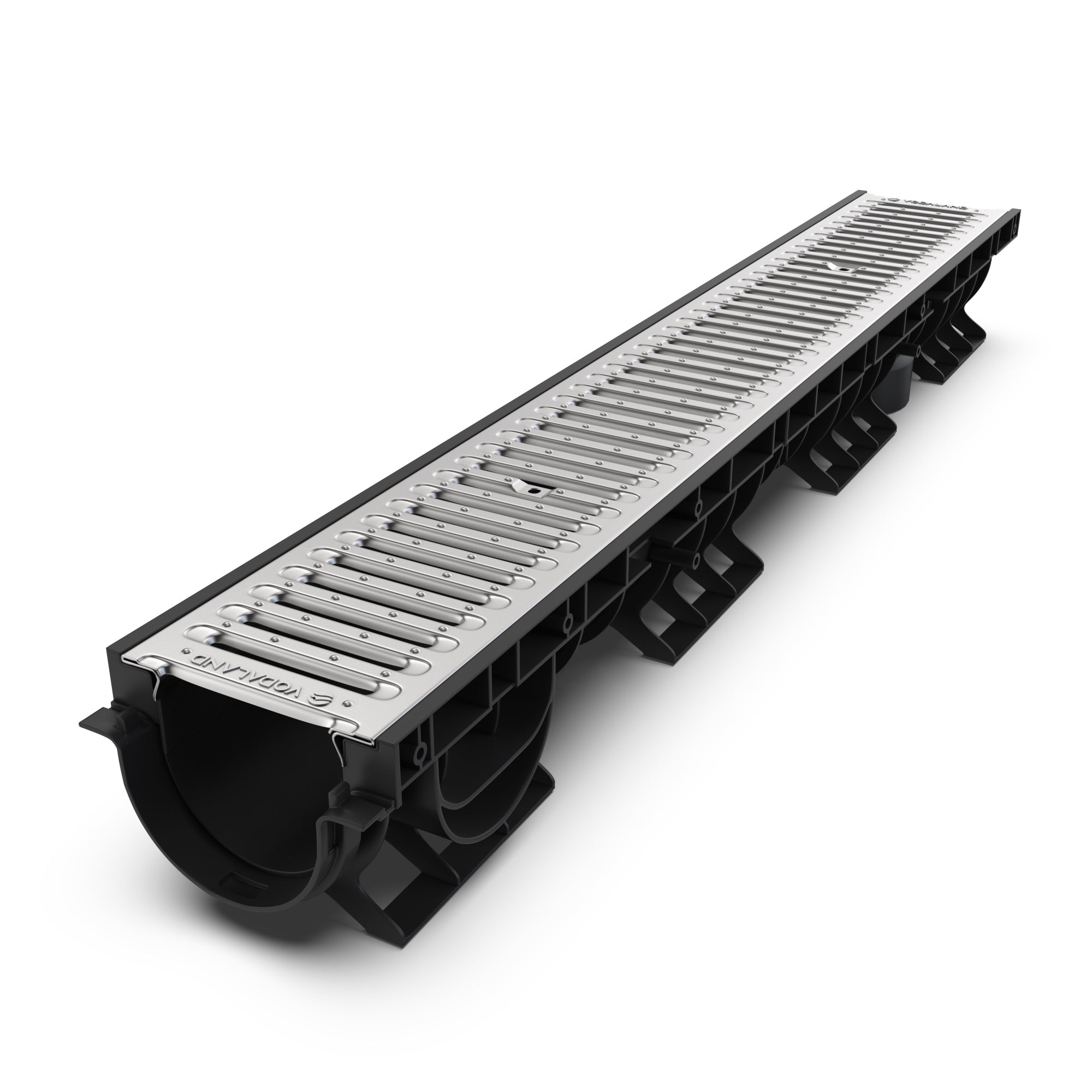

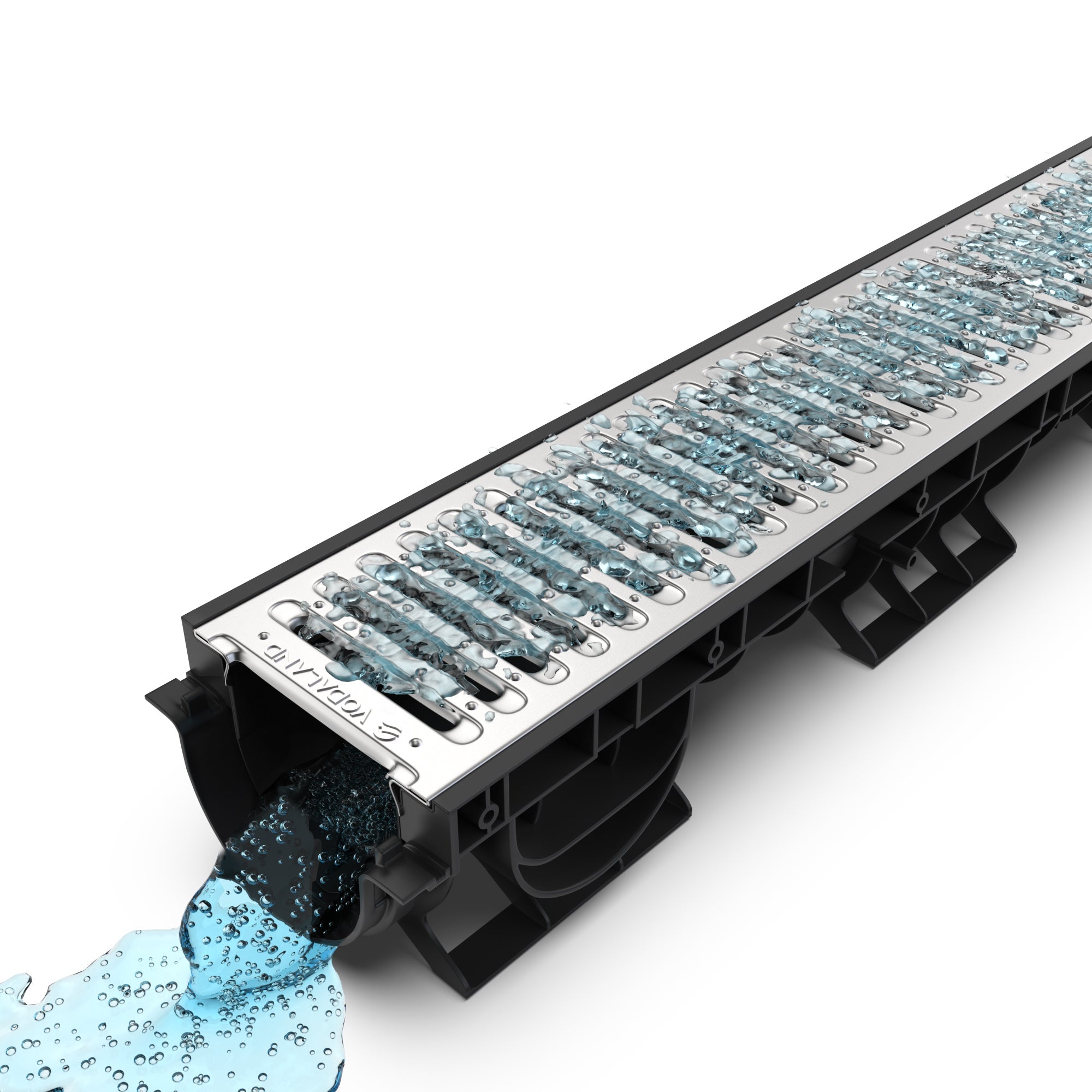

Our 4" Channel Galvanized Stamped Steel Package is loaded with a multitude of customization and options. Each package includes the channel depth of choice or channel length if choosing Pre Slope, gratings and fasteners (if needed) and two end caps (per order). Each channel is 3.3 ft in length, with a Snap and Lock connection so you can attach end to end to create a longer and custom size run. In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth.
With our new Pre Slope system you can create a run up to 33 ft in length with a 1% slope. With a 4" outlet on the end no matter the channel run length.

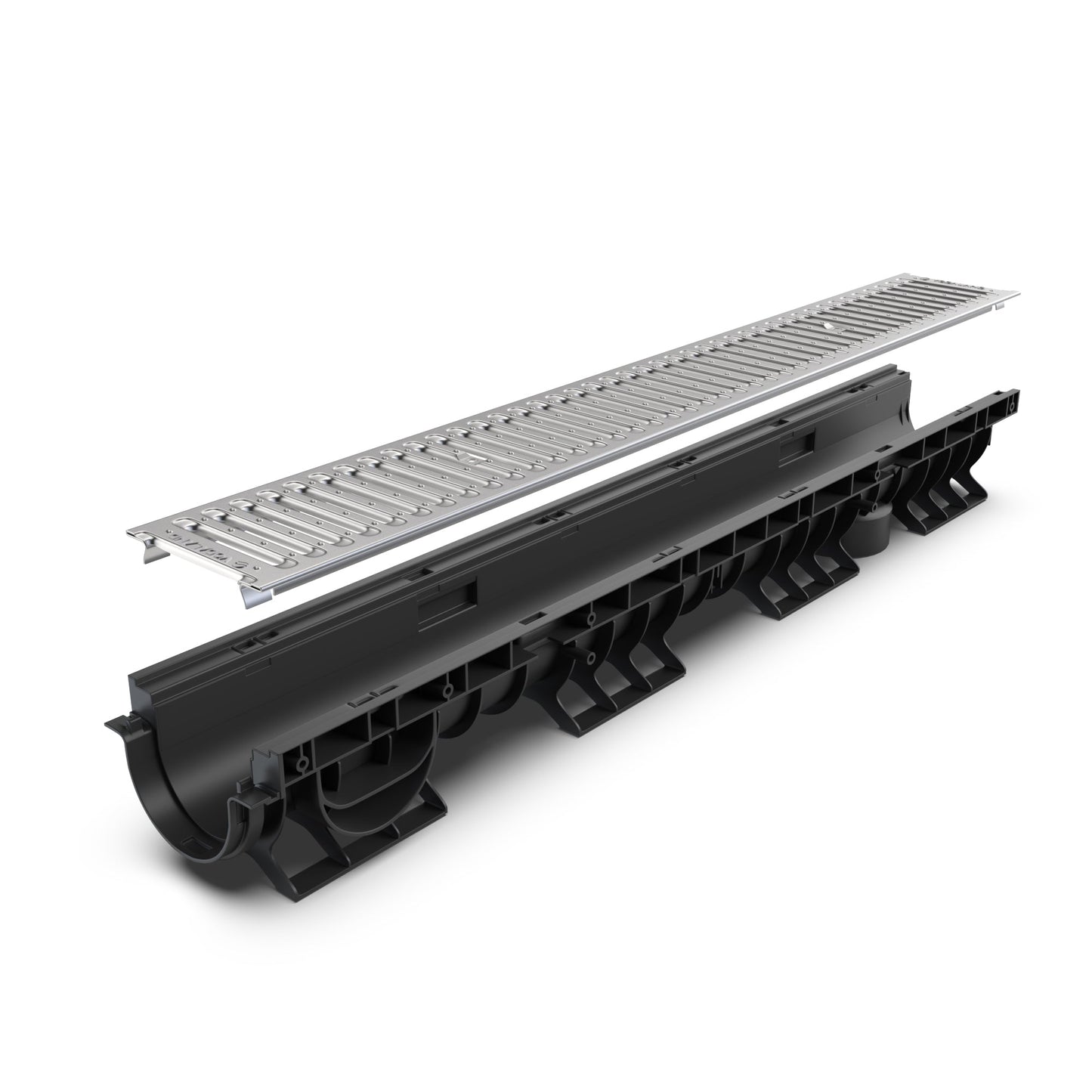

The 2", 3", 4", 6", and 8" Depth channels have bottom outlet option available with 4" Pipe connection.
Each of these systems will also have end cap outlet options available as well.
The 2", 6", and 8" Depth option will use a 4" end cap outlet pipe, while the 3" and 4" Depth option will use a 3" end cap outlet pipe.
For Pre Slope Channel articles please see the Pre Slope Specification Sheet
Material ............. PPE Plastic
Dimensions ....... 39.4"L x 5.8"W
Load Class ....... A Class - 3,300 LBS

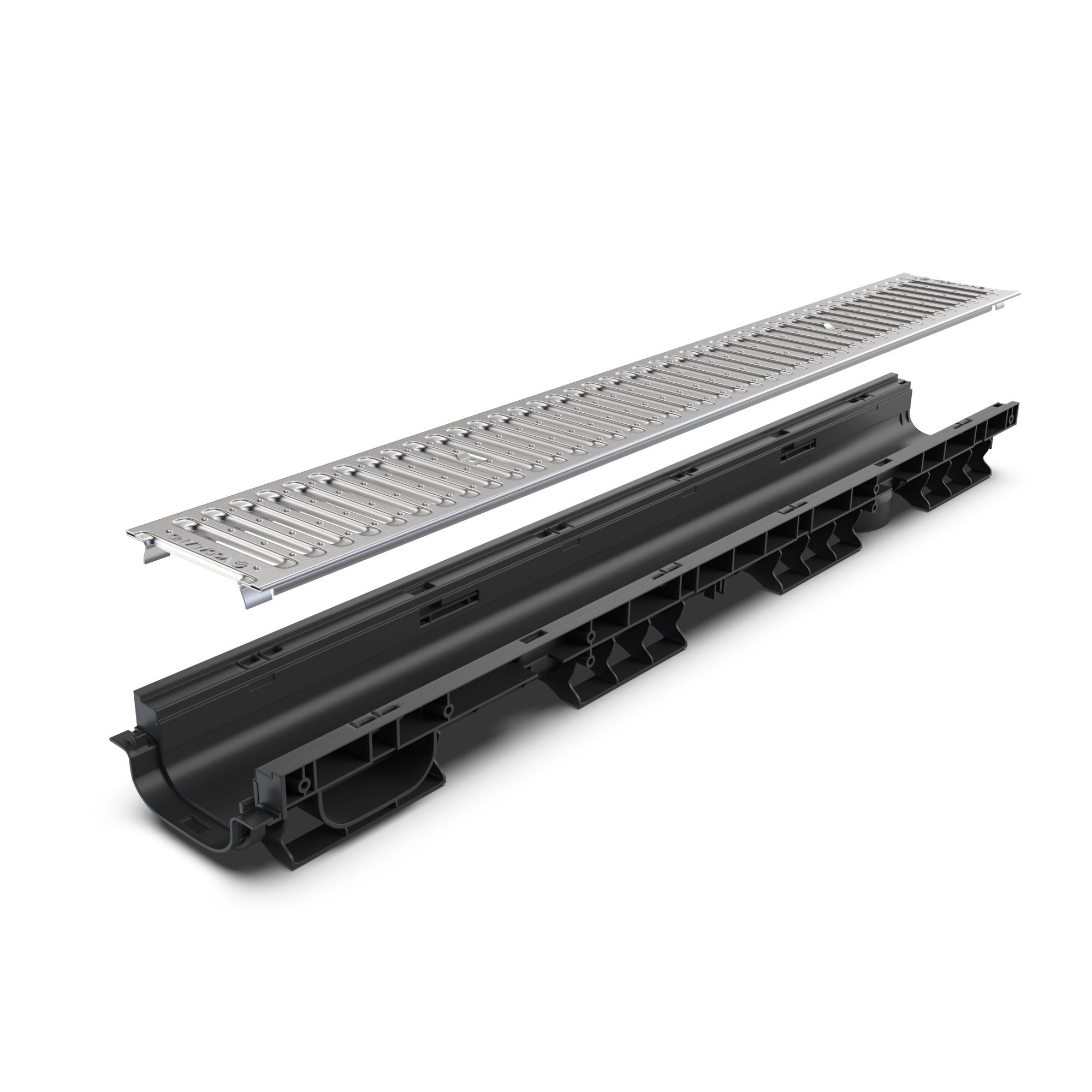

INCLUDED IN PACKAGE

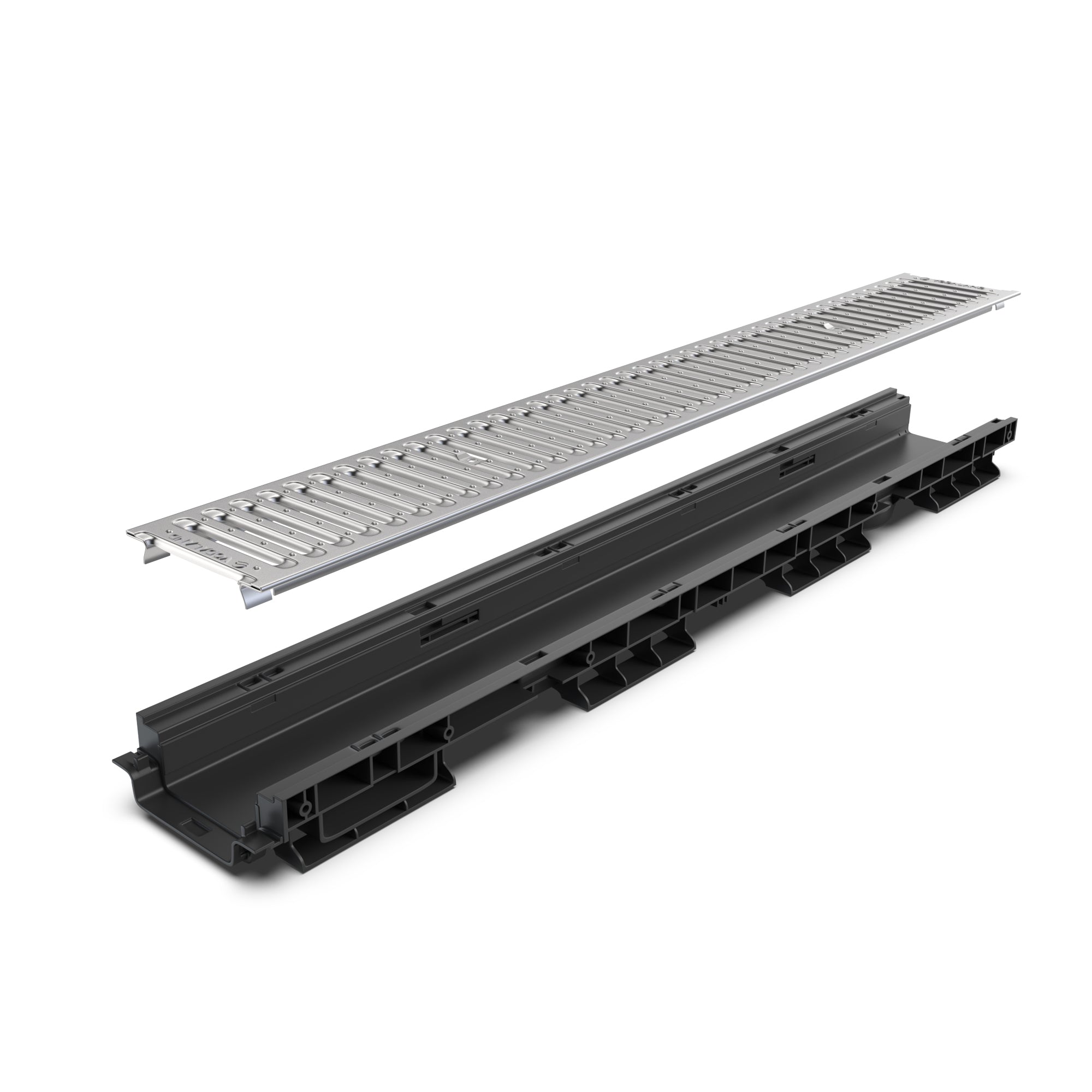

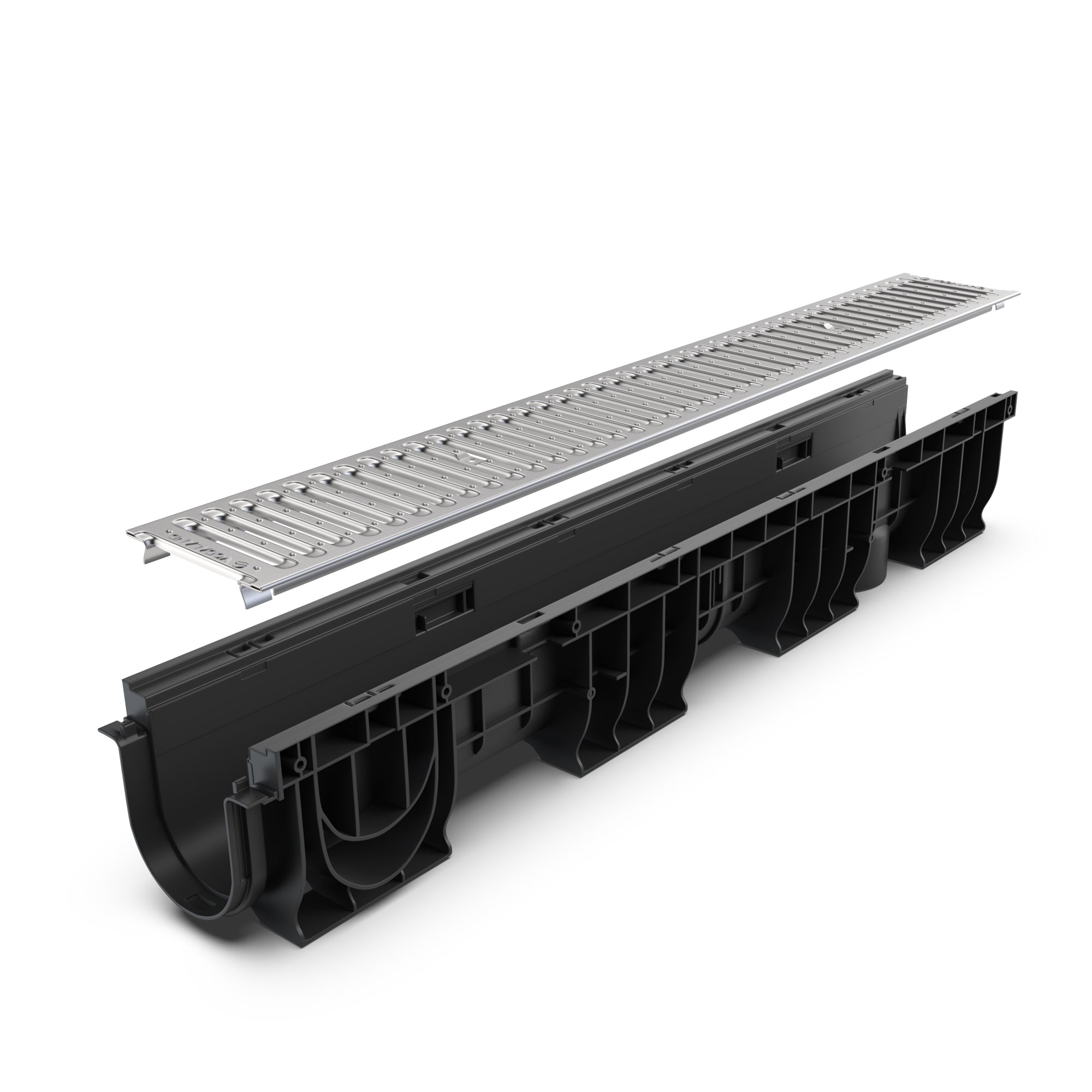

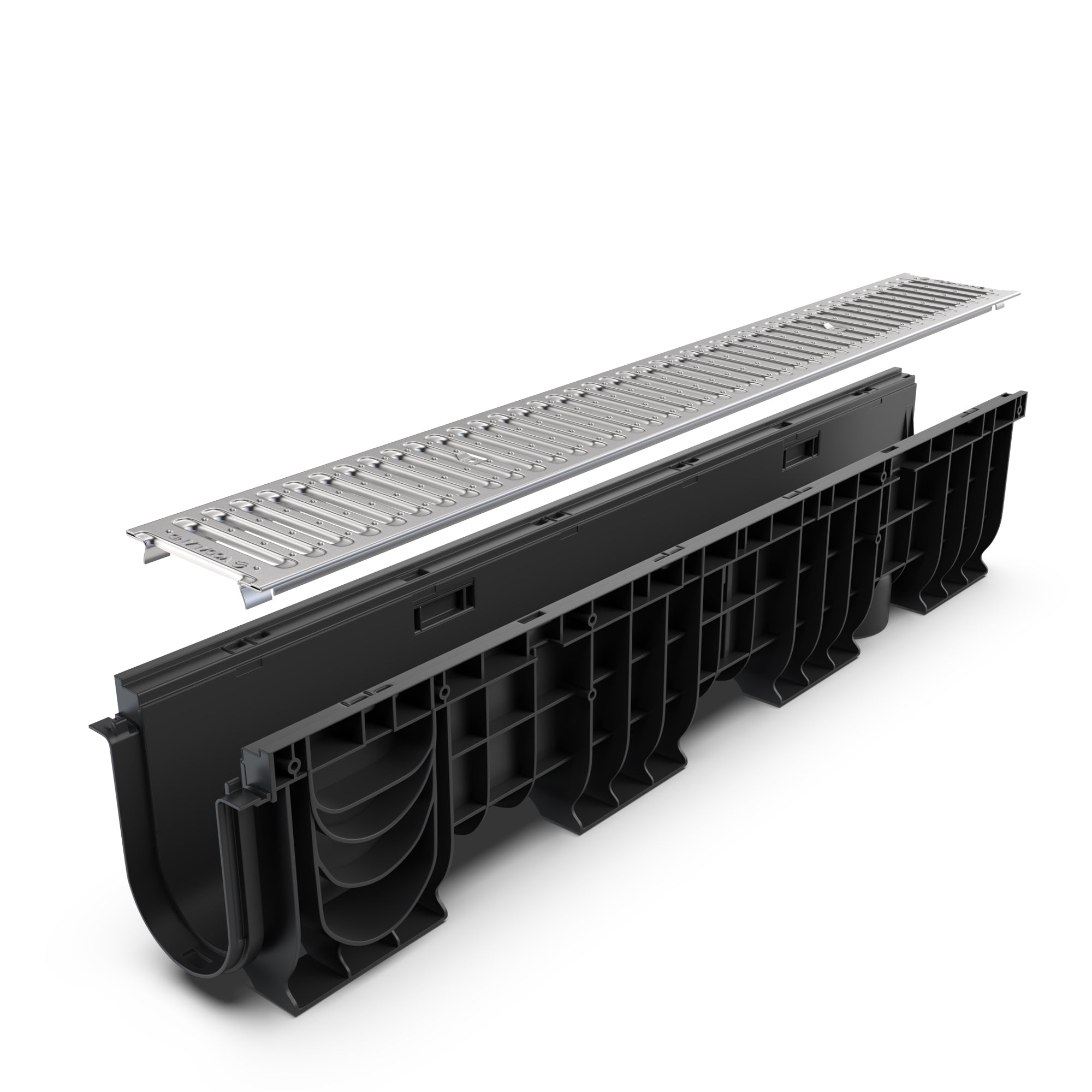

1 - Channel Depth of Choice

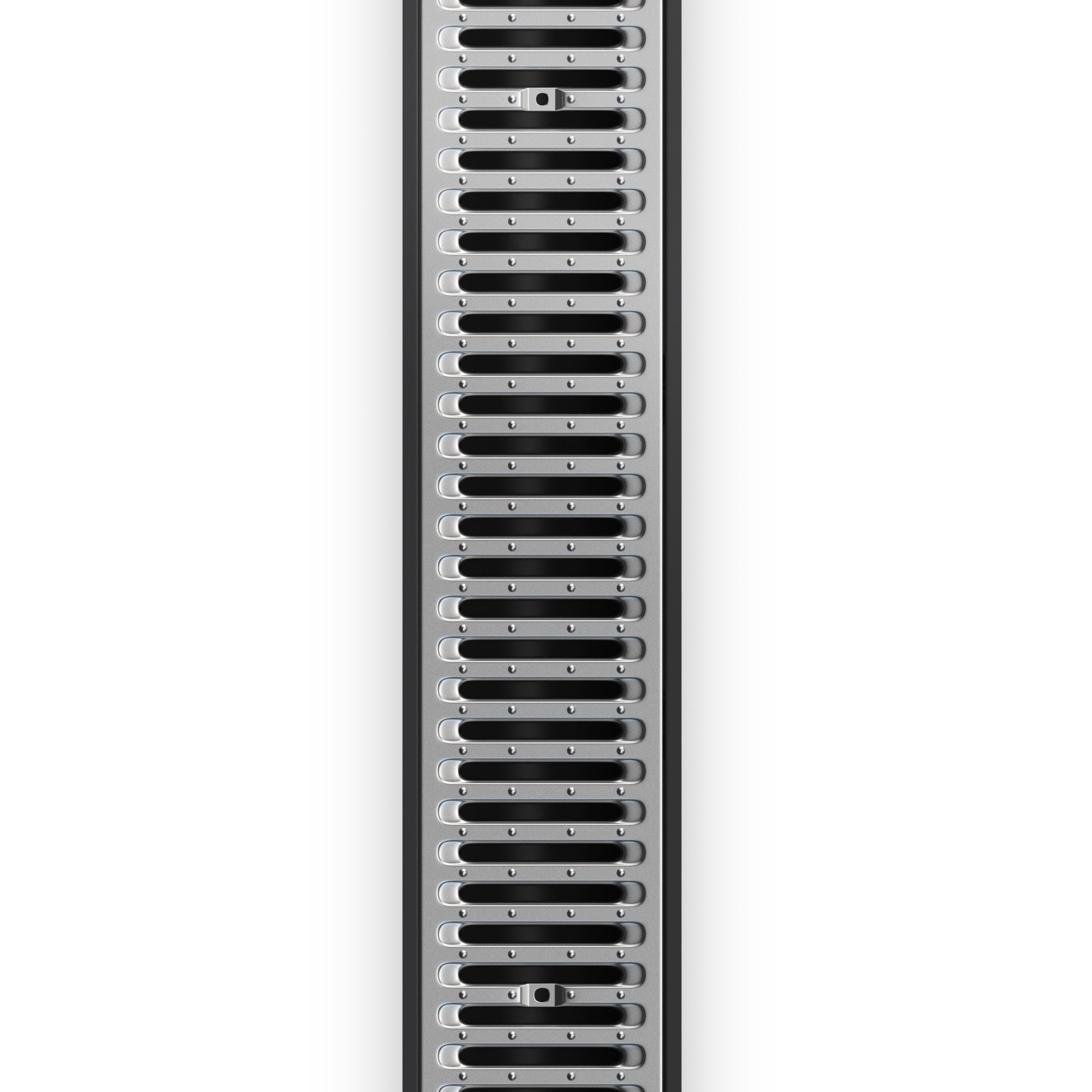

1 - Unit Galvanized Stamped Steel Grating
2 - Grating Fasteners
2 - End Caps (Per Order) - Additional end caps at checkout.
For Slope Channels – packages include 2 End Caps Per Order (one closed and one outlet)
