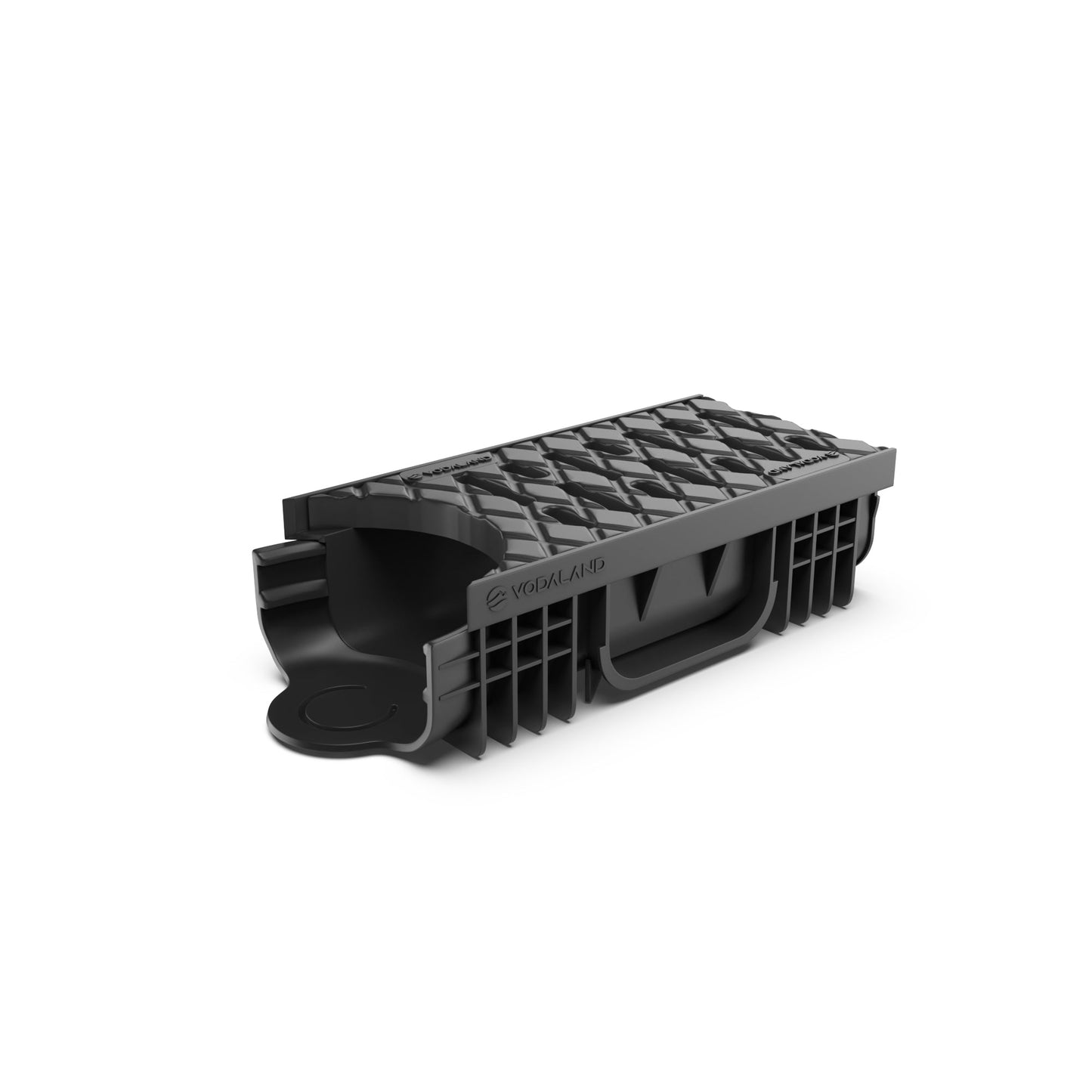

Easy Custom Curve - Gamma– User friendly and reliable

This Easy Custom Curve - Gamma is designed to be the final piece of the Easy Custom Curve system.

Key Features
 Snap and lock connection – Allows for a simple and fast installation

 Made from PPE plastic – Offers lightweight handling for easy one-person installation

 Removable grates – Gratings snap into place and are easy to remove for cleaning purposes

 A Load Classification – Suitable for pedestrian applications

 Compatible with Easy 2 Closed End cap –Allows the system to be securely closed when connection to the Easy 2 Channel System is not being used.

Expanded Product Overview:
The Easy Custom Curve - Gamma unit is the ending piece in our Custom Curve Trench drain system. One end of the Custom Curve Gamma is curved, meant to connect directly into the Custom Curve - Beta units. The opposite end is a straight edge, allowing for seamless integration with the Easy 2-Channel system or the option to cap it with a Closed End Cap to stop water flow. The Gamma unit (female end) is required at the end of any Easy Custom Curve run that will not form a complete circle. It is specifically for layouts where water flow needs to be stopped or transitioned into a straight Easy 2 channel. Designed for compatibility and secure locking on both ends, the Gamma Unit ensures a smooth, watertight transition between straight and curved components in your drainage layout.

Common Applications:
 Walkways
 Gardens
 Patios
 Court yards
 Landscaping

Technical Specifications:
 Material: PPE Plastic
 Dimensions: 11.87” X 4.87” X 3”
 Weight: 1.4 LBS
 Load Capacity: A Load Class – 3,300 LBS
 Connection type: Snap and Lock
 Color: Black
