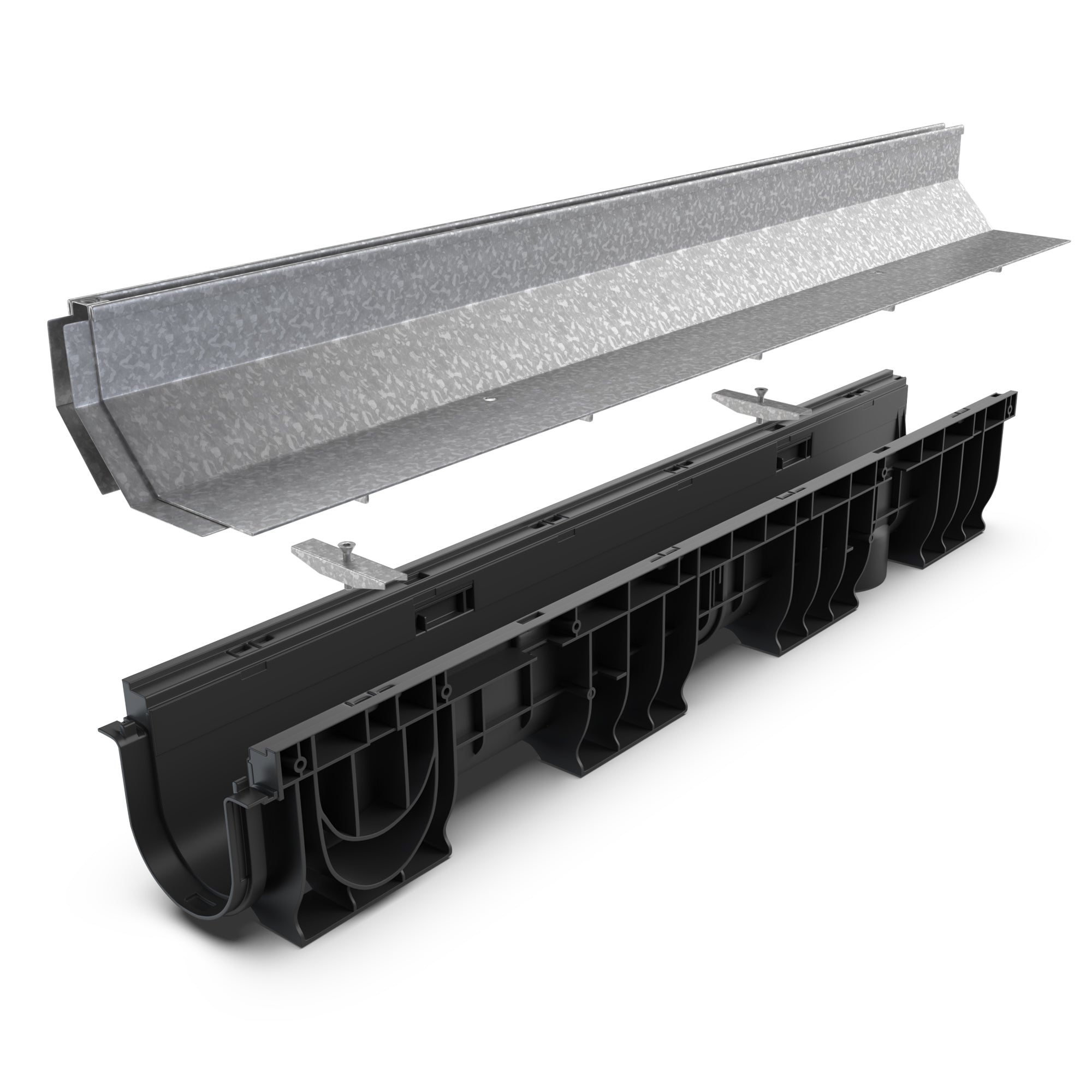

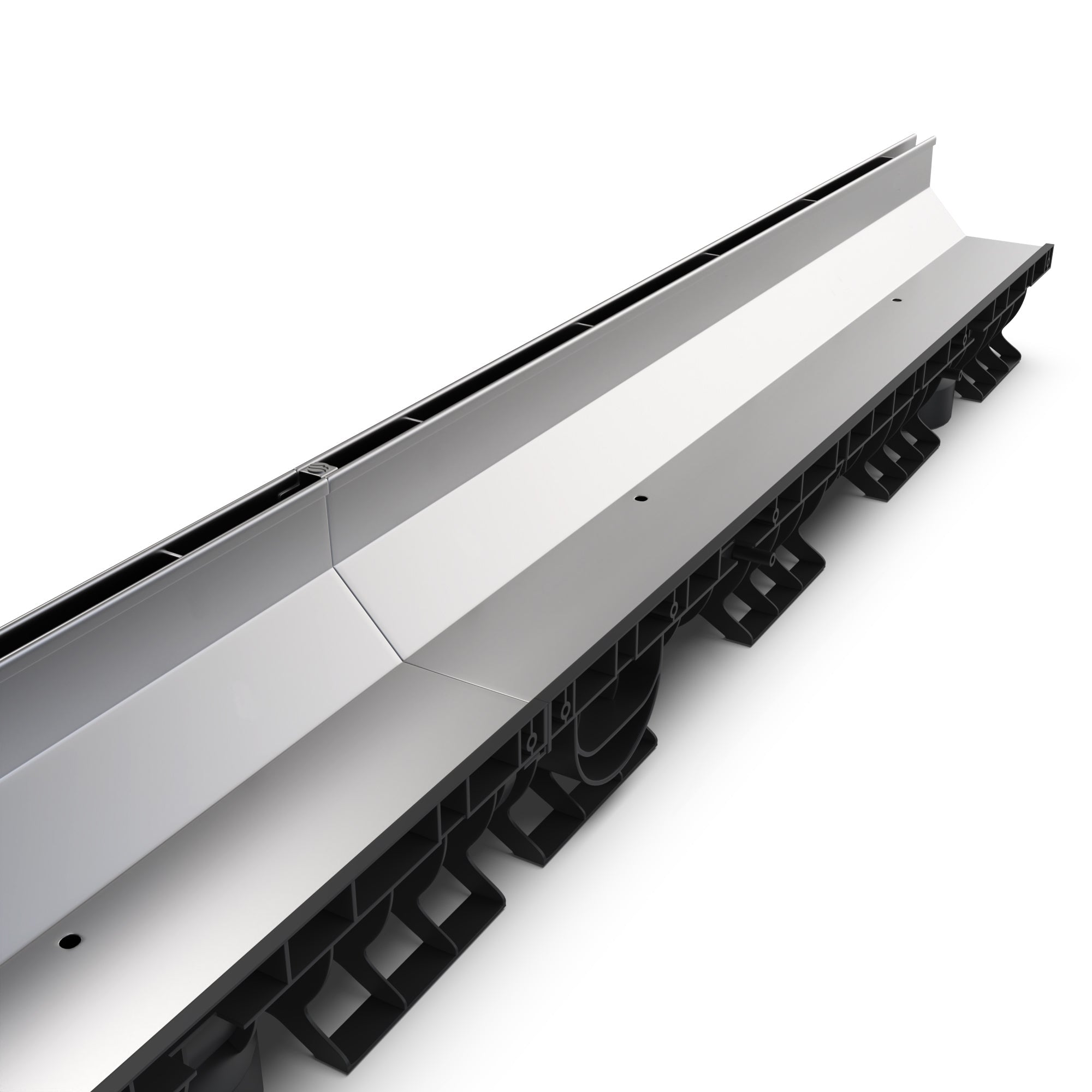

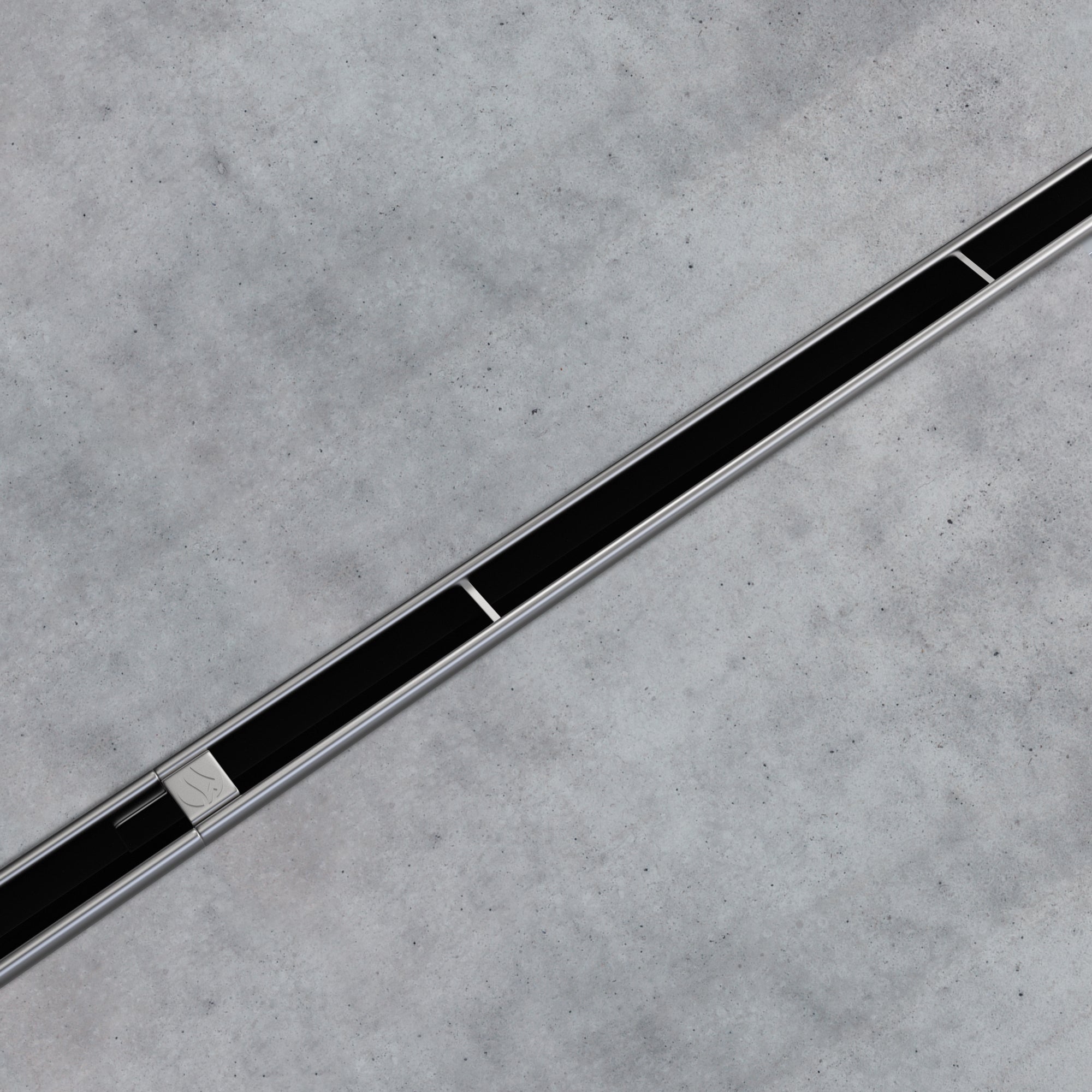

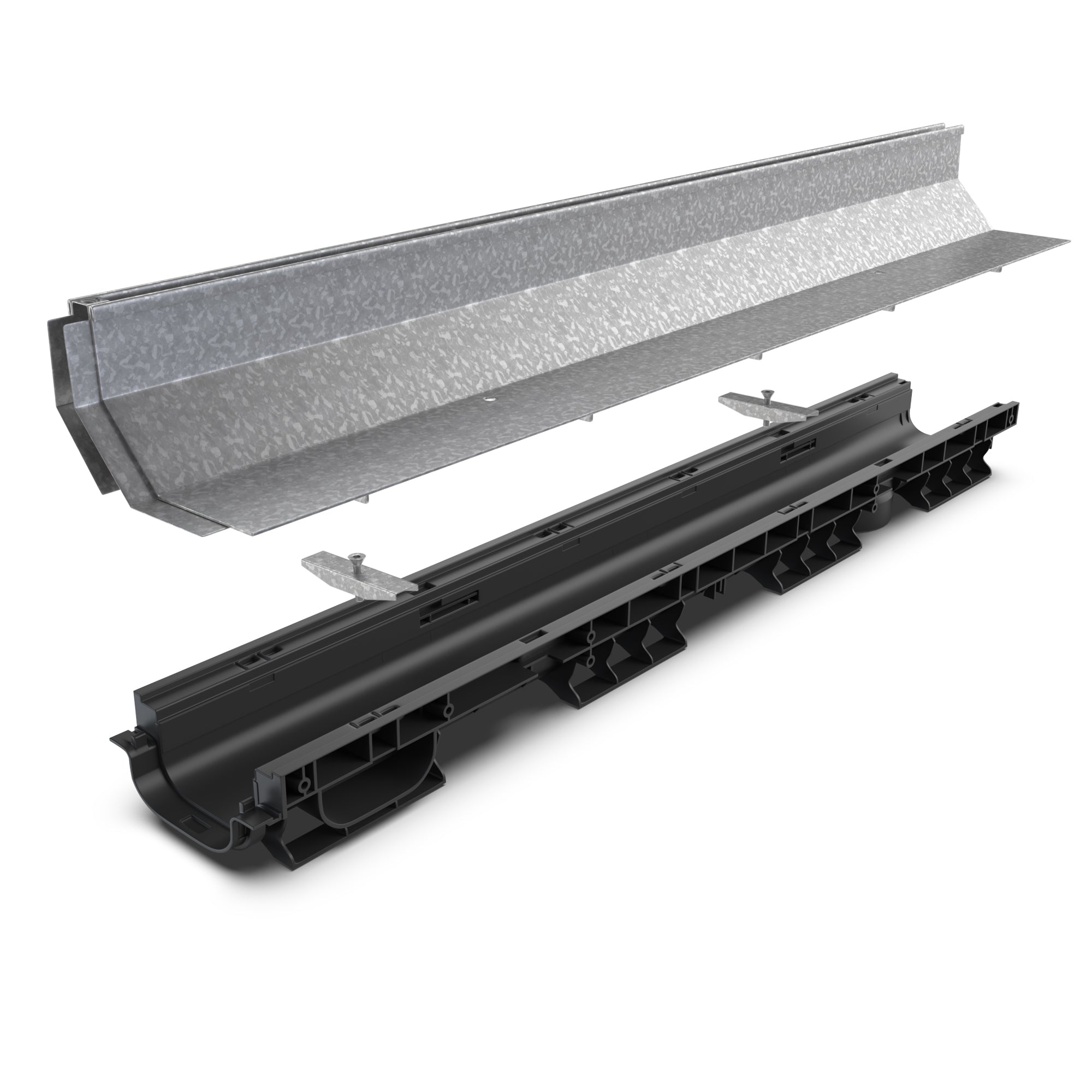

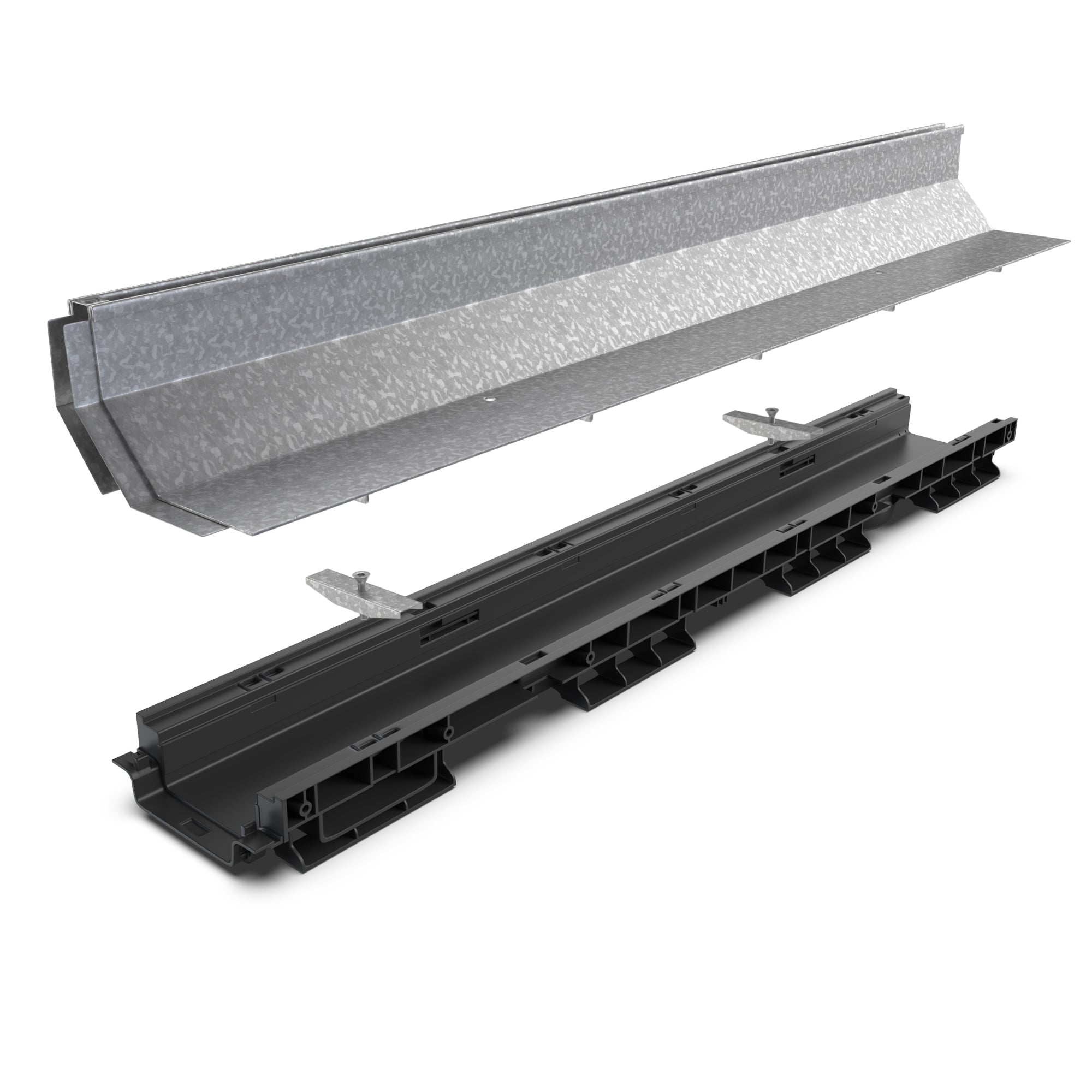

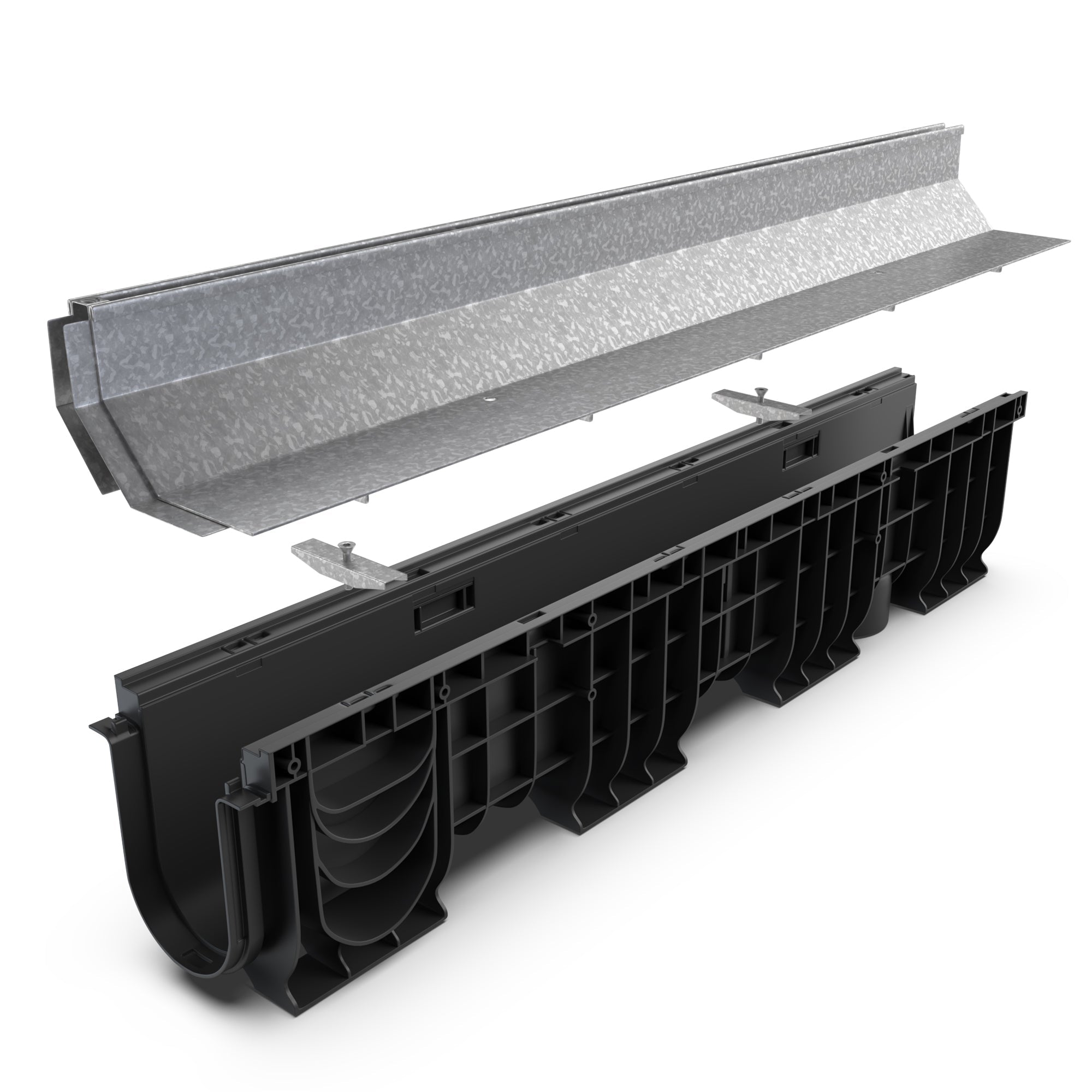

Galvanized Steel Wall Slot System
Galvanized Steel Wall Slot System
Galvanized Steel Wall Slot System
Galvanized Steel Wall Slot System
- PPE Plastic / Galvanized Steel
- 3.3' (39 Inches) - Length
- D - Class
- Patios, Porches, Driveways and more
- End Cap Options Available Below
- Trusted by 10,000+ contractors!
Product Details
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
- 4" Internal Width Micro Slot Drain System
- 5/8" Opening with multiple channel depth options
- 4" Height of slot grate from the channel
- Install up against wall or existing foundation with offset slot grate
- Excellent for paver, tile, and concrete pours
- Perfect for driveways, pools, patios and heavy traffic areas
- ADA / Heel proof cap available as addition for debris protection

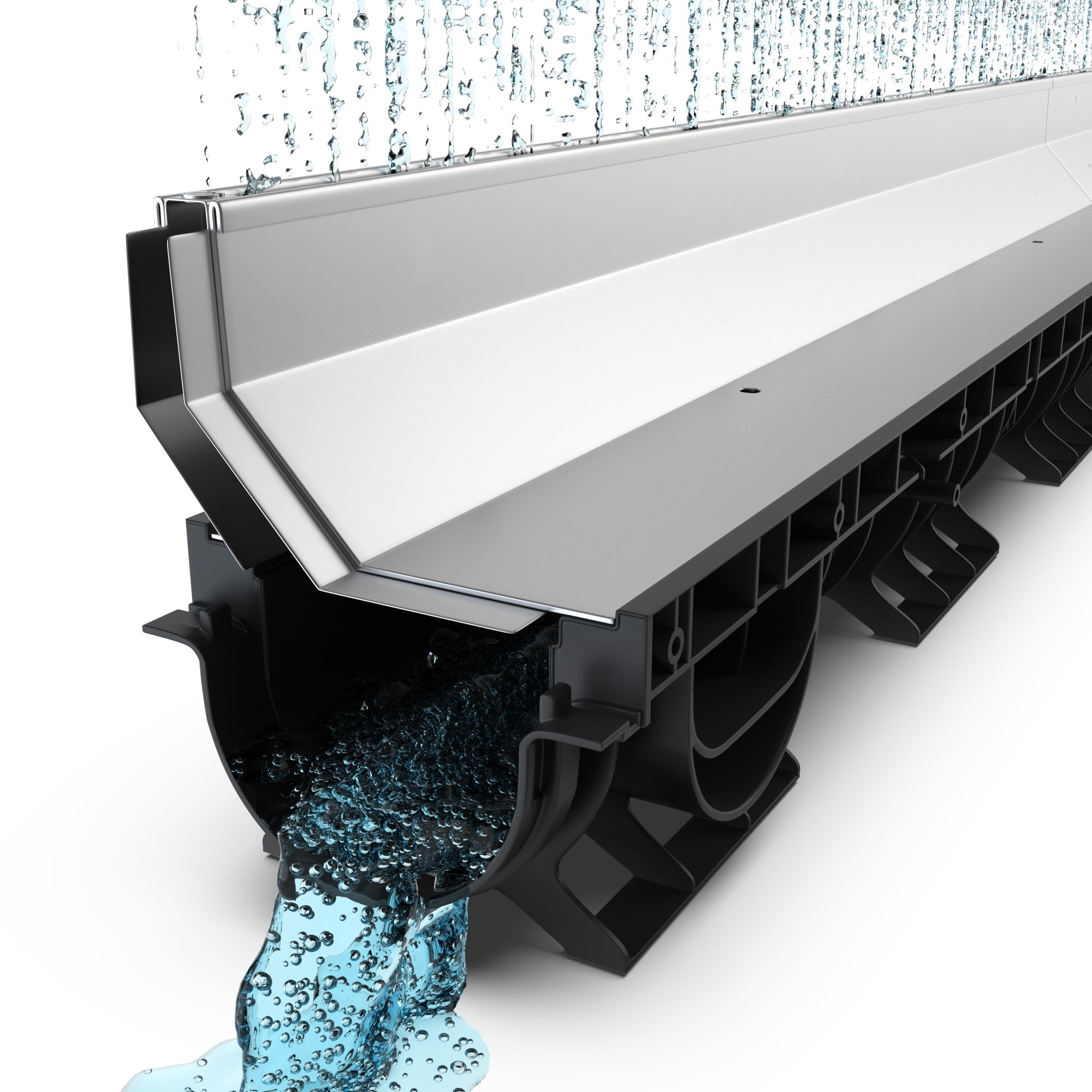

- Perfect for high water volume with little surface area coverage
INCLUDED IN PACKAGE
1 - Channel Depth of Choice
1 - Galvanized Stamped Steel WALL Slot Grating
For more product information please see product description tab above
Product Description
Product Description
Galvanized Steel Wall Slot System | A-D Load Class |
Vodaland designed the Galvanized Steel Wall Slot System to provide a perfect system that is suitable for any application that goes directly against the wall. A surface level slot drain that serves such aesthetic and modern finish making it excellent for patios, porches, and more.
Key Features:
● Galvanized Steel - Provides durability and corrosion resistance
● ADA Compliant - Ensures safety for both residential and commercial applications
● A-D Load Class Rated - Can withstand up to 89,000 LBS per EN 1433 (400KN)
● Compatible with any 4” Base Plastic Channel Drain
● Slot Grate Cover - ADA/Heel Proof cover for additional safety and debris protection
Expanded Product Overview:
The Galvanized Steel Wall Slot System is an excellent drainage system for any application that requires an offset slot grating. It allows you to have an installation against the wall, allowing you to have a modern and low profile finish. A system that offers compatibility with Vodaland’s 4” Channel Drain System. Allowing you to have options for both Pre Slope or Neutral drainage systems.
A durable system that is made out of 100% Galvanized Steel material. Perfect system for both residential and commercial applications that is also ADA compliant (American with Disabilities Act), suitable for pools, patios, walkways, and even driveway projects as it can also withstand up to 89,000 LBS (A-D Load Classification).
Common Application:
● Patios
● Porches
● Driveways
● Walkways
Technical Specifications:
● Material: Galvanized Stamped Steel Grate
● Channel Length: 3.3 FT (39 Inches)
● Slot Width: 5/8” Internal & 1” External
● Slot Grate Height: 3 ⅞” Inches
● Load Class: A-D Load Classification (per EN 1433)
