Micro Channel
- PPE Plastic
- 39 ⅝” L x 3” W x 2” H
- A-Class
- Walkways, Patios, Gardens, etc.
- More Product Information Below
At Vodaland, we ship all orders within the next business day. Our team ensures your order is packed accurately and shipped quickly.
Standard: 3–5 business days from St. Louis, MO.
Pallets: 5–7 business days, delivery scheduled by carrier.
Expedited: Next-day or 2-day shipping via FedEx Express (extra fee, weekends excluded).
Shipping costs are non-refundable.
Product Details
- PRODUCT OVERVIEW
- SPECIFICATIONS
SPECIFICATIONS
Description

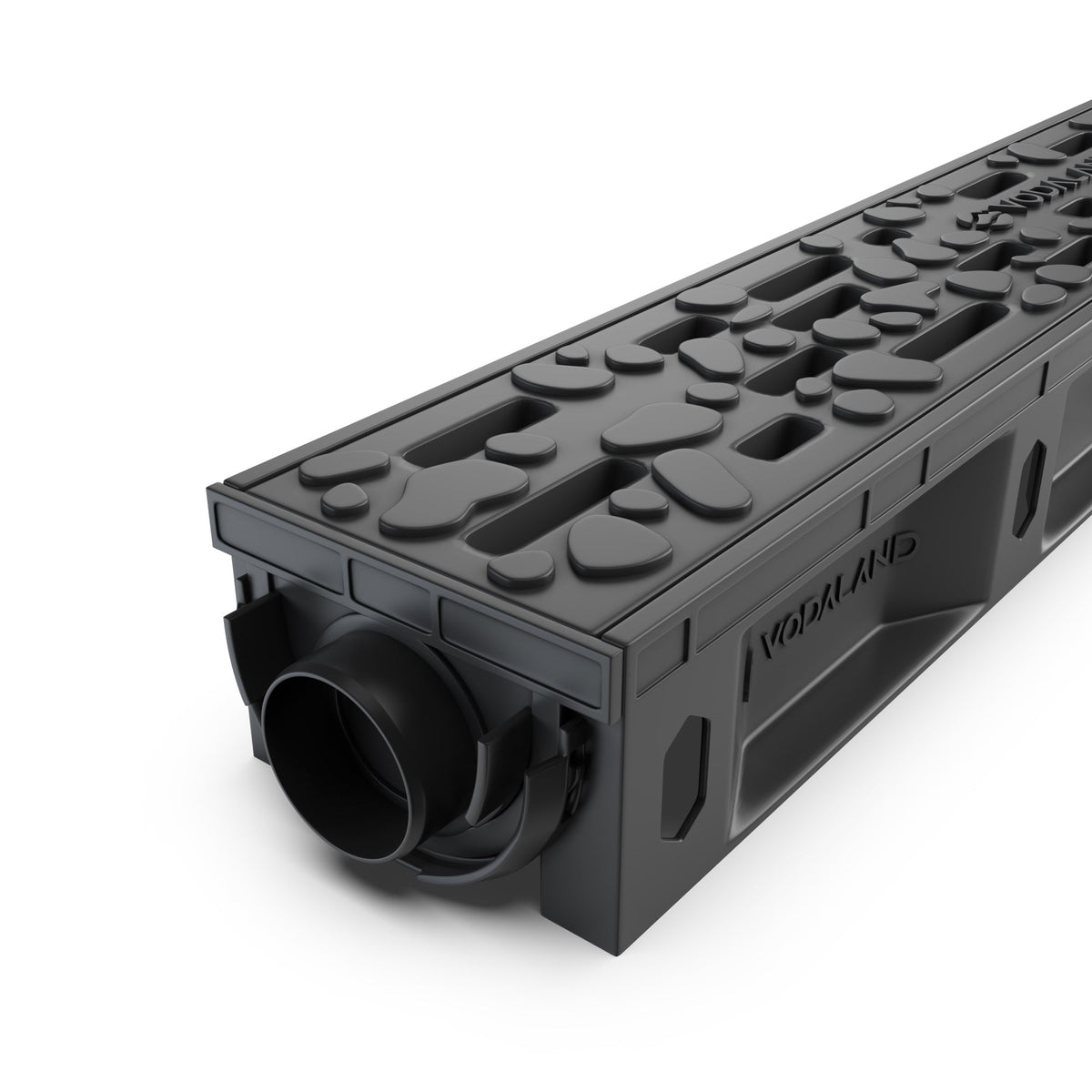

Micro Channel - Discrete Efficiency
Vodaland designed and engineered the Micro Channel to provide a drainage solution system that is easy, reliable, and suitable for all types of residential application.
Key Features:
● A-Load Classification - Suitable for pedestrian applications.

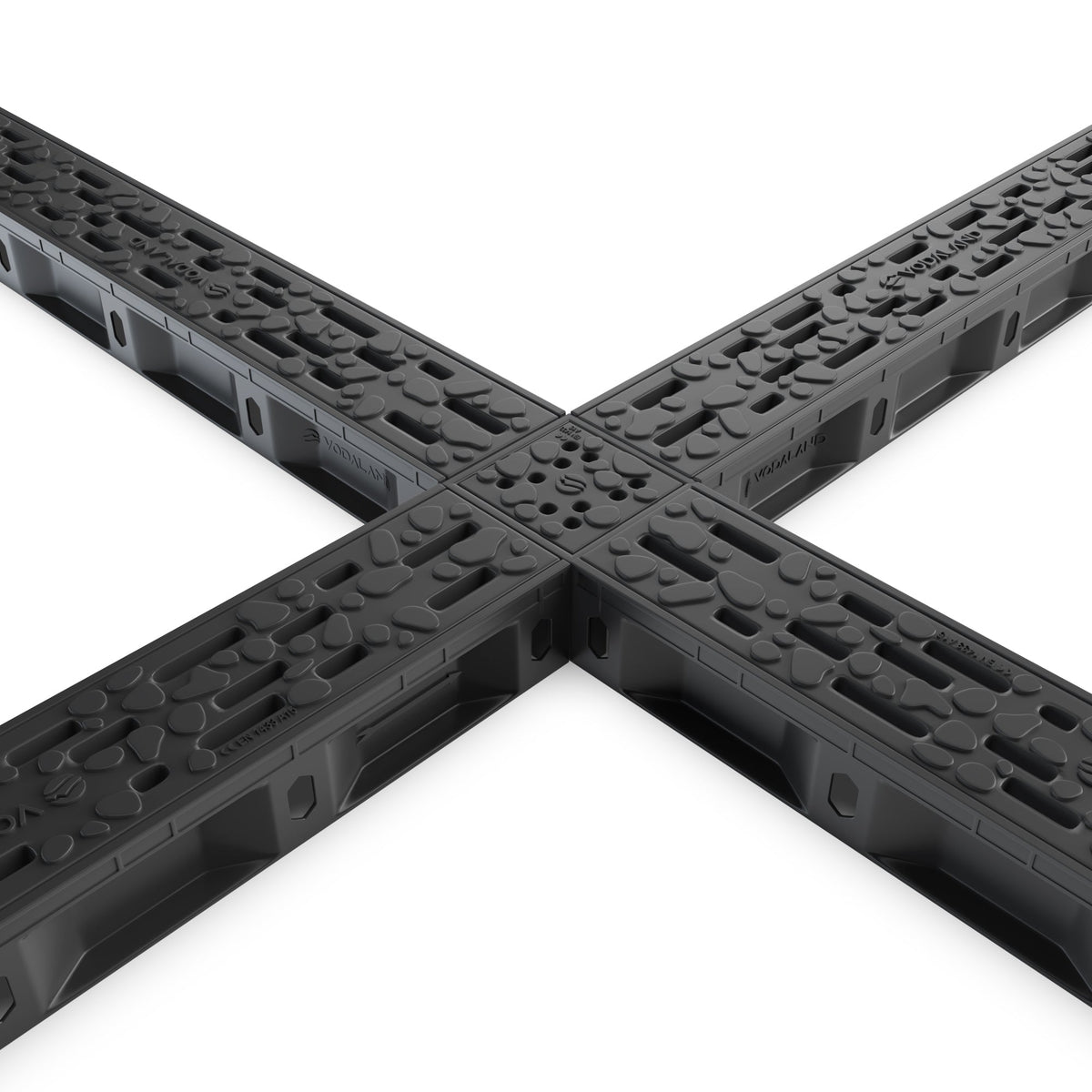

● Snap & Lock Connection - Provides an easy and fast installation.
● PPE Plastic Channel & Grate - Lightweight handling system and corrosion resistant.

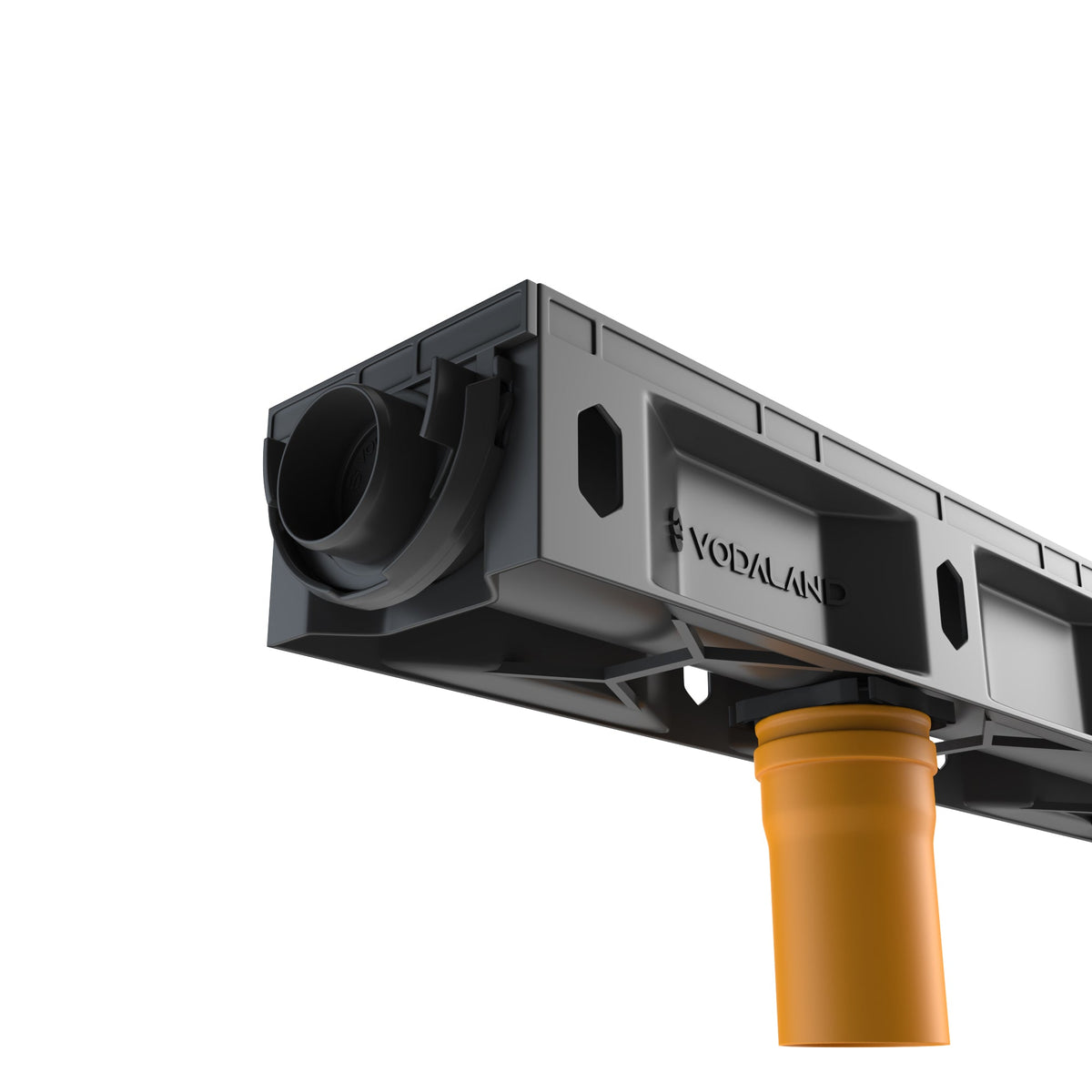

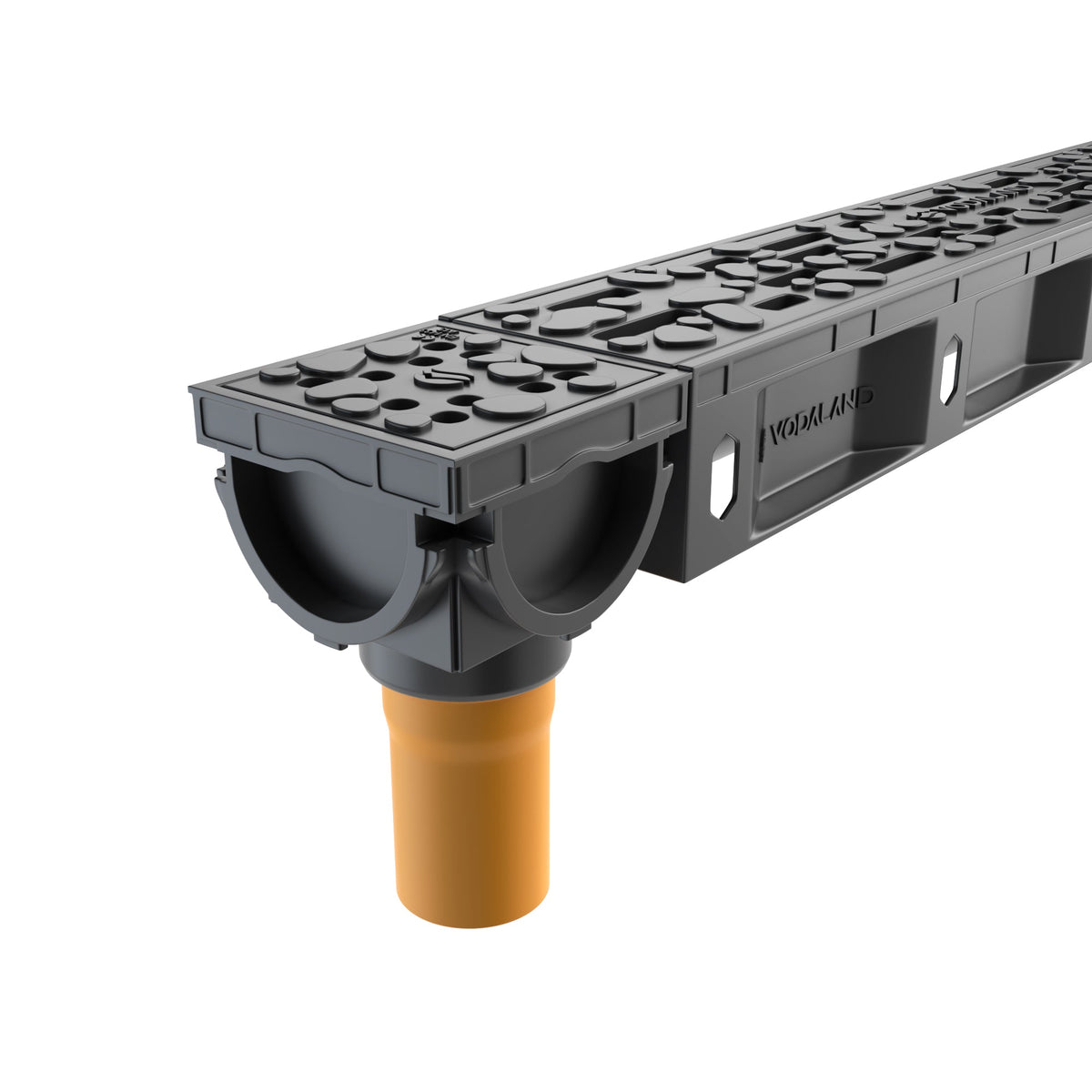

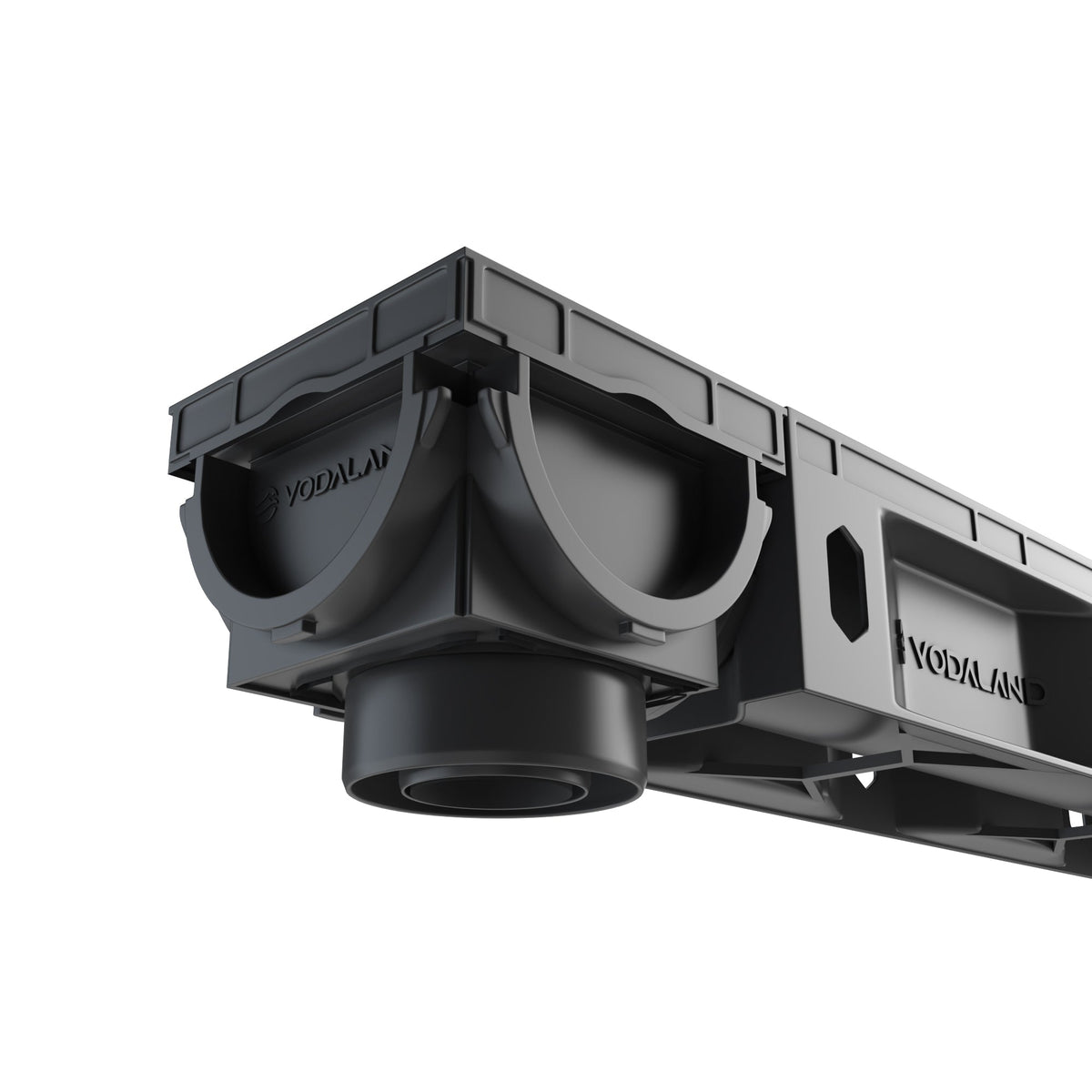

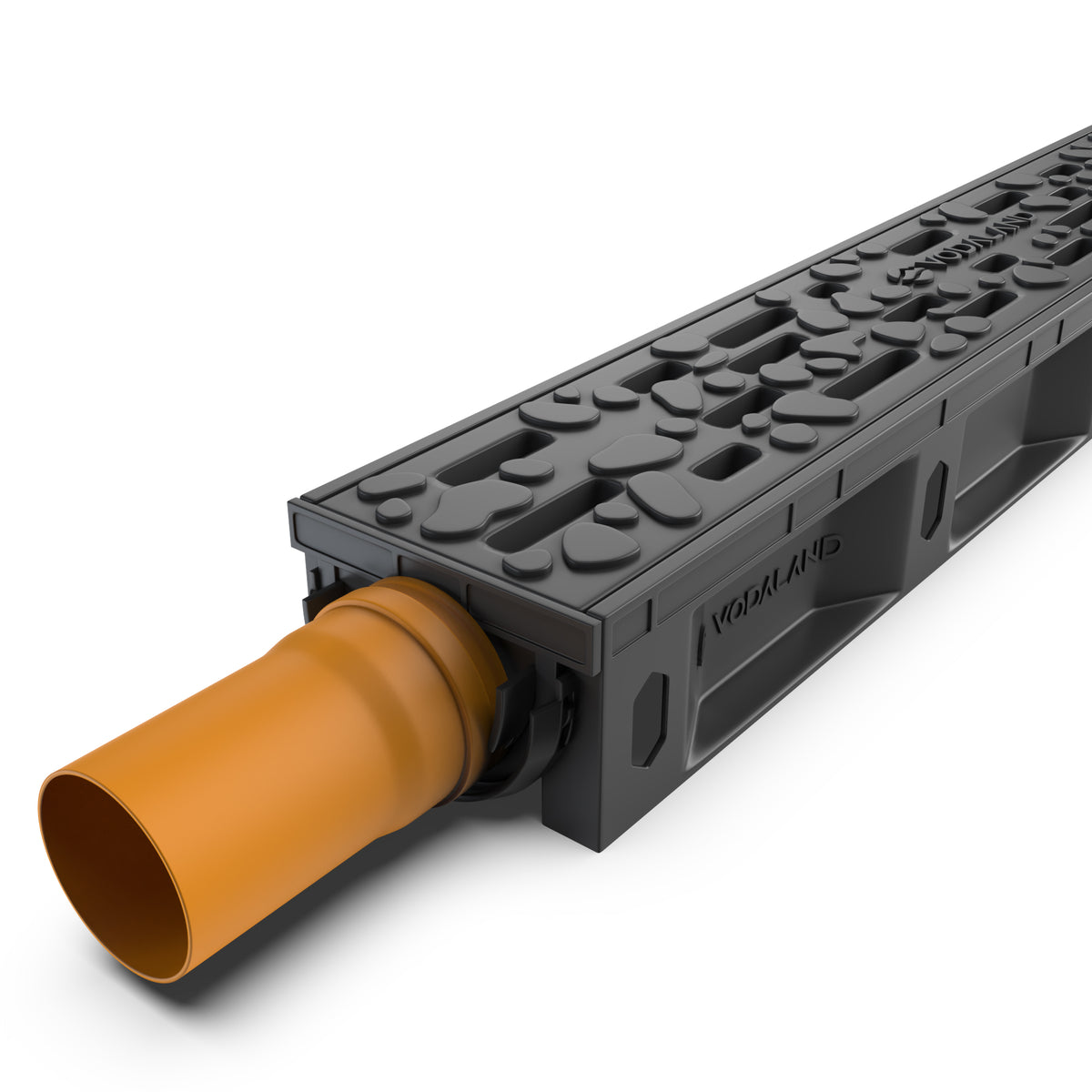

● Modular Outlets - Supports multiple pipe connections options at both ends, on either side, and bottom of the channel.
Expanded Product Overview:

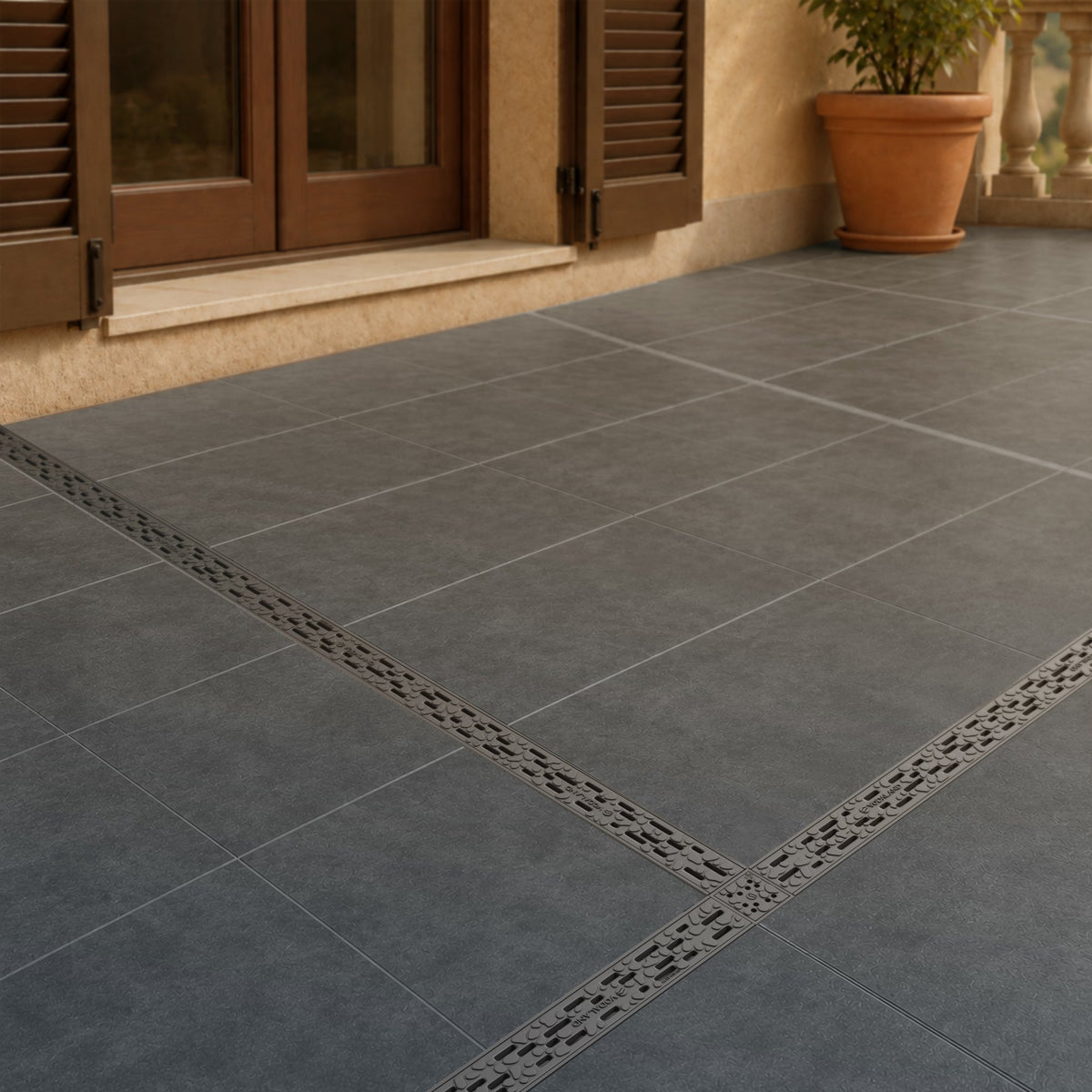

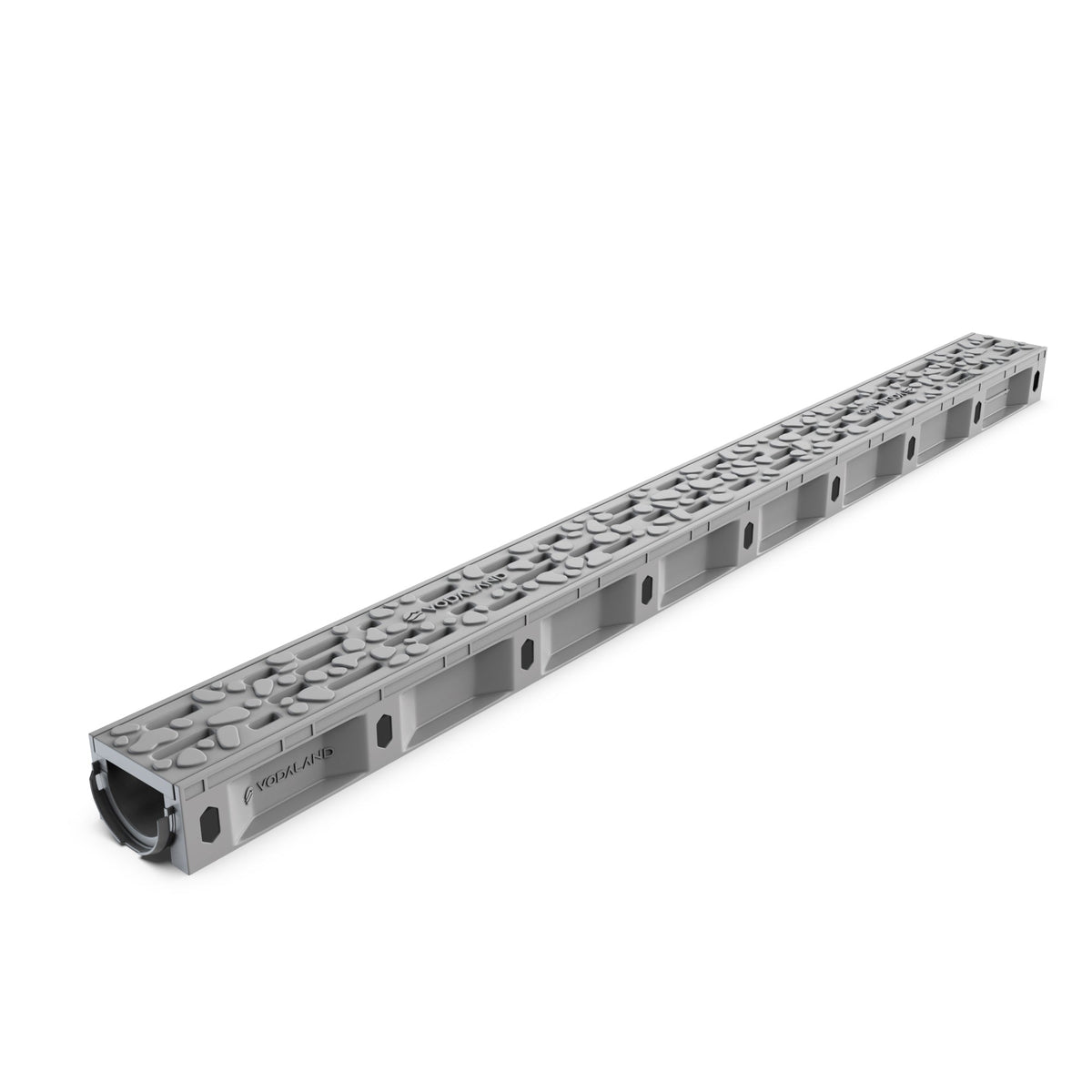

The Micro Channel is a compact channel drain system featuring a 2-inch internal width and a 3.3-foot (39-inch) length. It includes a grate made from 100% recycled PPE plastic that supports loads of up to 3,300 lbs., making it ideal for pedestrian traffic applications including pool decks, patios, gardens, walkways, and other pedestrian areas where reliable surface drainage is essential.
Common Application:
● Patios
● Gardens

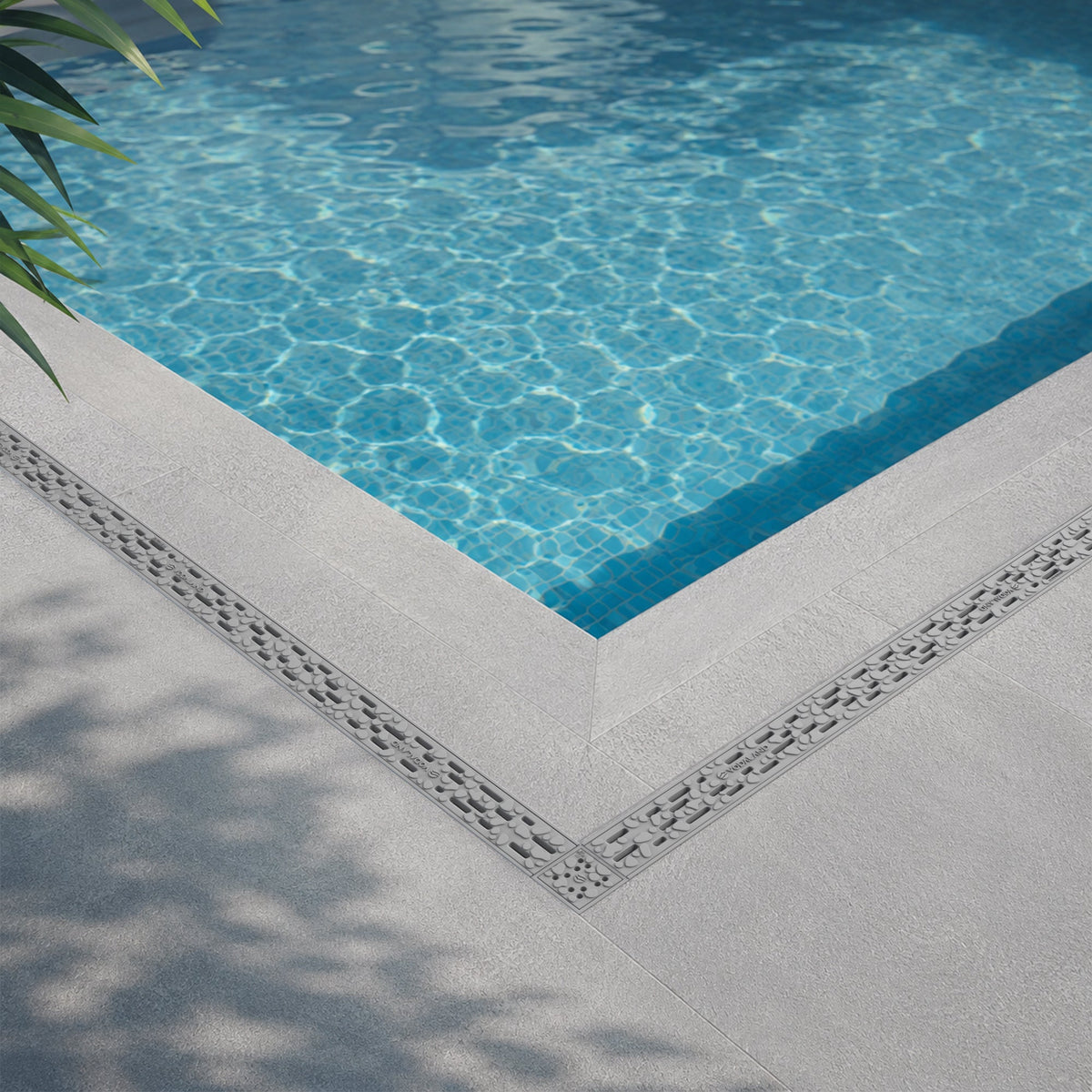

● Pool Installation
● Walkways
Technical Specifications:
● Material: PPE Plastic Channel & Grate
● Channel Length: 3.3 FT (39 Inches)
● Channel Width: 2” Internal &3” External
● Weight: 1.83 LBS
● Load Class: A Load Rate - 3,300 LBS

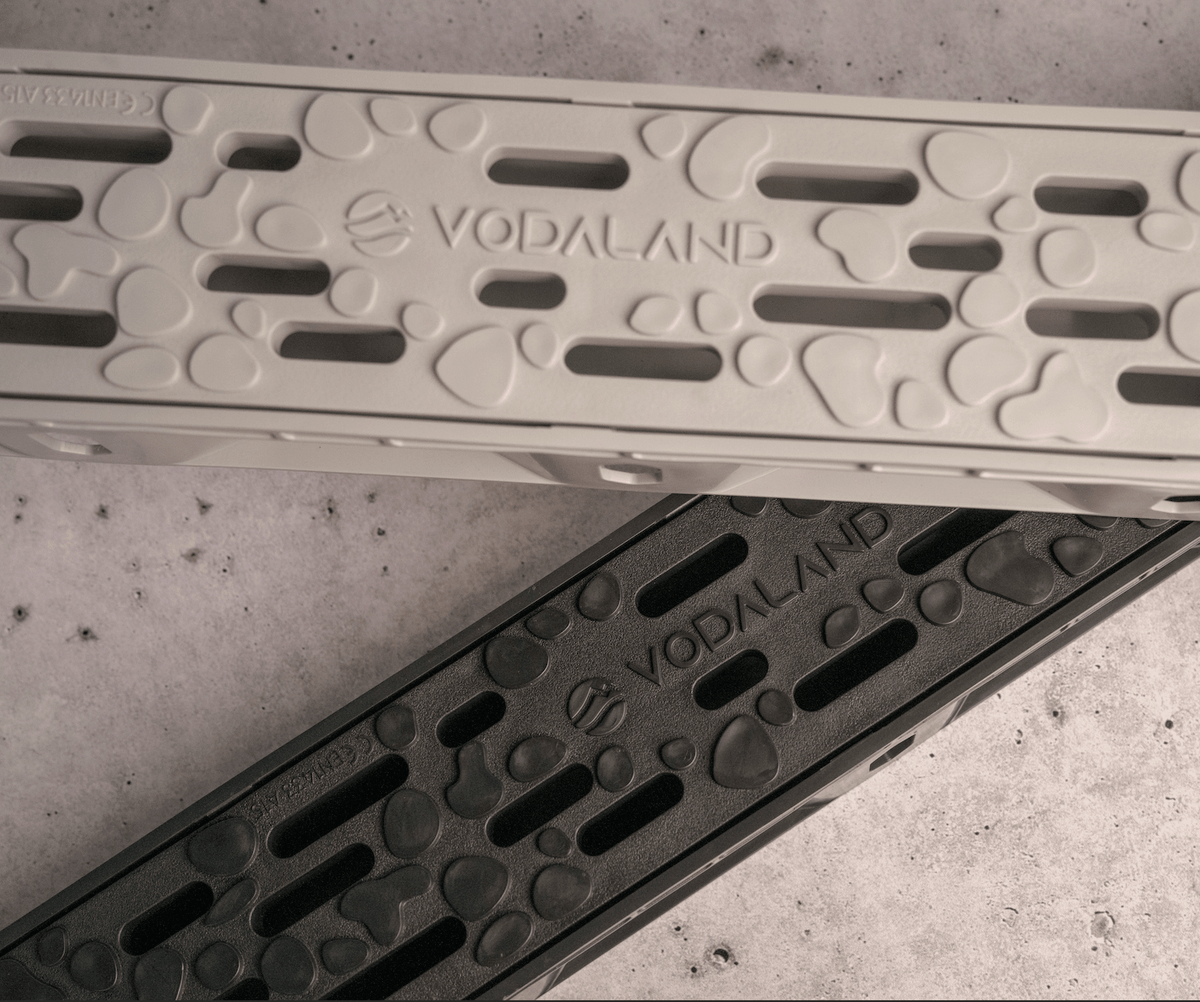

● Color: Black, Gray, or Green
Technical Resources: Load Class Compliance
