Specifications and Downloads
- 4" Internal trench drain system

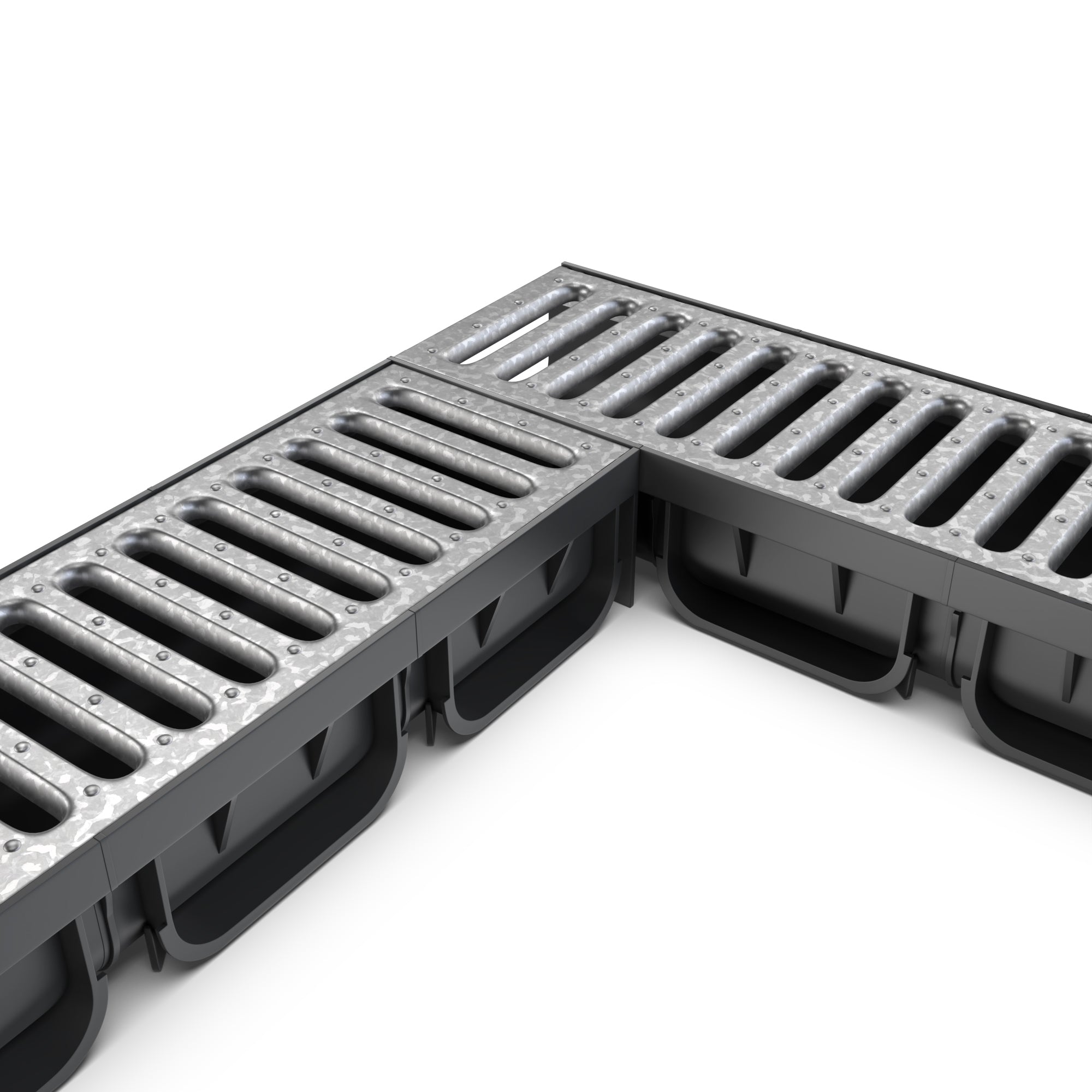

- Connect 90 degree without adapters anywhere on the system

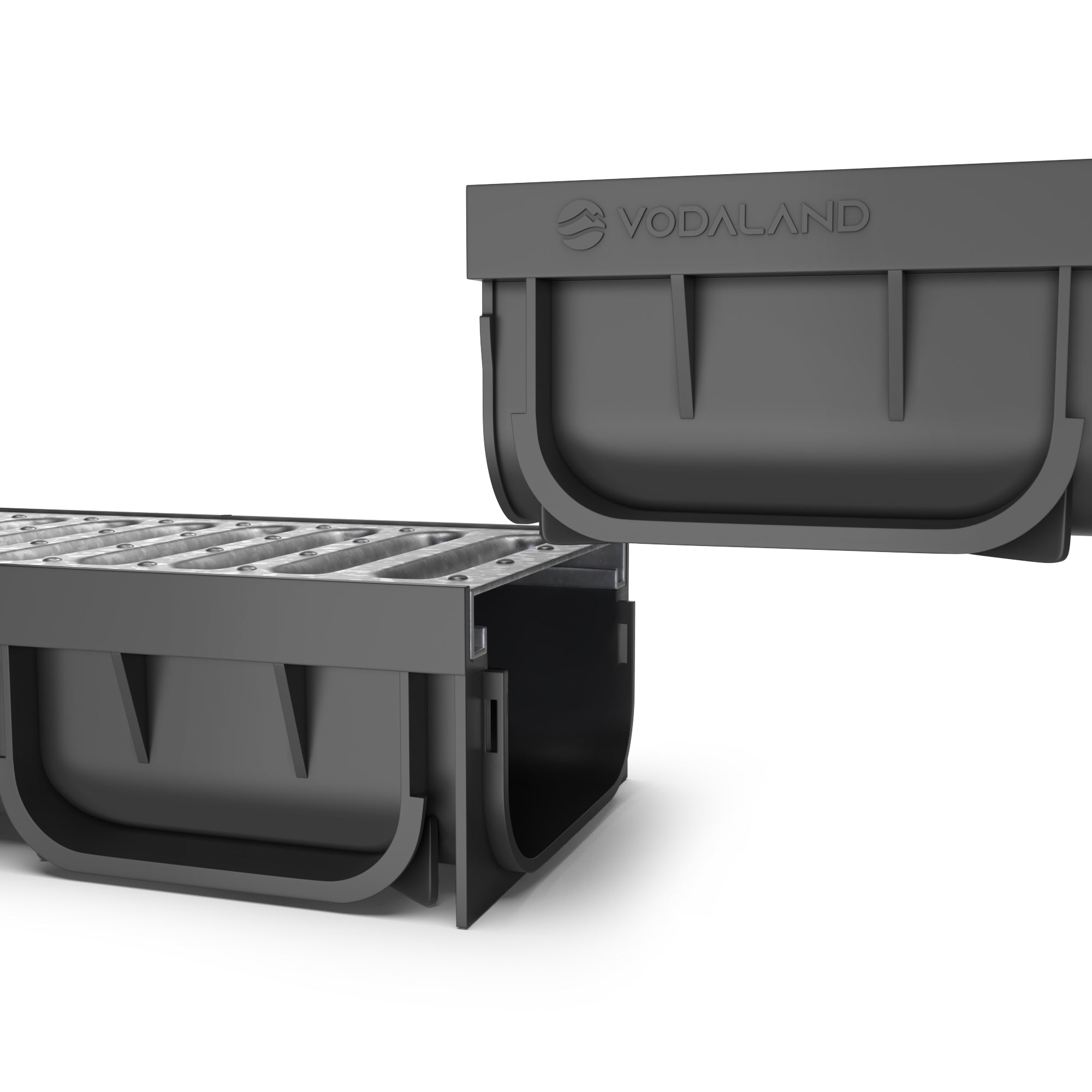

- Snap and lock connection for channel to channel lock

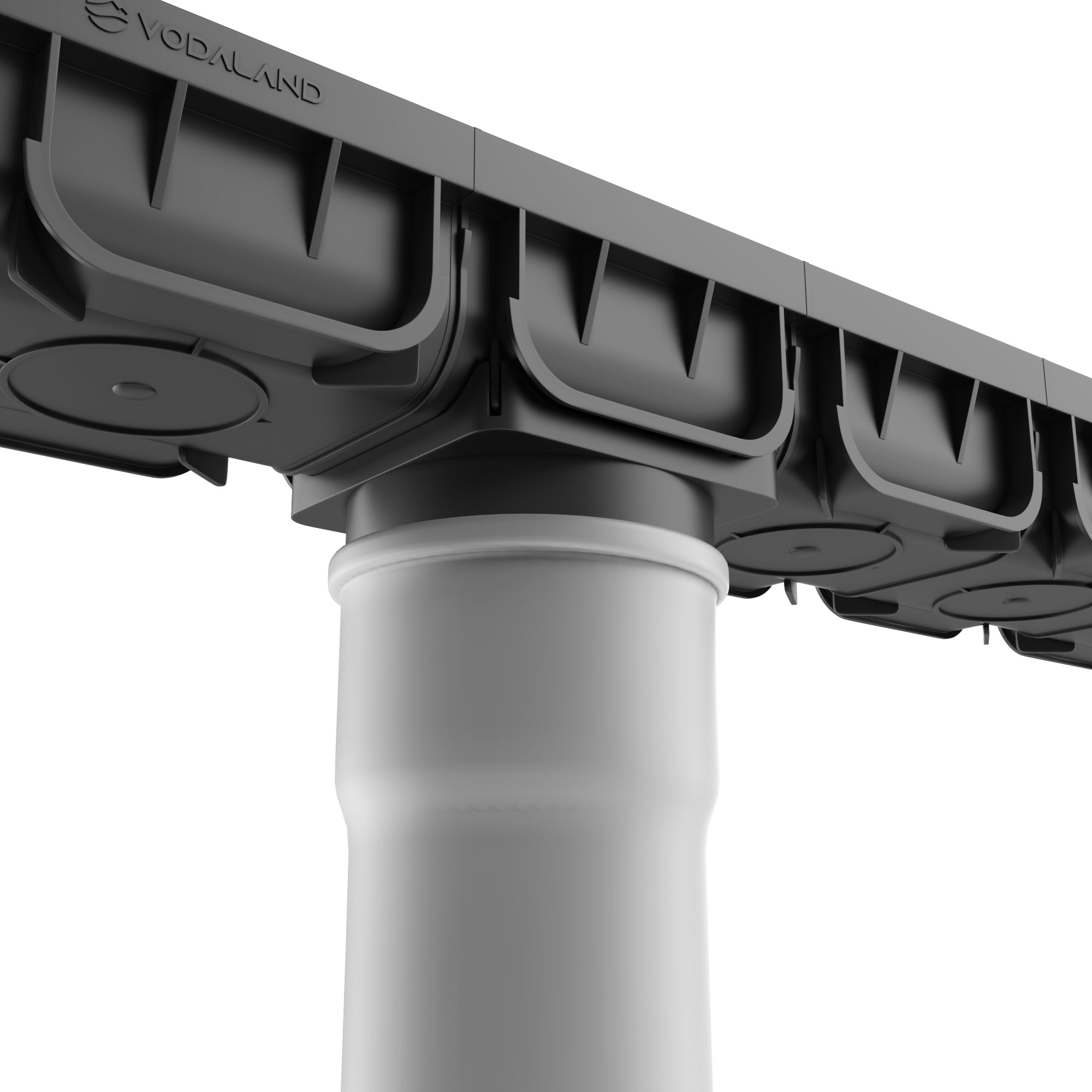

- 4" Bottom outlet connection included in packages
- Gratings remove and snap in easily for easy access
- Pedestrian rated system
- More product information below
Product Description

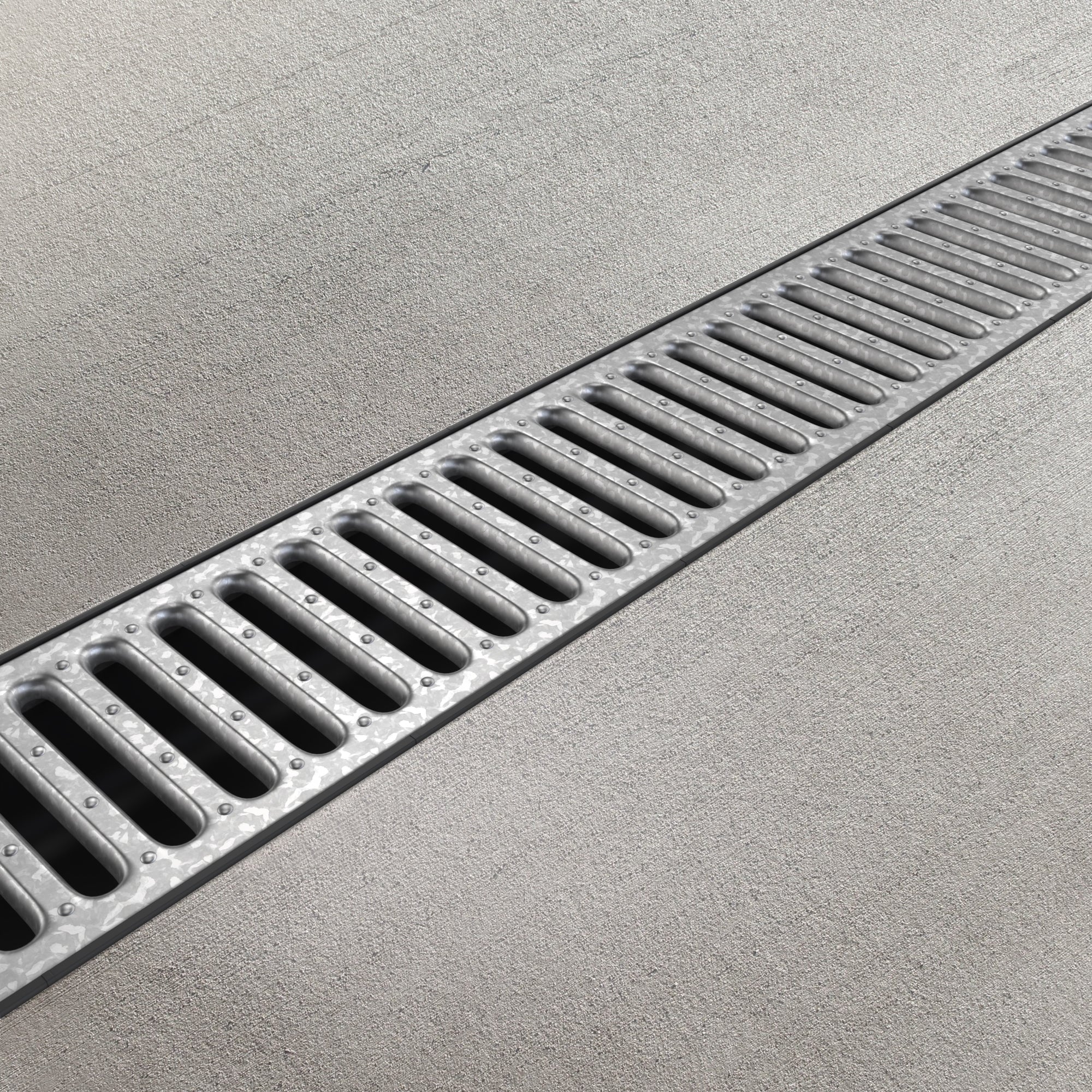

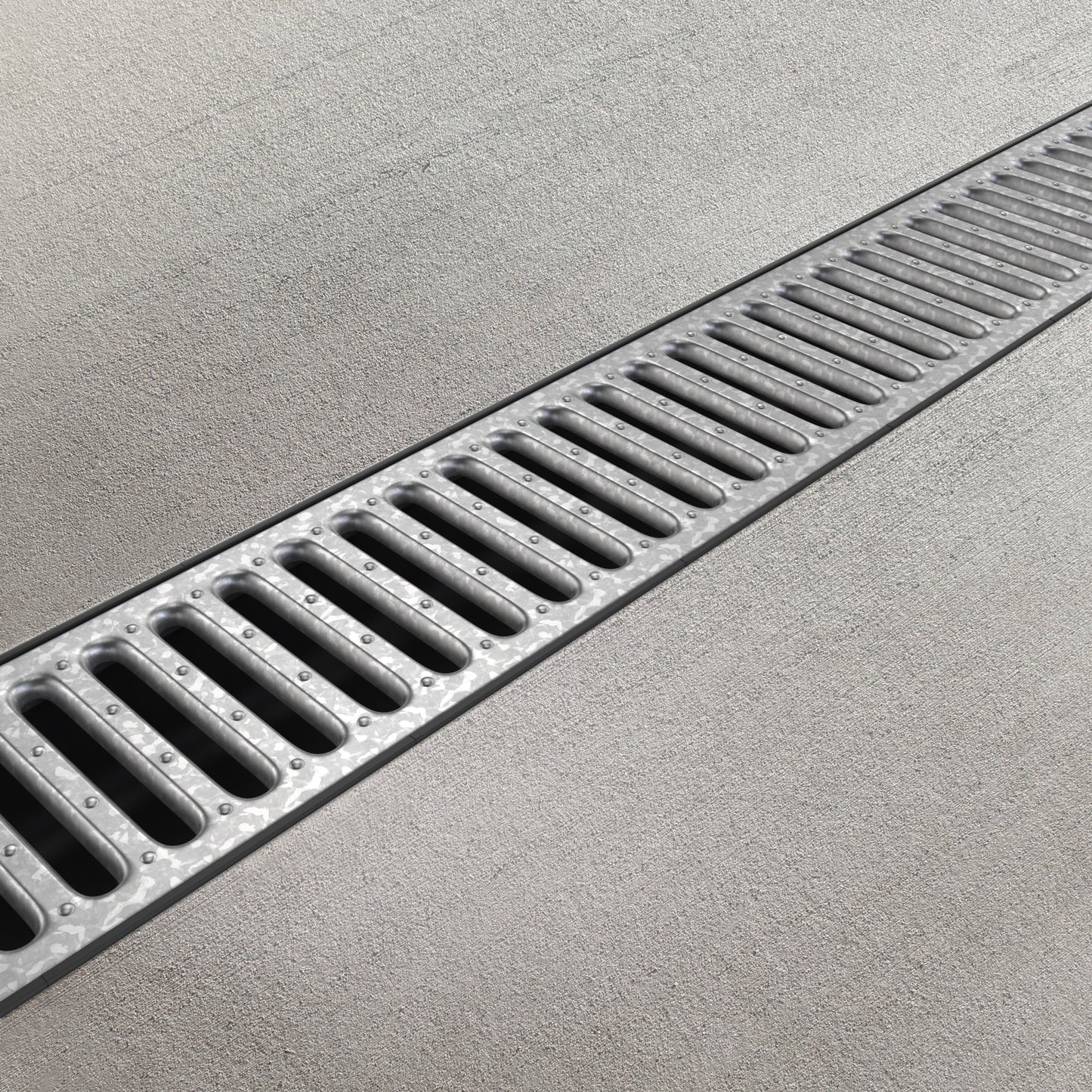

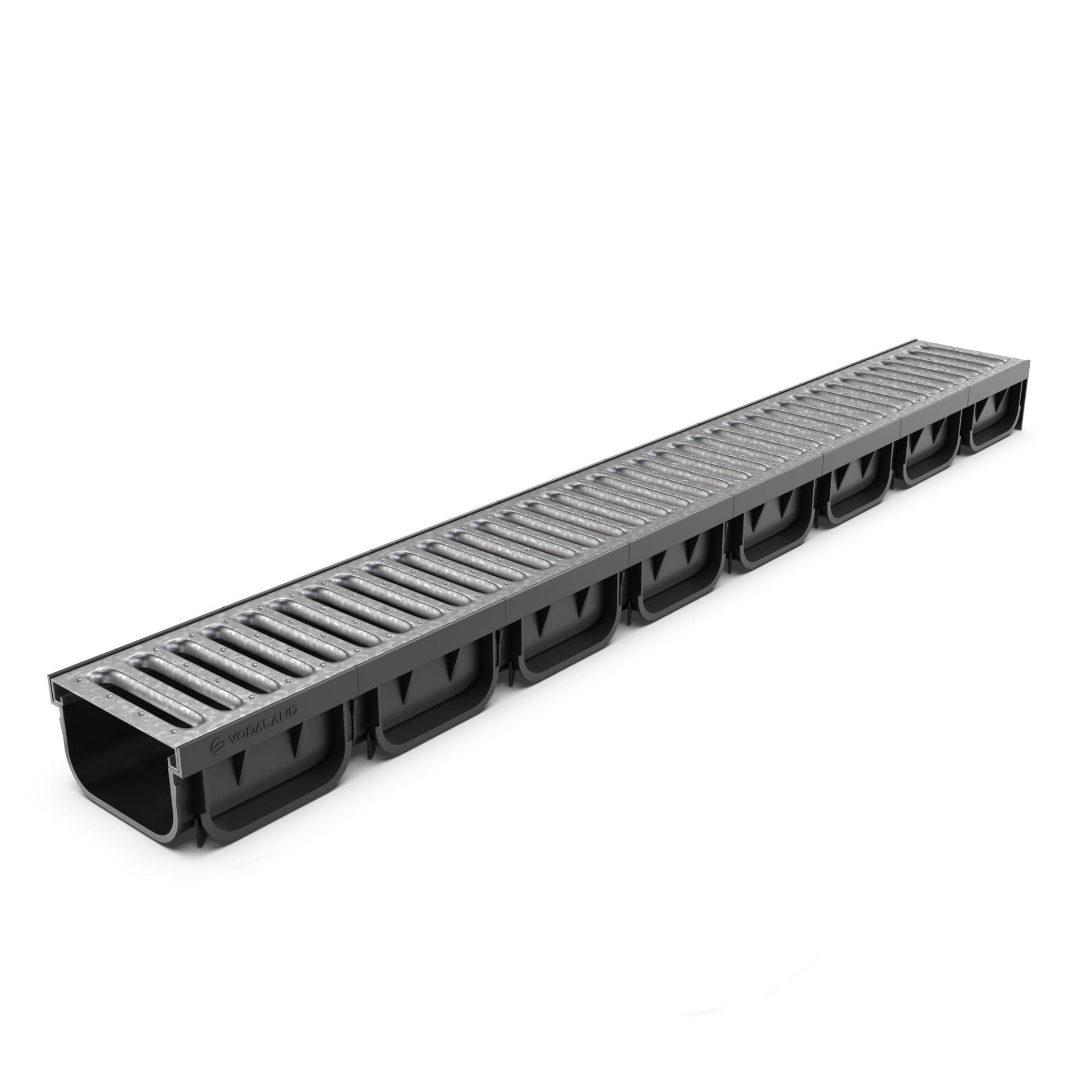

Easy 1 Premium Channels come with galvanized stamped steel grating. The grating is fastened in with custom screws in the grate for a secure hold to the channel. The channels are designed with a snap and lock connection end to end. Come with 2 end caps per package. Channels also have a 90 degree turn knockout on EACH end of the channel. No need to purchase adapters.
PARAMETERS
Article ........... 8801011
Material ........ PPE Plastic
Dimensions .. 39.4"L x 4.9"W x 2.75"H
Weight .......... 5.5 LBS
Load Class ... A 15 - 3,300 LBS
INCLUDED IN PACKAGE
Easy 2 Channels
2 - End Caps
1 - Easy Bottom Outlet Nozzle (in multiple drain packages only)
