Stainless Steel Wall Slot System
- PPE Plastic / 304 Stainless Steel
- 3.3' (39 Inches) - Length
- A-D Load Class
- Pool Side, Patios, Porches and more
- End Cap Options Available Below
At Vodaland, we ship all orders within one business day. Our team ensures your order is packed accurately and shipped quickly.
Standard: 3–5 business days from St. Louis, MO.
Pallets: 5–7 business days, delivery scheduled by carrier.
Expedited: Next-day or 2-day shipping via FedEx Express (extra fee, weekends excluded).
Closed End Caps
$12.00
Outlet End Caps
$14.00
Closed End Caps
$12.00
Outlet End Caps
$14.00
Closed End Caps
$12.00
Outlet End Caps
$17.00
Closed End Caps
$12.00
Outlet End Caps
$17.00
Closed End Caps
$12.00
Outlet End Caps
$17.00
Closed End Caps
$12.00
Outlet End Caps
$20.00
Closed End Caps
$12.00
Outlet End Caps
$20.00
Closed End Caps
$12.00
Outlet End Caps
$20.00
Closed End Caps
$12.00
Outlet End Caps
$20.00
Closed End Caps
$12.00
Outlet End Caps
$20.00
Closed End Caps
$12.00
Outlet End Caps
$20.00
Closed End Caps
$12.00
Outlet End Caps
$20.00
Closed End Caps
$12.00
Outlet End Caps
$20.00
Closed End Caps
$12.00
Outlet End Caps
$20.00
Closed End Caps
$12.00
Outlet End Caps
$20.00
Closed End Caps
$12.00
Outlet End Caps
$14.00
Bottom outlet adapter
$14.00
Closed End Caps
$12.00
Outlet End Caps
$14.00
Bottom outlet adapter
$14.00
Closed End Caps
$12.00
Outlet End Caps
$17.00
Outlet End Caps
$12.00
Closed End Caps
$12.00
Outlet End Caps
$12.00
×
Customer Photos
See how our customers have implemented our drainage solutions in their projects. These real-world examples showcase the versatility and effectiveness of our products.
Stainless Steel Wall Slot System
Sale price$318.00
Product Details
- PRODUCT OVERVIEW
- SPECIFICATIONS
- INSTALLATION VIDEOS
SPECIFICATIONS
Description
Stainless Steel Wall Slot System | A-D Load Class |

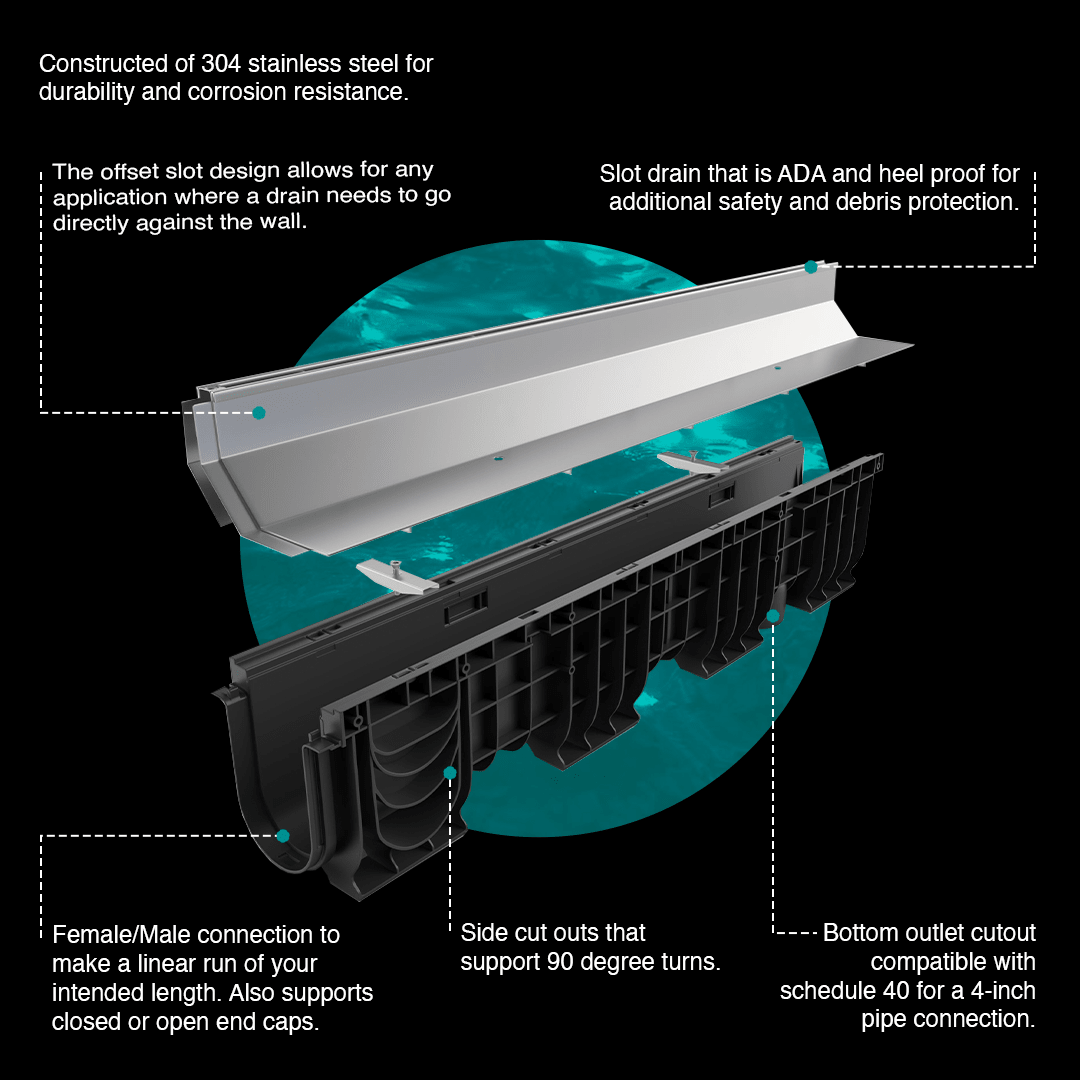

Vodaland designed the Stainless Steel Wall Slot System to provide a perfect system that is suitable for any application that goes directly against the wall. A surface level slot drain system that serves such aesthetic and modern finish making it excellent for pool side, patios, porches, and more.
Key Features:
● 304-Grade Stainless Steel - Provides durability and corrosion resistance.
● A-D Load Class Rated - Can withstand up to 89,000 LBS per EN 1433 (400KN).
● Compatible with any 4” Base Plastic Channel Drain.
● Slot Grate Cover - ADA/Heel Proof cover for additional safety and debris protection.
Expanded Product Overview:
The Stainless Steel Wall Slot System is an excellent slot drainage system for any application that requires an offset slot grating. It allows you to have an installation against the wall, allowing you to have a modern and low profile finish. A stainless steel slot drain system that offers compatibility with Vodaland’s 4” Channel Drain System. Allowing you to have options for both Pre Slope or Neutral drainage systems.
A durable and chemical resistance system that is made out of 100% 304-Grade Stainless Steel material. Perfect system for both residential and commercial applications, suitable for pools, patios, walkways, and even driveway projects as it can also withstand up to 89,000 LBS (A-D Load Classification).
Common Application:
● Patios
● Pool
● Porches
● Driveways
● Any Commercial Application
Technical Specifications:
● Material: 304-Grade Stainless Steel Grate
● Channel Length: 3.3 FT (39 Inches)
● Slot Width: ⅝” Internal & 1” External
● Slot Grate Height: 3 ⅞” Inches
● Load Class: A-D Load Classification (per EN 1433)
Technical Resources: Load Class Compliance
Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
DOWNLOADS
Downloads
Document
PDF
DWG
BIM
INSTALLATION VIDEOS
Installation Videos
Wall Slot Installation
Wall Slot Tile Installation
Channel Body Overview
Overall rating: 5.0 / 5 from 20 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Nice material to work with.
"Nice material to work with."
Best track drain I’ve used.
"Great Product Impeccable service"
Wonderful product
"Wonderful product"
Excellent product
"Excellent product"
great product
"great product"
Slot drains
"Slot drains assembled really well, couldn’t be more pleased!"
On time
"On time"
Great quality, and easy to
"Great quality, and easy to install"
Very good
"Very good"
Q&A
- can this drain be used set in a concrete pour
- Hi Ted, Thank you for reaching out. As with all of our drains, we do recommend a concrete installation to fully secure the drains and keep them in place. If you have any questions or need anything else, feel free to reach out.
- Hi I have some questions with you wall slot system. I was wondering If I sent you my landscaping plans could you help get me the parts and pieces I need to make this work?
- Hello Nick, Thank you for reaching out. We are more than happy to assist you with anything that you may need for your application with the Wall Slot System. We can provide you with the specification, installation guide, layout plan or a quote based on your project plan if needed. Feel free to contact us at 314-717-1551 or at Info@vodaland-usa.com.
