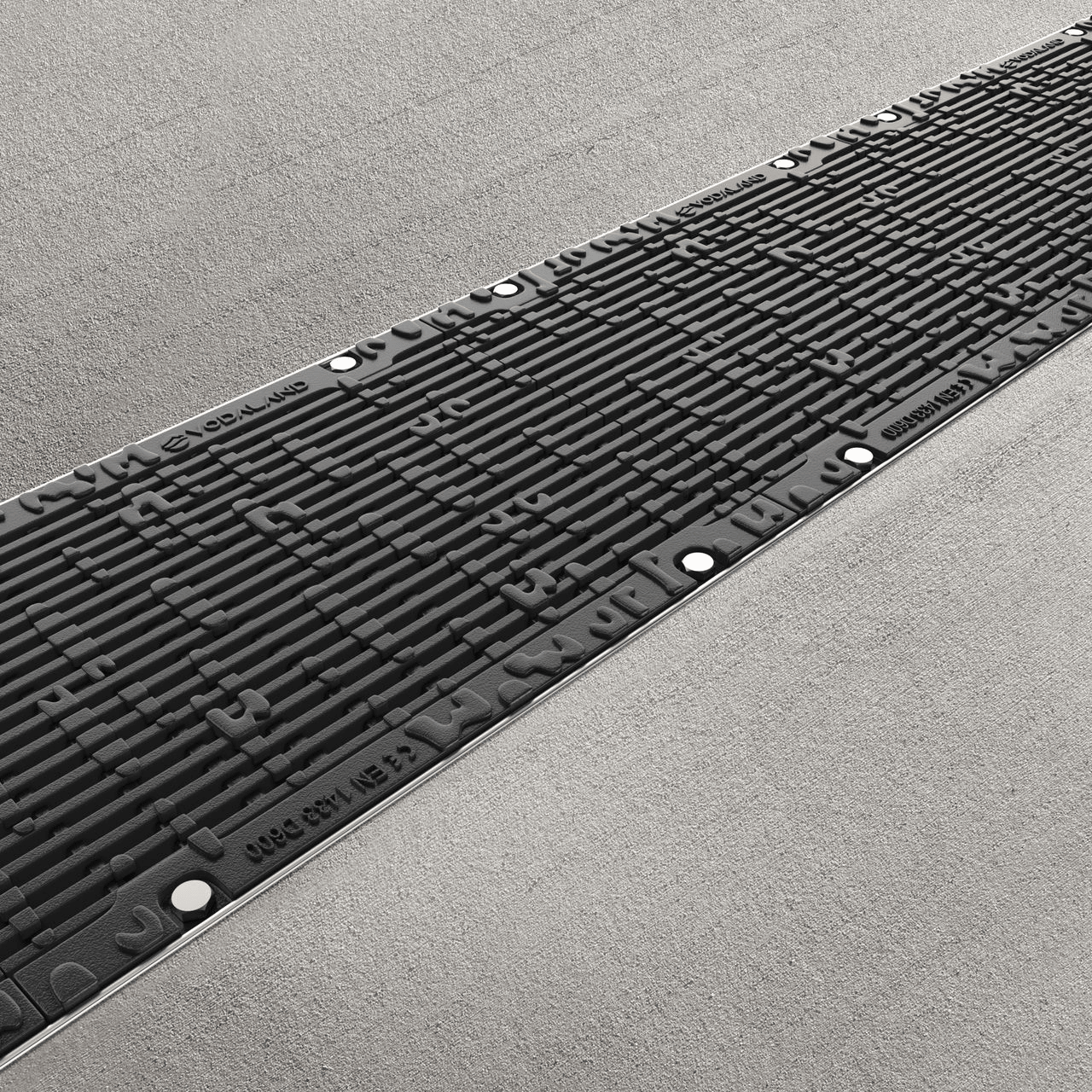

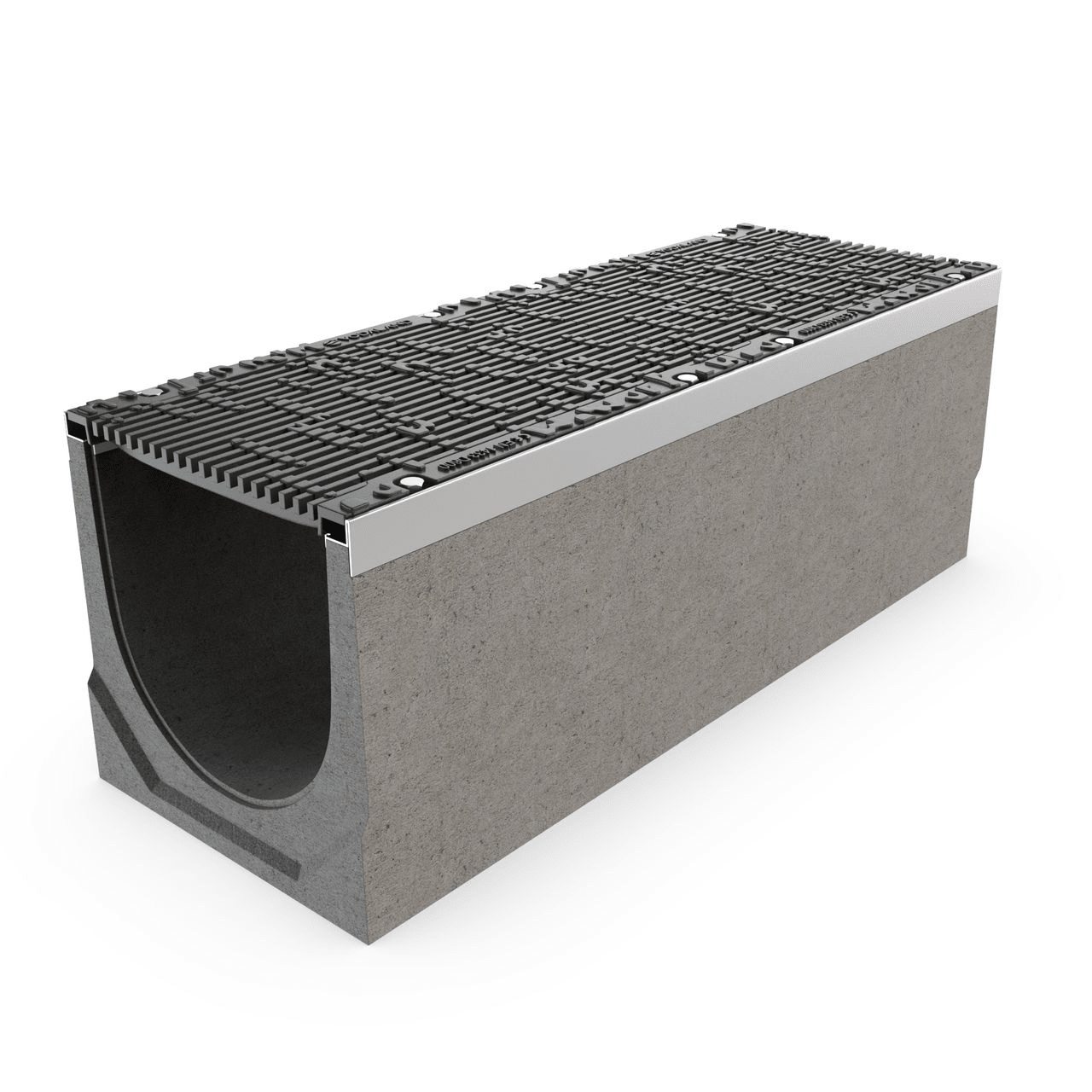

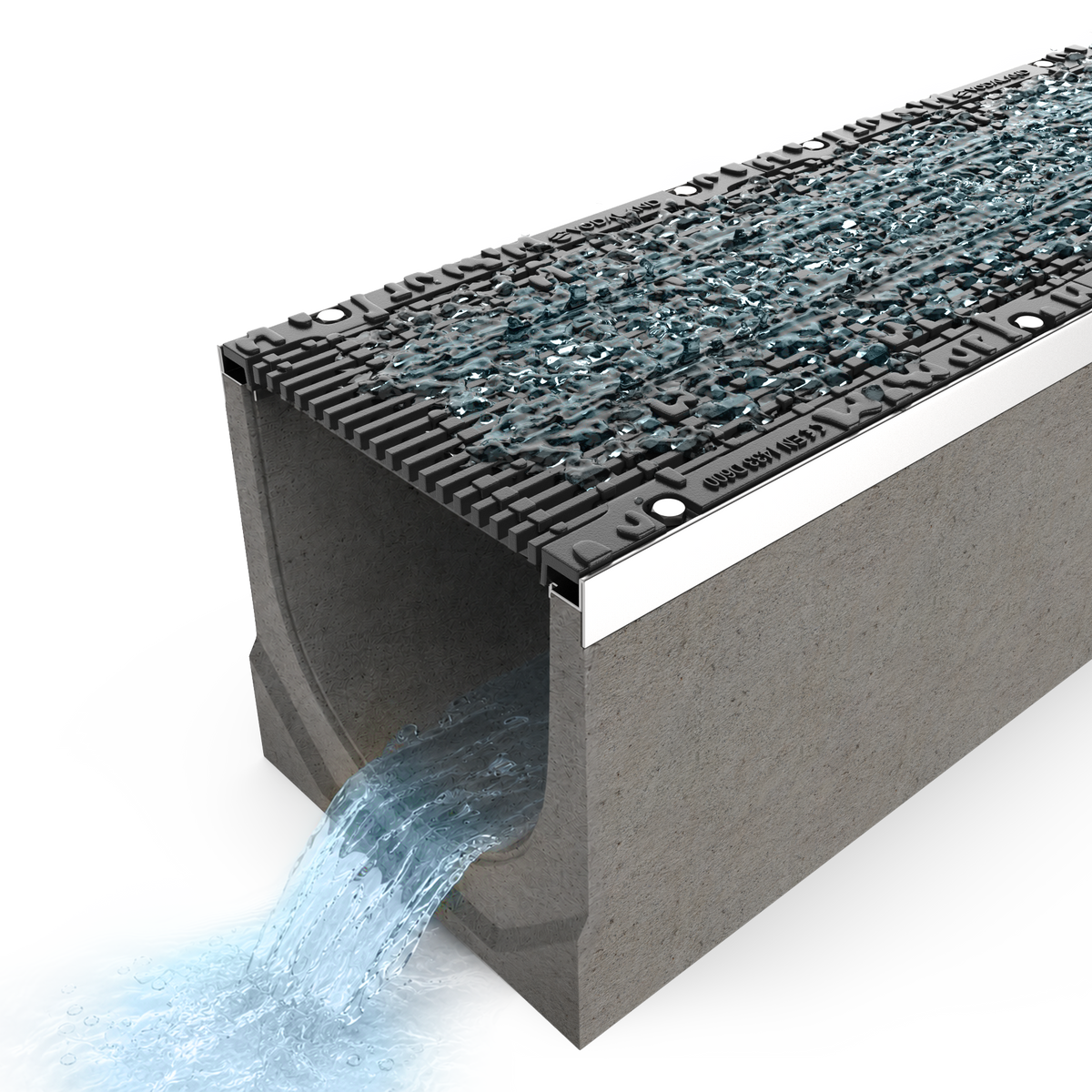

12" Concrete Channel ADA - E Class System
- Fiber Reinforced Concrete / Ductile Cast Iron
- 3.3" (39 Inches) - Length per section
- E Load Class
- Roads, Parking lots, Parking Garages and more
- More Product Information Below
At Vodaland, we ship all orders within the next business day. Our team ensures your order is packed accurately and shipped quickly.
Standard: 3–5 business days from St. Louis, MO.
Pallets: 5–7 business days, delivery scheduled by carrier.
Expedited: Next-day or 2-day shipping via FedEx Express (extra fee, weekends excluded).
Shipping costs are non-refundable.
Product Details
- PRODUCT OVERVIEW
- SPECIFICATIONS
- INSTALLATION VIDEOS
SPECIFICATIONS
Description
12" Concrete Channel ADA - E Class Grate
Key Features:
● Supports up to 134,800 LBS per sq. ft. - Provides exceptional strength for airports,
parking lots, garages, and heavy duty traffic areas.
● Prevents Corrosion - This system is chemical resistant and will help to prevent rusting.
● Temperature-Resistant - The fiber reinforced concrete will help maintain the water
temperature to help prevent freezing and overheating.
● Installation Brackets INCLUDED - Package will come with correct quantity of
installation brackets to ensure an easy installation.
● Bulk Orders Discounted - The price per linear foot decreases as the run gets longer.
Expanded Product Overview:
The 12" Concrete Channel ADA Cast Iron Grate is designed to provide reliable stormwater management in the most demanding commercial and industrial environments. Constructed from fiber reinforced concrete with reinforced galvanized steel edging, the system is built to withstand heavy vehicle traffic while resisting corrosion and environmental wear.
The included ADA-compliant ductile cast iron grate provides a durable, accessible surface suitable for pedestrian and vehicular traffic alike. Its heavy-duty construction is ideal for airports, warehouses, parking garages, loading docks, and roadways where maximum strength and long-term performance are essential.
● Roads
● Parking Garages
● Warehouses
● Airports
● Parking Lots
● Material - Fiber Reinforced Concrete / Ductile Cast Iron Grating / Galvanized Steel Edging
● Length - 3.3 Feet (39.4”)
● Width - 12” internal (15” External Width)
● Load Class - E (Extra Heavy Duty)
● ADA-compliant ductile cast iron grate
