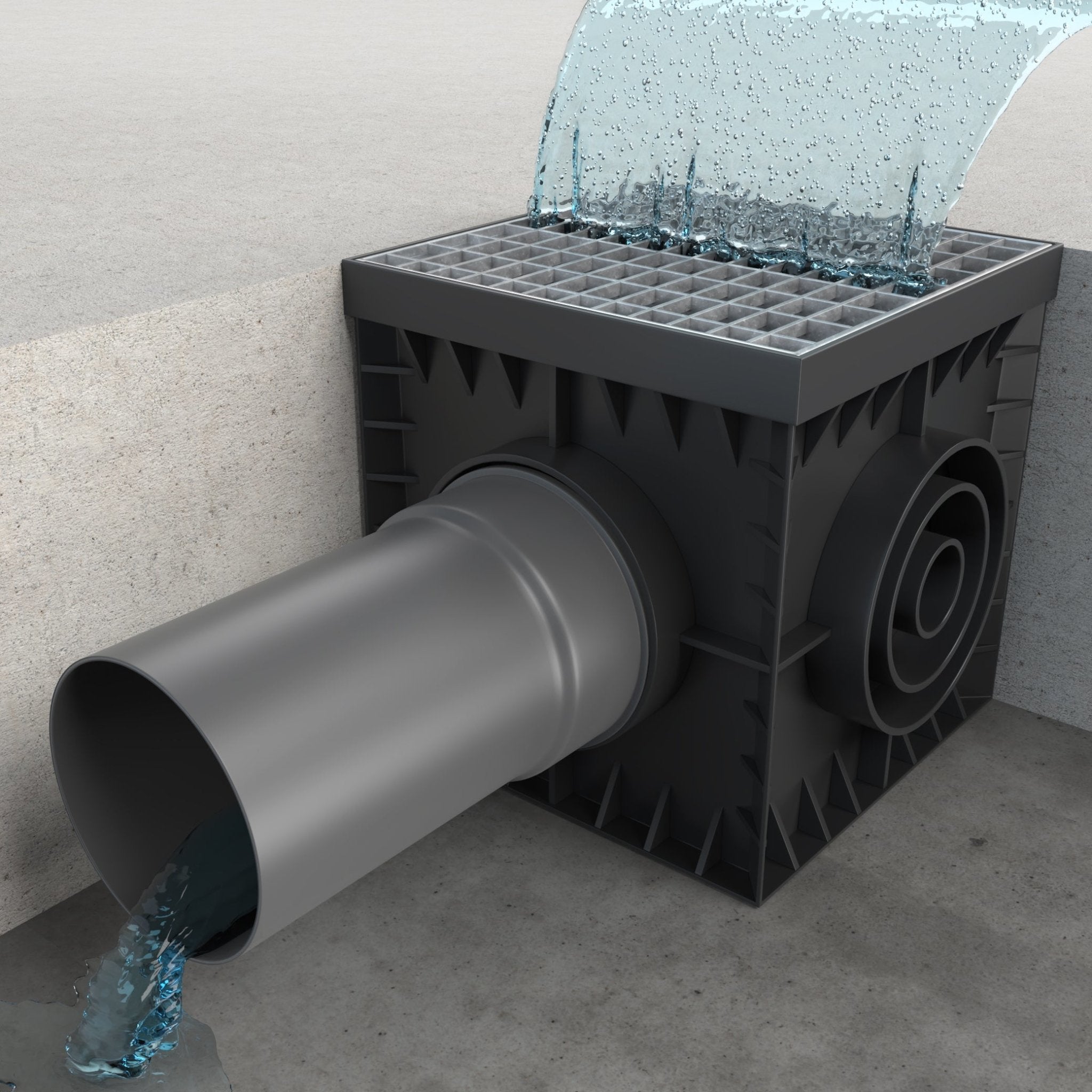

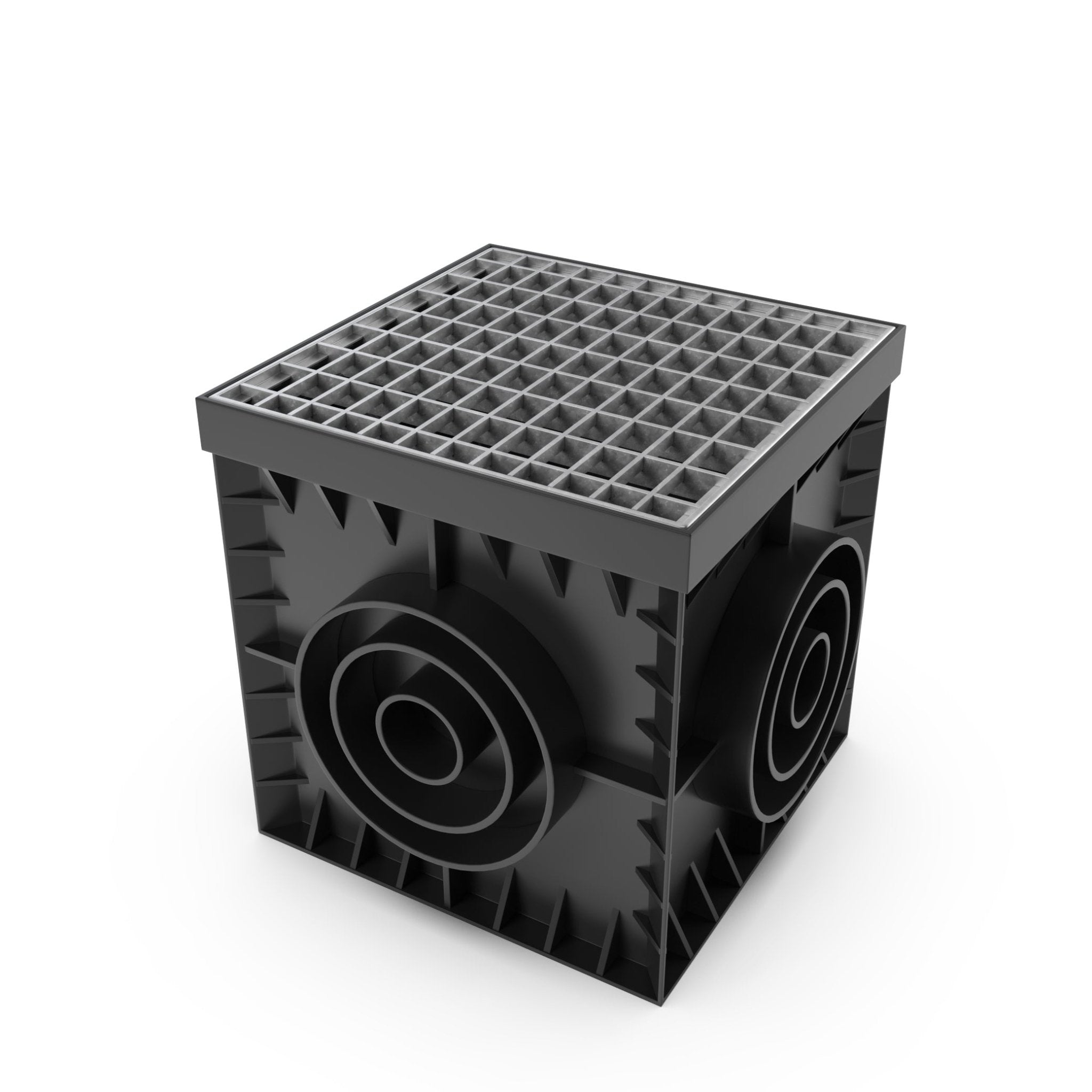

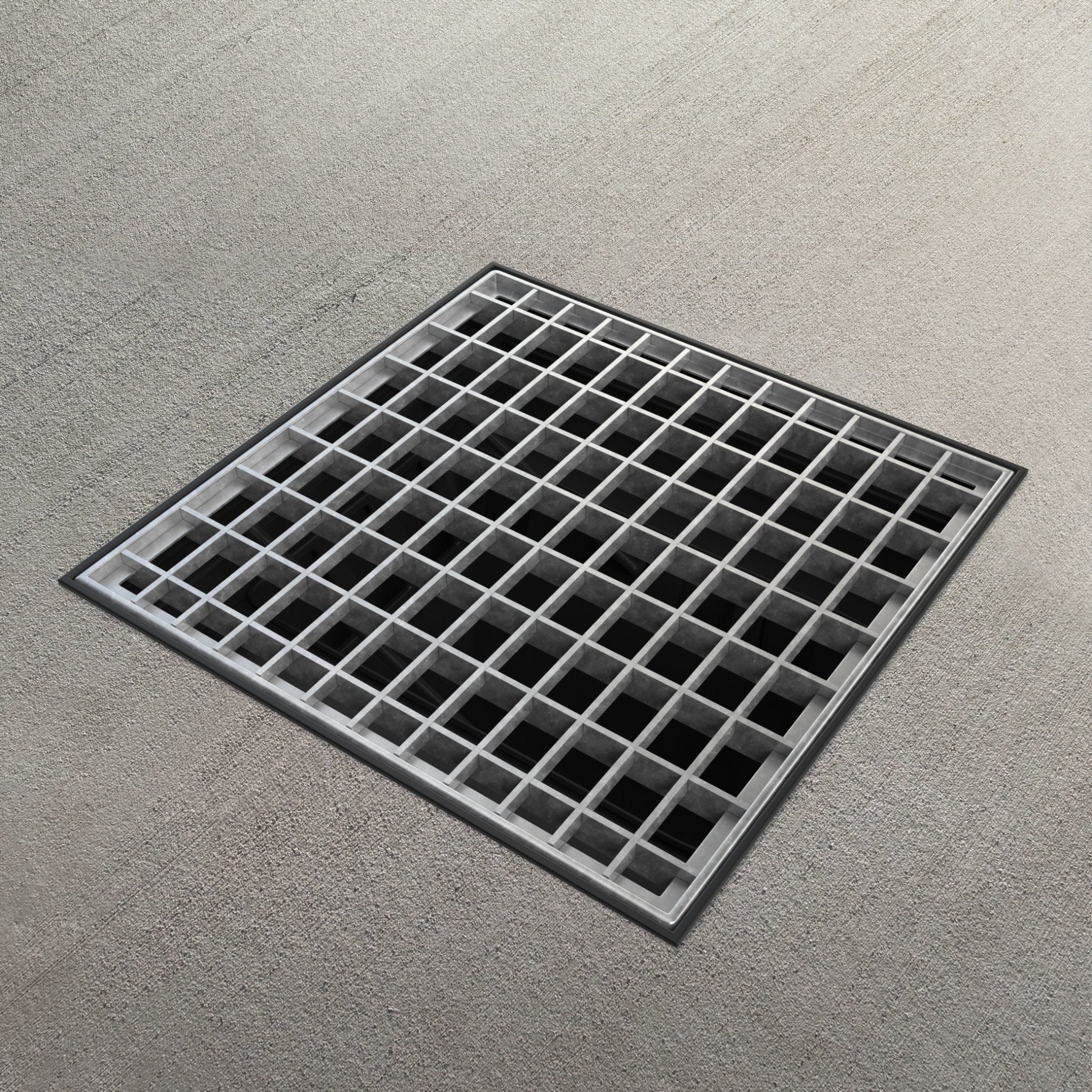

Mesh Grate Specification Sheet
PDF :

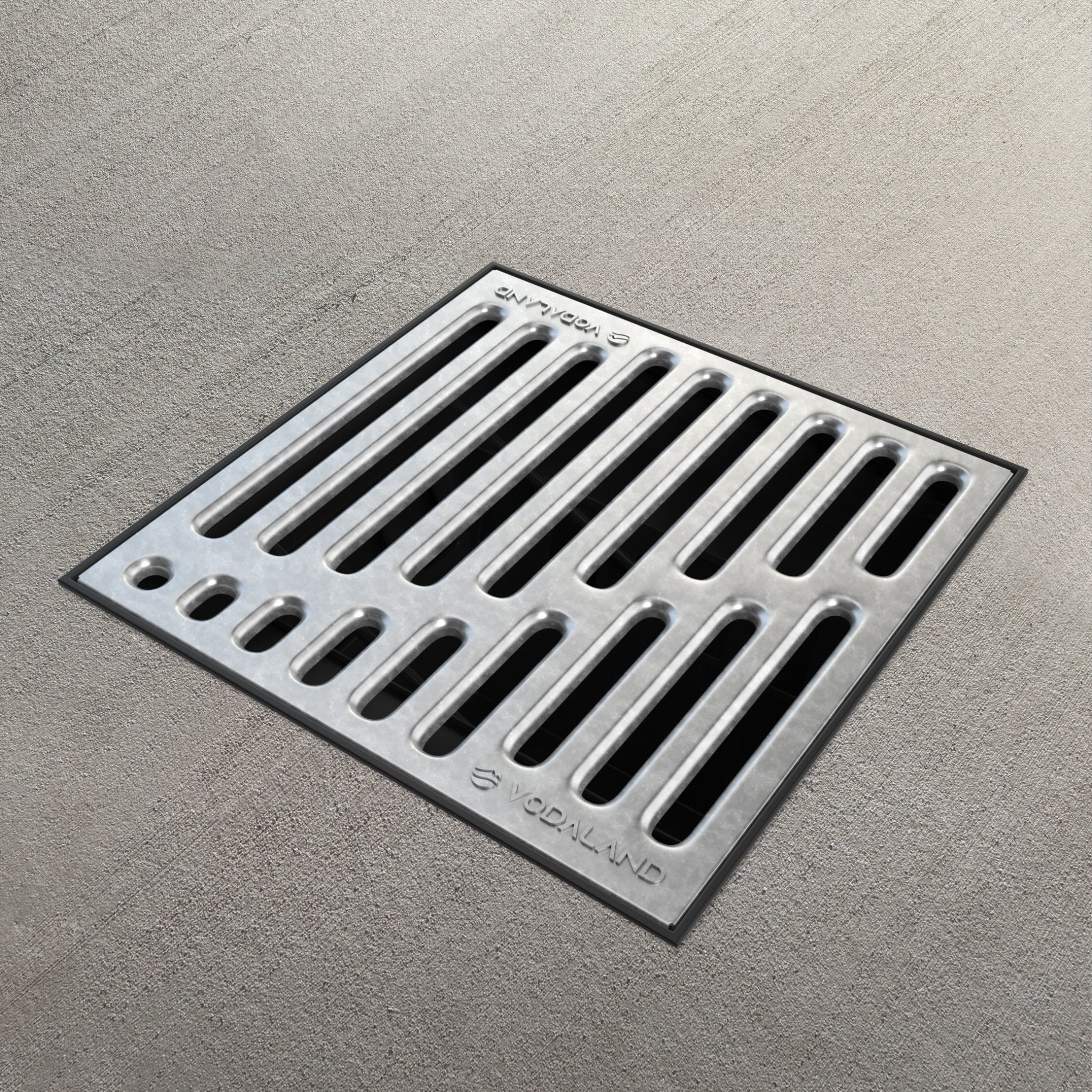

Wave Grate Specification Sheet
PDF :
Installation Guide
PDF :

Product Description

Product Description

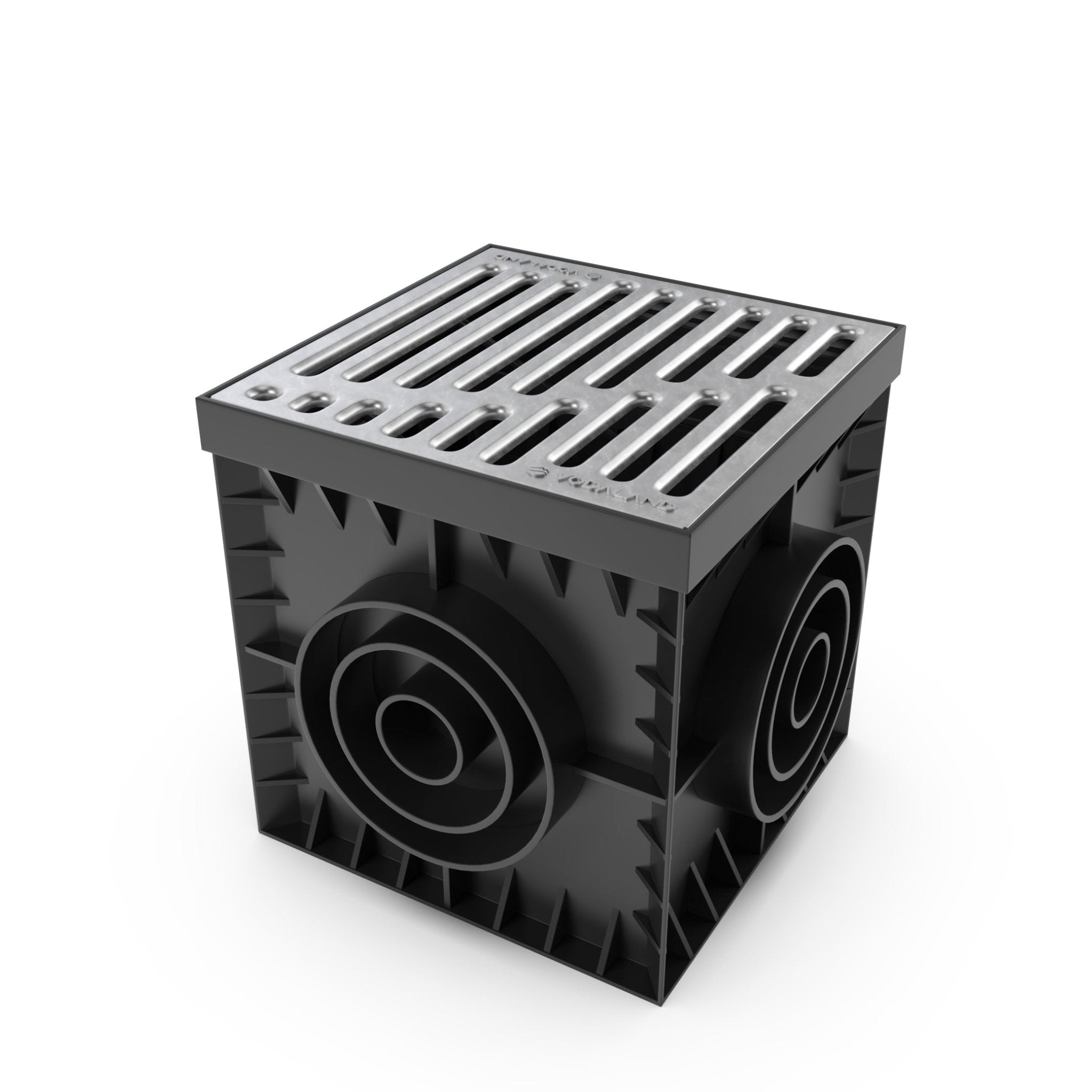

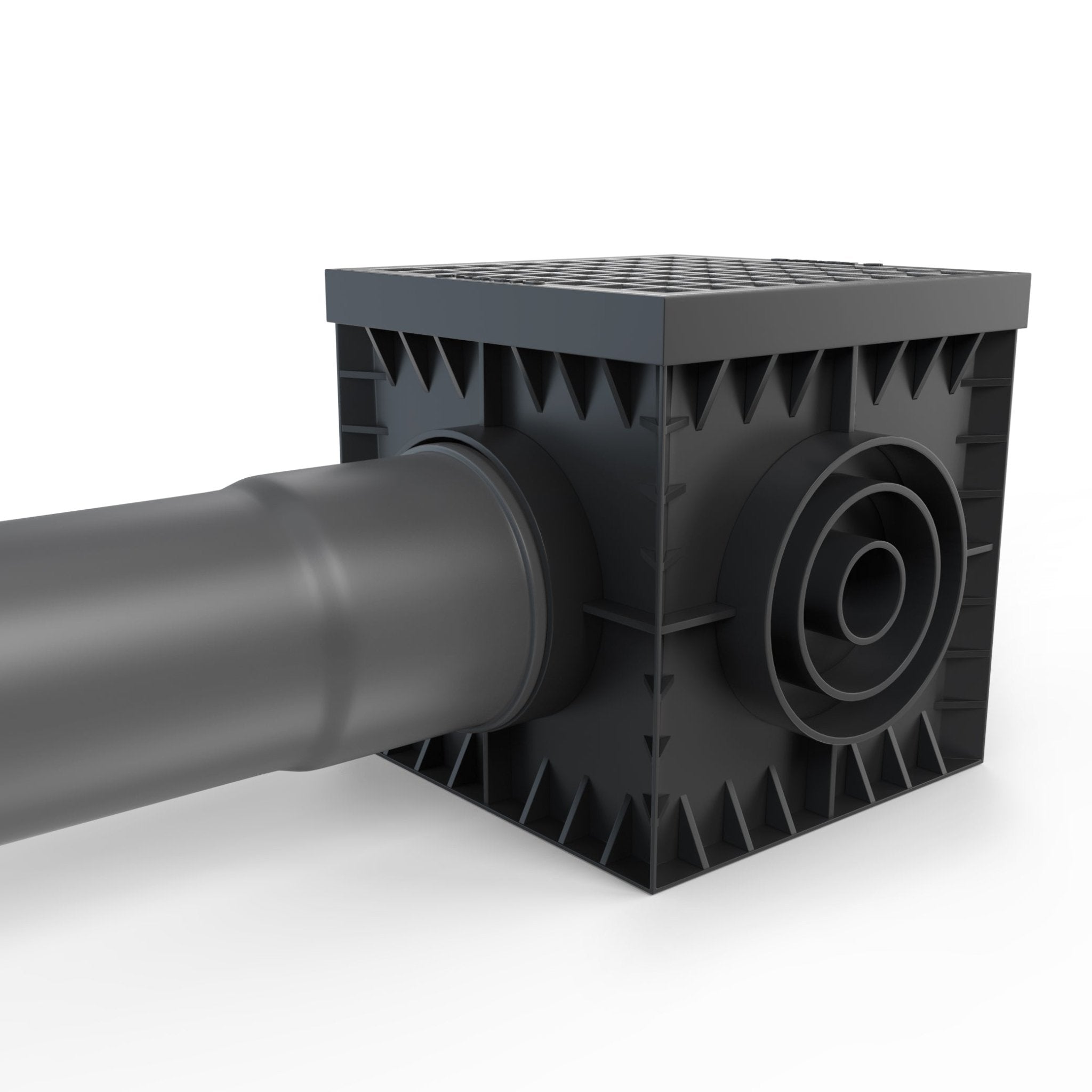

12x12 Catch Basin Galvanized Stamped Steel Package

A Catch Basin Package designed to provide a one point drainage catch basin solution in patios, porches, walkways and more.

Key Features:
A load Class - Supports up to 3,372 lbs per foot
ADA Compliant - Ensures a safe, trip free surface
Multiple Connection Sizes- Connects to 2,3,4, and 6 inch piping on all 4 sides

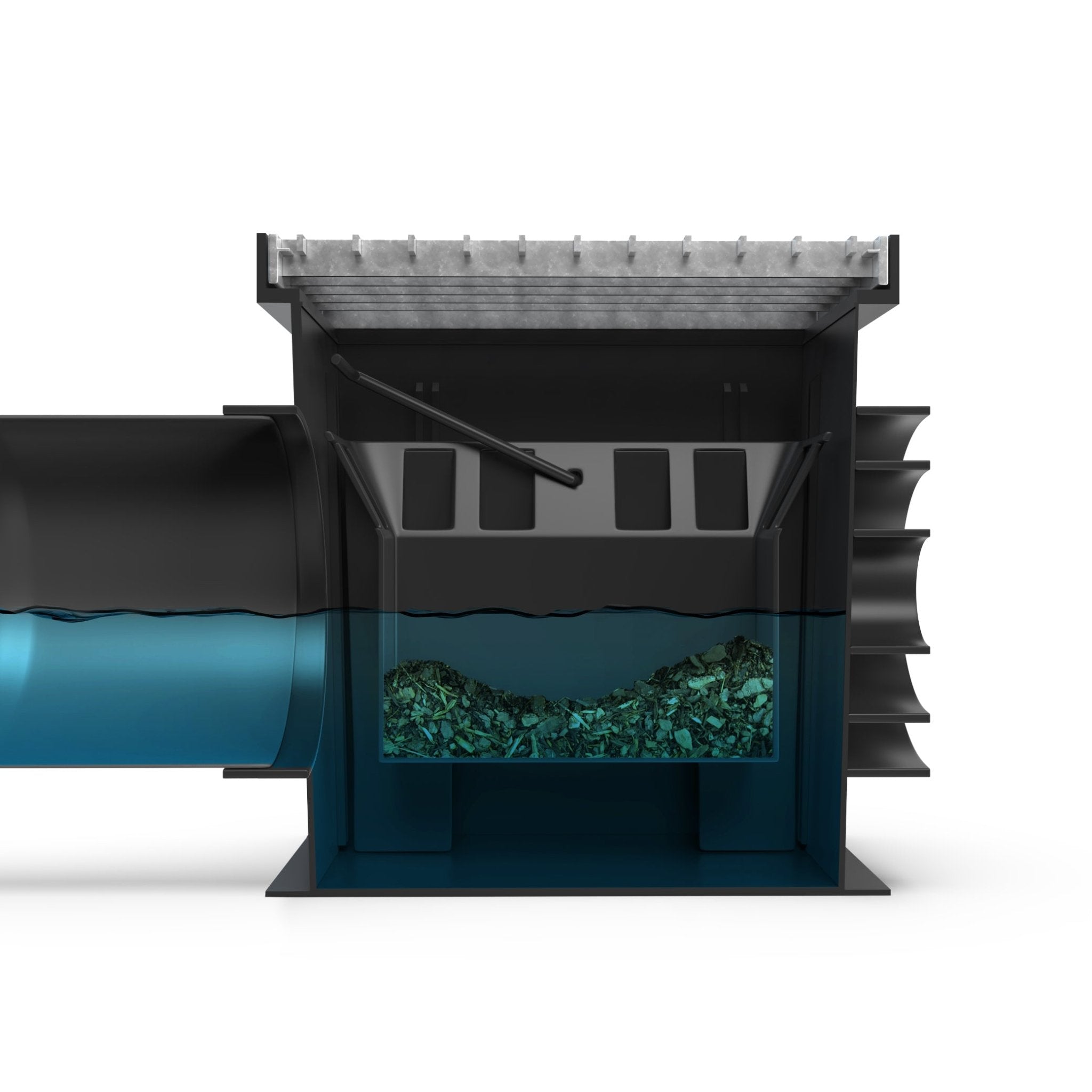

Debris Basket- Plastic Debris basket to catch leaves and debris
Removable Grate- Easy access to debris basket

Expanded Product Overview:

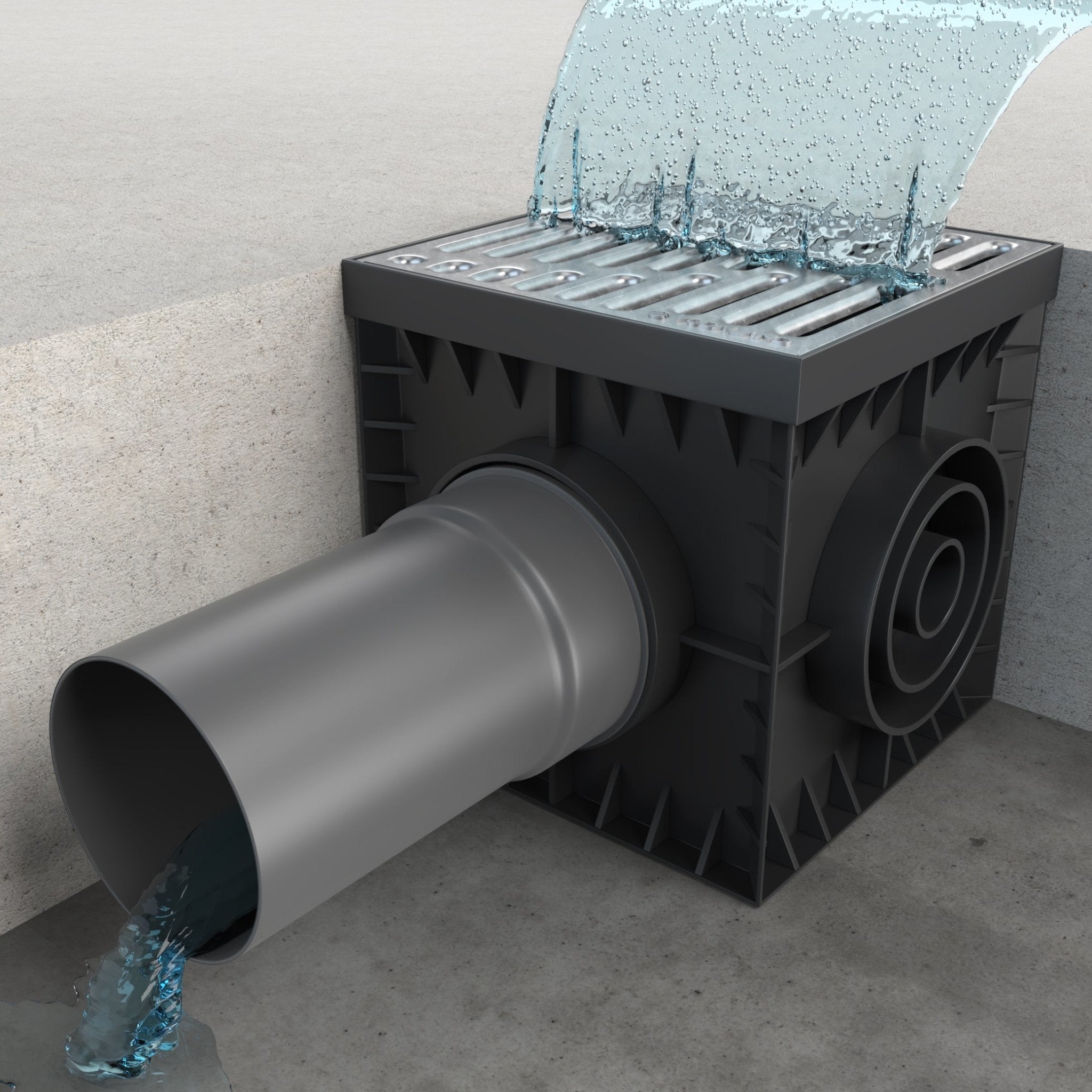

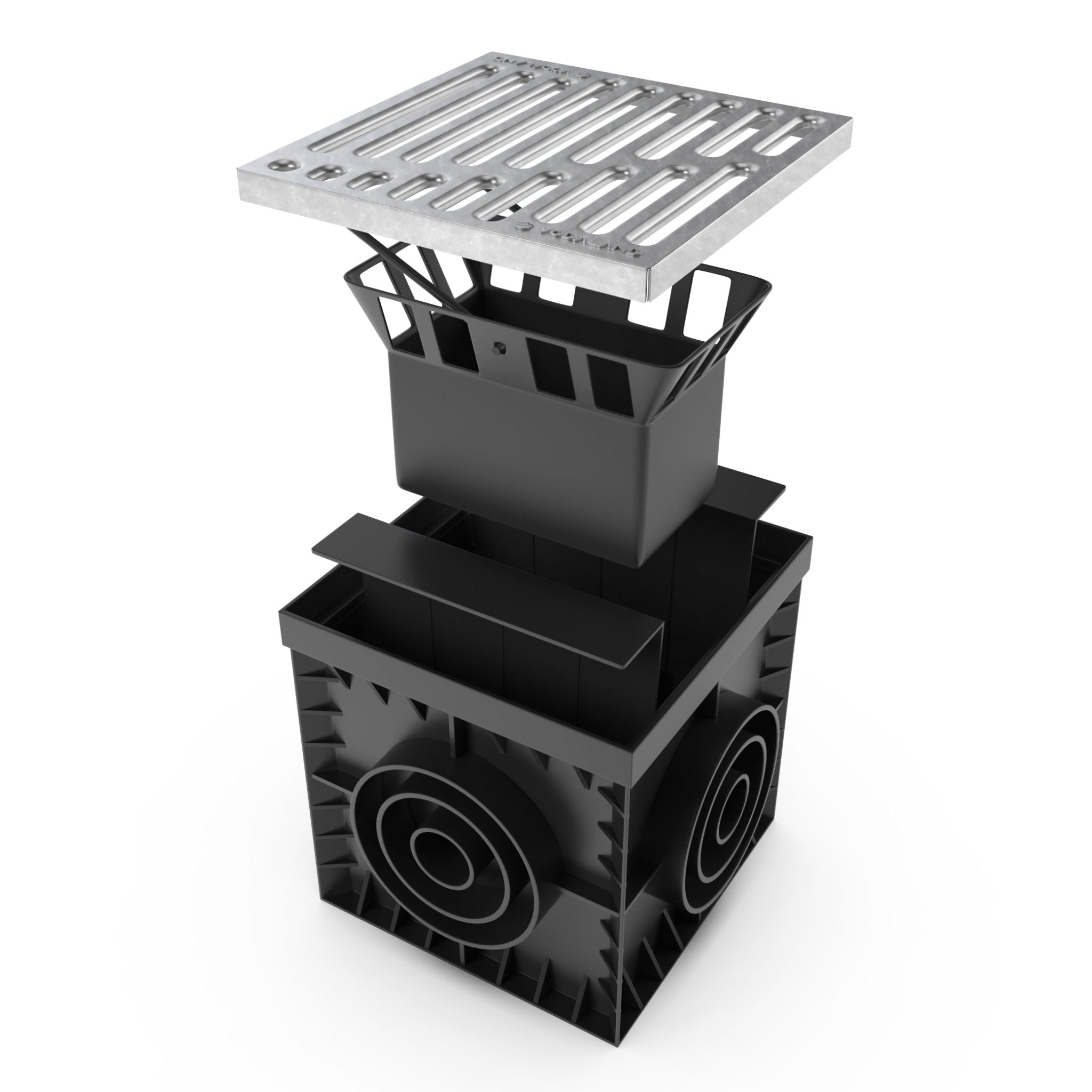

The 12x12 Catch Basin Galvanized Stamped Steel Package is designed to fit and work with all your drainage needs. In addition to 2", 3",4" and 6" pipe outlet connections, the 12x12 Catch Basin Galvanized Stamped Steel Package will come with two partitions and a debris basket to catch those leaves and debris from getting into your system. Please note that a Schedule 40 adapter is recommended for the outlet connections. We pride ourselves with our unique grating options and style.

Common Installations:
Patios
Porches
Walkways

Technical Specifications:
Size- Basin: 12" L x 12" W x 12" H Grate:11x11, 1 ¼” Opening
Material- PPE Plastic Basin/Galvanized Stamped Steel Grate
Load Class- A-Load Class
Outlet Size- 2", 3",4" and 6"
Flow Rate- 328 GPM

Technical Resources: Load Class Compliance

Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
