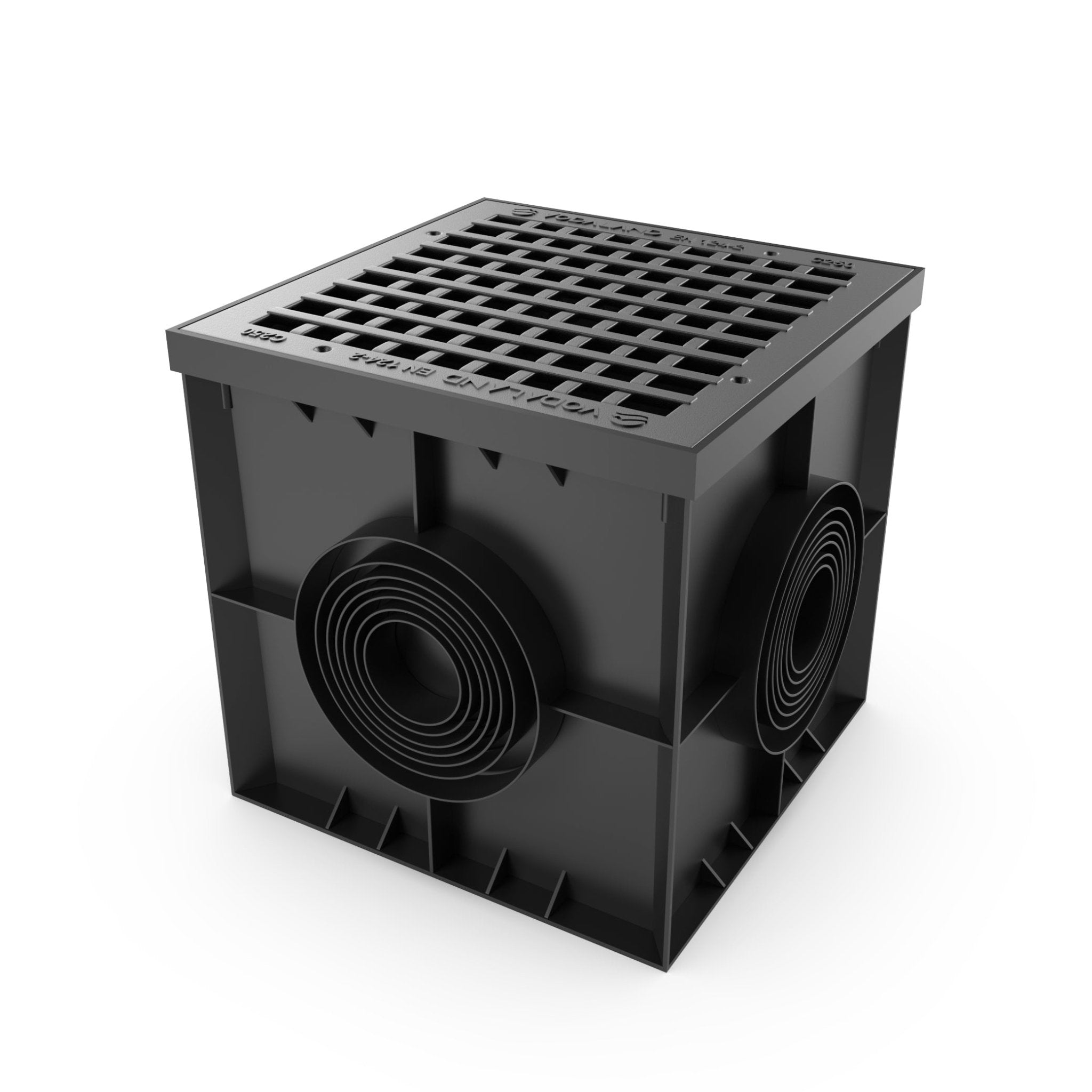

16x16 Catch Basin Ductile Cast Iron Package

A heavy duty Catch Basin Package designed to provide a one point drainage solution in driveways, garages, parking lots, walkways, and more.

Key Features:
C load Class - Supports up to 56,200 lbs per foot
ADA Compliant - Ensures a safe, trip free surface

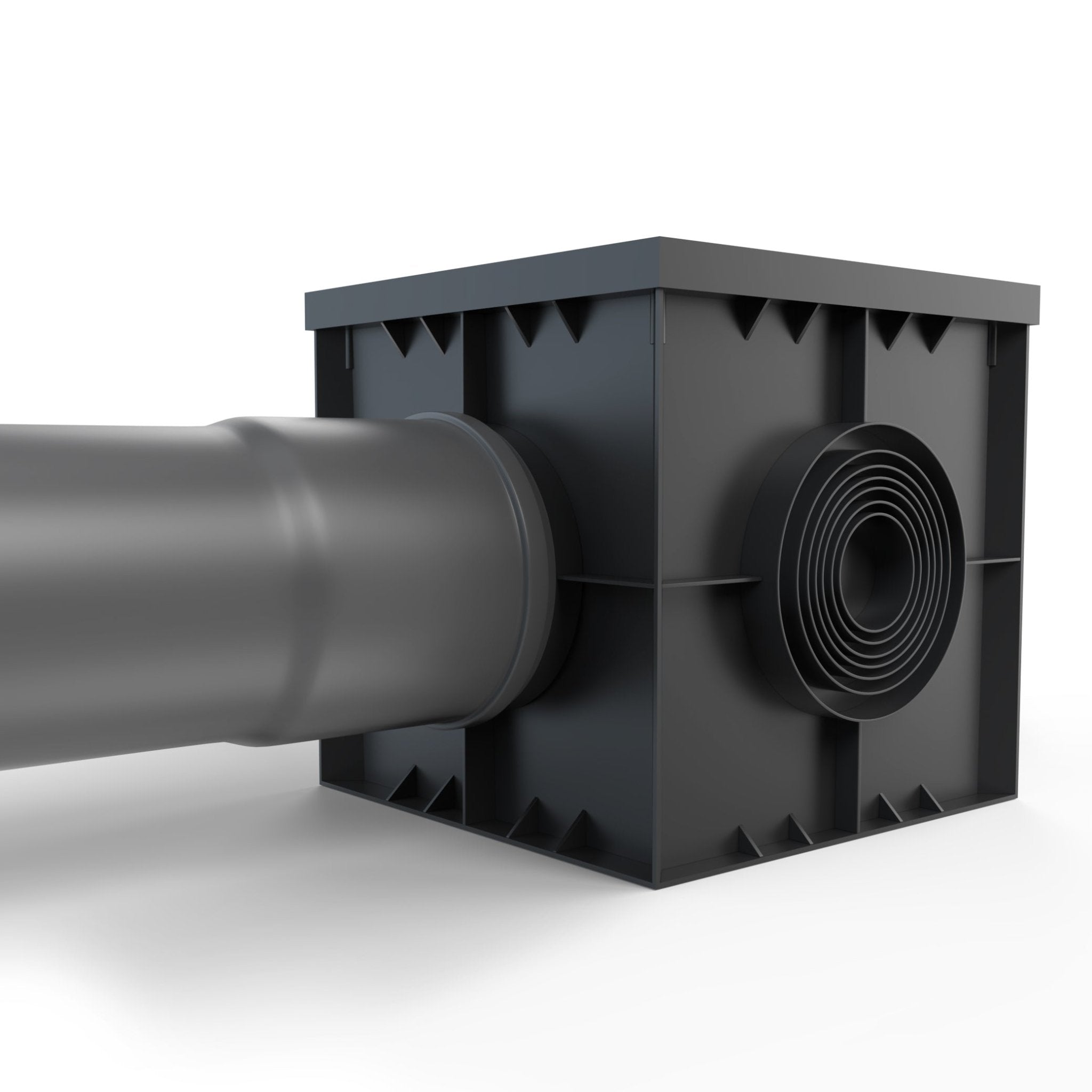

Multiple Connection Sizes- Connects to 4",6" and 8" piping on all 4 sides

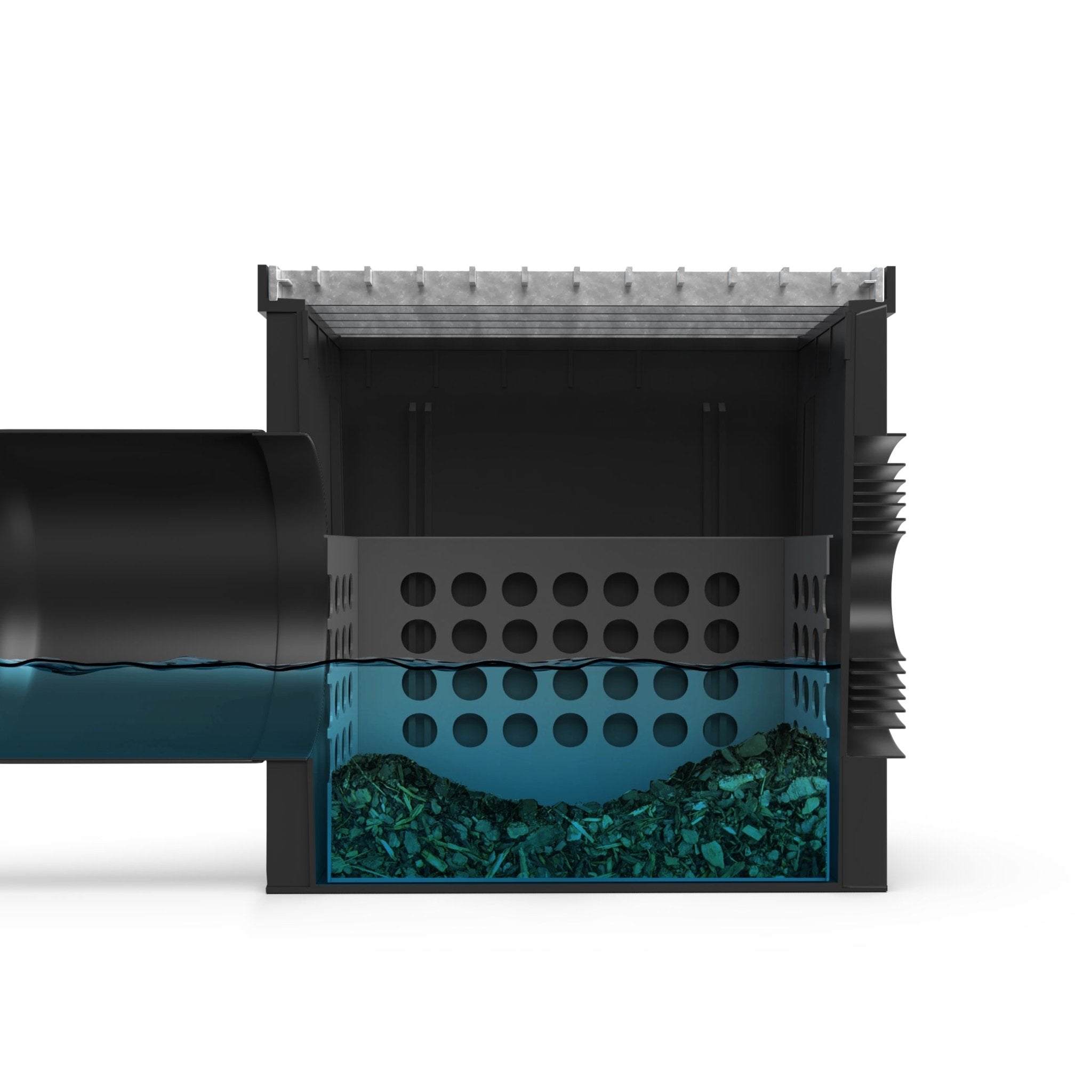

Debris Basket- Galvanized Debris basket to catch leaves and debris
Removable Grate- Easy access to debris basket

The 16x16 Catch Basin Ductile Cast Iron Package is designed to fit and work with all your drainage needs. In addition to 4",6" and 8" pipe outlet connections, the 16x16 Catch Basin Ductile Cast Iron Package will come with two partitions and a galvanized debris basket to catch those leaves and debris from getting into your system. We pride ourselves with our unique grating options and style.

Common Installations:
Driveways
Garages
Parking Lots
Walkways

Technical Specifications:
Size- Basin: 16" L x 16" W x 16" H, Grate: 15” x15” , ⅞ ” Opening
Material- PPE Plastic Basin w/Galvanized Debris Basket - Ductile Cast Iron Grate
Load Class- C Load Class
Outlet Size- 4",6" and 8"
Article Number: 34403

Technical Resources: Load Class Compliance
