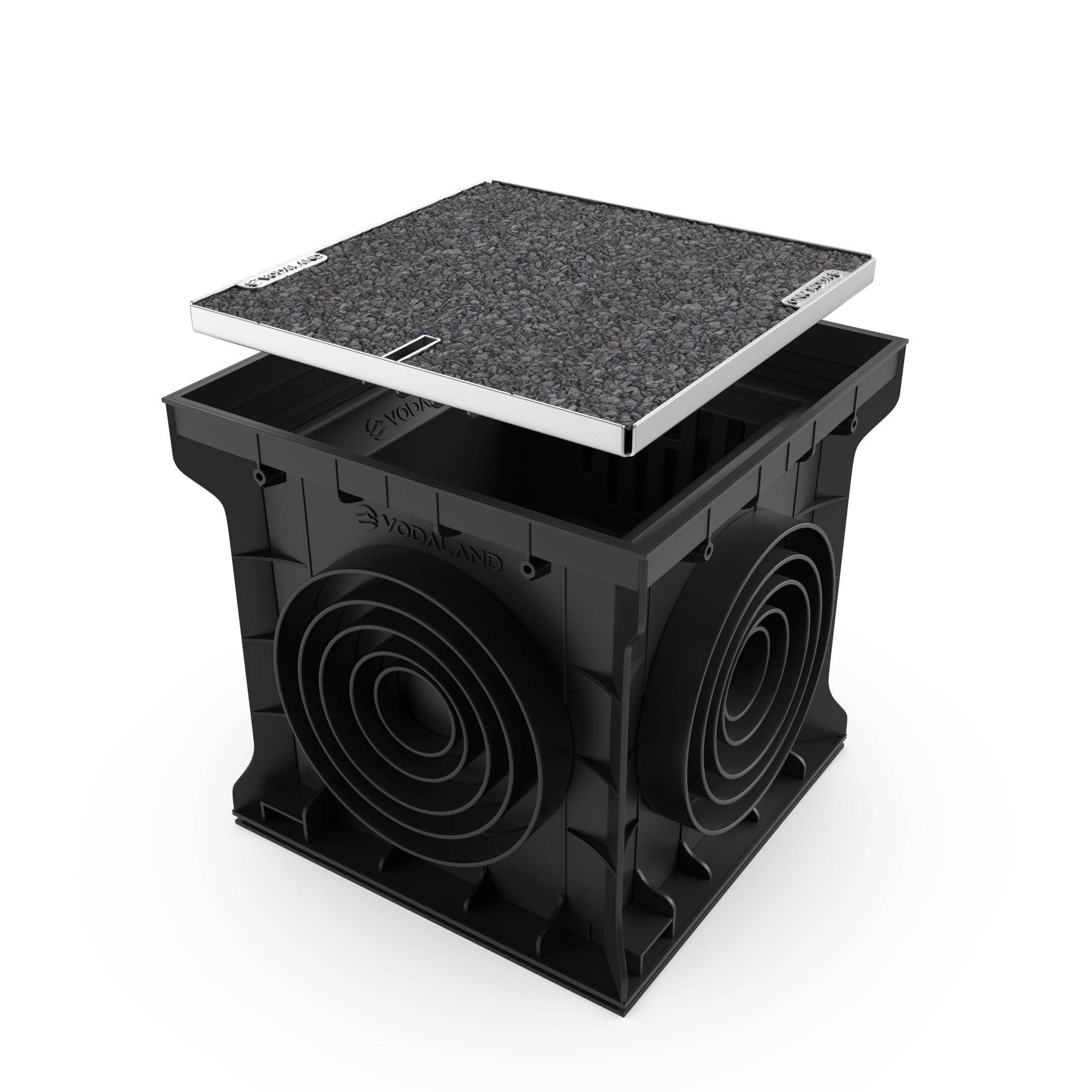

16X16 Catch Basin Gravel Grate Package

16X16 Catch Basin Gravel Grate Package

Skip to product information
1 of 4
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • Heel Proof and ADA Compliant

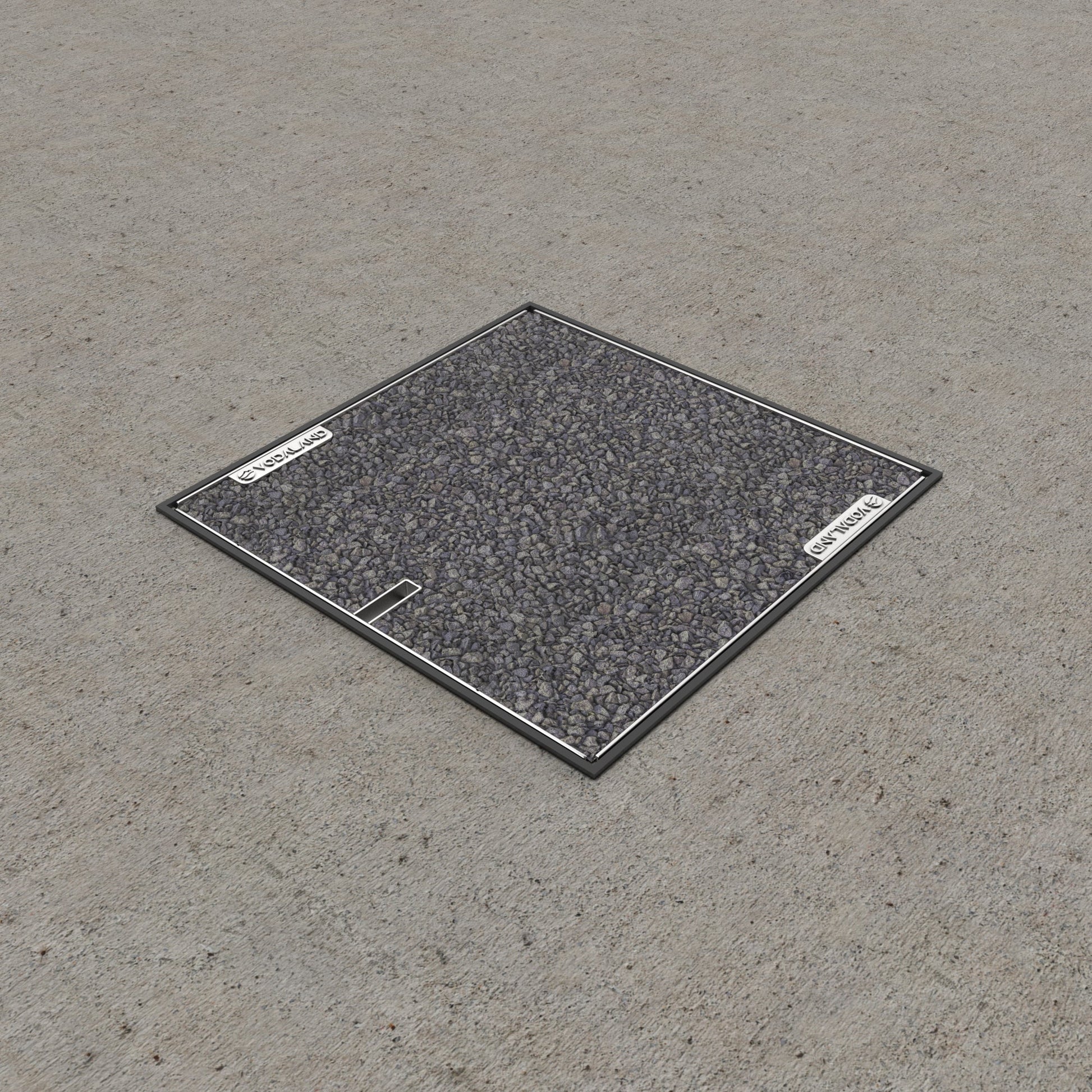

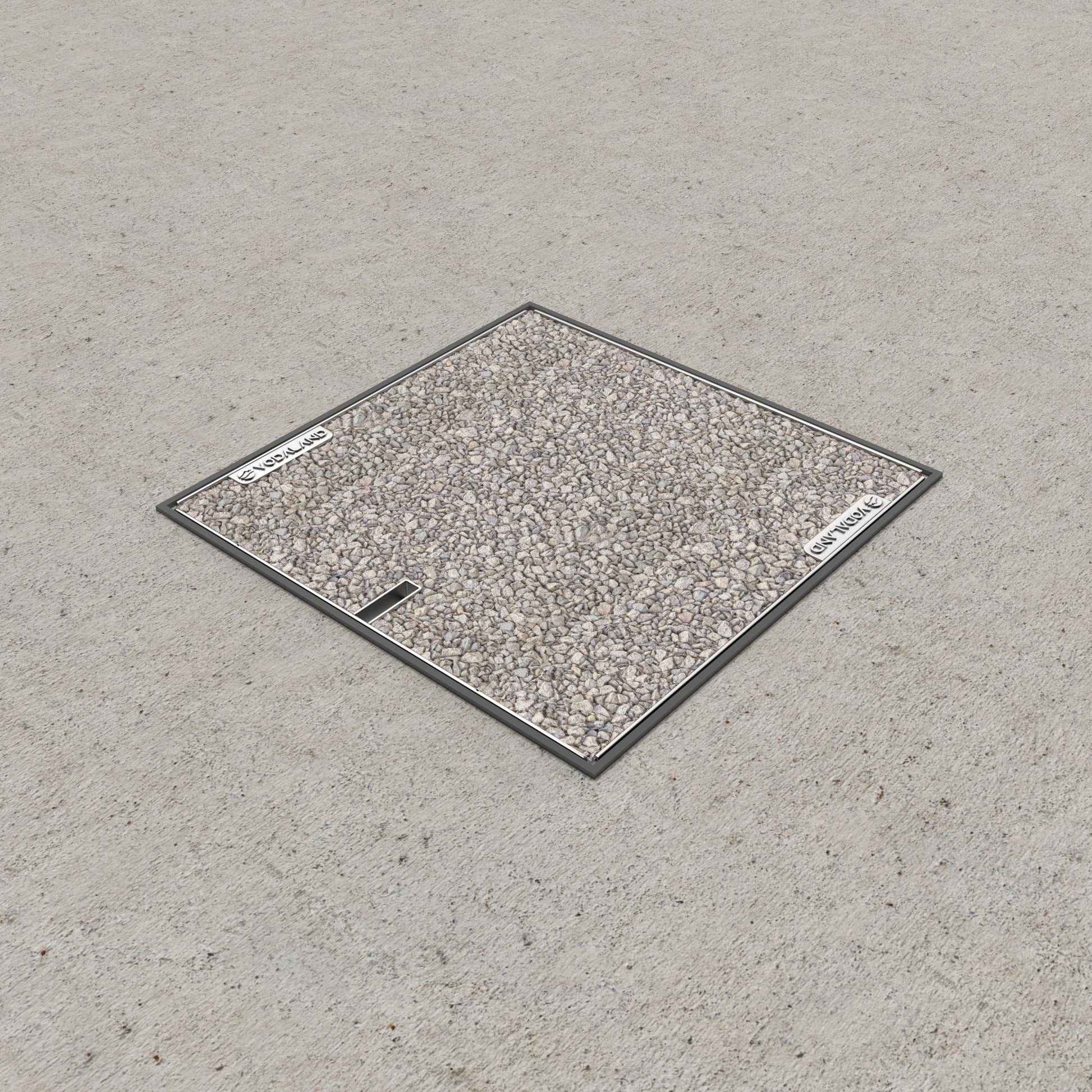

  • Permeable Gravel and Epoxy Grate
  • Connects to 4,6 and 8" PVC or Corrugated piping
  • Pipe connection on all four sides

INCLUDED IN PACKAGE

1 - 16x16 Catch Basin

- Epoxied Gravel & Stainless Steel Grate

- Debris Basket - Galvanized Stamped Steel

For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Specification Sheet
PDF :
DWG :
Gray Grate Specification Sheet
PDF :
DWG :
Dark Grate Specification Sheet
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

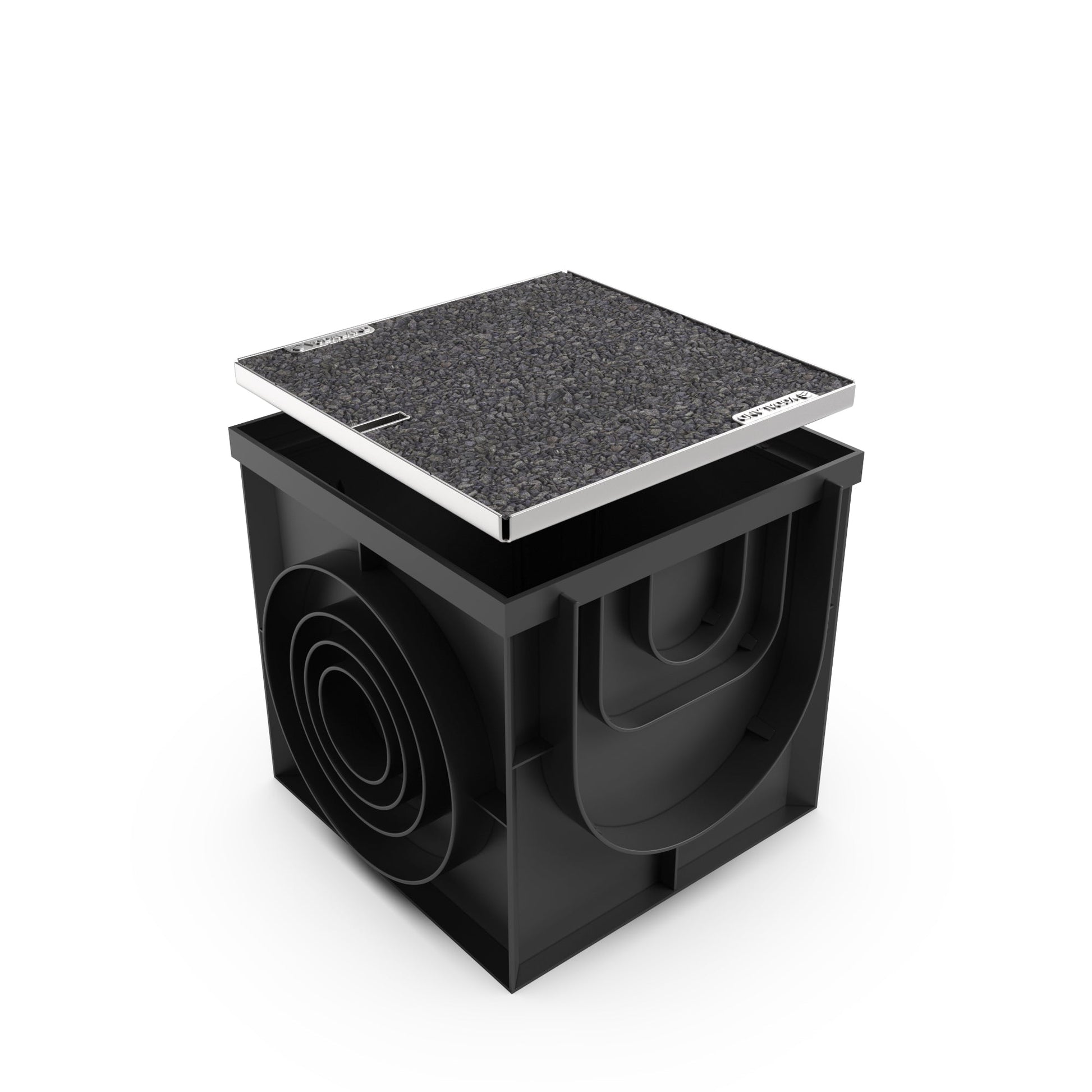

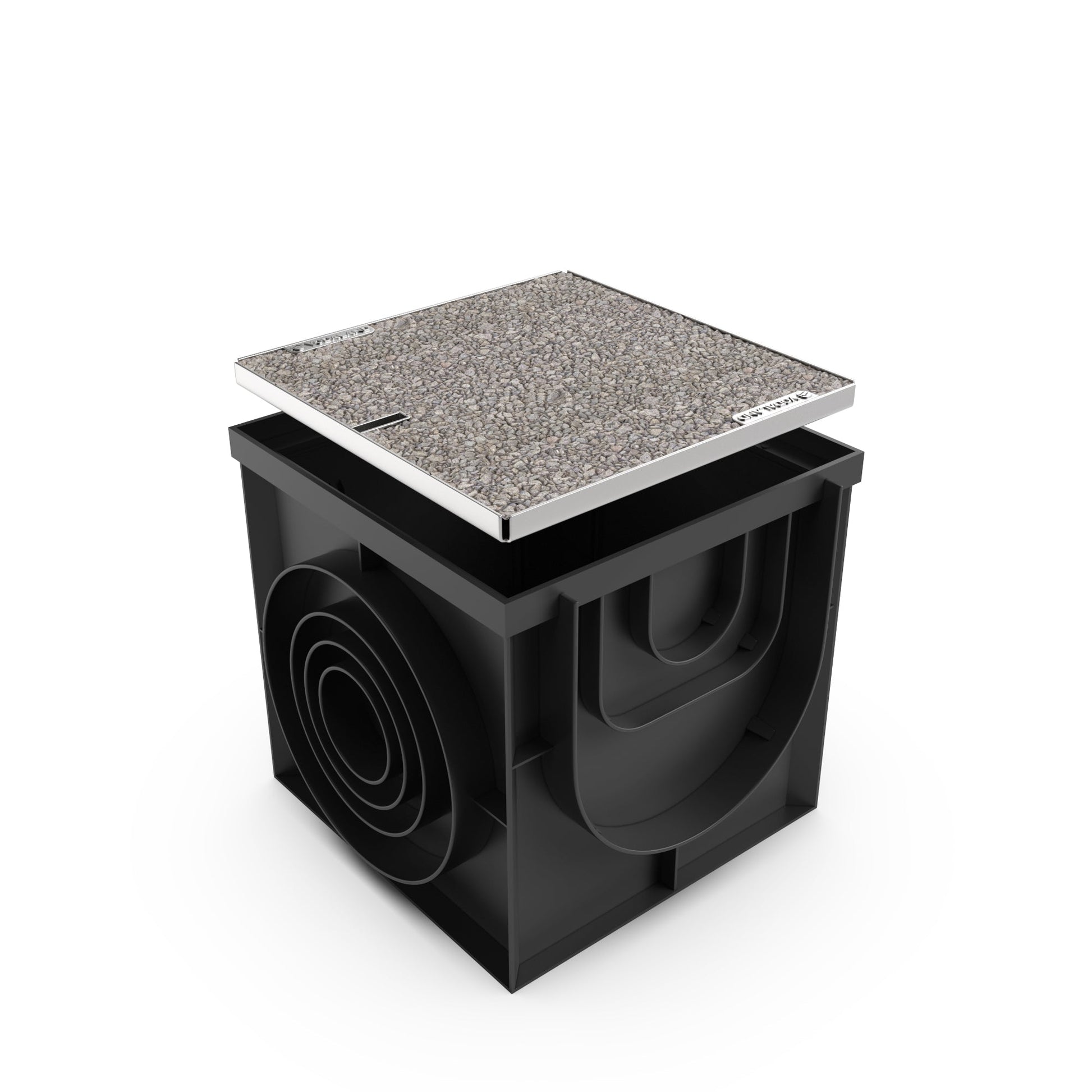

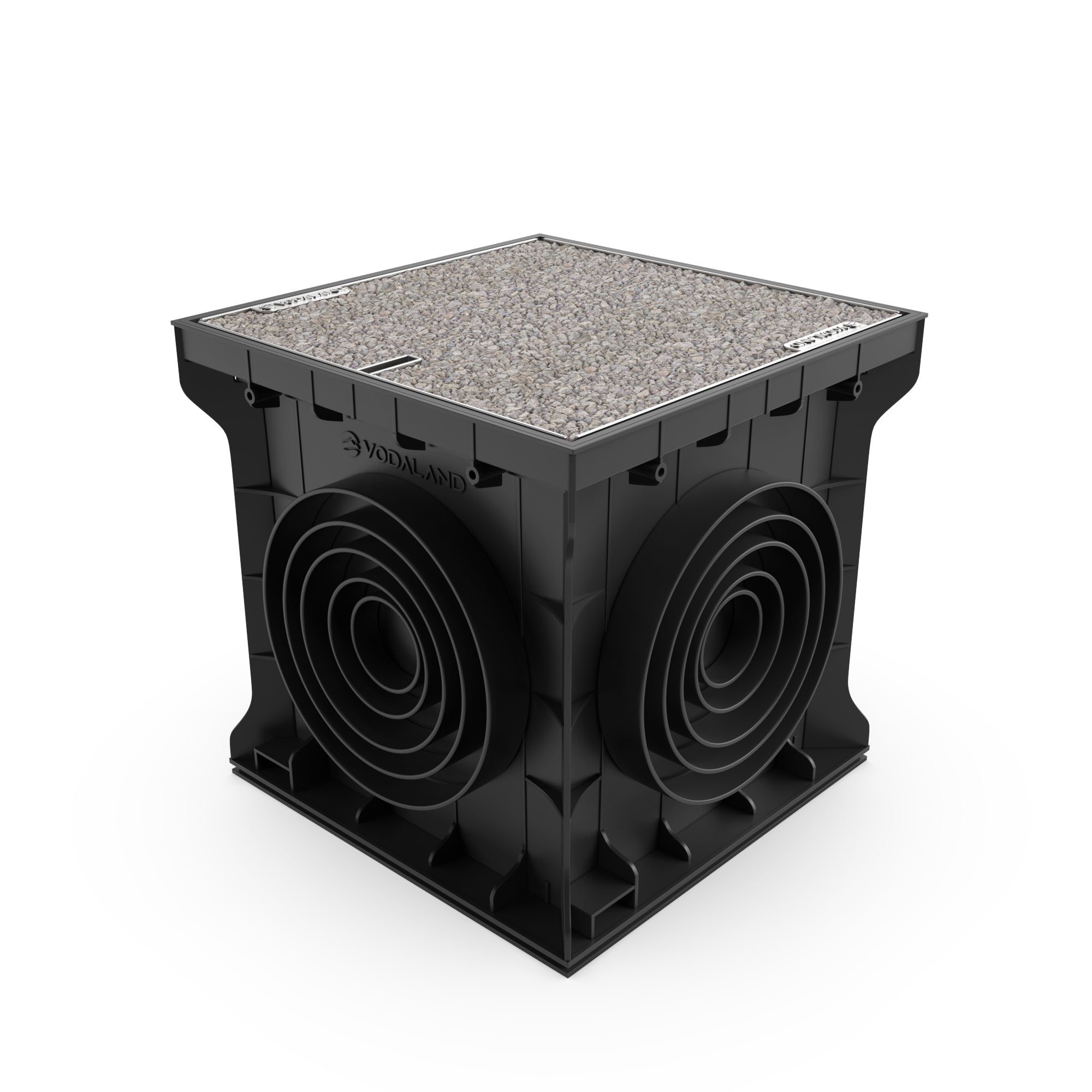

16X16 Catch Basin Gravel Grate Package

A Catch Basin Package designed to provide a one point drainage solution in patios, porches, walkways and more while being ADA Compliant and Heel Proof.

Key Features:
A load Class - Supports up to 3,372 lbs per foot
ADA Compliant/Heel Proof - Ensures a safe, trip free surface

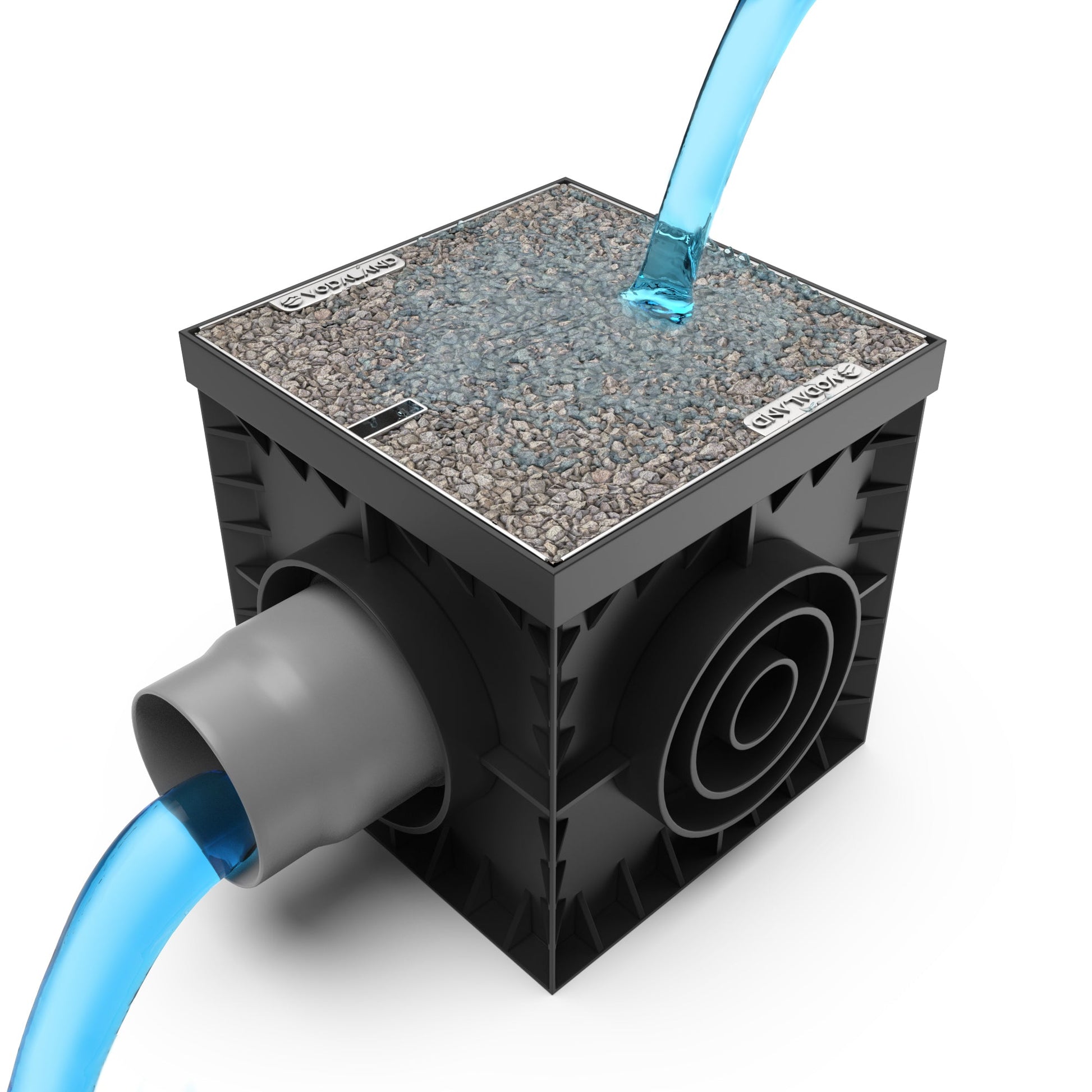

Multiple Connection Sizes- Connects to 4,6 and 8" piping on all 4 sides

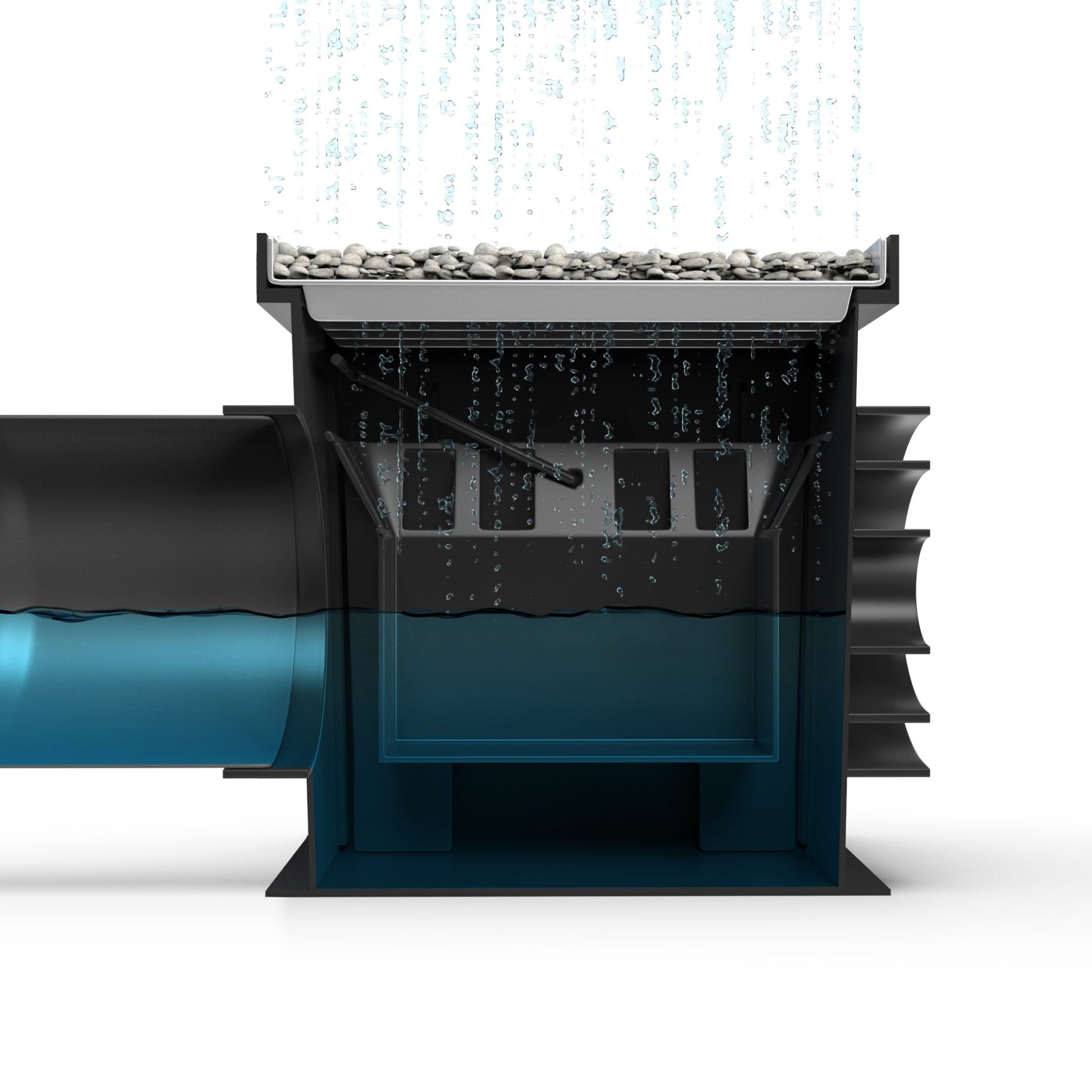

Debris Basket- Galvanized Debris basket to catch leaves and debris

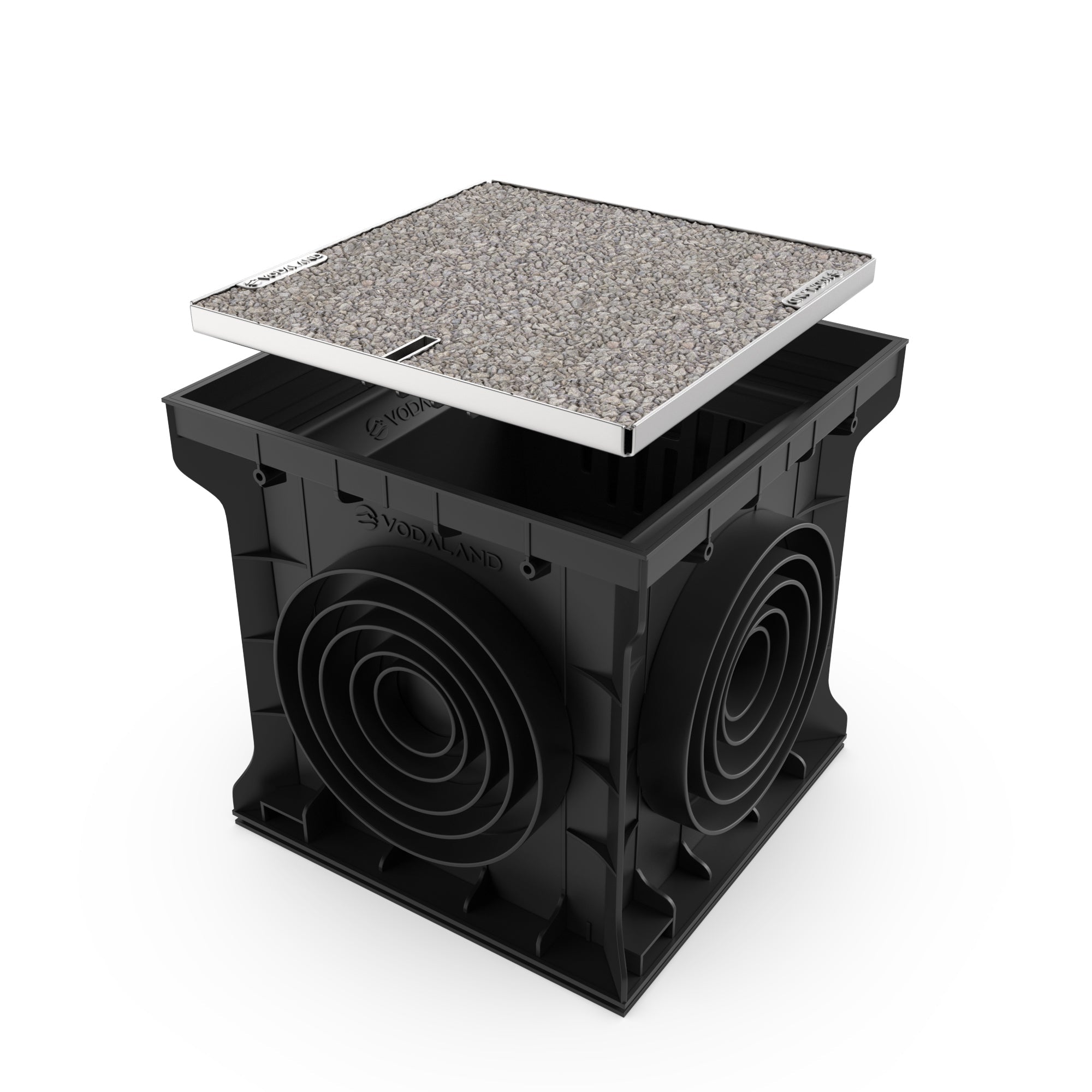

Removable Grate- Easy access to debris basket

The 16X16 Catch Basin Gravel Grate Package is designed to fit and work with all your drainage needs. In addition to 4,6 and 8" pipe outlet connections, the 16X16 Catch Basin Gravel Grate Package will come with two partitions and a galvanized debris basket to catch those leaves and debris from getting into your system. We pride ourselves with our unique grating options and style.

Common Installations:
Patios
Porches
Walkways

Technical Specifications:
Size- Basin: 16" L x 16" W x 16" H - Grate; 15”x15”
Material- PPE Plastic Basin / Galvanized Debris Basket / Epoxied Gravel & Stainless Steel Grate
Load Class- A-Load Class
Outlet Size- 4,6 and 8"

Technical Resources: Load Class Compliance
