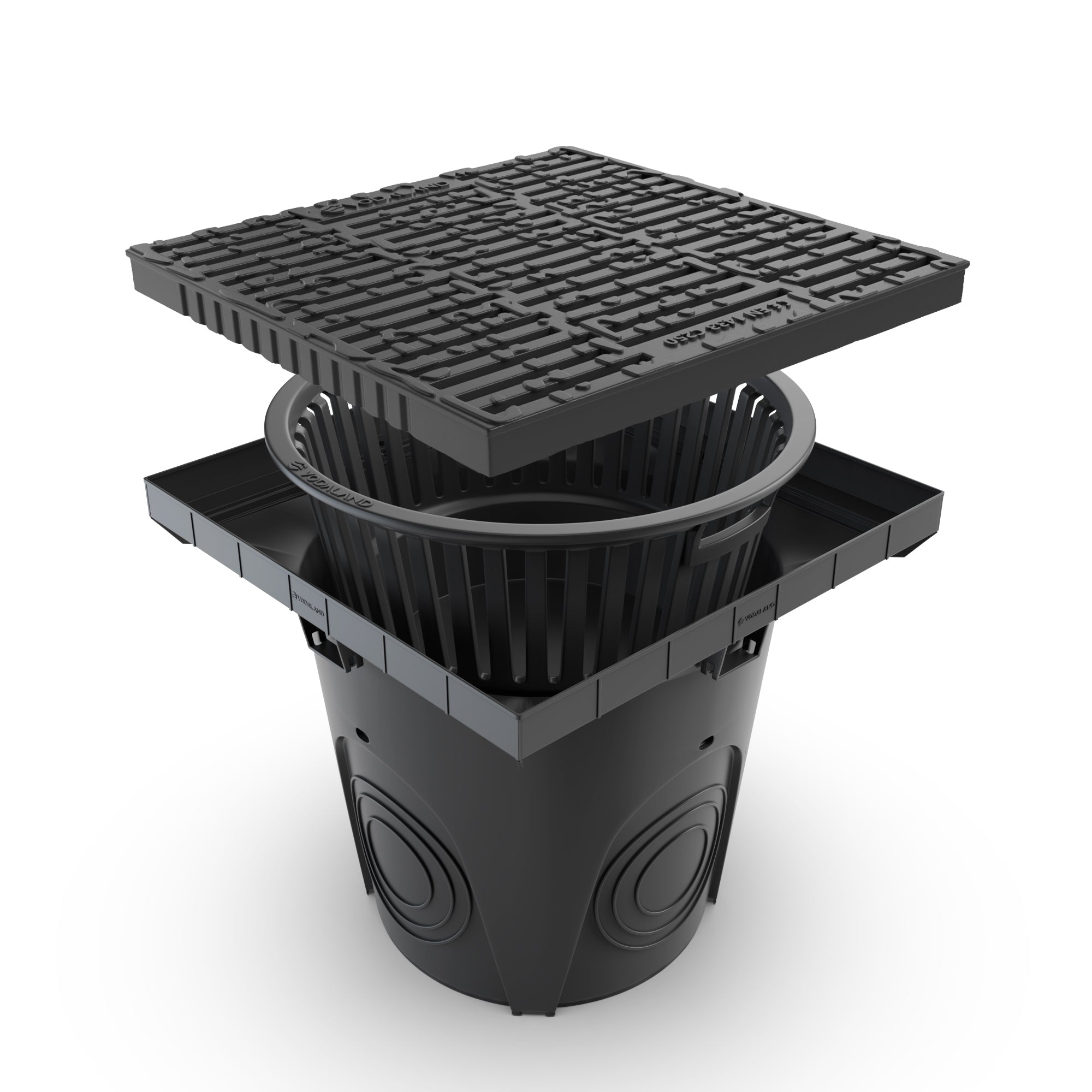

22x22 NEO Cast Iron River Grate Package

The 22x22 NEO Cast Iron River Grate Package is a heavy-duty, traffic-rated catch basin system designed to provide a reliable drainage solution for driveways, garages, roads, parking areas, and other high-load applications. Built around the innovative NEO Basin platform, this system provides efficient point drainage, versatile outlet configurations, and durable construction for a wide range of residential, commercial, and stormwater management applications.

Key Features:
● C Load Class Rated – Supports up to 56,200 lbs per foot for heavy-duty traffic applications.
● ADA Compliant / Heel Proof - Ensures a safe, trip free surface.
● Multiple Connection Sizes – Connects to 4", 6", and 8", drainage pipe on all four sides.
● Removable Grate – Allows easy access for cleaning and maintenance.
● High-Strength Cast Iron Grate – Engineered for durability and long-term performance under heavy loads.

Expanded Product Overview:
The 22x22 NEO Cast Iron River Grate Package is designed to meet the demands of high-traffic and heavy-load drainage environments. Built around a rugged PPE plastic basin and reinforced with a cast iron river-style grate, this system provides excellent structural integrity and long-term reliability.

With a C Load Class rating supporting up to 56,200 lbs per foot, this catch basin is suitable for vehicular traffic including driveways, roadways, and commercial parking areas.

Common Installations:
● Driveways
● Garages
● Roads

Technical Specifications:
● Size- Basin: 22" L x 22" W x 22" H Grate: 21”x21"
● Material- PPE Plastic Basin / Cast Iron
● Nozzle Outlet Sizes – 4", 6", and 8"
● Bottom Outlet Size - 6", 8", 10", and 12"
● Load Class- C-Load Class

Technical Resources: Load Class Compliance
