Specifications and Downloads

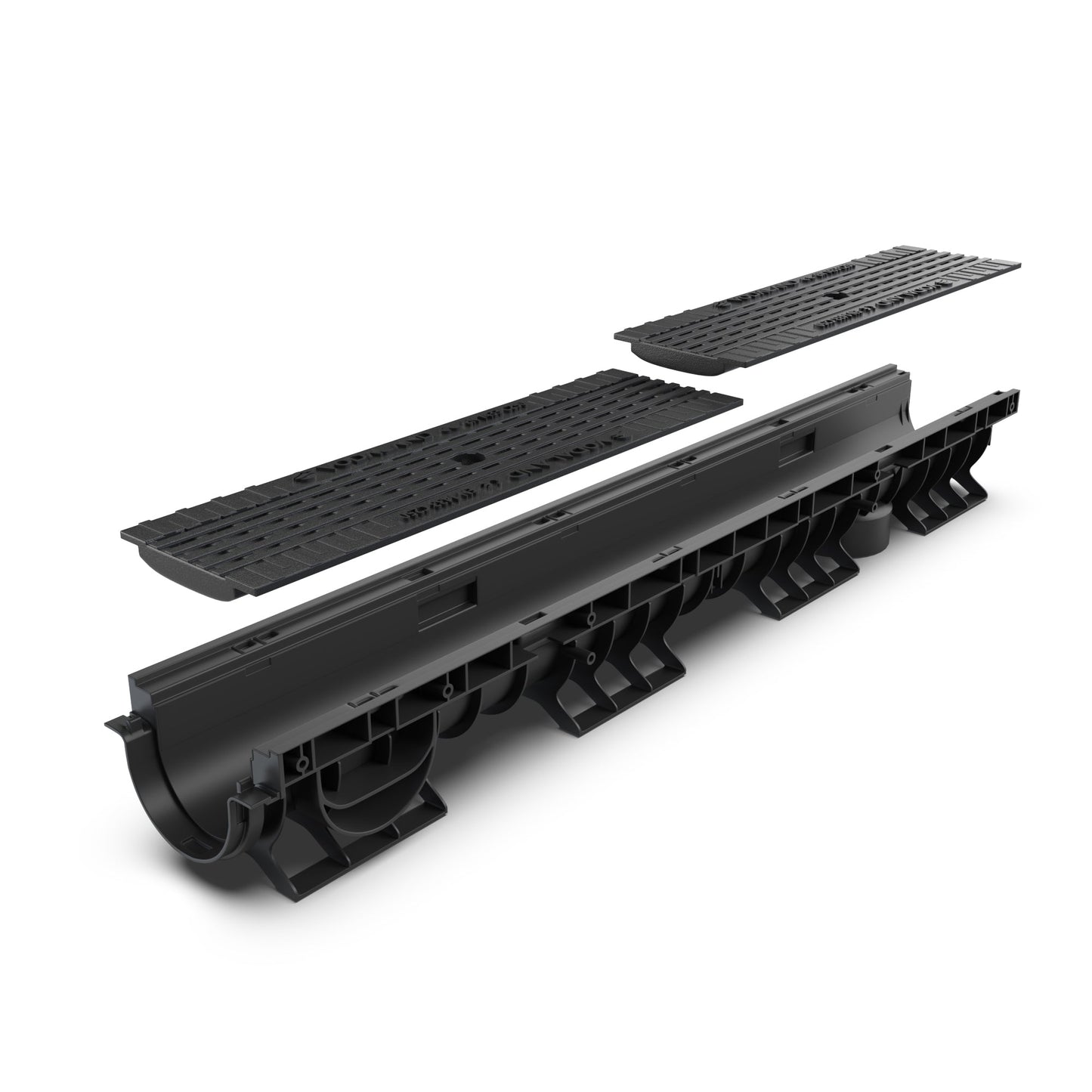

- 4" Internal width ductile cast iron ADA Package
- Comes with cast iron grate, channel, fasteners and end caps
- Vehicle load rated - ADA / HEEL PROOF Compliant
- Connect multiple channels for longer run
- 4" PVC or corrugated pipe bottom outlet option on each channel with schedule 40 adapter
- 4" PVC or corrugate pipe outlet option out of end caps (on the 6" and 8" channel depth options)
For our Pre Slope Packages all end caps have a 4" outlet
- More product details below
- Pre Slope Specification PDF
- grating pdf
- 2 inch channel depth pdf
- 2 inch channel depth cad
- 3 inch channel depth pdf
- 3 inch channel depth cad
- 4 inch channel depth pdf
- 4 inch channel depth cad
- 6 inch channel depth pdf
- 6 inch channel depth cad
- 8 inch channel depth pdf
- 8 inch channel depth cad
- installation brochure

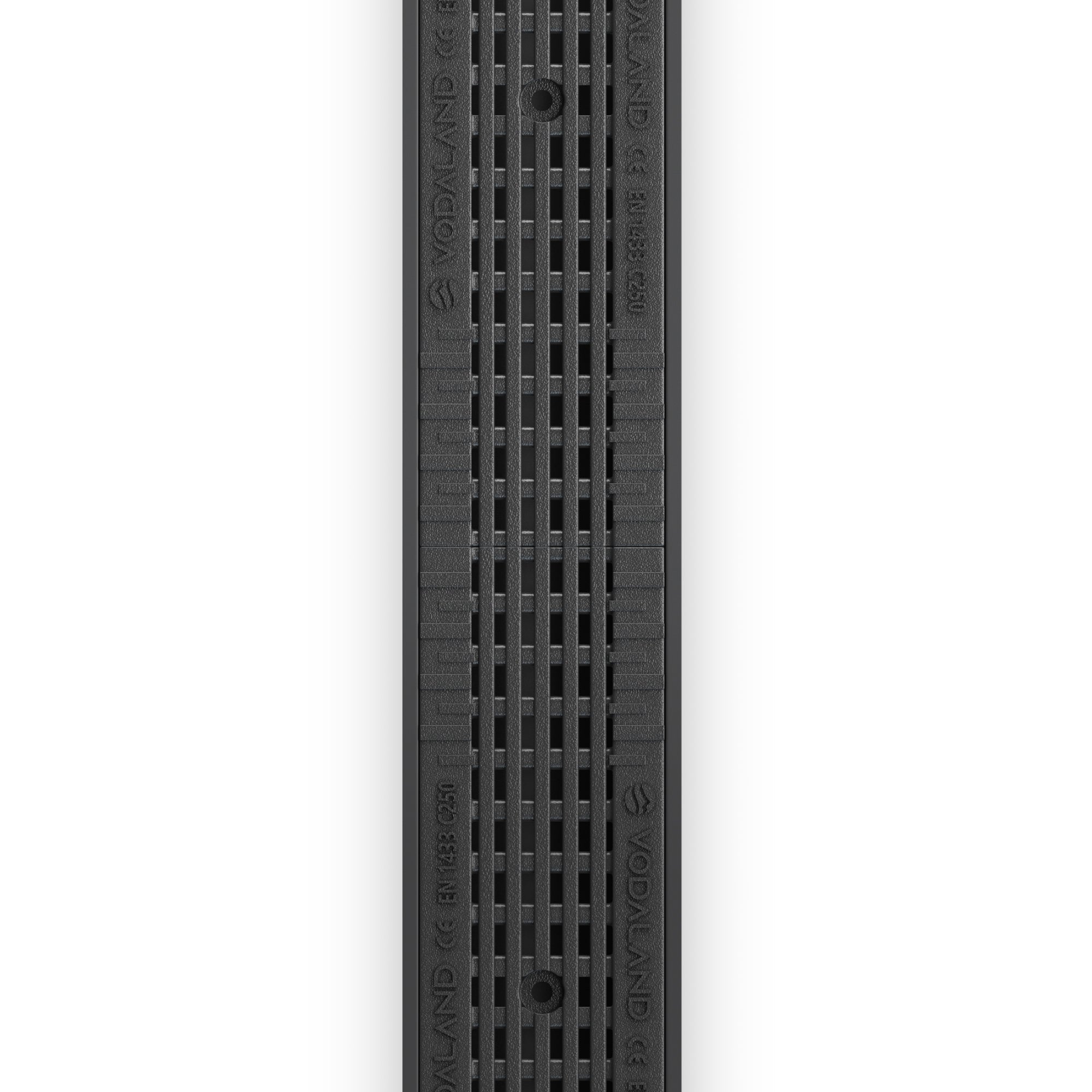

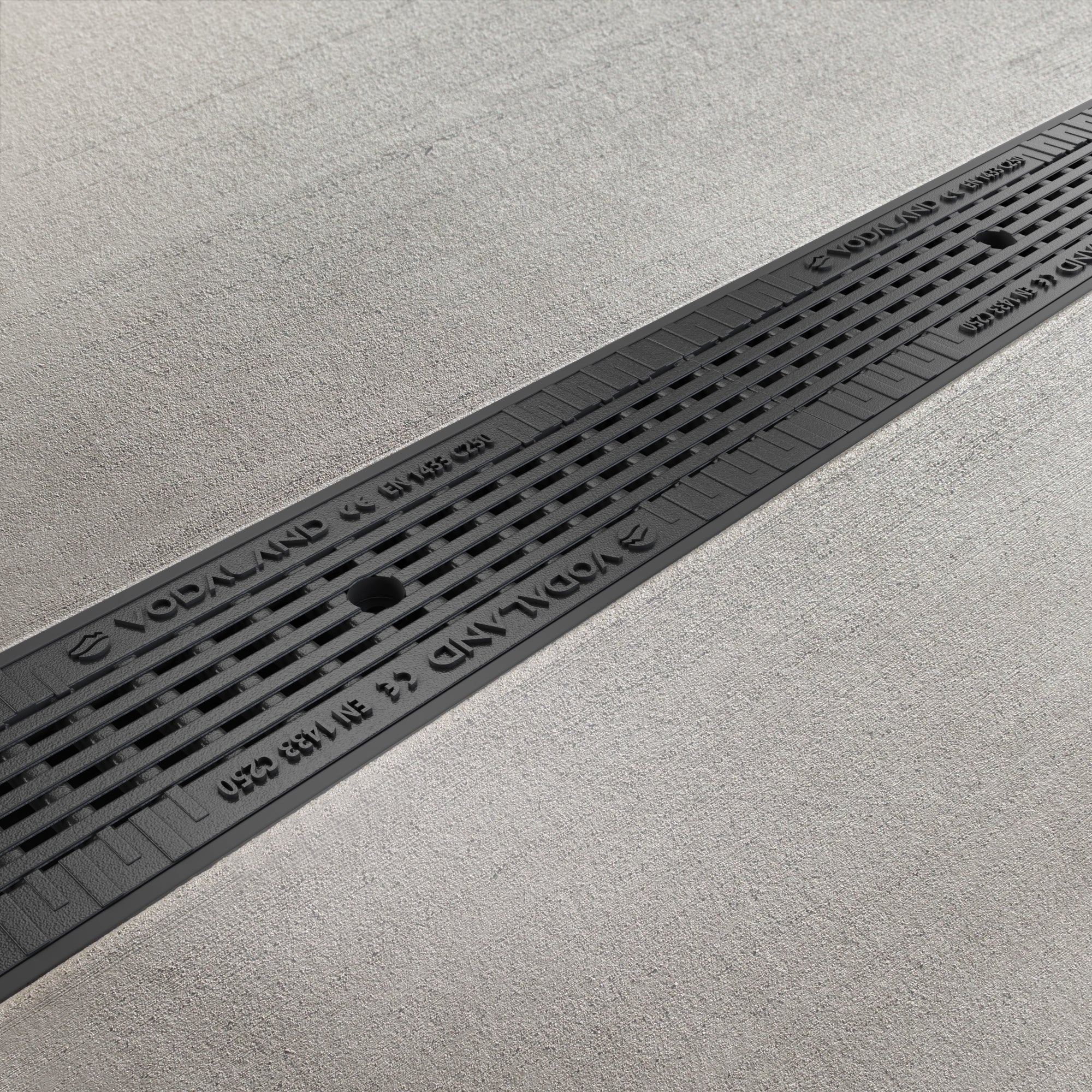

Our Cast Iron ADA package is perfect for any mid - heavy duty load class needed. System is rated at C Class - 55,000 LBS and fitted with a powder coated ductile cast iron grating for longevity and durability. Grating is ADA and Heel Proof Compliant as well.

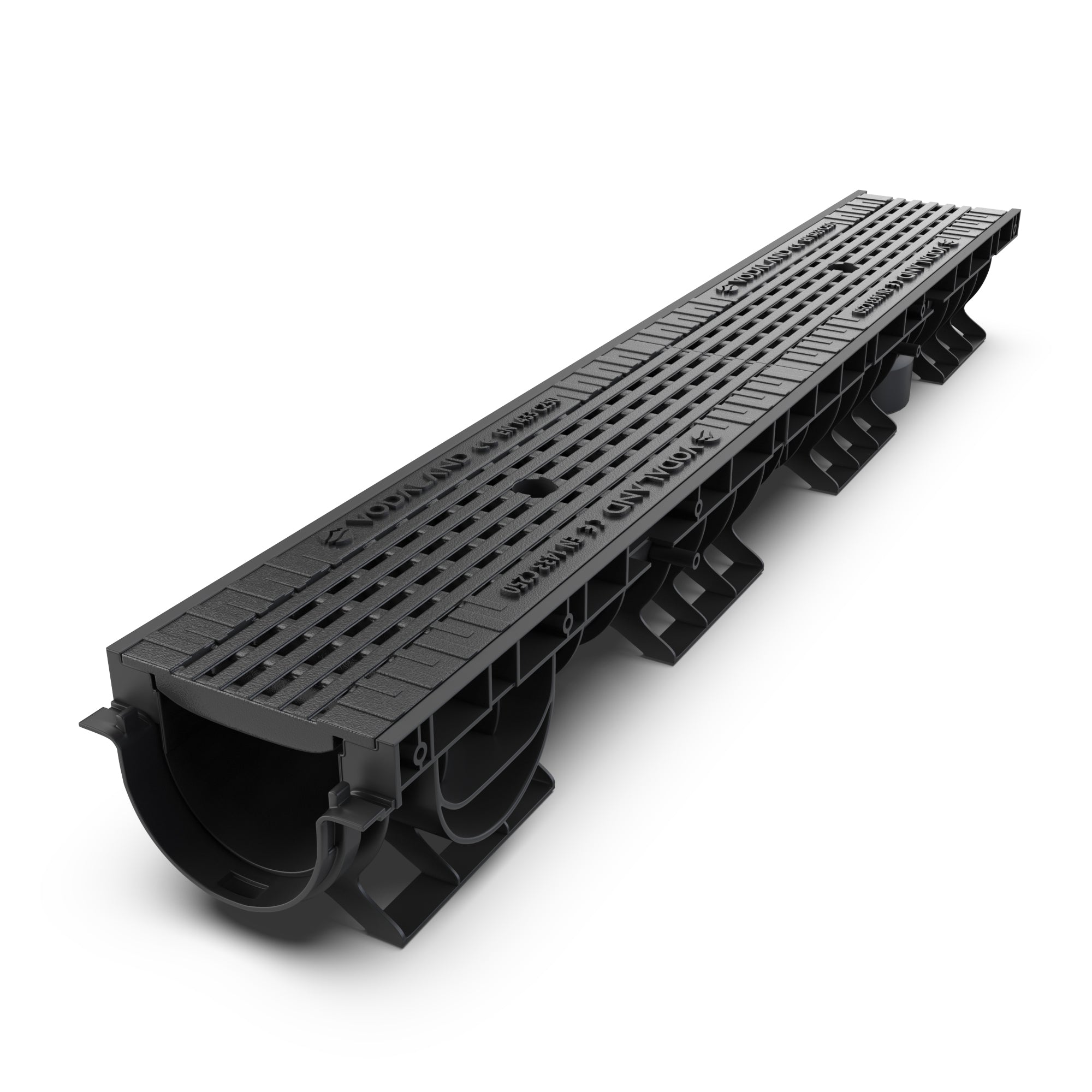

Each channel is 3.3 ft in length, with a Snap and Lock connection so you can attach end to end to create a longer and custom size run. In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth. See below for channel depth outlet configurations.
With our new Pre Slope system you can create a run up to 33 ft in length with a 1% slope. With a 4" outlet on the end no matter the channel run length.

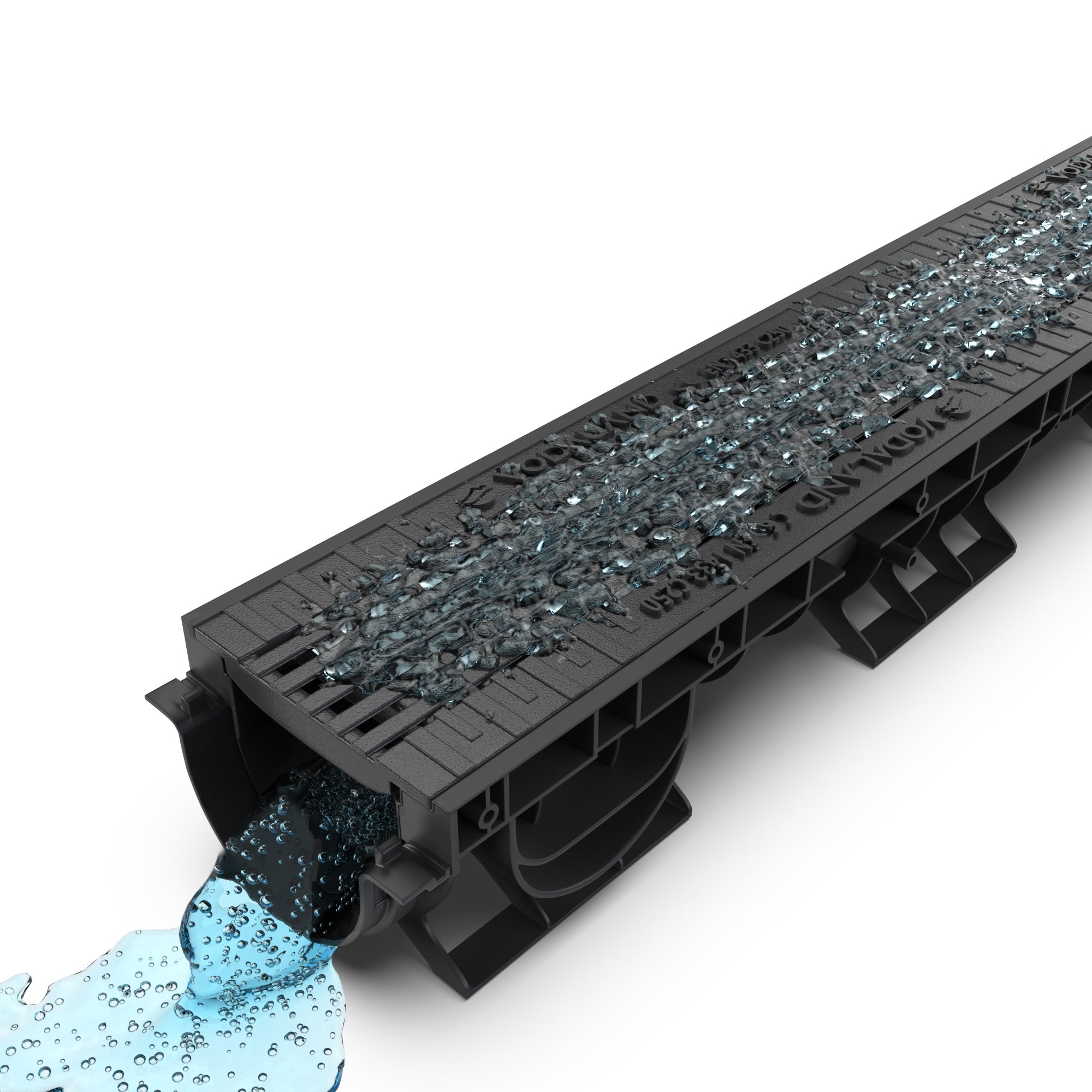

The 2", 3", 4", 6", and 8" Depth channels have bottom outlet option available with 4" Pipe connection.
Each of these systems will also have end cap outlet options available as well.
The 2", 6", and 8" Depth option will use a 4" end cap outlet pipe, while the 3" and 4" Depth option will use a 3" end cap outlet pipe.
For Pre Slope Channel articles please see the Pre Slope Specification Sheet
Material ............. PPE Plastic
Dimensions ....... 39.4"L x 5.8"W
Load Class ....... C Class - 55,000 LBS

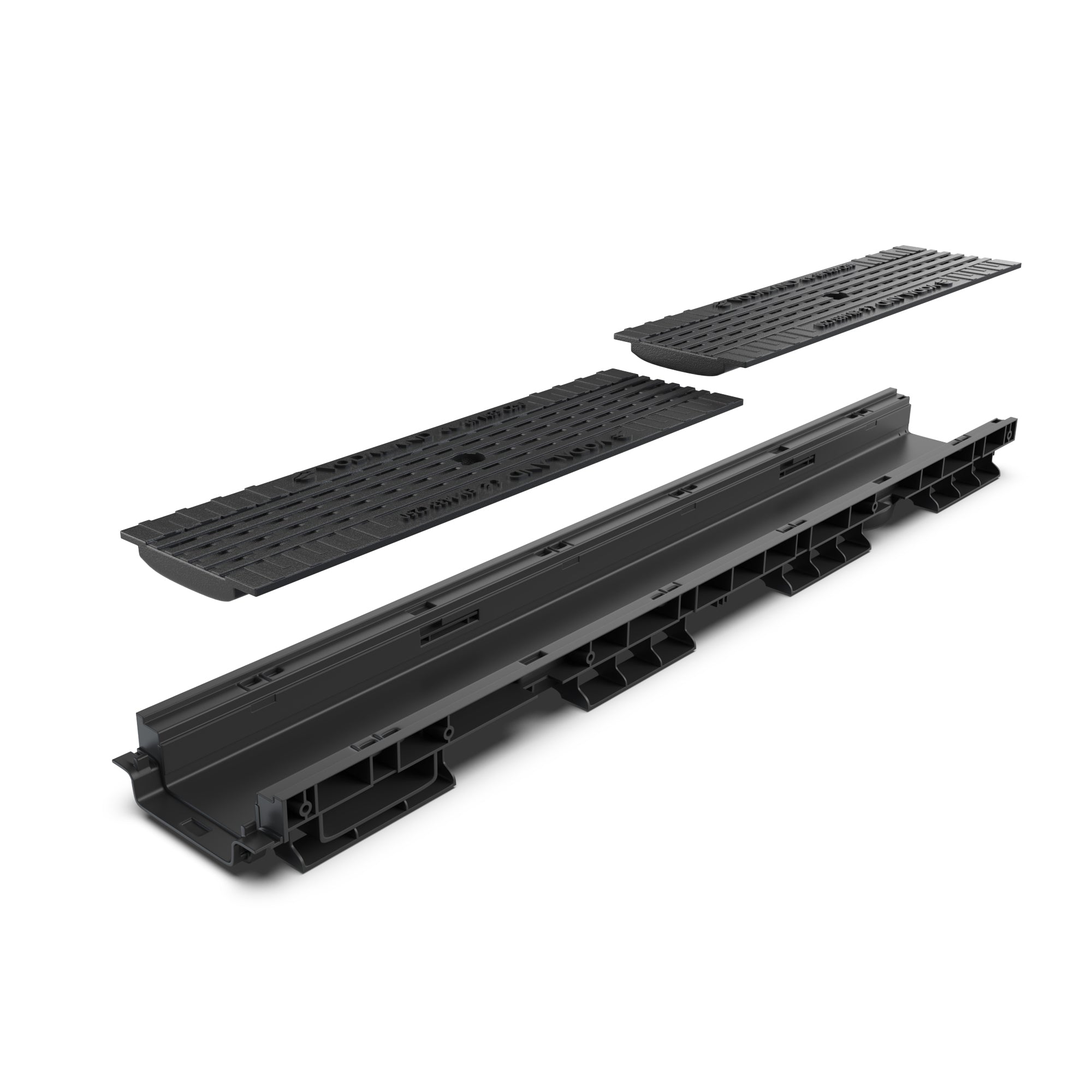

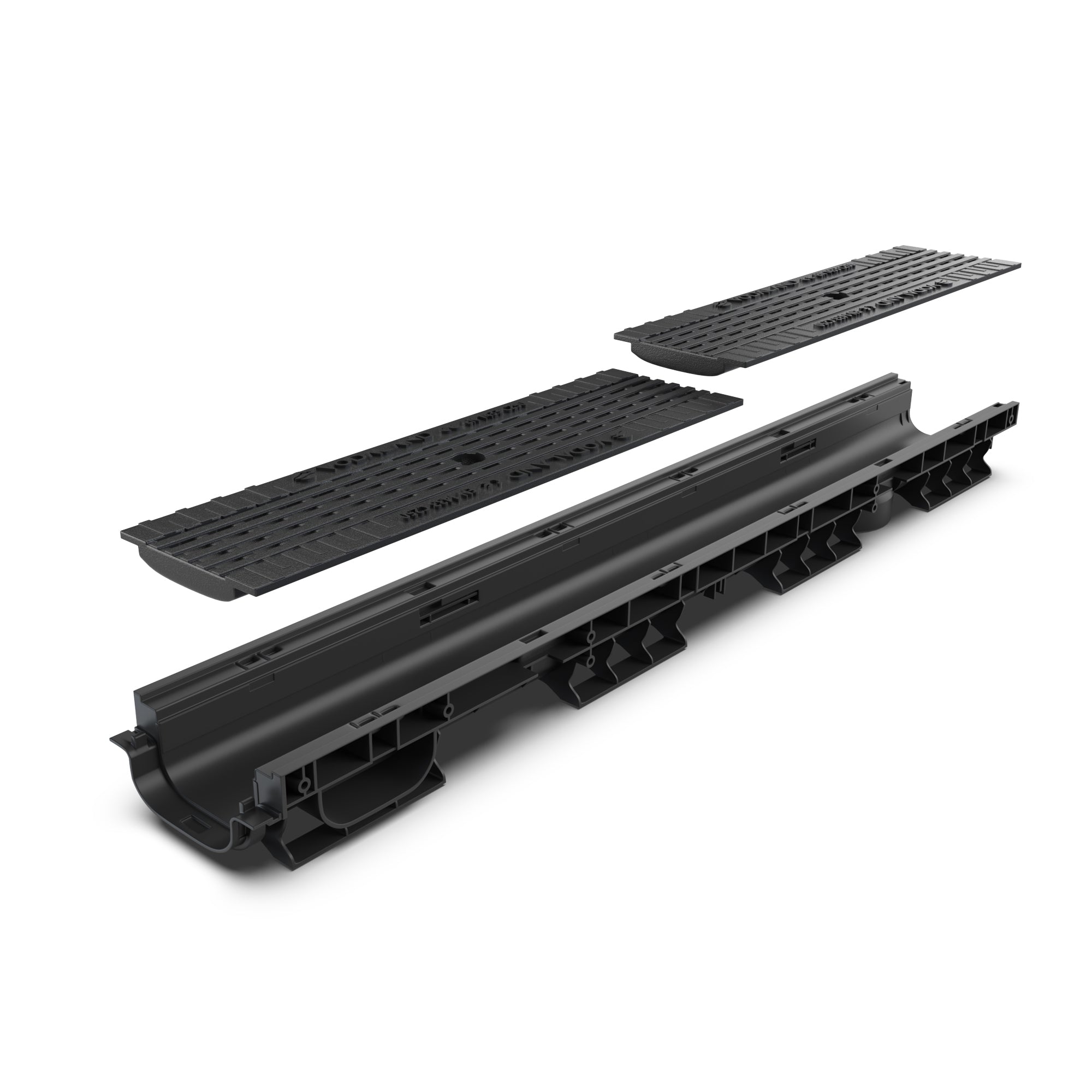

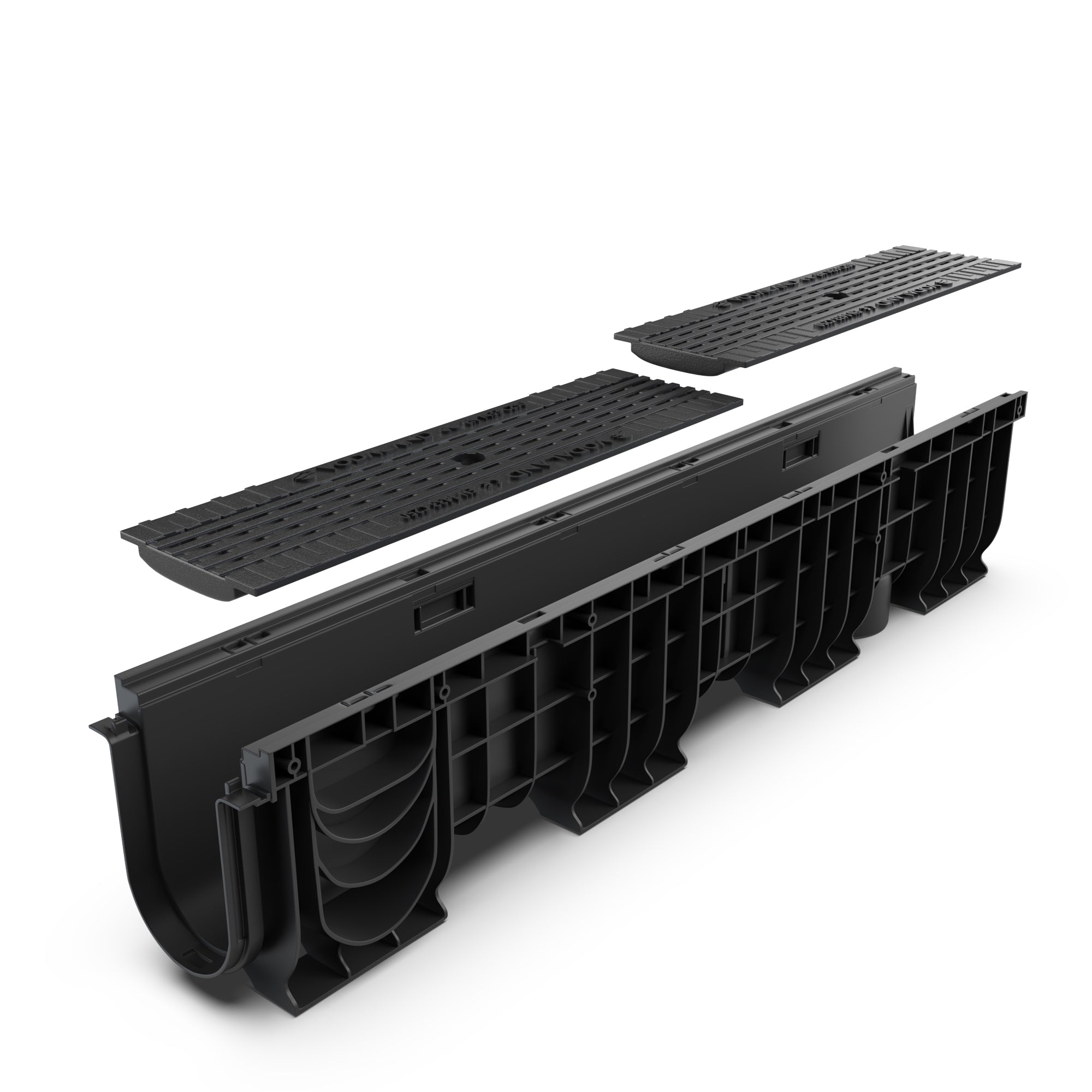

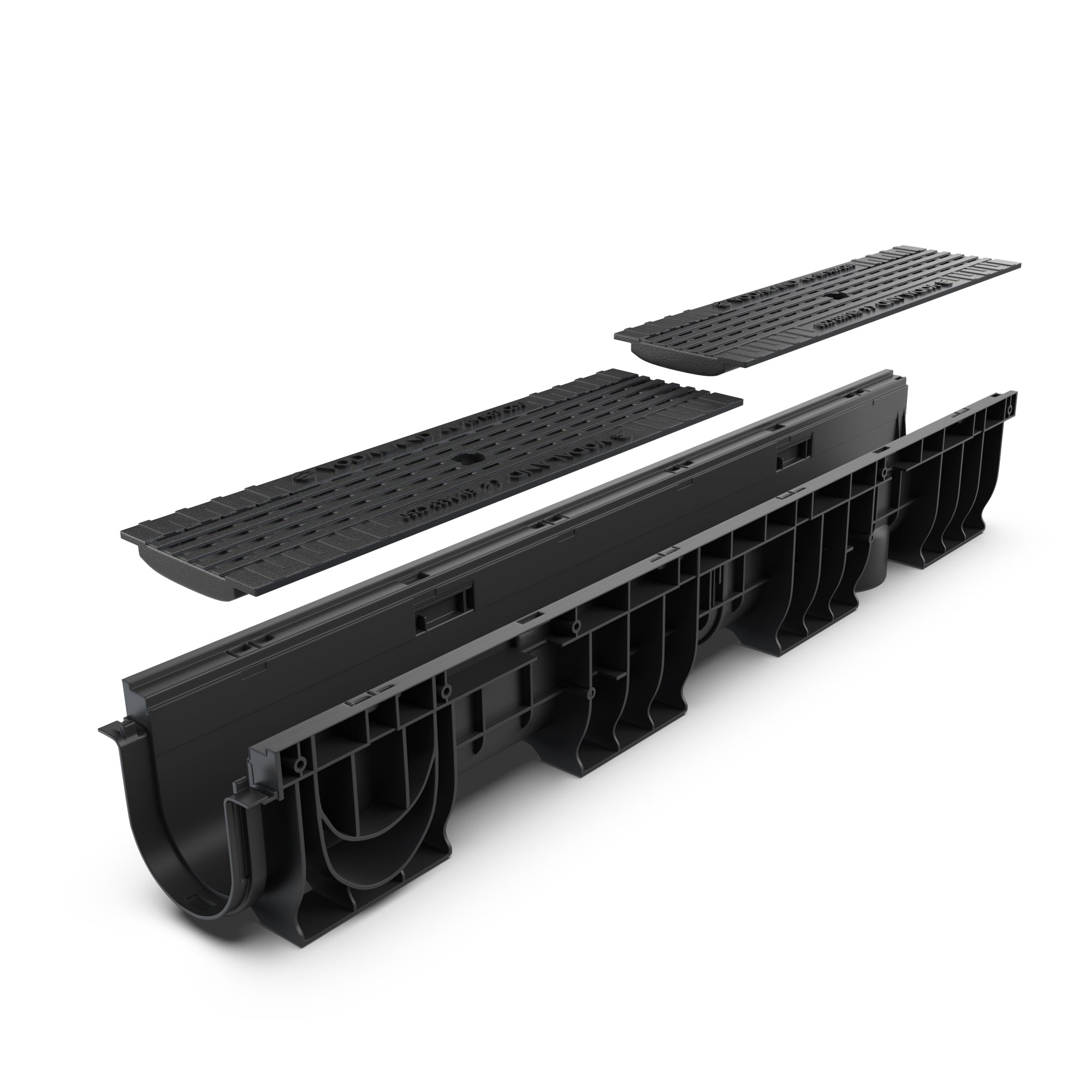

INCLUDED IN PACKAGE
1 - Channel Depth of Choice
2 - Units of C Class Ductile Cast Iron Gratings
2 - Grating Fasteners
2 - End Caps (Per Order) - Additional end caps at checkout.
For Slope Channels – packages include 2 End Caps Per Order (one closed and one outlet)
