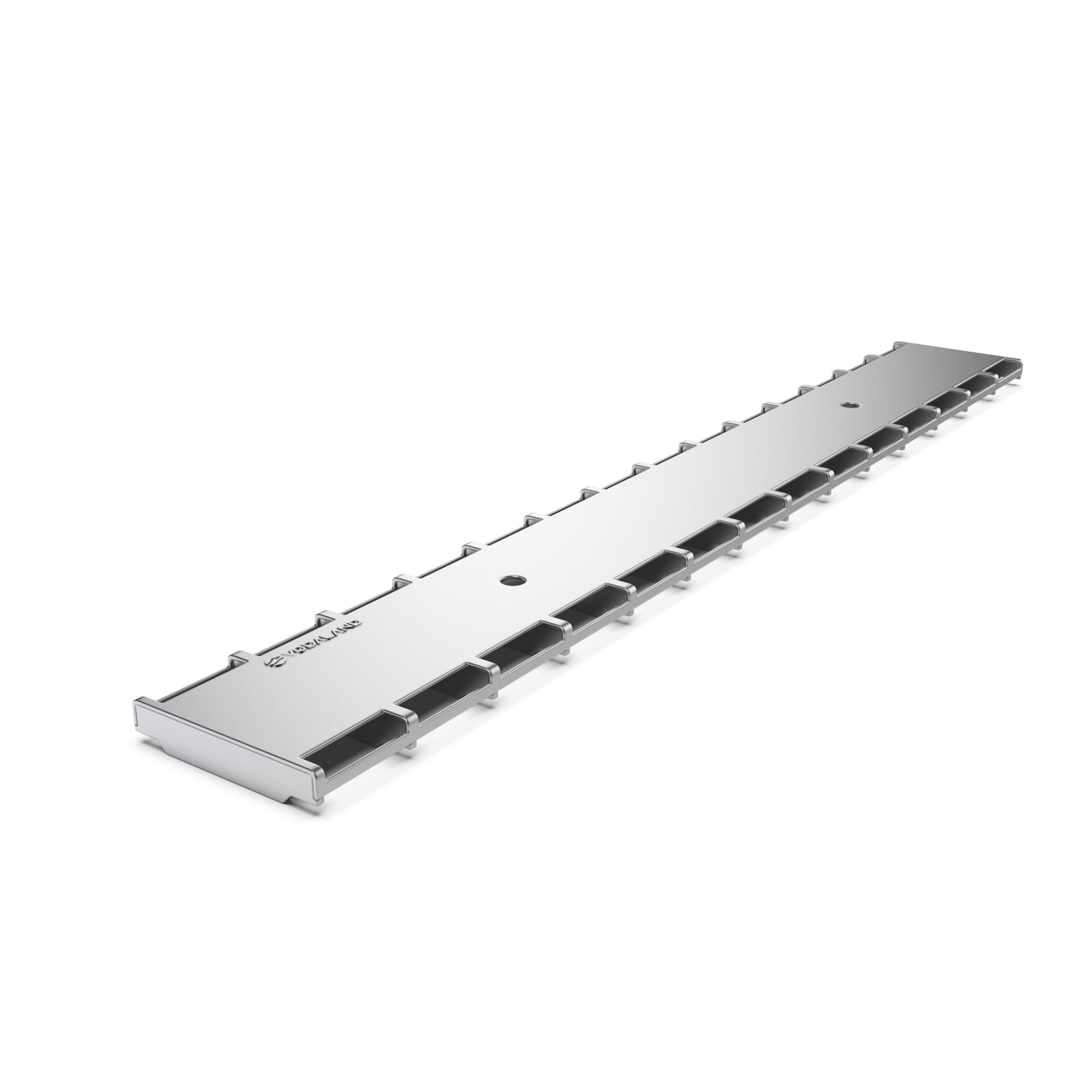

4” Stainless Crossover Grate - | Load Class B | Stainless Steel

The 4” Stainless Crossover Grate is engineered for pedestrian and light traffic areas. This channel drain system offers an ADA compliant solution for garages and poolside.

Key Features:
● B Load Classification – Supports up to 27,000 LBS per EN 1433, suitable for light traffic areas.
● ADA Compliant – Ensures pedestrian safety and accessibility.
● 304 Stainless Steel Grate – Corrosion and rust resistant.

Expanded Product Overview:
The Vodaland 4” Stainless Crossover Grate rated for Load Class B, it can support up to 27,500 lbs, making it ideal for pedestrian zones and light-duty vehicular traffic. The grate includes holes for securing with grate brackets to ensure stable installation. The ADA-compliant surface ensures safe, accessible use for pedestrians, wheelchairs, and carts, making it a versatile choice for both public and commercial environments.

This grate is compatible with our 4” low board channels.

Common Applications:
● Driveways
● Poolside
● Garages

Technical Specifications:
● Material: PPE Plastic – 304 Stainless Steel (Grating)
● Dimensions: 39 ¼” L X 5 ⅜” W X ¾” H
● Load Capacity: B Load Class – 27,500 LBS

Documentation Available:
● EN 1433 Load Class Test Report
● Installation Guides

Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
