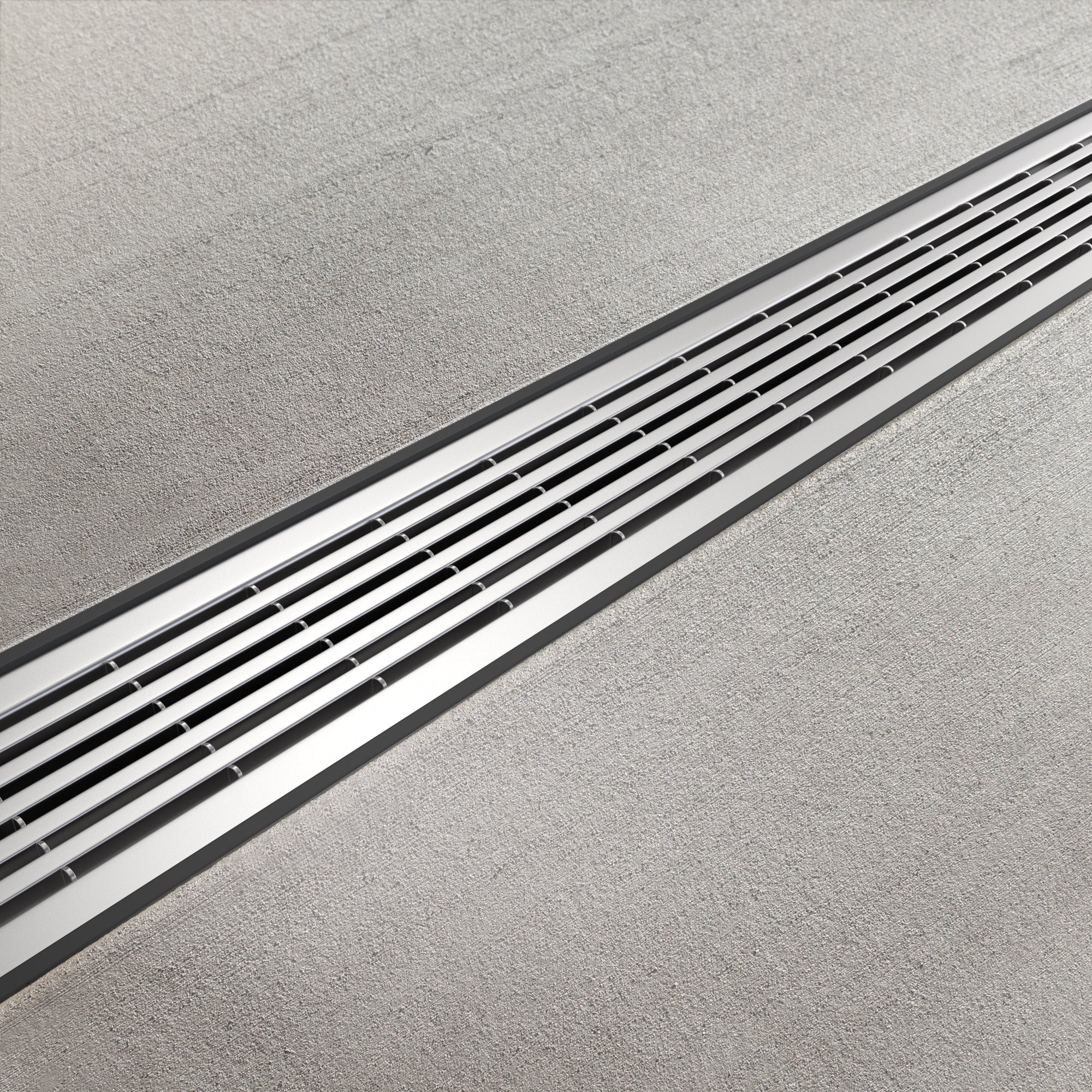

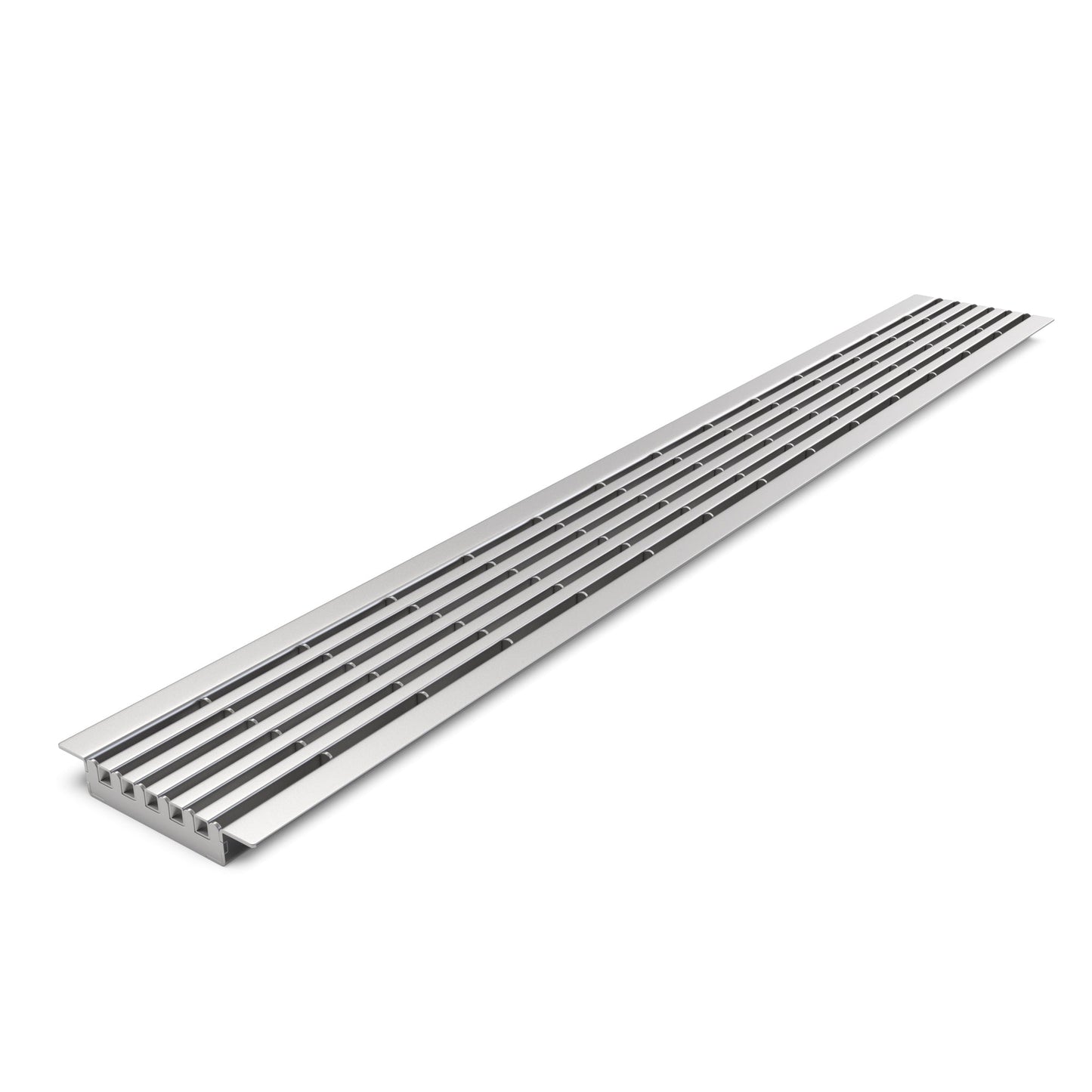

4" Stainless ADA / HEEL PRO Grate
4" Stainless ADA / HEEL PRO Grate
4" Stainless ADA / HEEL PRO Grate
4" Stainless ADA / HEEL PRO Grate
- Stainless Steel
- 39.25" L x 5.4" W x 1.0" H
- A - Load Class
- ADA and Heel Proof Compliant
- More Product Information Below
- Trusted by 10,000+ contractors!
Couldn't load pickup availability
FAQ’s
3D Model of our 4" Stainless Steel ADA / HEEL Proof PRO Grating
Zoom in / out and rotate to get a full 360 view of our 4" Stainless Steel ADA / HEEL Proof PRO Grating



Product Details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- Fits 4" width trench drain or channel system
- Pedestrian load Rated
- 100% 304 stainless steel grating
- 39.4" L x 5.4" W x 1.0" H
- ADA and Heel Proof Compliant
FEATURES
- Lightweight Design - Great Original Look
- No Fasteners Needed - Snap Into Place
- A Class - 3,300 LBS
- Flow Rate: 156 GPM
For more product information please see product description tab above

Product Description
Product Description
4” Stainless ADA / Heel PRO Grate - Maximum Durability and Safety
The 4” Stainless Steel ADA / Heel-Pro grate is corrosion-resistant and ideal for commercial properties, public spaces, and high-end residential projects.
Key Features:
● A Load Class – Suitable for foot traffic
● 304 Stainless Steel– Corrosion resistant for long lasting performance outdoor environments
● ADA Compliant Design – Built to keep walkways safe and accessible for everyone
● Heel-Proof Surface Pattern – Helps prevent trips hazards in high foot traffic areas
Expanded Product Overview:
The 4" Stainless Steel ADA / Heel-Proof PRO Channel Package is built to withstand tough environments and is ideal for both high pedestrian zones and private outdoor spaces. The 304 stainless steel grates offer excellent corrosion resistance, making them ideal for high-exposure environments. Heel-proof and ADA compliant, the grates are built for safety.
Common Applications:
● Patios
● Sidewalks
● ADA-Compliant public access areas
● Commercial pedestrian zones and plazas
Technical Specifications:
● Material: 304 Stainless Steel
● Dimensions: 39.5” L X 5.8” W X 1.0” H
● Load Capacity: A Load Class – 3,300 LBS
● Grating color: Stainless Steel
Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
