4" Stainless ADA / Heel Proof Edgeless Grates

4" Stainless ADA / Heel Proof Edgeless Grates

Skip to product information
1 of 3
  • Heavy Duty Load
View full details

Product Details

  • Specifications and Downloads
  • Product Description

Specifications and Downloads

Specifications and Downloads

  • Fits 4" width high board trench drains
  • B or C-Load Class
  • 100% 304 stainless steel grating
  • 39.4" L x 5.4" W x 1.0" H
  • ADA Compliant

FEATURES

- Edge to edge coverage design

- B or C Load Class

- 100% 304 Stainless Steel

For more product information please see product description tab above

Downloads
PDF
DWG
BIM
B Class Specification Sheet
PDF :
DWG :
C Class Specification Sheet
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

4” Stainless ADA / Heel Proof Edgeless Grates - Maximum durability and safety

The 4” Stainless ADA/Heel-Proof Edgeless grates offer an ideal water drainage solution for areas with foot or light-to-medium vehicle traffic, where both performance and aesthetics are important.

Key Features:
B/C Load Class – Square top design is made for light traffic areas, and the circle top design is suitable for medium load vehicles
ADA/Heel Compliant – Built to keep walkways safe and accessible for everyone
Edgeless – Provides a smooth, clean appearance from above

Expanded Product Overview:

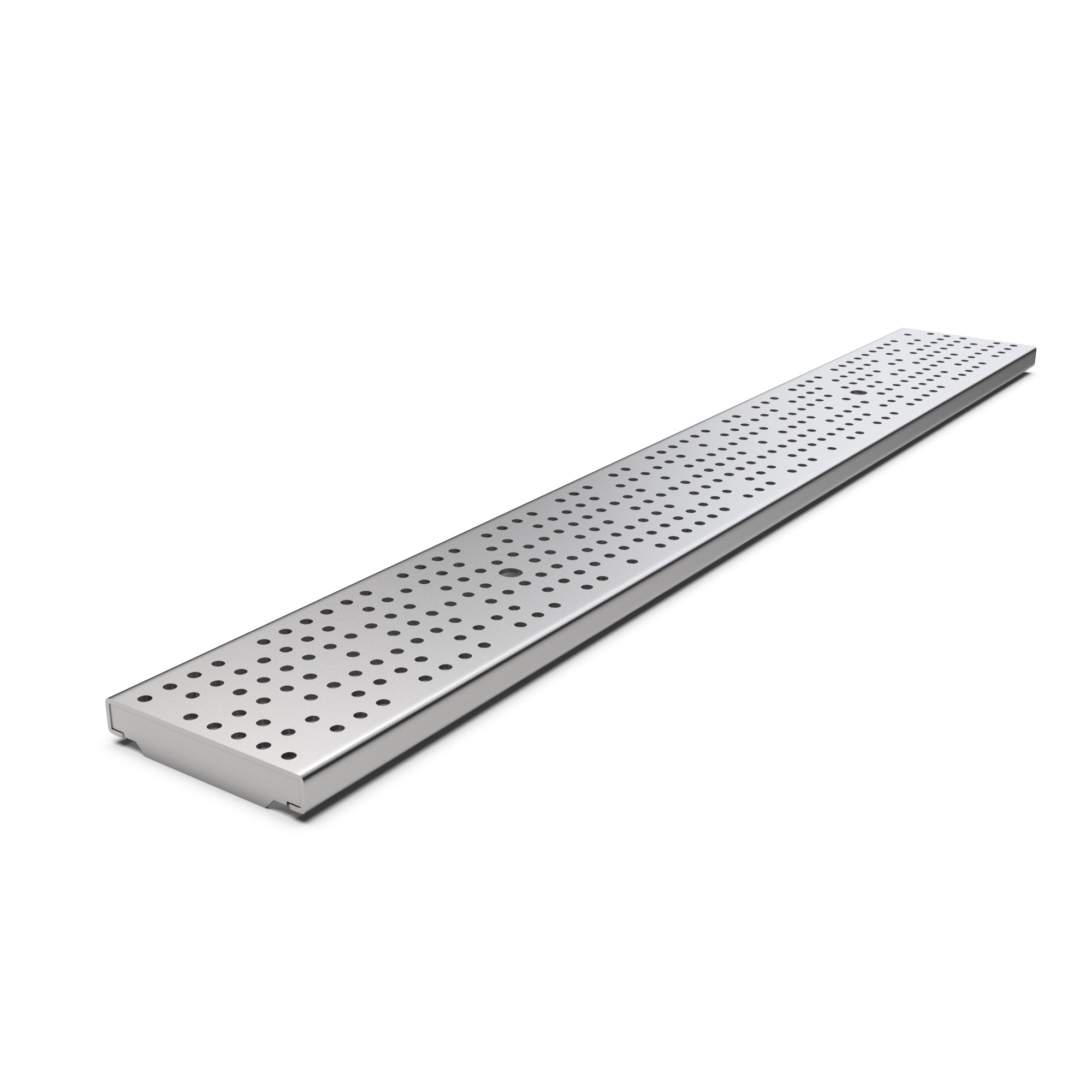

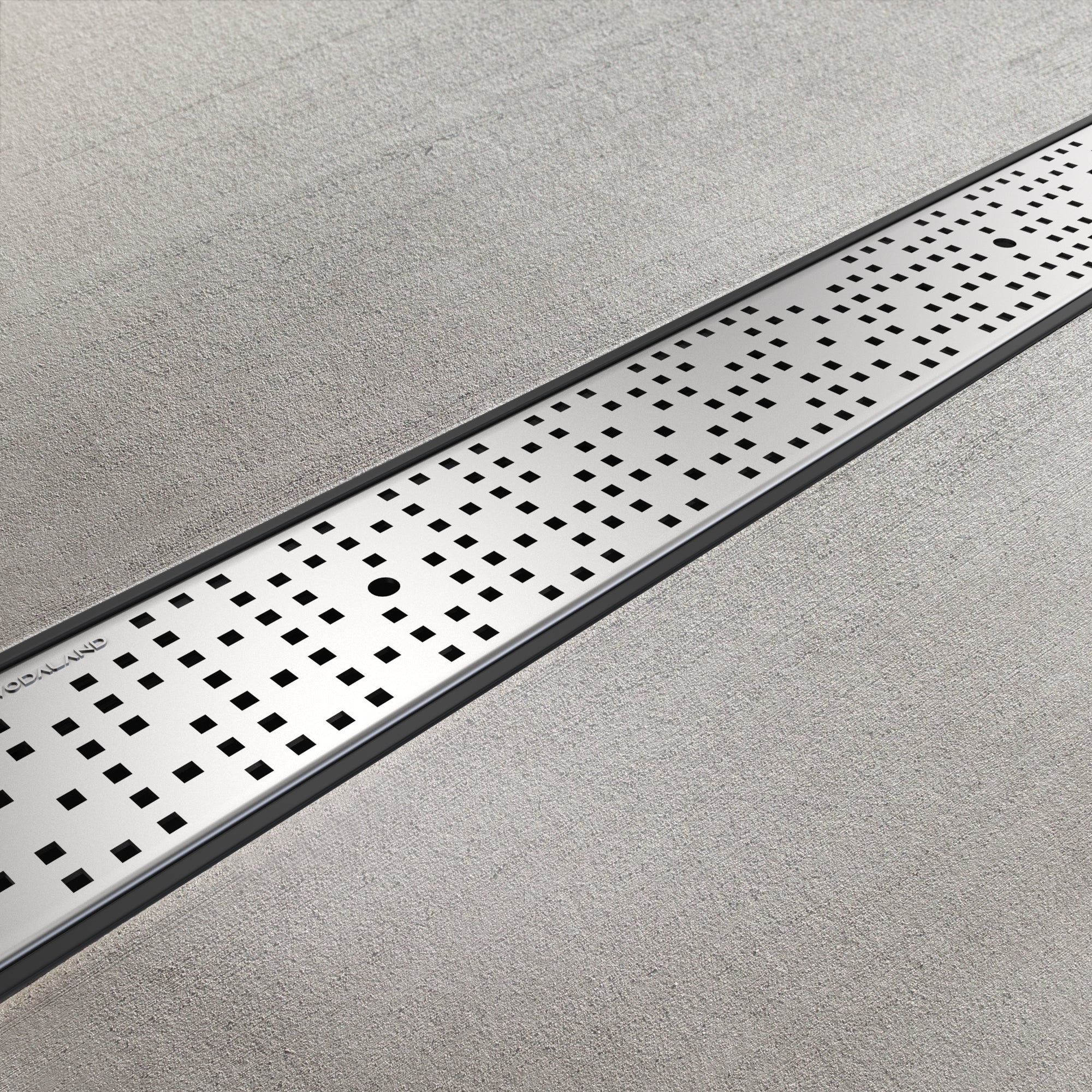

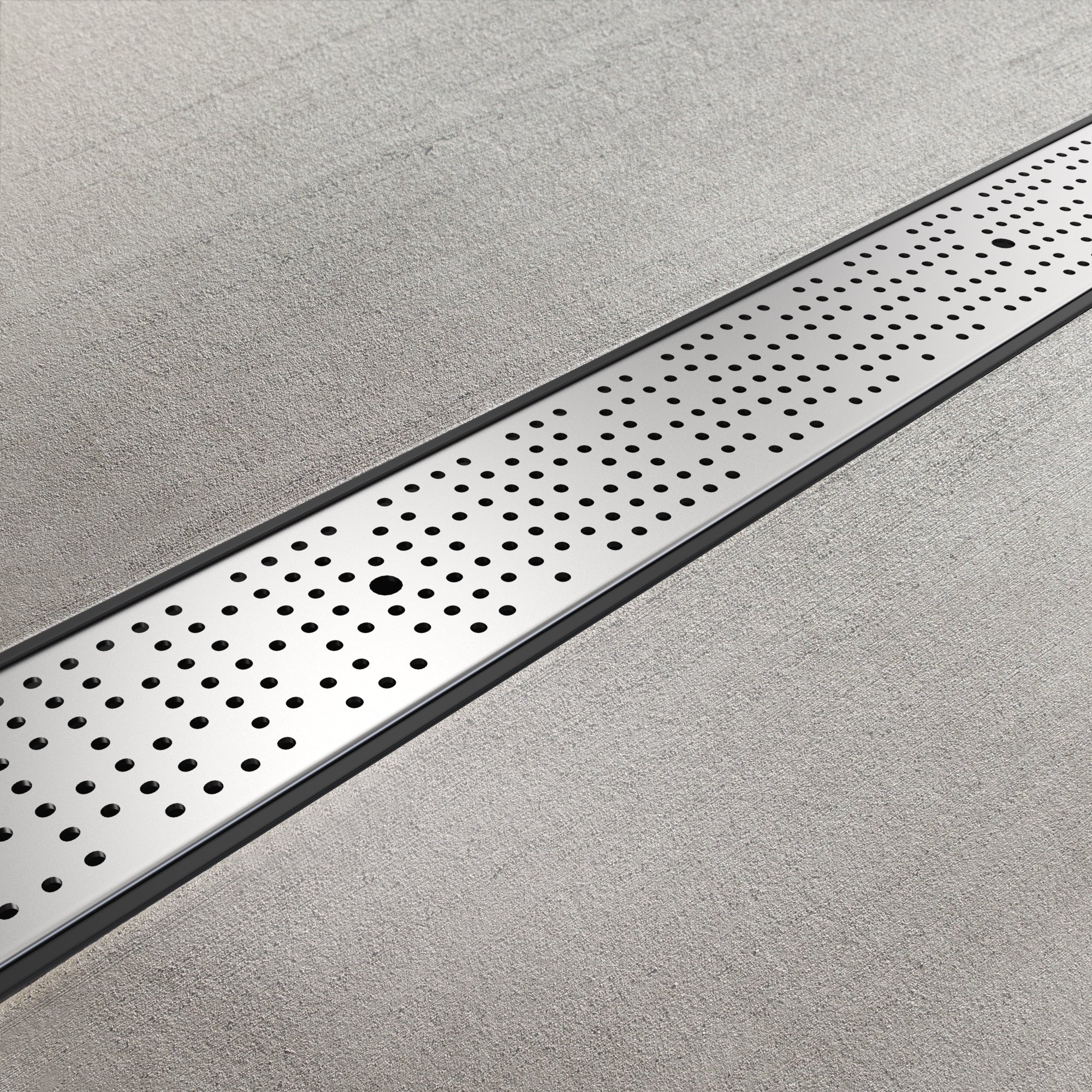

The Vodaland 4” Stainless Steel ADA/Heel-Proof Edgeless Grates come in two grate options. You can go with the Load Class B grate with square holes, perfect for foot traffic or light vehicles, or the Load Class C grate with circular holes for areas that need a bit more strength. Both options are ADA-compliant, heel- proof, and made from durable, corrosion-resistant 304 stainless steel, so they’re built to last even in wet
or humid conditions.

Common Applications:
Pools
Driveways
Warehouse
Shops
Sidewalks

Technical Specifications:
Material: 304 Stainless Steel
Dimensions: 39.5” L X 5.8” W X 1.0” H
Load Capacity: B Load Class – 27,500 LBS / C Load Class 55,000 LBS
Connection Type: Seamless
Grating Color: Stainless Steel

Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
