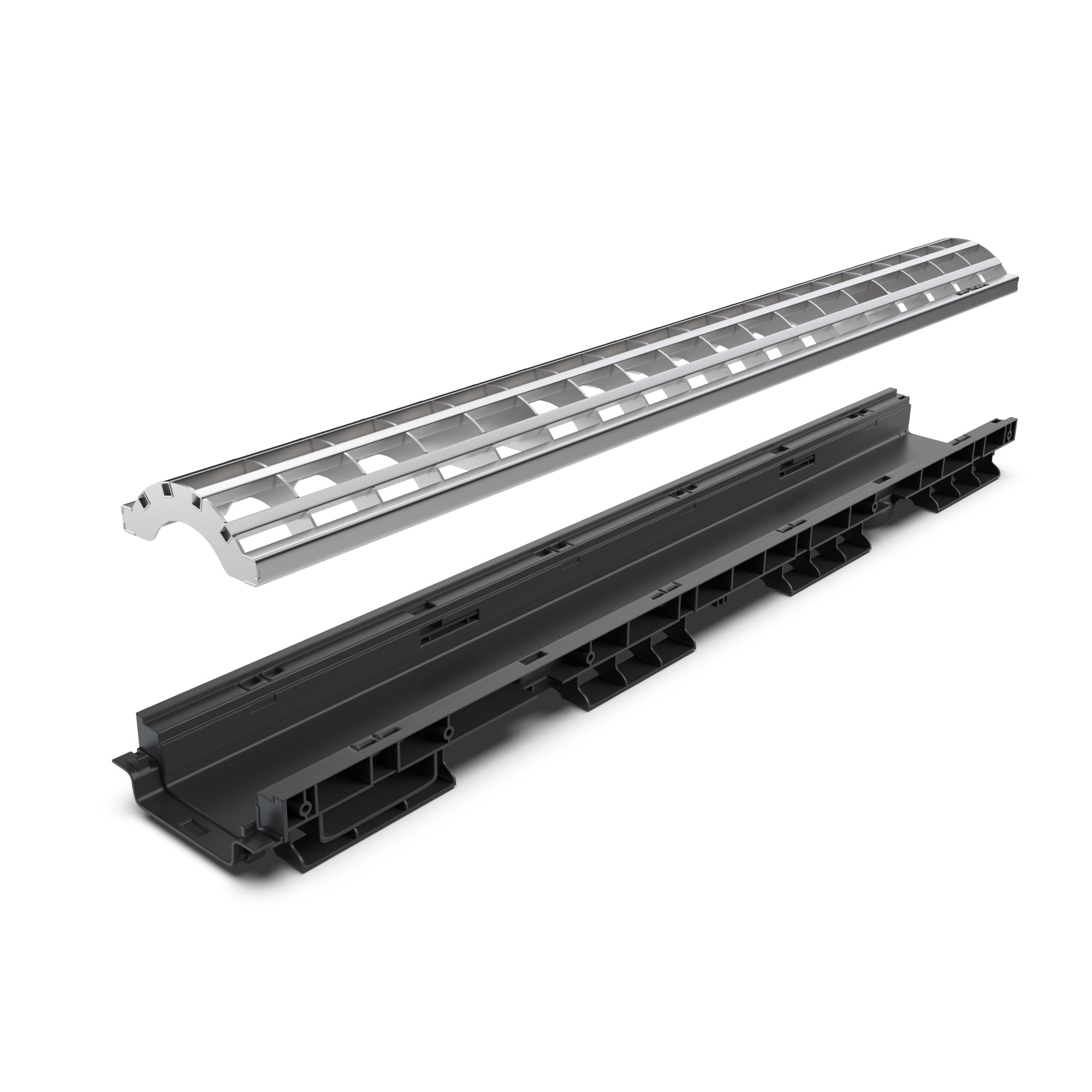

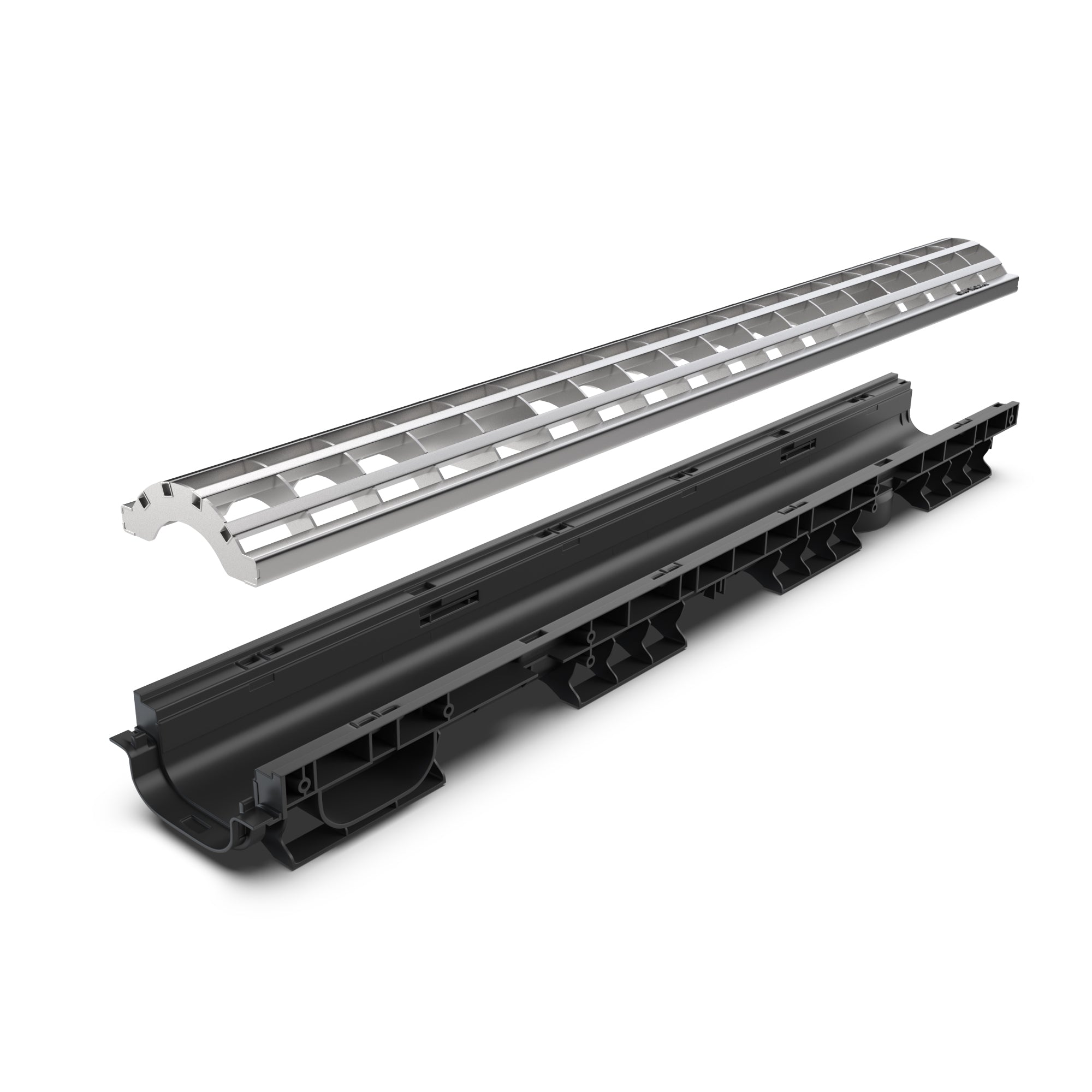

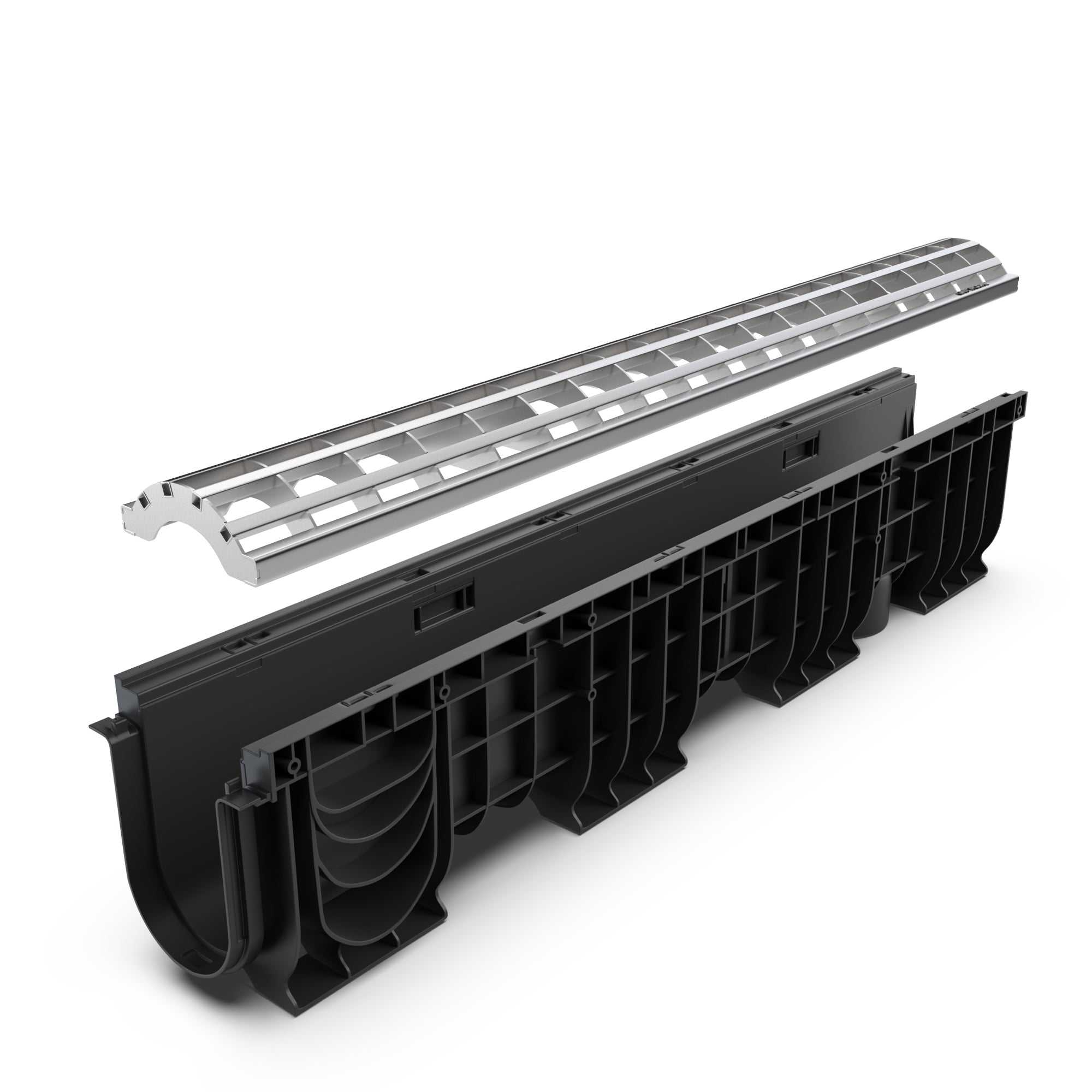

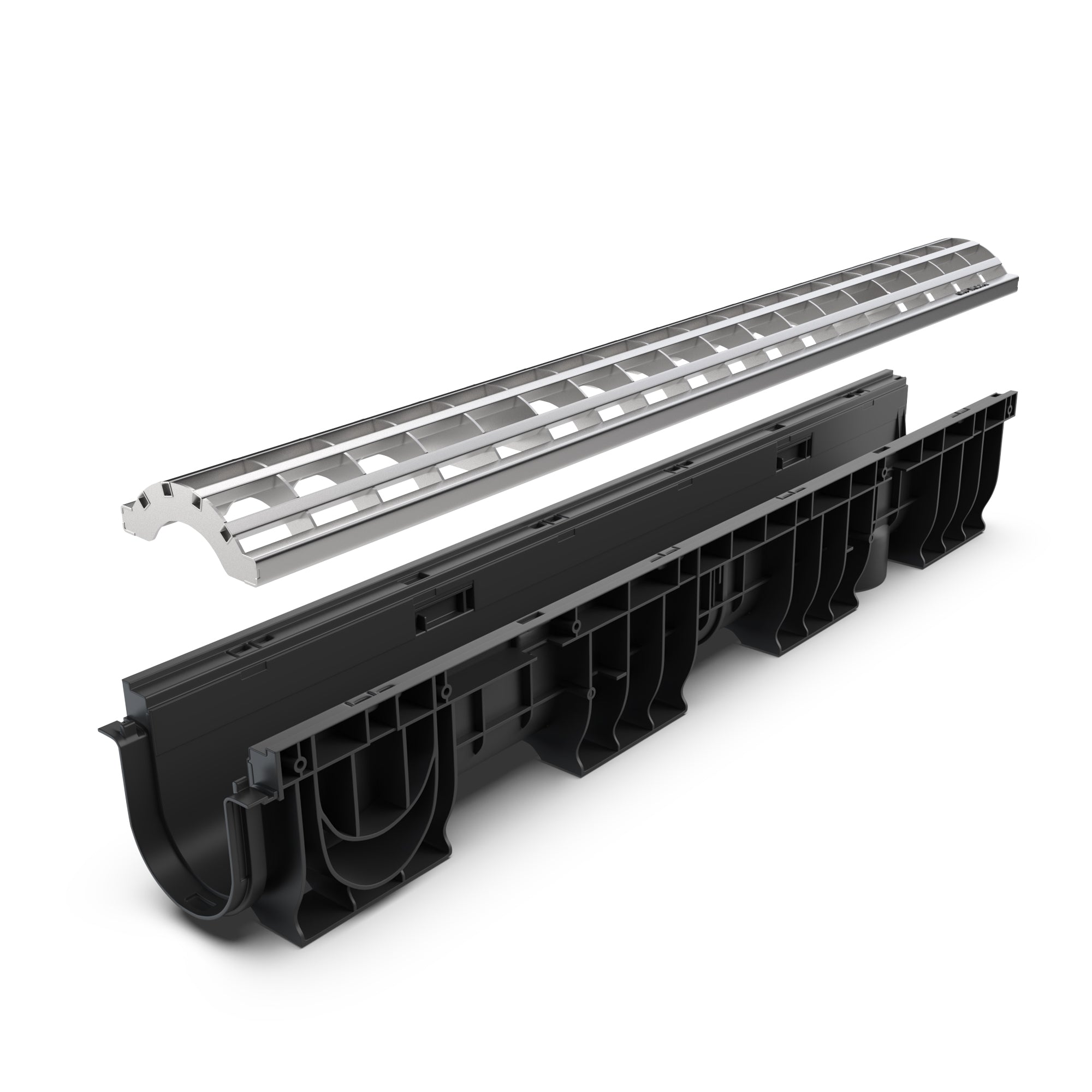

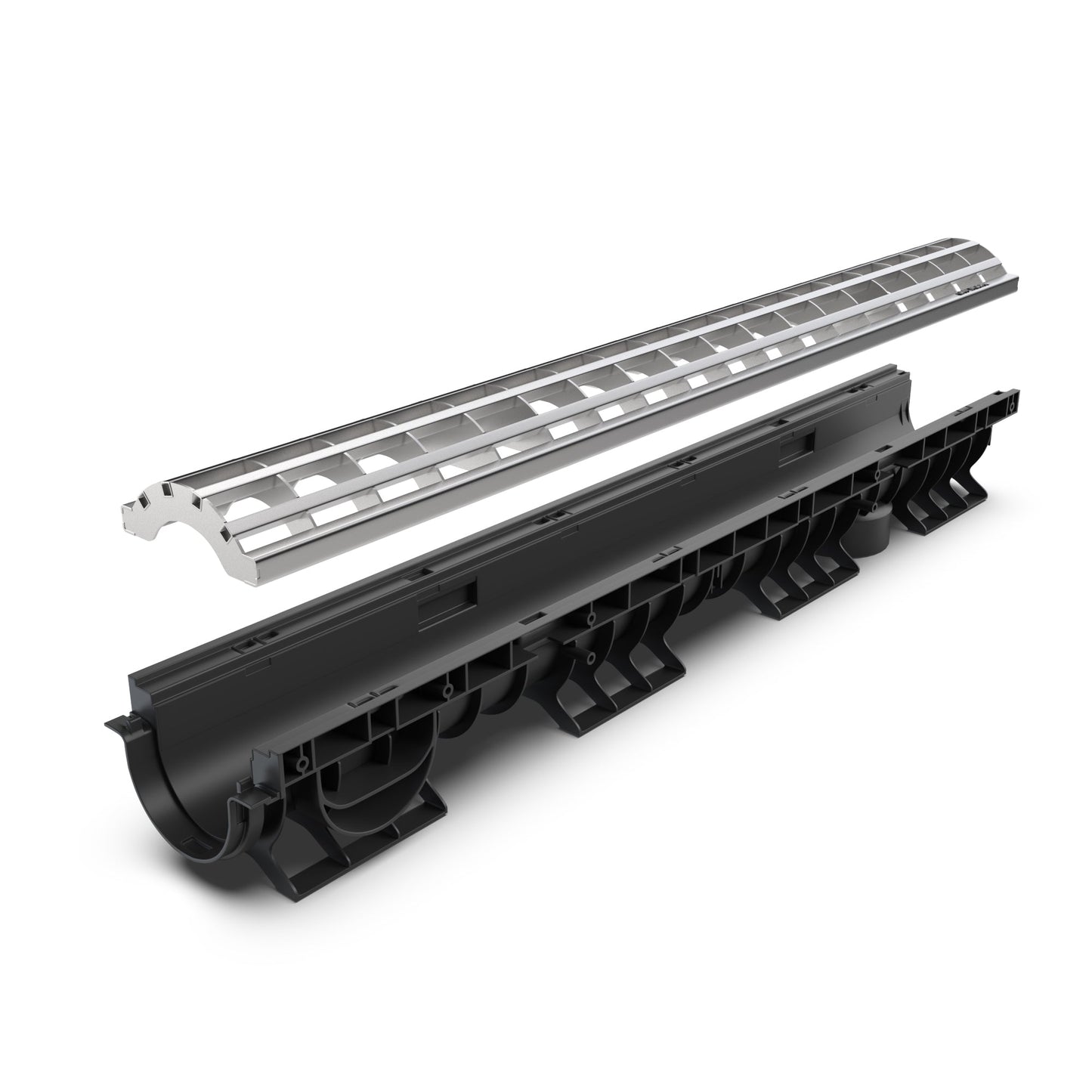

4" Stainless Dome Edgeless Drain Package

4" Stainless Dome Edgeless Drain Package

Regular price $225.00
Regular price Sale price $225.00
Sale Sold out
free shipping over $999
3-5 days delivered
View full details
  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 4" Internal width stainless Steel

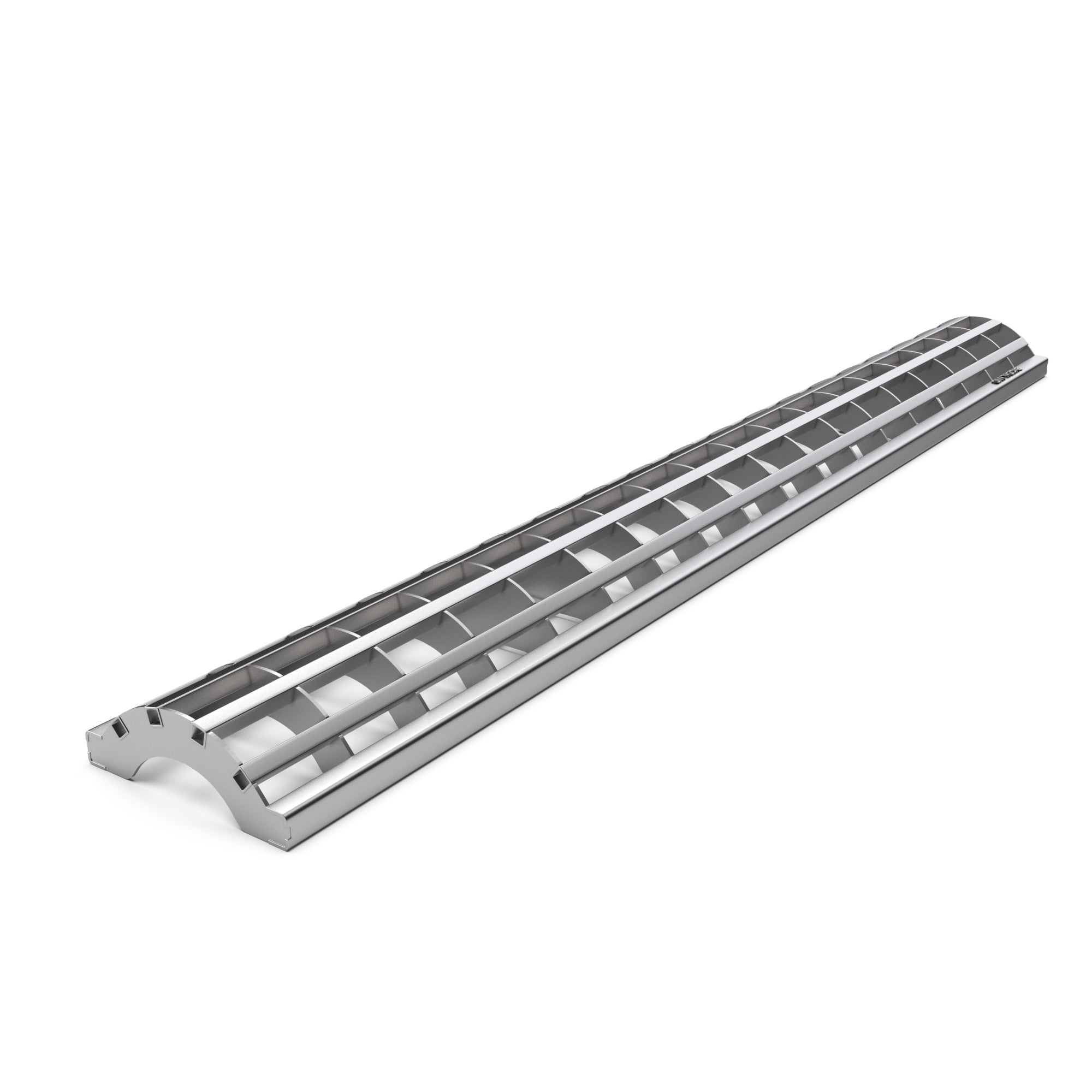

  • Comes with stainless steel Dome grate
  • Domed to prevent obstruction
  • Connect multiple channels for longer run
  • 4" PVC or corrugated pipe bottom outlet option on each channel with schedule 40 adapter

INCLUDED IN PACKAGE

- Channel Depth of Choice

1 - Unit of Stainless Steel Dome Grating

For more product information please see product description tab above

Downloads
PDF
DWG
BIM
Channel Specification Sheet
PDF :
BIM :
Grate Specification Sheet
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

Vodaland 4” Stainless Dome Edgeless Drain Package

Upgrade your drainage system with Vodaland’s 4” Stainless Dome Edgeless Drain Package, designed for superior performance and durability. The innovative domed structure prevents debris buildup, reducing the risk of clogging while allowing efficient water flow. Additionally, this grate acts as a natural landscaping barrier, helping to keep unwanted obstructions from passing through.

Crafted from high-quality stainless steel, it is corrosion-resistant and built for long-lasting reliability. While this grate is not rated for vehicular traffic, it is perfect for pedestrian areas, gardens, and other landscaping applications.

Dome Design – Minimizes obstructions and improves drainage efficiency

Edgeless Construction – Sleek and seamless integration into your system

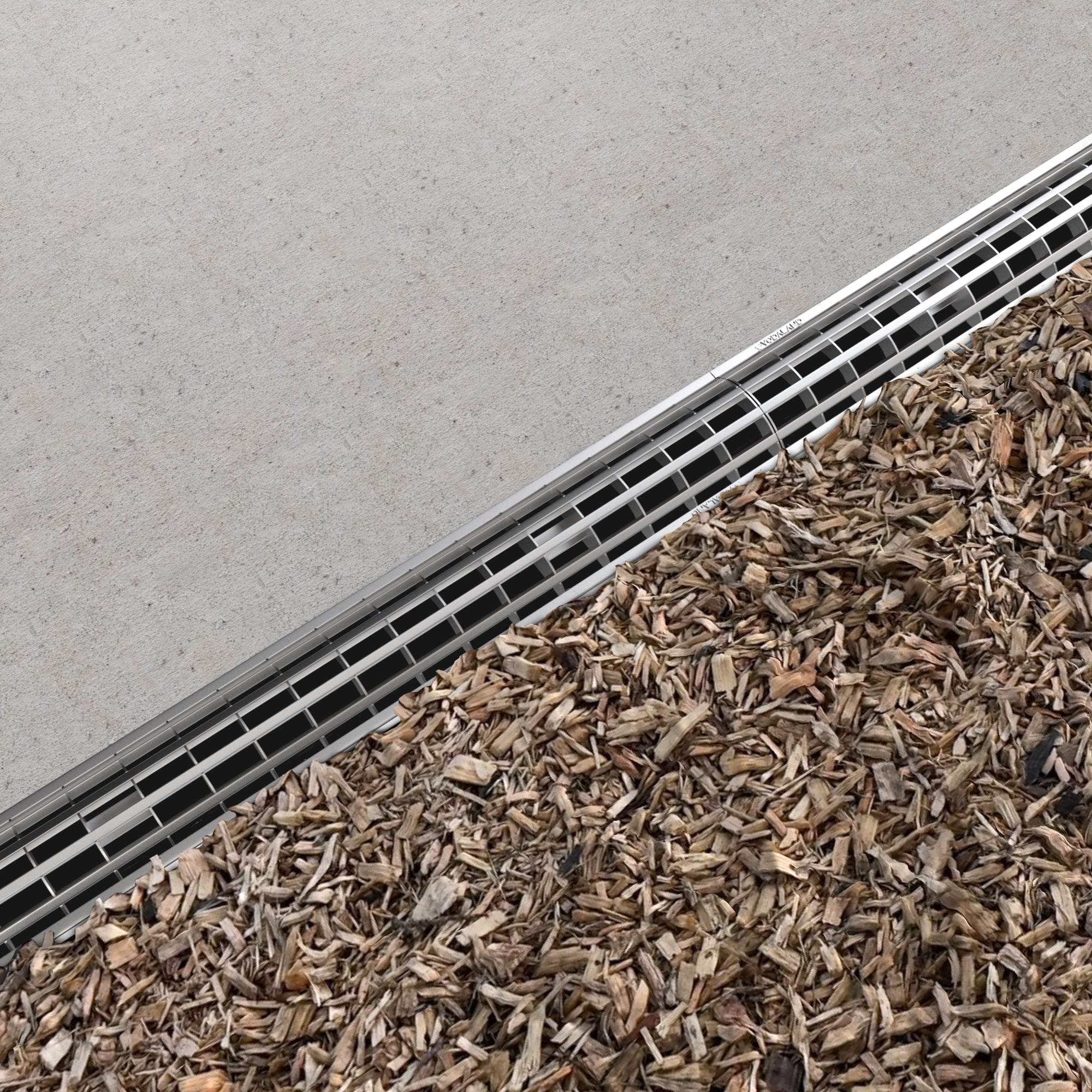

Landscaping Barrier – Prevents debris from flowing beyond the drainage point

Durable Stainless Steel – Rust-resistant and built to last

Ideal for residential and commercial drainage solutions, the 4” Stainless Dome Edgeless Grate ensures a clean and efficient system without compromising aesthetics.

Each channel is 3.3 ft in length, with a snap and lock connection so you can attach end to end to create a longer and custom size run.  In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth.

Made with our thicker high-board grates and channels.

With this Pre Slope system you can create a run up to 43 ft in length with a 1% slope. With an option of an option of a 4" outlet on the end no matter the channel run length.

Each of these systems will also have end cap outlet options available as well.

For Pre Slope Channel articles please see the Pre Slope specification sheet.

Article number....996551

Material ............. PPE Plastic & 304 Stainless Steel

Dimensions ....... 39.4"L x 5.8"W

Load Class ....... A Class

INCLUDED IN PACKAGE

- Channel

1 - Unit of Stainless Steel Domed Grating
