6" Channel Stainless Steel ADA B Class Package
- PPE Plastic / Galvanized Steel
- 3.3' (39 Inches) - Length
- B - Load Class
- Driveways, Garages, Parking Lots and more
- End Cap Options Available Below
At Vodaland, we ship all orders within one business day. Our team ensures your order is packed accurately and shipped quickly.
Standard: 3–5 business days from St. Louis, MO.
Pallets: 5–7 business days, delivery scheduled by carrier.
Expedited: Next-day or 2-day shipping via FedEx Express (extra fee, weekends excluded).
6" End Cap Universal for Channel 6x8 Channel
$17.00
6" Channel Stainless Steel ADA B Class Package
Sale price$315.00
Product Details
- PRODUCT OVERVIEW
- SPECIFICATIONS
- INSTALLATION VIDEOS
SPECIFICATIONS
Description

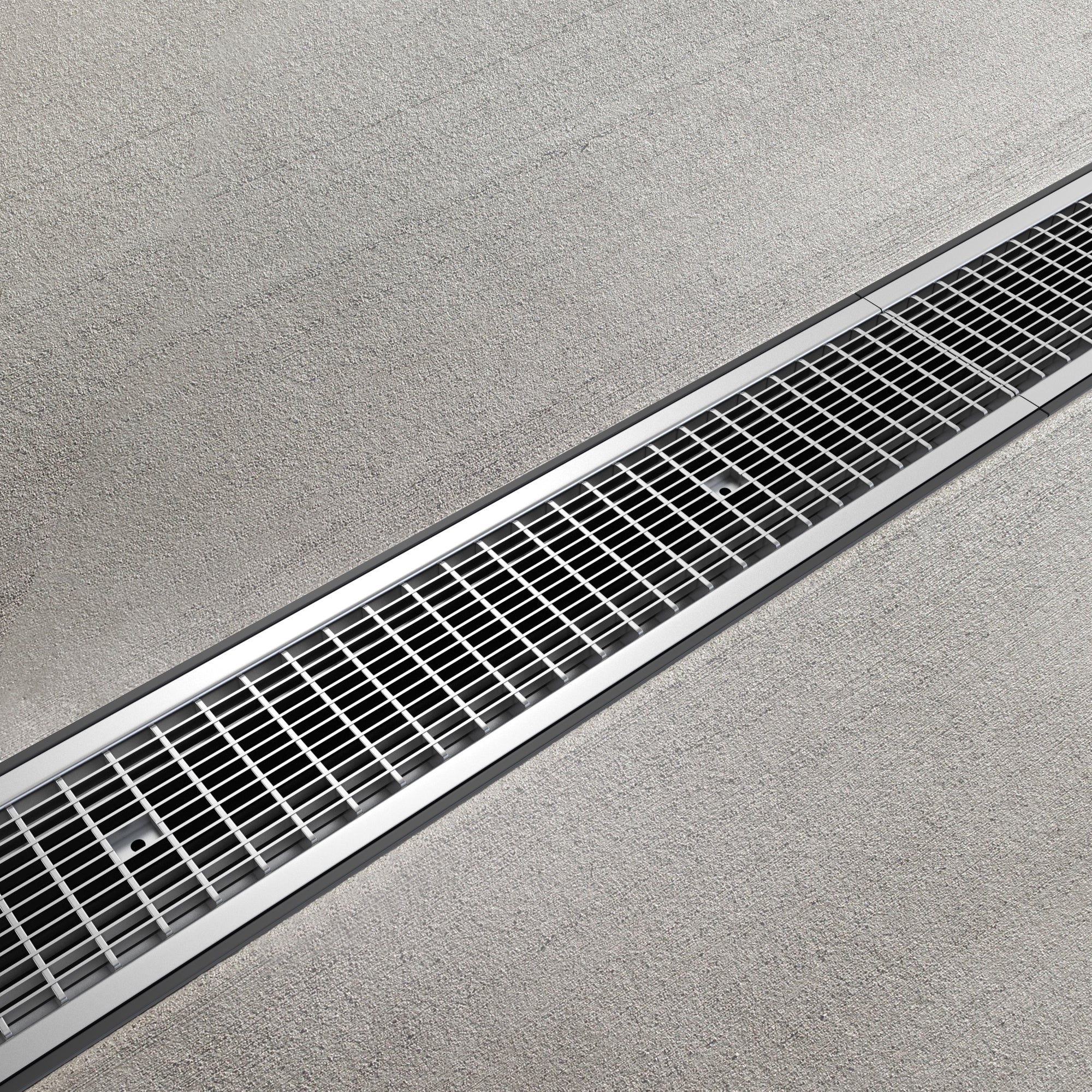

6” Channel Stainless Steel ADA B Class Package
Vodaland designed and manufactured the 6” Stainless Steel ADA B Class Package to provide a channel drain system that is ideal for residential and commercial applications. A high performance and durable system.
Key Features:

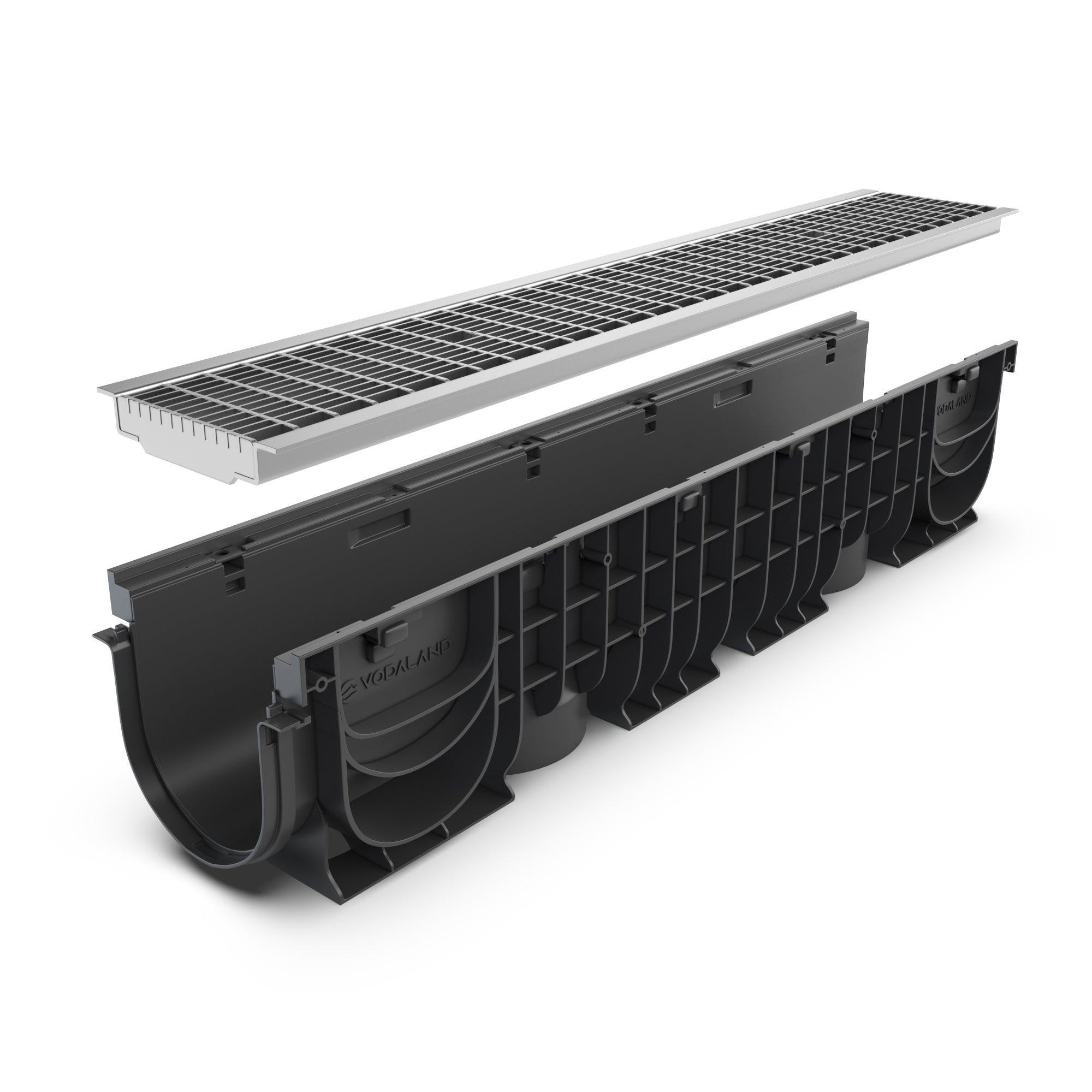

● PPE Plastic Channel with Stainless Steel Grate
● B - Load Classification - Supporting up to 28,100 LBS.
● Removable Grates - Easy access for maintenance.
● Modular Outlets - Supports multiple pipe connections options at both ends, on either side, and bottom of the channel.
● PPE Plastic Channel with Stainless Steel Grate
● B - Load Classification - Supporting up to 28,100 LBS.
● Removable Grates - Easy access for maintenance.
● Modular Outlets - Supports multiple pipe connections options at both ends, on either side, and bottom of the channel.
Expanded Product Overview:
The 6” Channel Stainless Steel ADA B Class package is a heavy duty load rate system, supporting up to 28,100 LBS of weight and a B-Load Classification (per EN1433). This system is perfect for driveway, garages, and more. An ideal system for long runs and complex installations that allows easy end-to-end connections. This system is designed to provide 90 degree turns on both ends and no adapters needed for a right or left turn.
End caps works as closed and outlet.
Common Application:
● Driveways
● Garages
● Parking Lots
● Driveways
Technical Specifications:
● Material: PPE Plastic Channel with Stainless Steel Grate
● Channel Length: 3.3 FT (39 Inches)
● Channel Width: 6” Internal & 8⅛” External
● Load Class: B Load Rate - 28,100 LBS (residential vehicle rated)
Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
