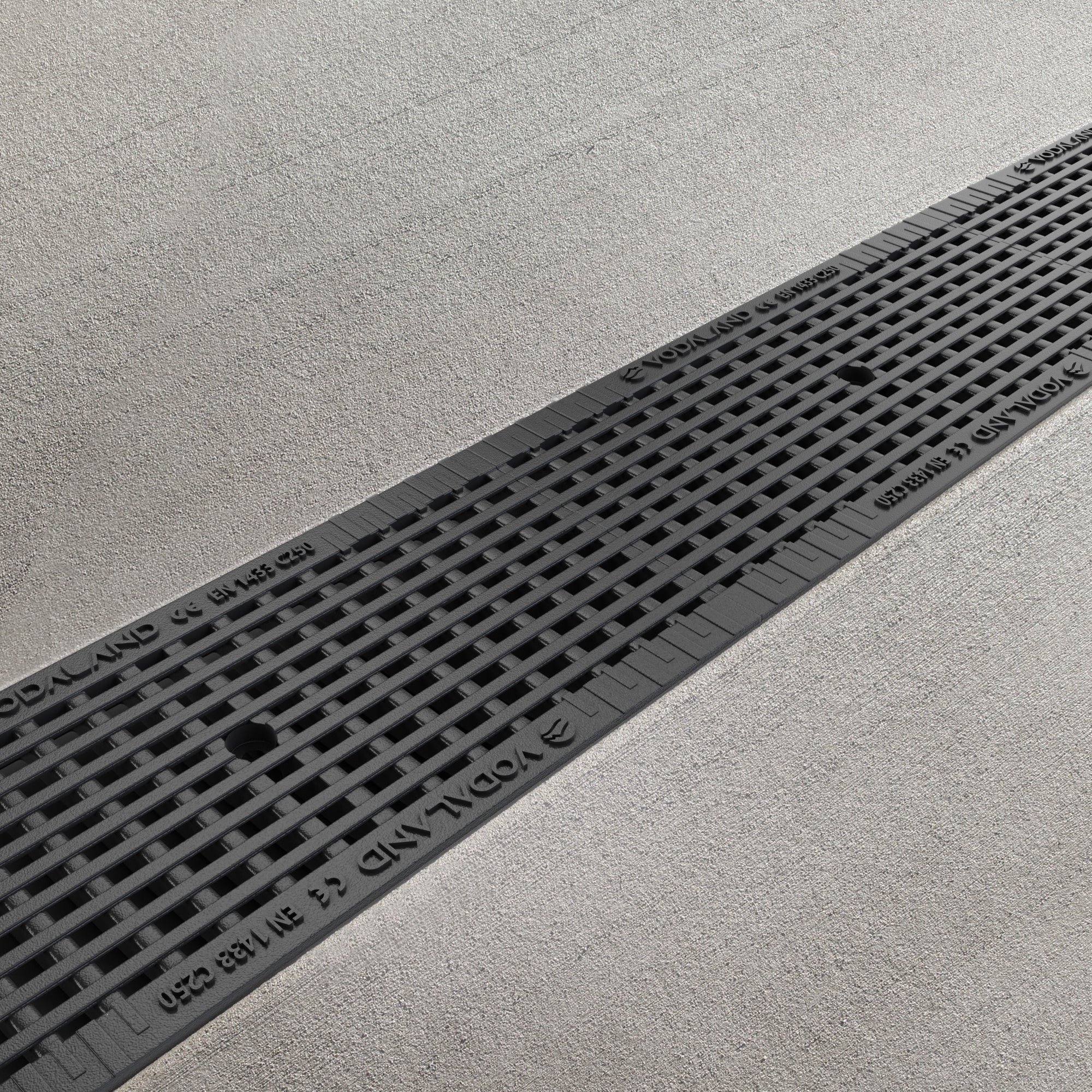

8" ADA Ductile Cast Iron Grate
8" ADA Ductile Cast Iron Grate
8" ADA Ductile Cast Iron Grate
8" ADA Ductile Cast Iron Grate
- Ductile Cast Iron
- 19.7" L x 9.4" W x 1.0" H
- C - Class
- ADA and Heel Proof Compliant
- More Product Information Below
- Trusted by 10,000+ contractors!
Product Details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- Fits 8" width trench drain or channel system
- C Load class for heavy duty load
- Grating fasteners available for grate to channel lock
- ADA and Heel Proof Compliant
- 19.7" L x 9.4" W x 1.0" H
FEATURES
- Great Look and Design
- Installed With grating fasteners if needed for tight lock
- C Class - 55,000 LBS
- Flow Rate: 258 GPM (per meter)
For more product information please see product description tab above
Product Description
Product Description
8" Ductile Cast Iron ADA Grate | C - Load Class |
Vodaland designed and manufactured the 8” Ductile Cast Iron ADA Grate to provide a system that is ideal for not just heavy-load rated application but also suitable for both residential and commercial safety protocol compliance. A high performance and durable system, perfect for vehicle or forklift traffic.
Key Features:
● Ductile Cast Iron Steel Grate - Provides durability and stability in place.
● C - Load Classification - Supporting up to 55,000 LBS.
● ADA Complaint Design Grating - Ensures pedestrian accessibility and safety
● Removable Grates - Easy access for maintenance.
Expanded Product Overview:
The 8” Ductile Cast Iron ADA Grate is a heavy duty load rate system, supporting up to 55,00 LBS of weight and a C-Load Classification (per EN1433). This system is perfect for driveway, garages, factories, parking lots, and more. A system that can handle a heavy duty application but also ensures the safety and security of both residential and commercial ADA (Americans with Disabilities Act) compliance. An excellent system to use for long runs and complex installation that provides a simple connection on
Vodaland’s 8” Channel Drain. Pairing with the grating fasteners, this ensures you have a tight and lock security system.
Common Application:
● Driveways
● Garages
● Parking Lots
● Driveways
Technical Specifications:
● Material: Ductile Cast Iron Steel Grate
● Grate Length: 3.3 FT (39 Inches)
● Grate Width: 8” Internal & 9.4” External
● Load Class: C Load Rate - 55,000 LBS (Forklift Rated)
