Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

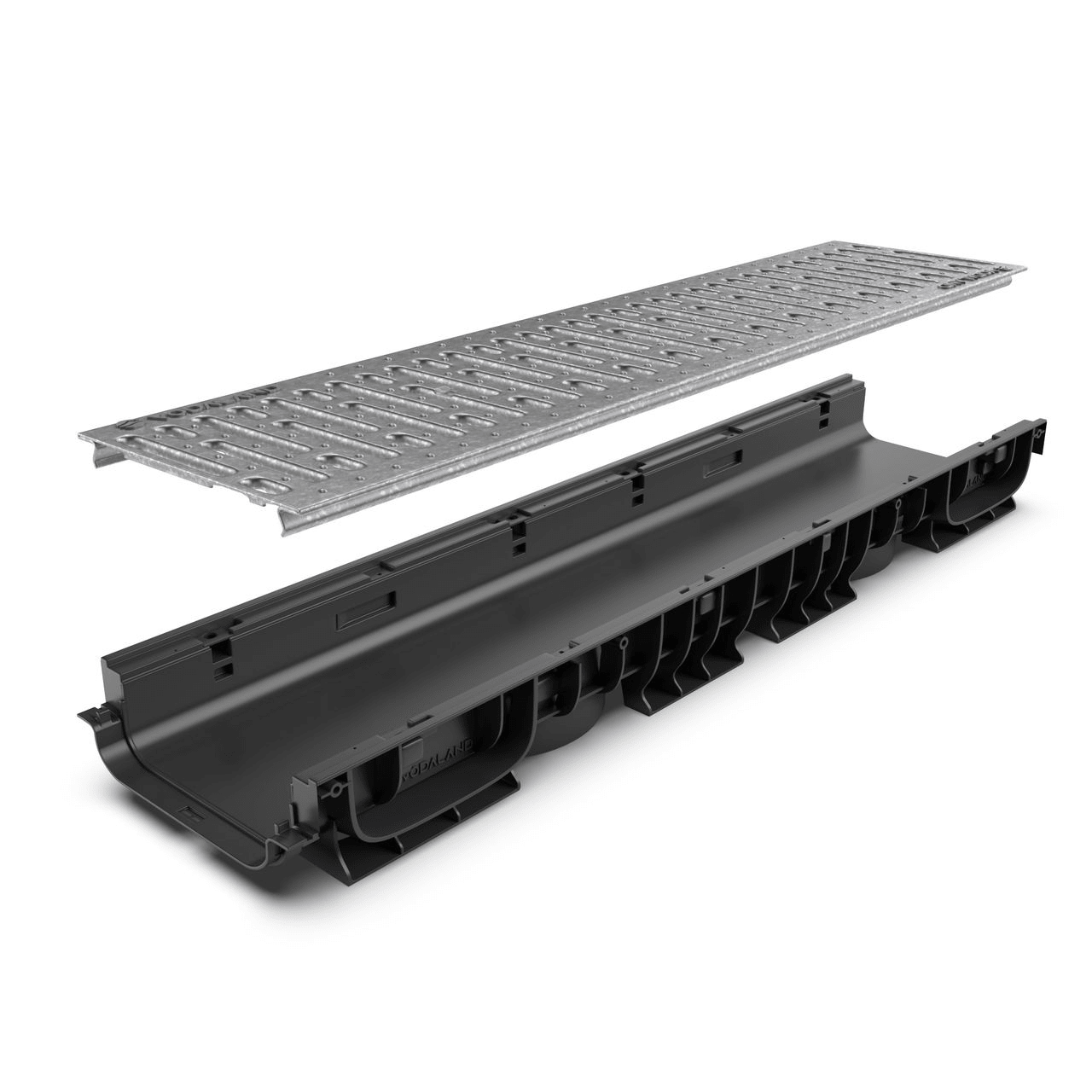

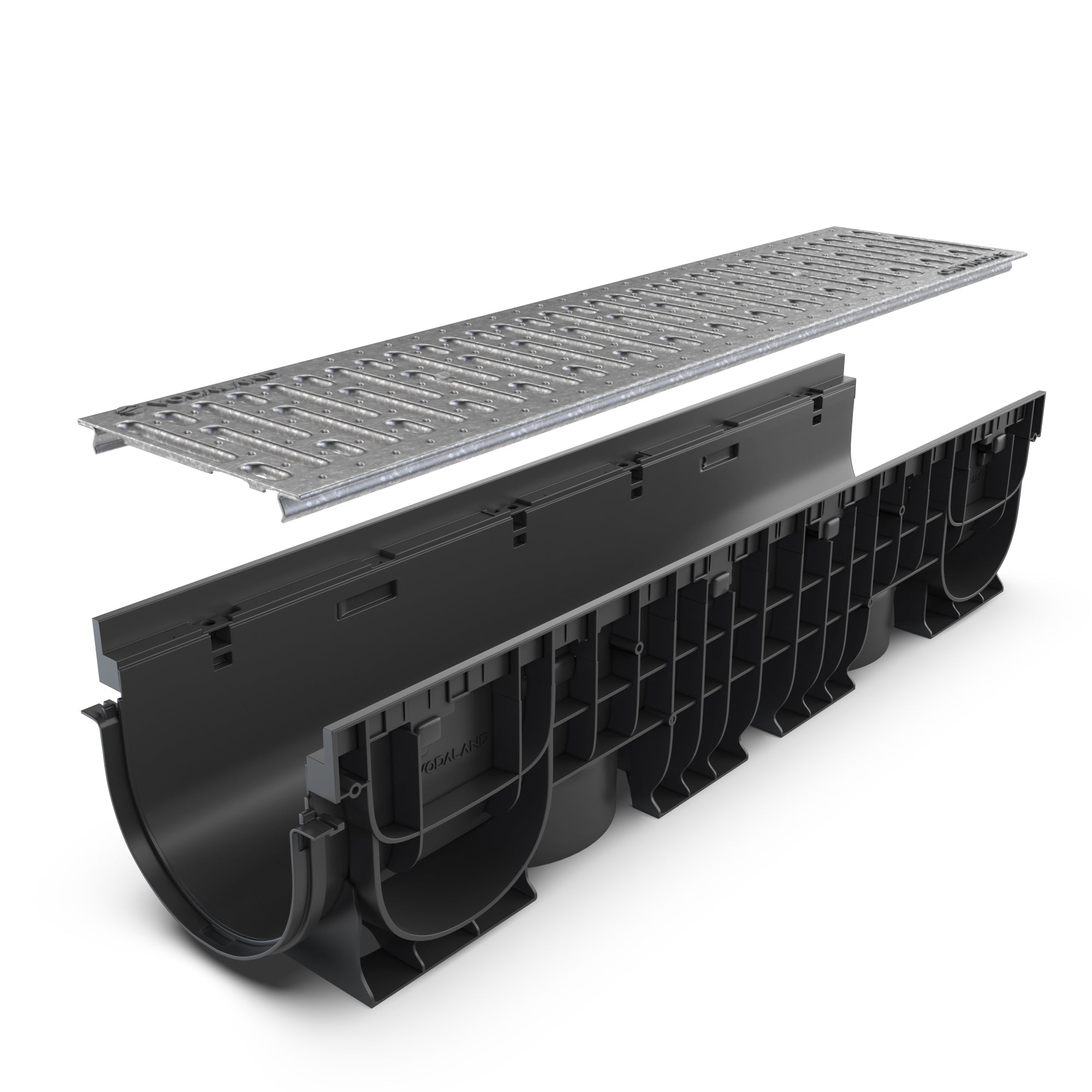

  • 8" Internal width galvanized stamped steel package
  • Comes with steel grate, channel and fasteners
  • Heavy duty load rated

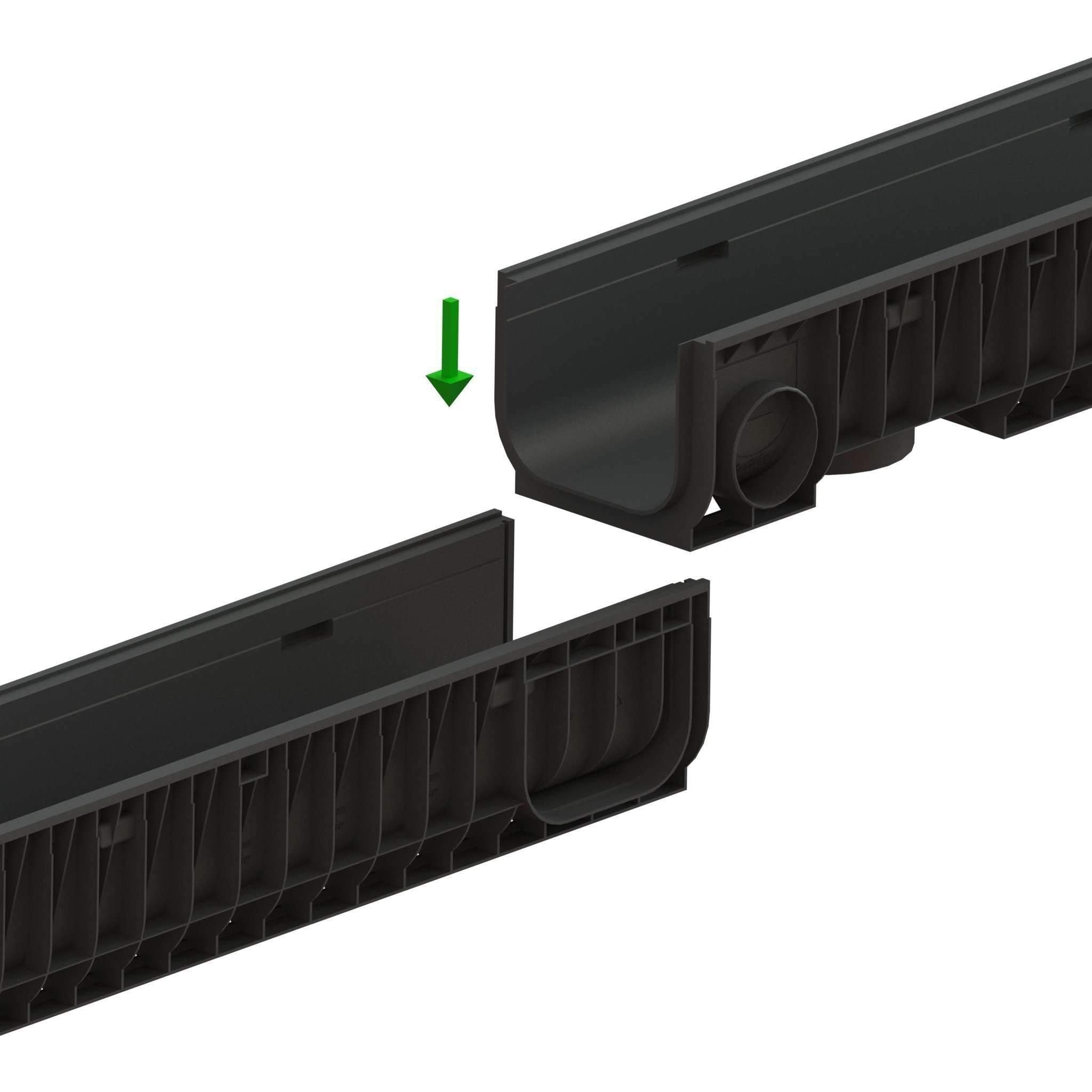

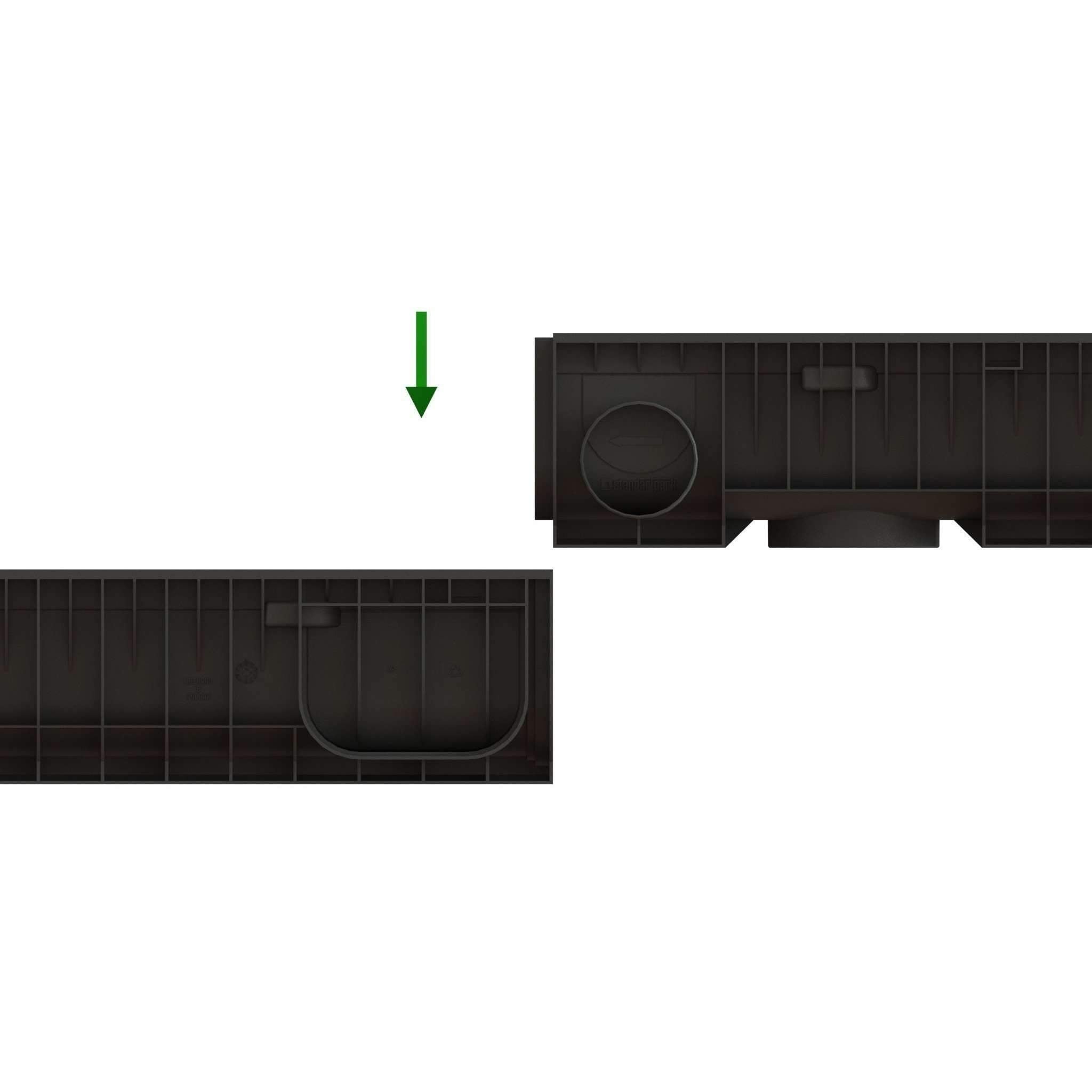

  • Connect multiple channels for longer run

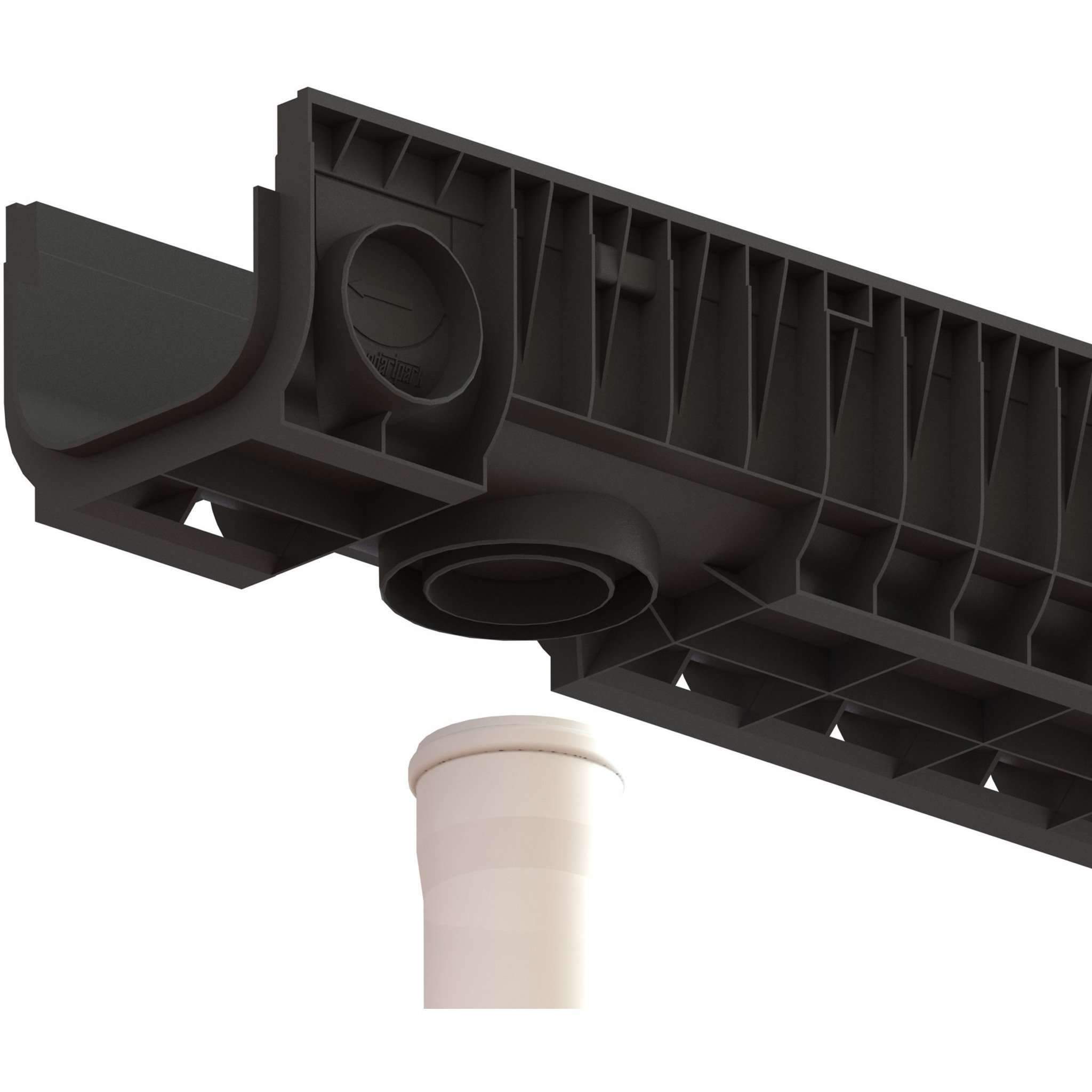

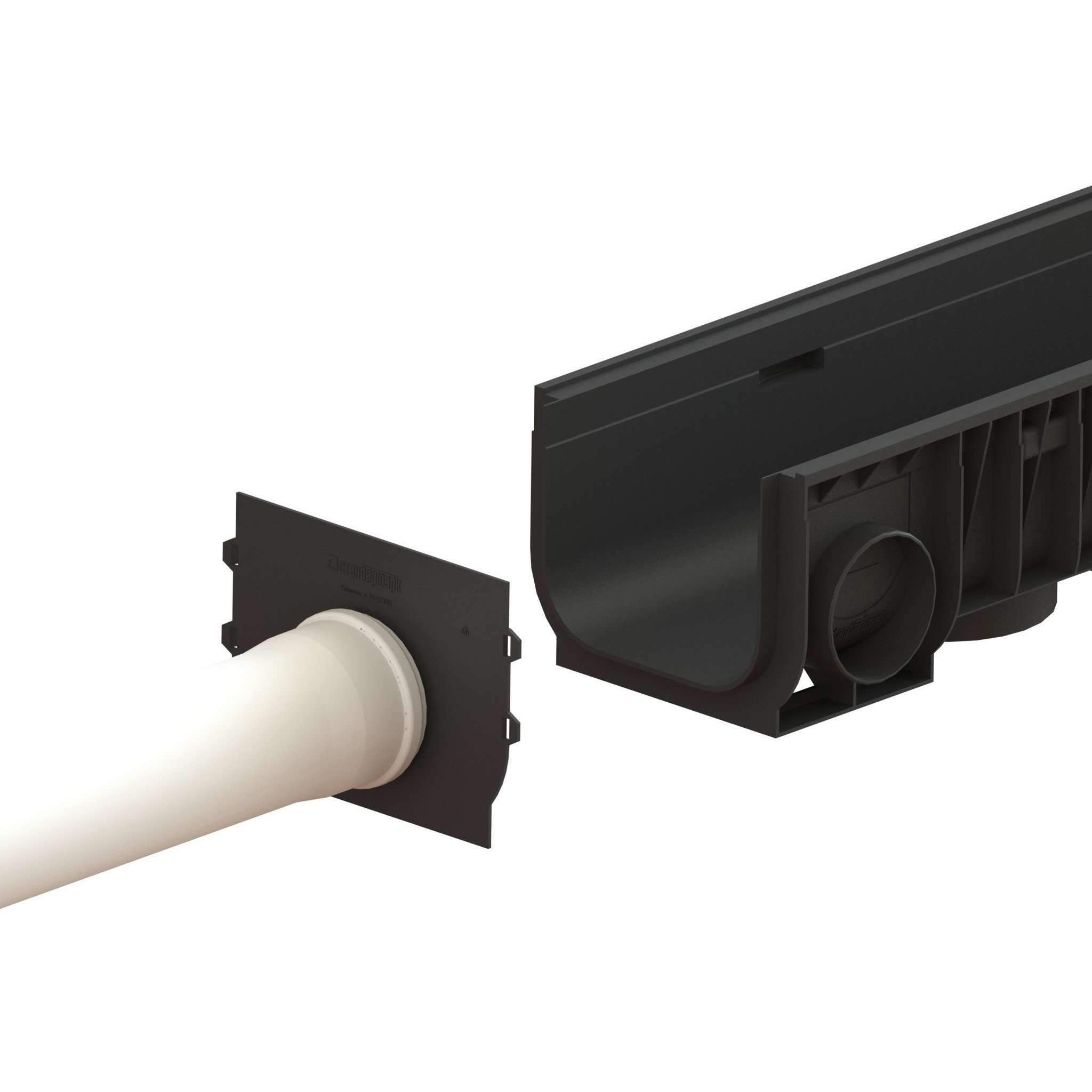

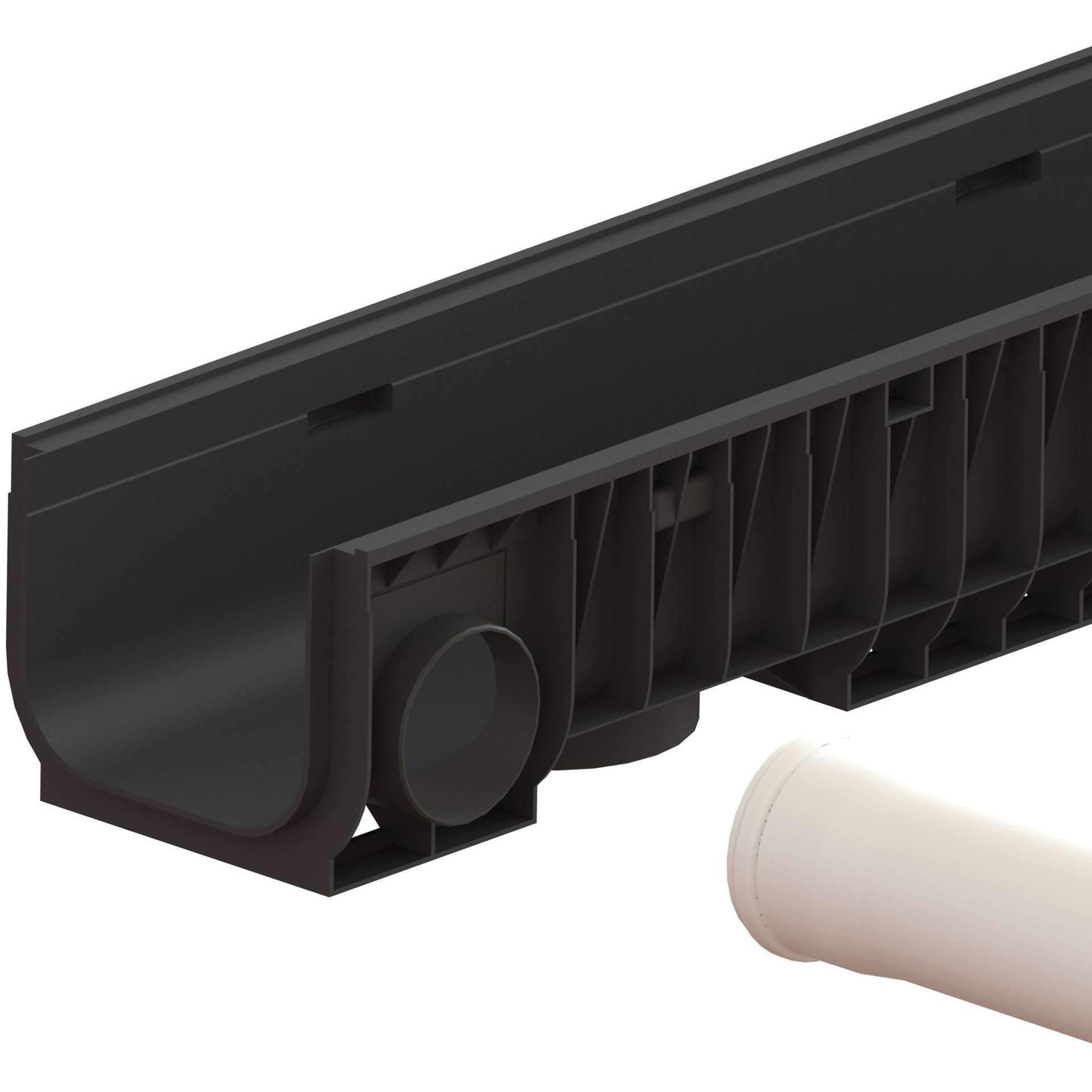

  • 4" and 6" PVC or corrugated pipe bottom outlet options

INCLUDED IN PACKAGE

1 Unit - Channel 8" Depth

1 Unit - Galvanized Stamped Steel

2 Units - Grating Fasteners

For more product information please see product description tab above

Downloads
PDF
DWG
BIM
Channel Specification Sheet
PDF :
DWG :
BIM :
Grating Specification Sheet
PDF :
DWG :
Installation Guide
PDF :
Supplemental Installation Guide
PDF :

Product Description

Product Description

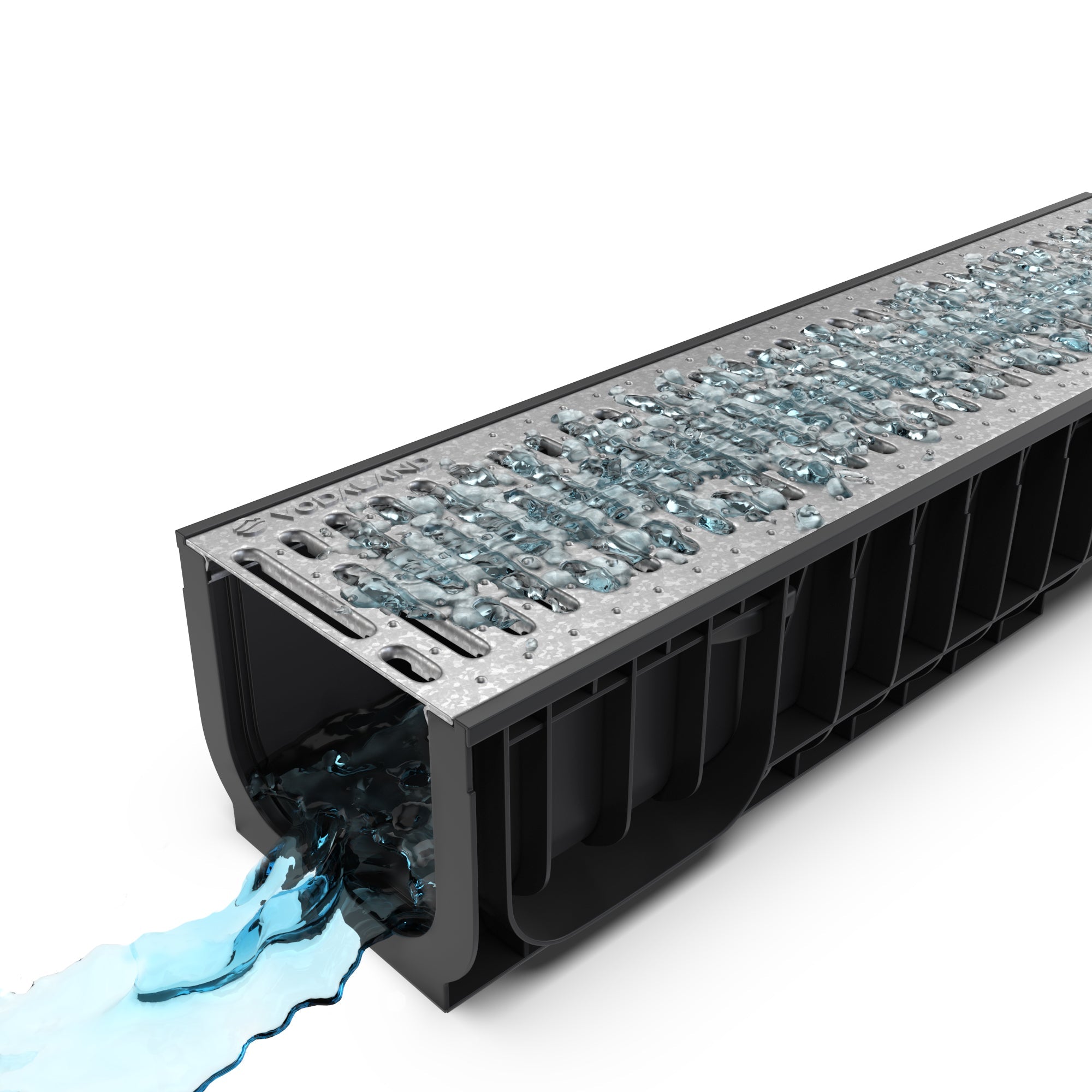

8” Galvanized Stamped Steel Package | A - Load Class|

Vodaland designed and manufactured the 8” Galvanized Stamped Steel package to provide a system that can be suitable for both residential and commercial applications. This system is a foot traffic rated perfect for porches, patio, sidewalks, and more.

Key Features:

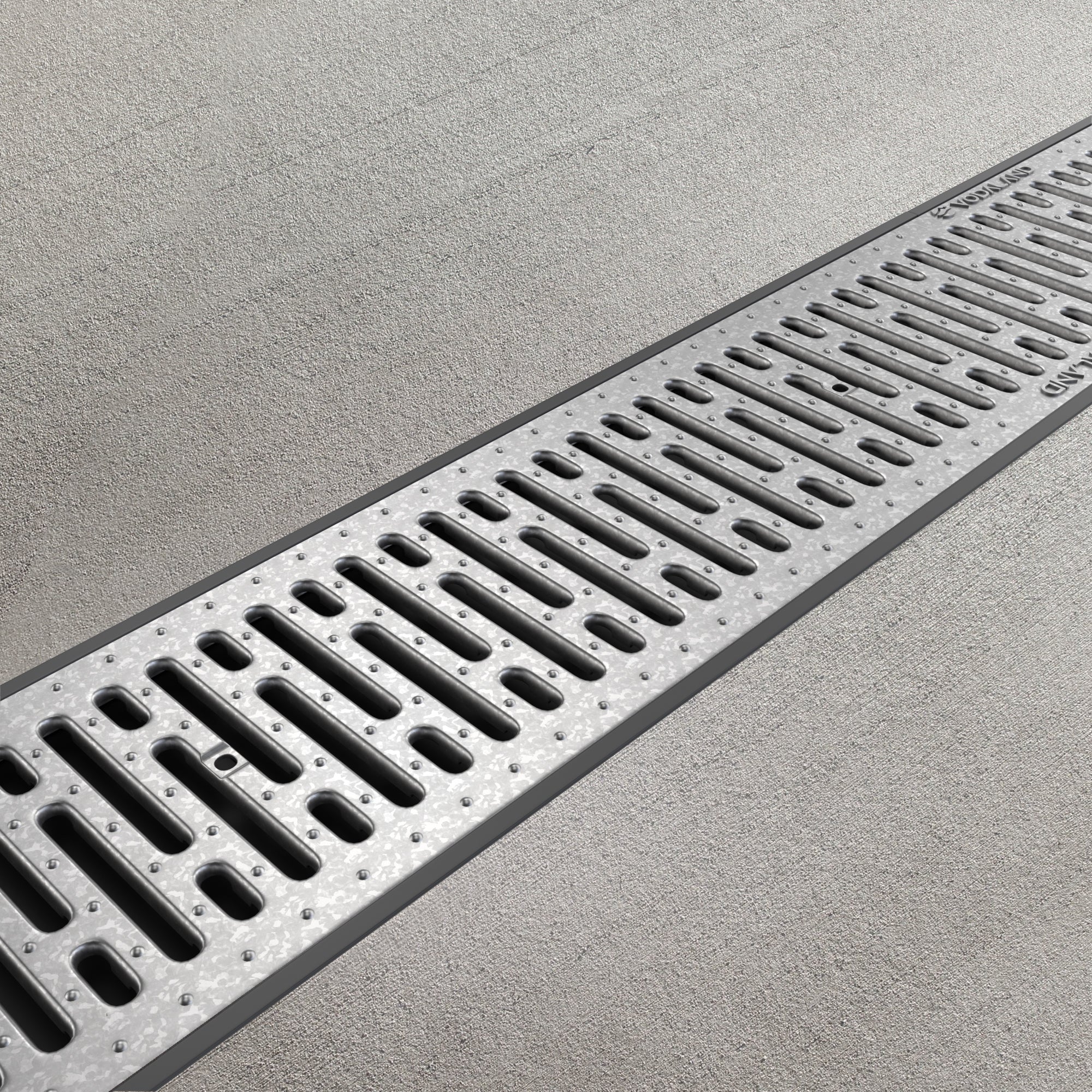

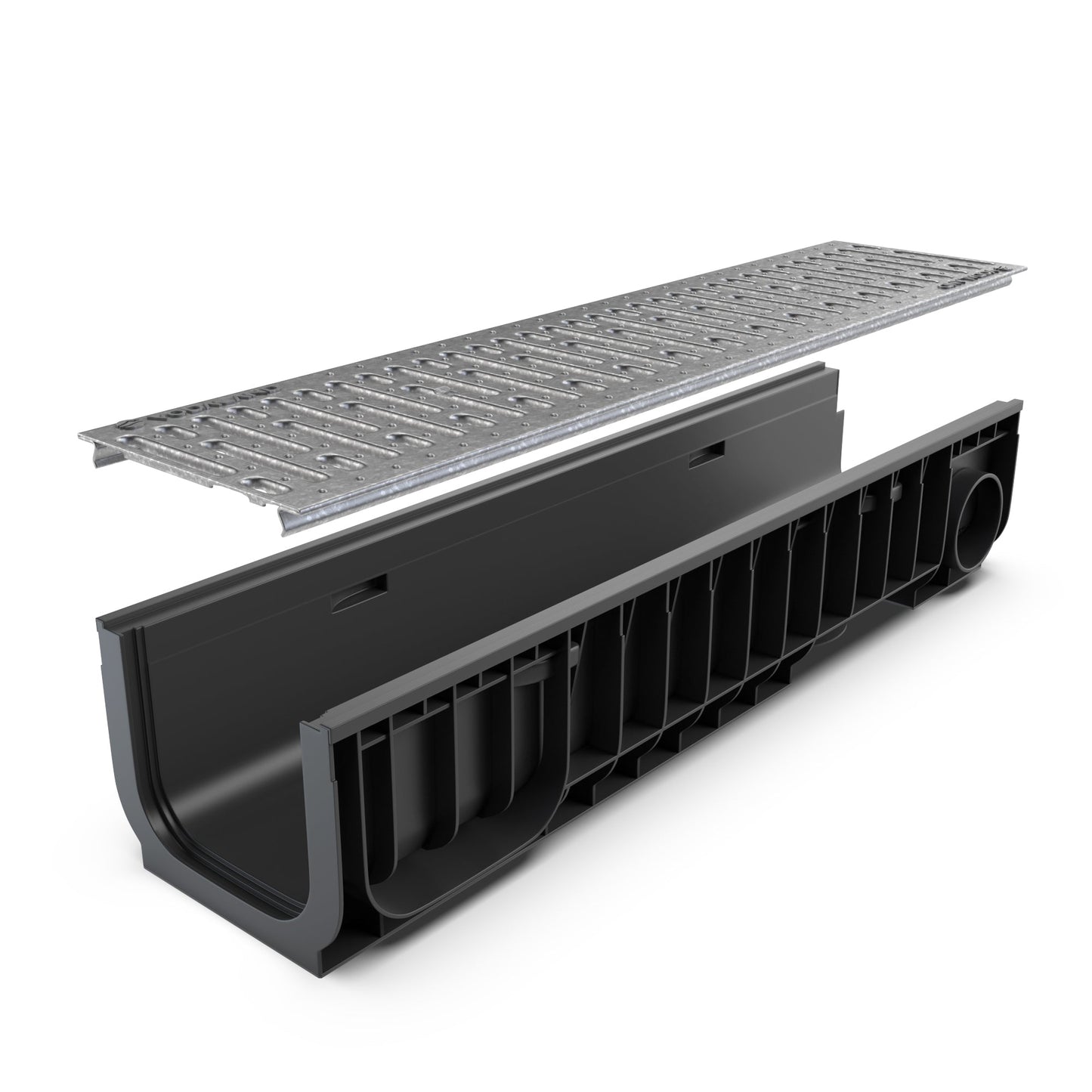

PPE Plastic Channel with Galvanized Steel Grate
A - Load Classification - Suitable for pedestrian applications.
Removable Grates - Easy access for maintenance.

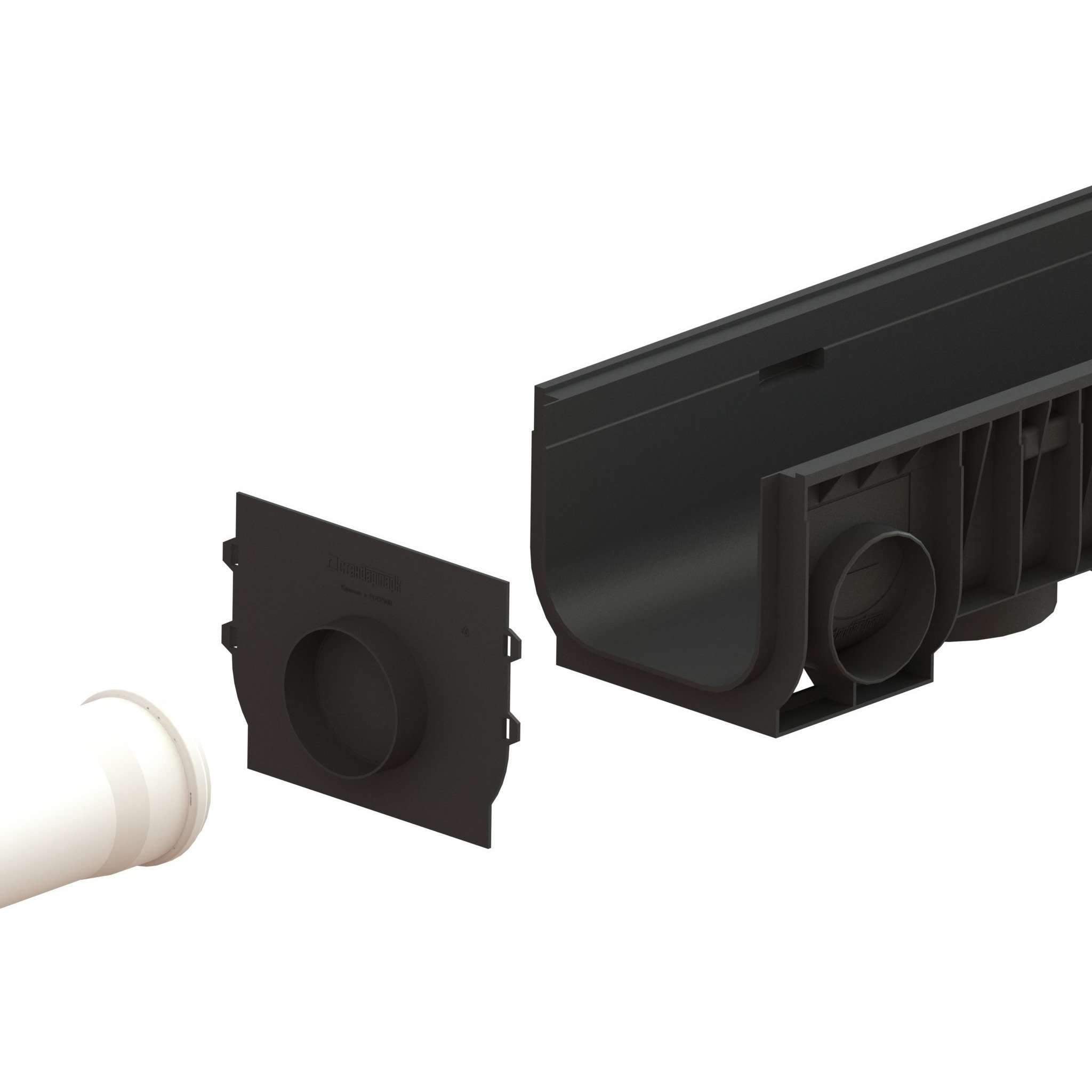

Modular Outlets - Supports multiple pipe connections options at both ends, on either side, and bottom of the channel.


Expanded Product Overview:

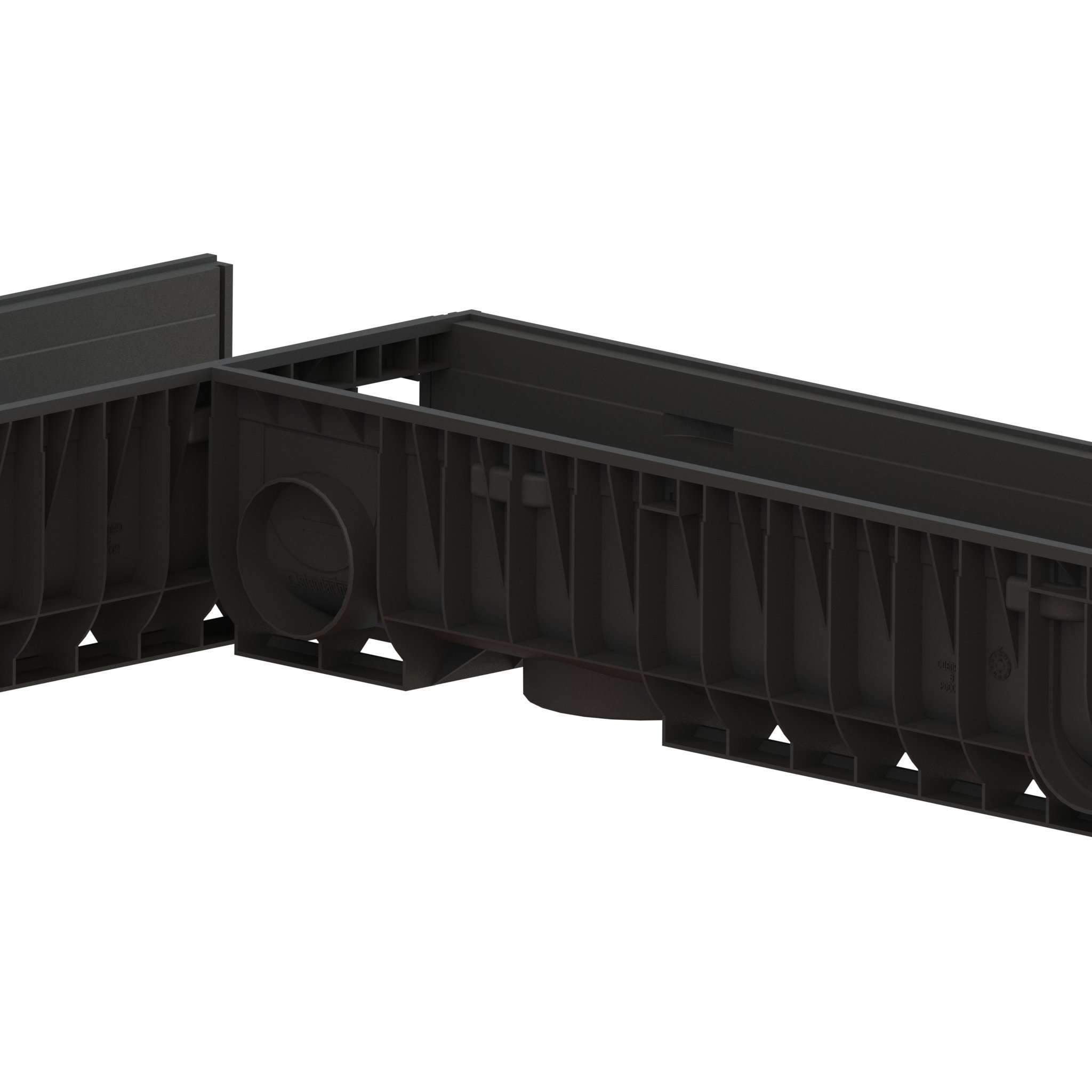

The 8” Galvanized Stamped Package is an A-Load Classification, supporting a foot traffic weight rate making it suitable for quite a number of applications such as gardens, walkways, or porches. It is the ideal grate to use for long runs and complex installations that provide an easy connection with the 8” Channel Drain, and typically paired with the installation grating fasteners for tight lock and security. This system provides multiple outlet location and size options of 4” and 6” pipe connection for water distribution. A trench drain system that is made to be modular and allows you to create a 90 degree turn without needing any adapters making it perfect for all types of layout runs.

Common Application:
Patios
Gardens
Porches
Walkways


Technical Specifications:
Material: PPE Plastic Channel with Galvanized Steel Grate
Channel Length: 3.3 FT (39 Inches)
Channel Width: 8” Internal & 10.25” External
Load Class: A Load Rate - 3,300 LBS (Pedestrian Rated)

Vodaland delivers reliable and high performance water solution systems. Backed by expert engineers and trusted by professionals nationwide. Systems that are designed and certified to meet the demands of every project so you can build with confidence.

INCLUDED IN PACKAGE

1 Unit - Channel 8" Depth

1 Unit - Galvanized Stamped Steel grate

2 Units - Grating Fasteners
