8" Pro Channel System
8" Pro Channel System
8" Pro Channel System
8" Pro Channel System
- PPE Plastic / Galvanized Steel / Ductile Cast Iron
- 3.3' (39 Inches) - Length
- D - Load Class
- Warehouses, Parking lots, Industrial applications and more
- End Cap Options Available Below
- Trusted by 10,000+ contractors!
Product Details
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
- 8" Internal width - galvanized edge heavy duty system
- Extreme heavy duty load class for all traffic ratings
- Galvanized steel reinforced system with bolt down gratings
- Heavy duty ductile cast iron grating
- 4" and 6" PVC or corrugated pipe outlet options bottom of channel
INCLUDED IN PACKAGE
1 - 8" Pro Channel
For more product information please see product description tab above
Product Description
Product Description
This Heavy Duty trench drain system is designed to provide drainage for commercial or
industrial spaces.
Key Features:
● Supports up to 88,000 LBS per sq. ft. - Provides strength for roads, parking lots,
garages, and heavy duty traffic areas.
● ADA Compliant - Ensures safe, trip-free walking surfaces
● Tongue-and-Groove Connection - Seamless Connections between channels
● Environment Friendly - PPE Plastic Channels (Polyphenylene Ether, 100% recycled
plastic)
● Steel Reinforcements - Added edging to provide durability for high performance
Expanded Product Overview:

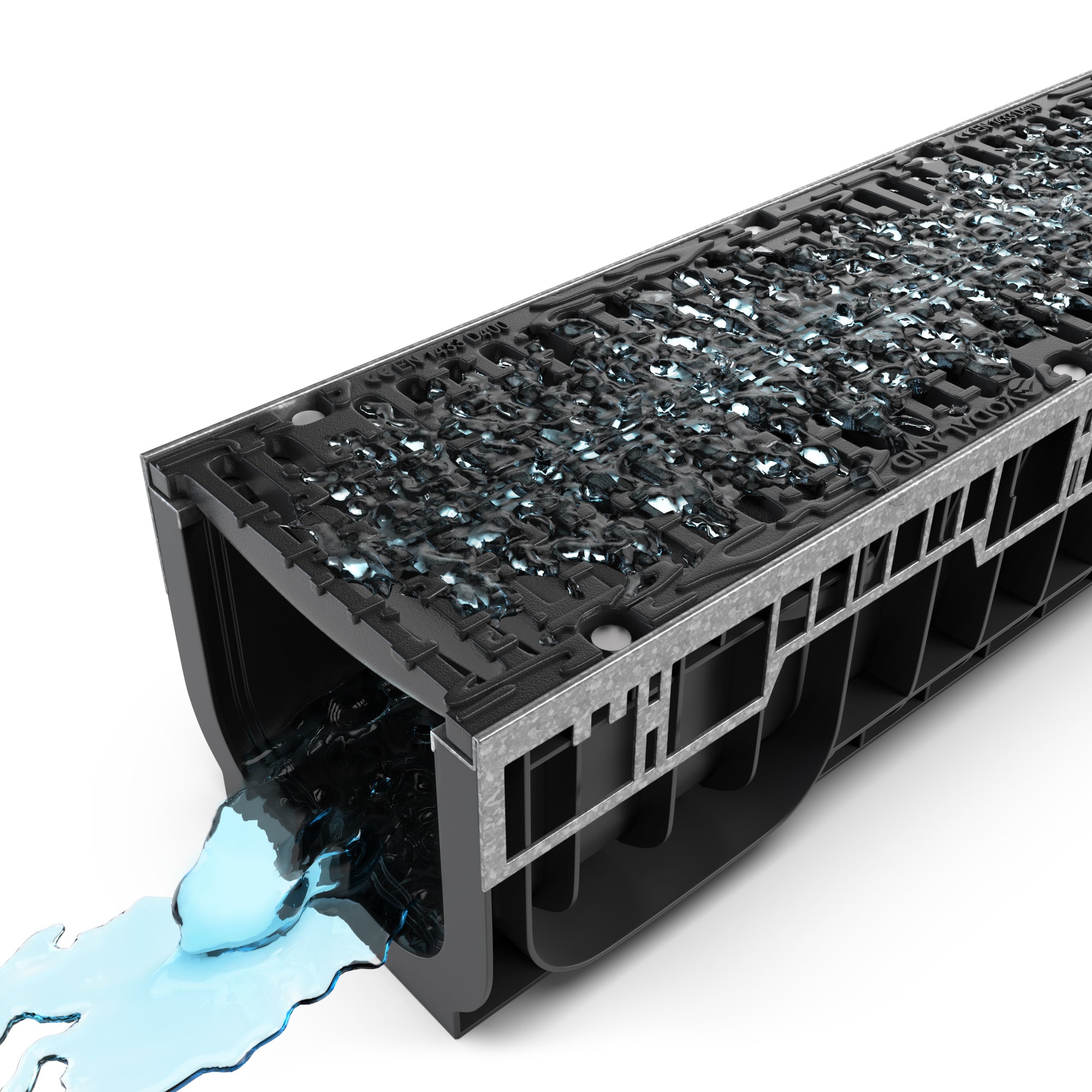

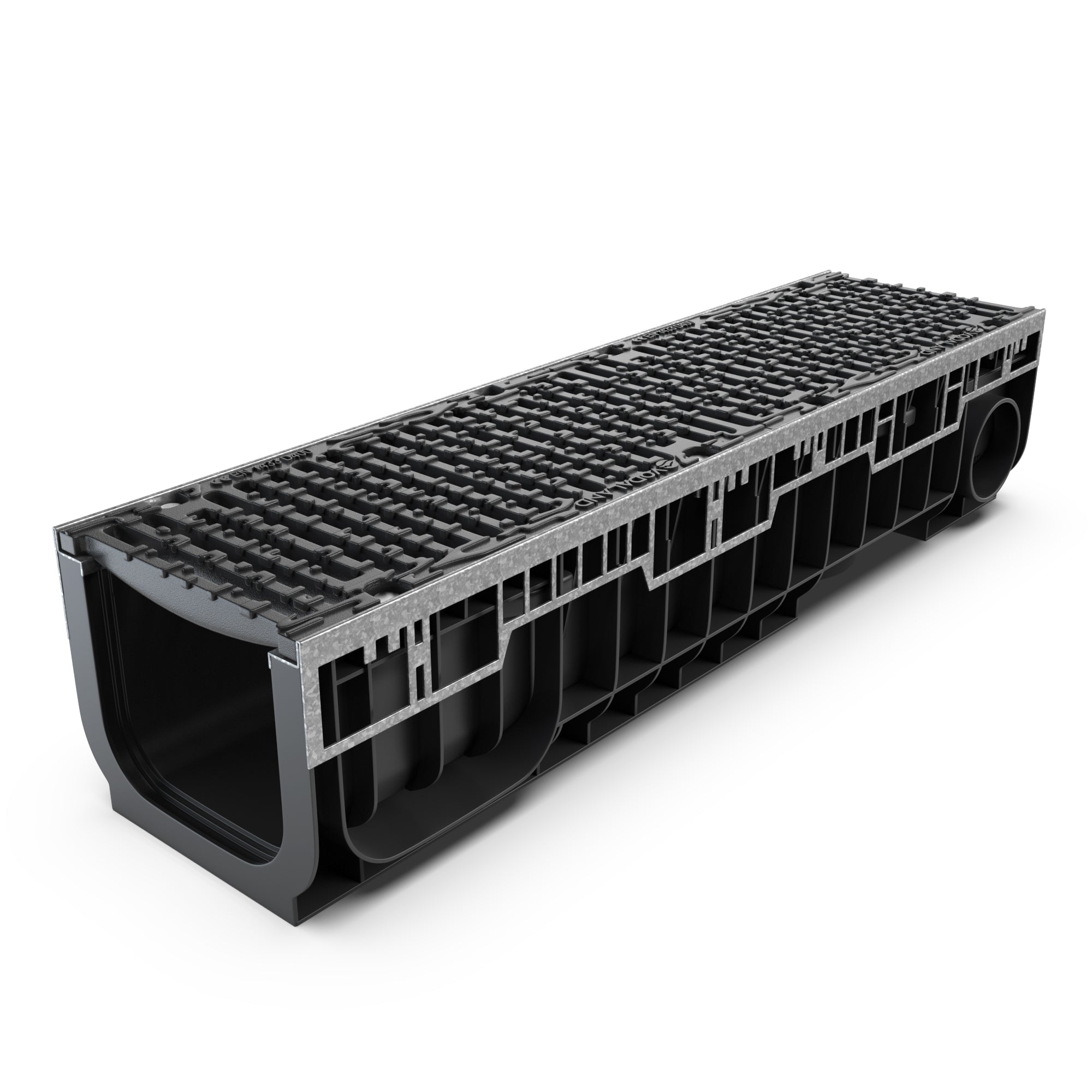

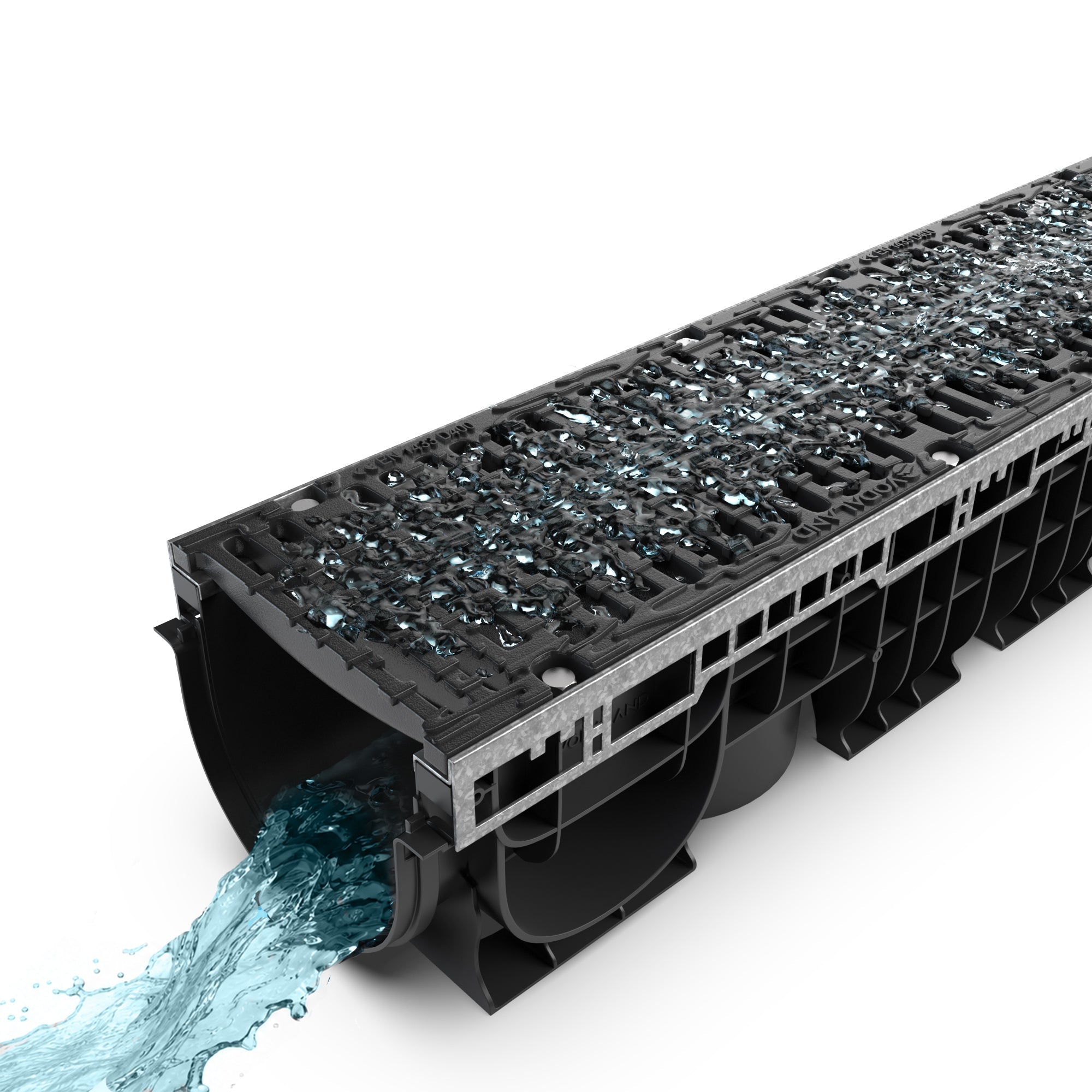

Our 8” PRO channel comes with a 100% recycled plastic channel body, heavy duty cast iron gratings and steel reinforcements. The reinforced steel edge supports extra heavy duty traffic whether it is needed for a large parking lot, warehouse, or large commercial area while being 8” in depth to perform efficiently for larger amounts of drainage. This is a neutral channel system (non-pre sloped) that is physically lightweight but still able to support heavy duty traffic such as forklifts and industrial weighted traffic.
Common Applications:
● Roads
● Parking Lots
● Work Shops
● Commercial Settings
Technical Specifications:
● Material - Length - 3.3 Feet (39.4”)
● Width - 8” Internal Width - 10.5” External Width
● Load Class - D (Heavy Duty)
● Article Number - 085434

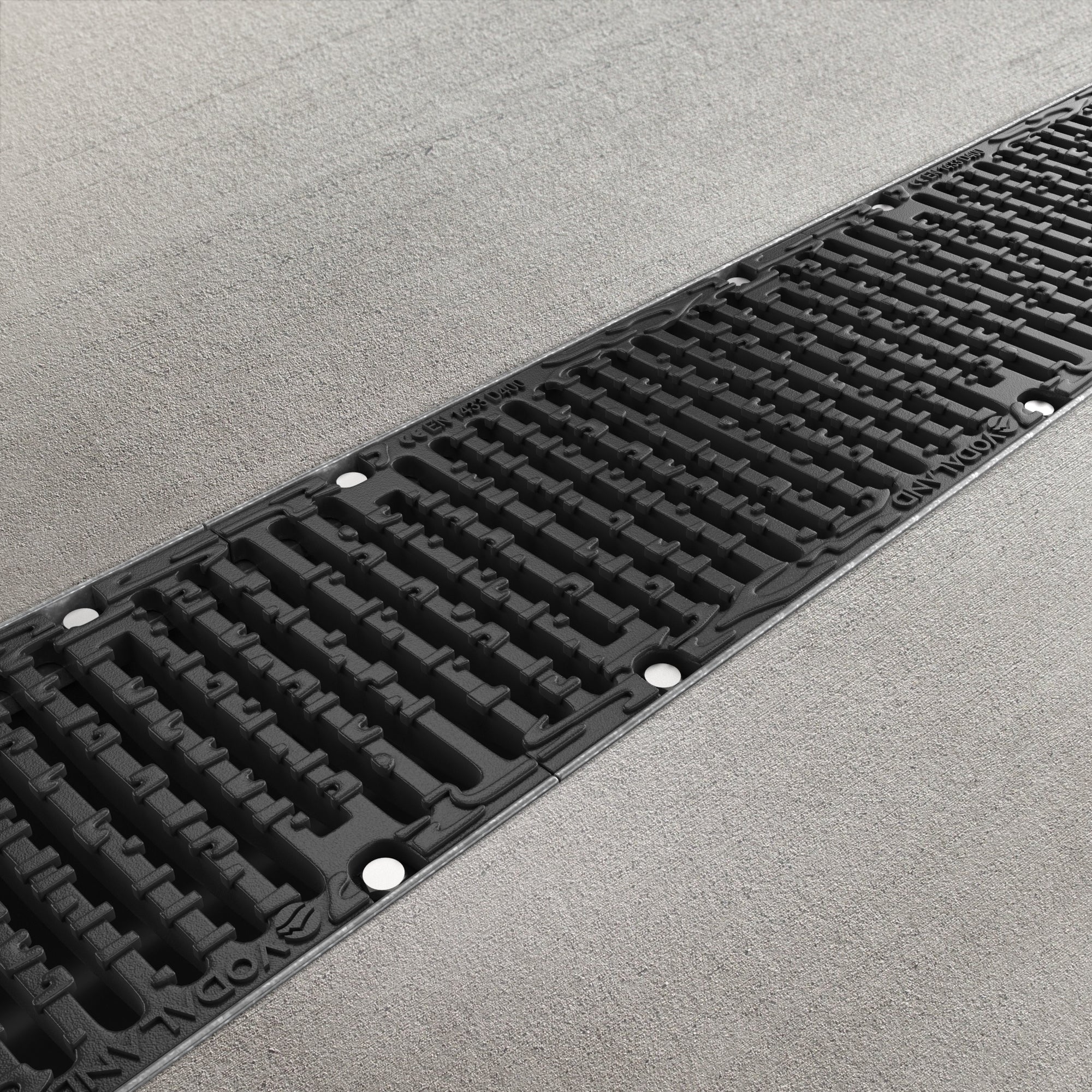

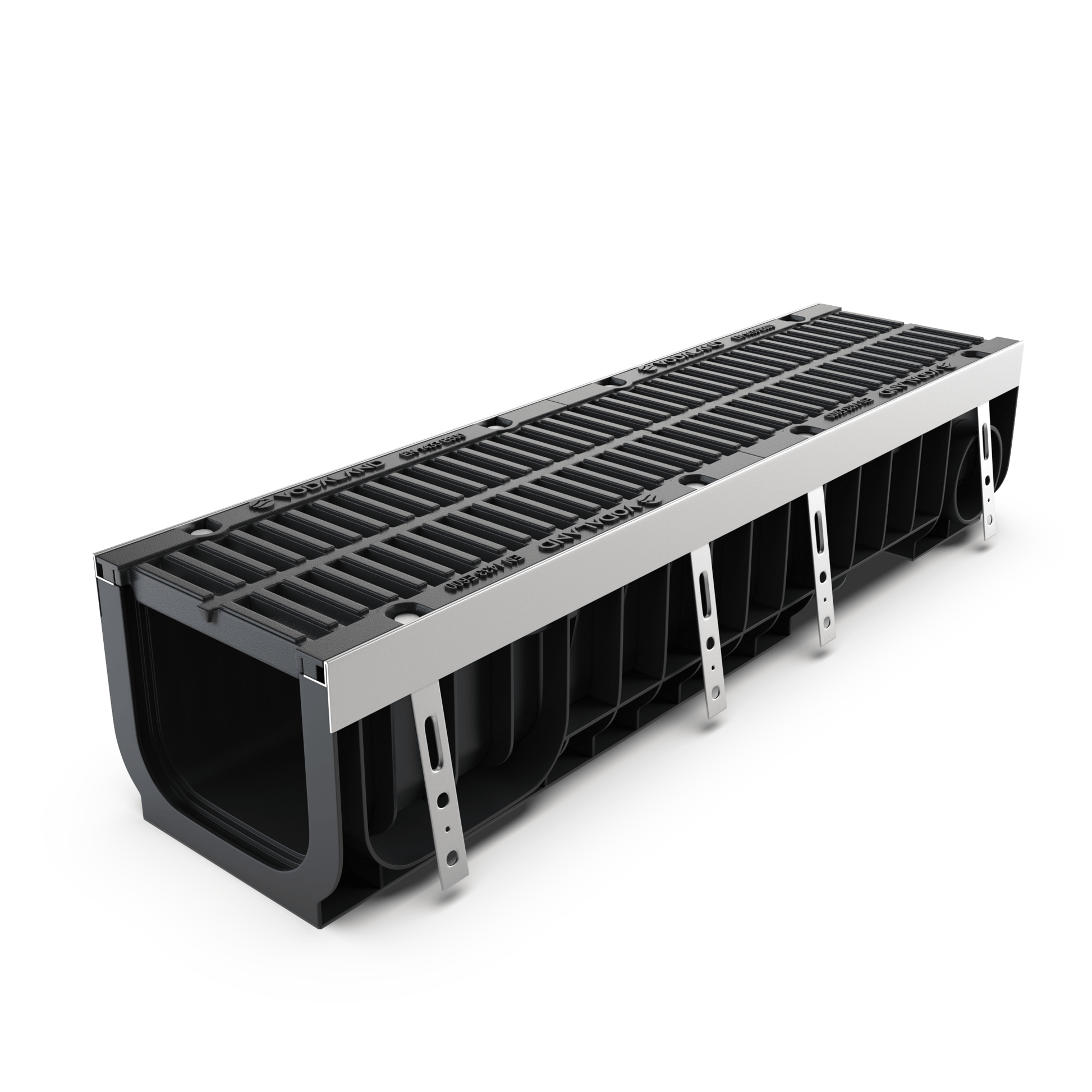

Our 8" Pro Channel is fitted with D Class bolted down ductile cast iron grates. Galvanized stamped steel side reinforcements. These are industrial level channels heavy enough for forklifts and extremely heavy loads. These are 8" internal width and depth. Tongue and groove connections for easy installation. We recommend using the 8" installation brackets for rebar installation if needed.
Parameters
Article .............................. 8" Depth - 085434
Material ........................... PPE Plastic - Galvanized Steel - Ductile Cast Iron
Dimensions ..................... 39.4" L x 10.5" W
Weight ............................ 45 LBS
Load Class ..................... D Class - 88,000 LBS
INCLUDED IN PACKAGE
1 - 8" Pro Channel
