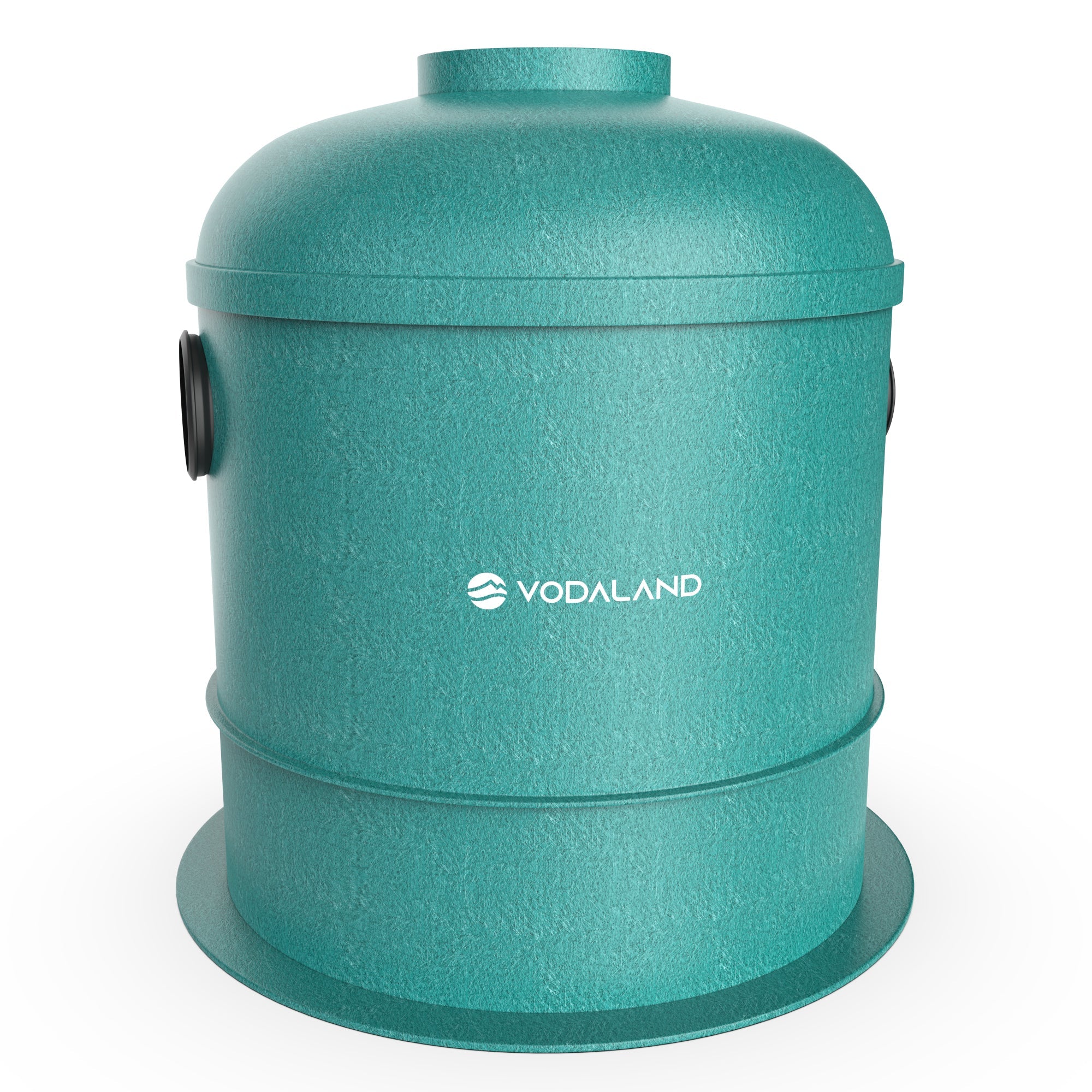

870 Gallon Oil / Water Separator OB1-15
870 Gallon Oil / Water Separator OB1-15
- 6' 10.75" ft Height x 5' 11" ft Width
- Fiberglass Heavy Duty / PPE Coalescent Filter
- 12 Inch Input / Output
- Coalescent Filter for Perfect Oil Separation
- More Product Information Below
- Trusted by 10,000+ contractors!
- 6' 10.75" ft Height x 5' 11" ft Width
- Fiberglass Heavy Duty / PPE Coalescent Filter
- 12 Inch Input / Output
- Coalescent Filter for Perfect Oil Separation
- More Product Information Below
- Trusted by 10,000+ contractors!
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
The Power of Vodaland Oil/Water Separators
Experience the efficiency, durability, and outstanding performance of our 870-gallon oil/water separator. This reliable system effectively removes oil, prevents environmental contamination, and ensures compliance with regulations. Trust our expertise to deliver superior solutions for oil-water separation in ground systems.
Oil Water Separator Specifications
- Built-in coalescent filter for perfect oil separation
- Made with fiberglass, super light for installation
- 870 gallon tank holding size
- 240 gallon per min water / oil movement
- Includes an extension inspection riser
- SPECIFICATION SHEET PDF
- SPECIFICATION SHEET CAD
Product Description
Product Description
Vodaland Car Wash Oil Water Separator: Efficient Oil-Water Separation for Ground Systems
Introducing our Car Wash Oil Water Separator, a reliable solution designed specifically for car wash and washing facilities. With its 870-gallon tank capacity and built-in permanent coalescent filter, this advanced separator ensures efficient separation of oil and water, delivering clean and oil-free results.
Superior Separation Technology

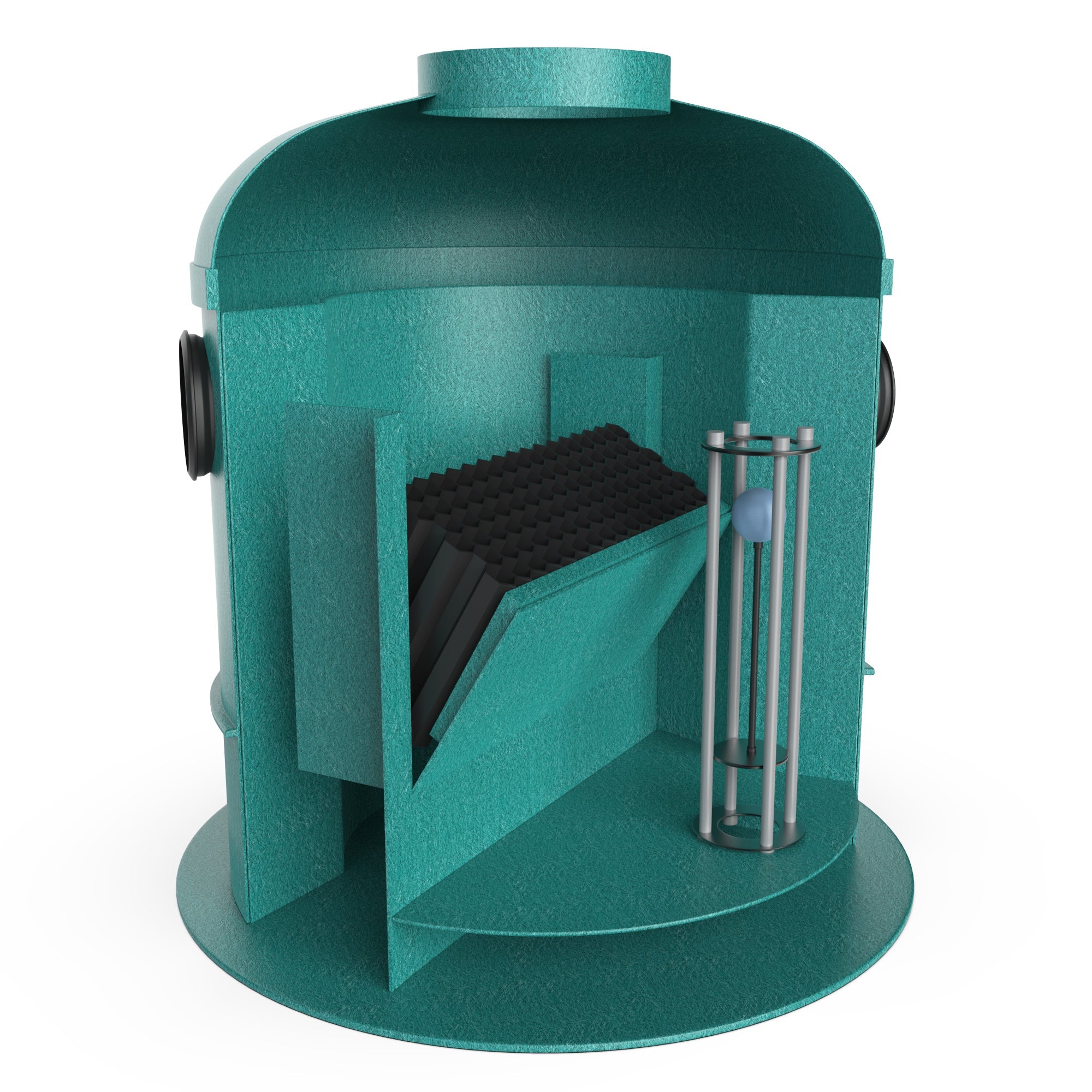

Our oil water separator utilizes innovative technology to effectively remove oil droplets, dispersed non-emulsified oil, and free oil present in the water flow. With its fiberglass construction, the separation chamber creates a conducive environment for the separation process, resulting in the effective removal of oil from the water.
Impressive Capacity and Performance
With a 240 gallons per minute oil removal capacity, our car wash oil water separator makes for efficient oil separation. Its 6' 10.75" height and 5' 11" width provide ample space for the storage of up to 685 gallons of oil or water. The 12-inch input and outlet PVC pipe diameter ensure smooth water flow throughout the separation process.
Quality Construction and Easy Installation
Crafted from heavy-duty fiberglass and equipped with a durable PPE coalescent filter, our oil/water separators are built to last. The use of fiberglass makes the system lighter, facilitating easier installation. Also, the inclusion of a free extension inspection riser enhances accessibility for inspection and maintenance. Choose Vodaland for top-quality oil/water separators that meet your car wash facility's needs.
|
The “Bypass” system (C) is part of the standard design of the OB1, built-in and has the shape of a tray. It is designed for drainage during storm and surface wastewater. Upon individual request, it is possible to manufacture a bypass for 10 times the capacity of the separator. |
PARAMETERS
Article .................................... OB1-15
Material ................................. Fiberglass Heavy Duty / PPE Coalescent Filter
Capacity ............................... 870 Gallon Tank / 240 GPM

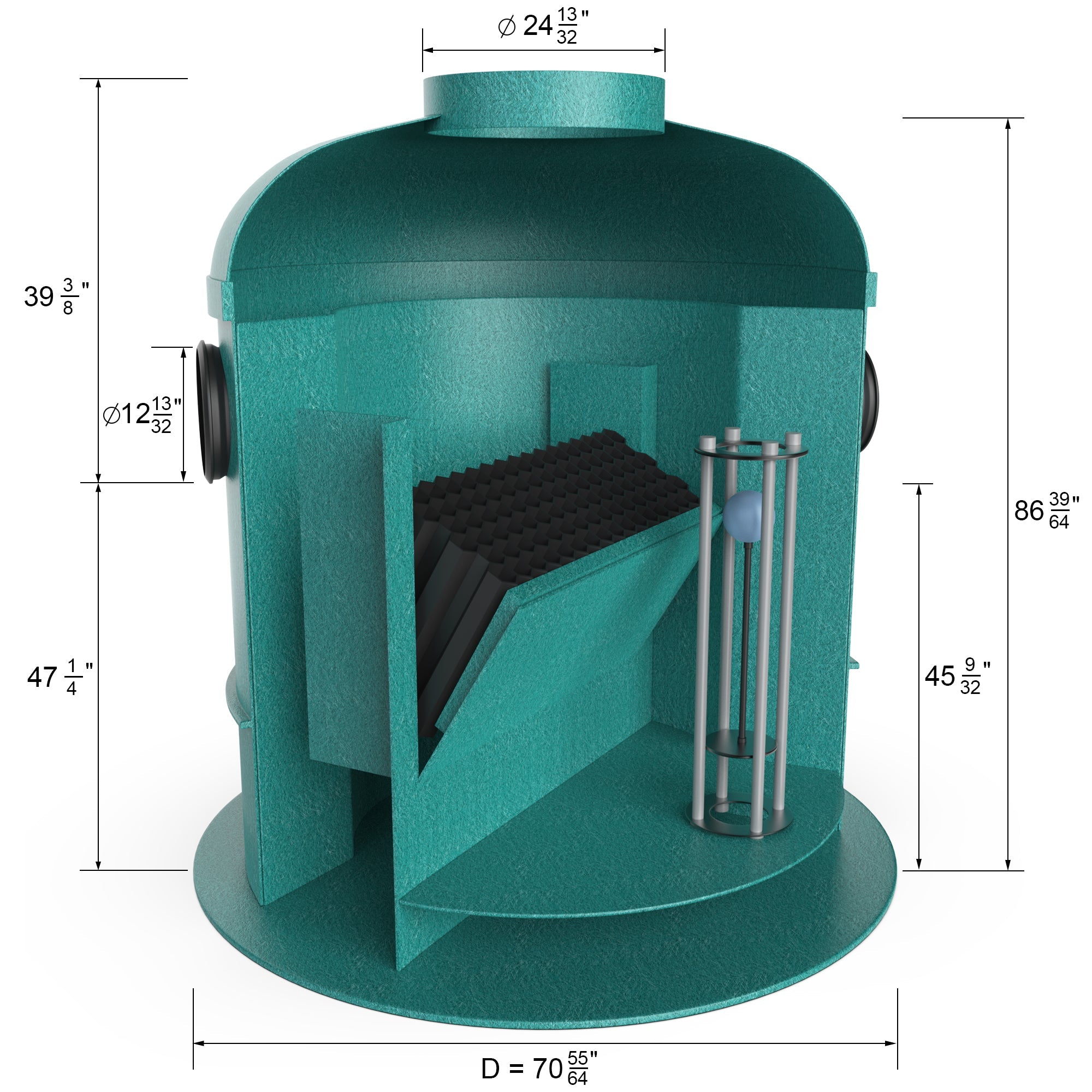

Size....................................... 6' 10.75" Ft Height / 5' 11"ft width
Input ..................................... 12" Inch Input / 12" outlet PVC pipe diameter
