Galvanized Steel TWIN Slot System

Galvanized Steel TWIN Slot System

Regular price $221.00
Regular price $227.00 Sale price $221.00
Sale Sold out
free shipping over $999
3-5 days delivered
View full details
  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 8" Internal width Galvanized Steel Twin Slot drain system
  • 5/8" Opening with multiple channel depth options
  • 4" Height of slot grate in addition to channel depth
  • Excellent for paver, tile, and concrete pour installations
  • Used in driveways, pools, patios, and heavy traffic areas
  • ADA / Heel Proof cap available as addition for debris protection
  • #1 Rated Slot Drain system on the market
  • Perfect for high water volume with little surface area coverage
  • More product details below
  • Grating Specification pdf
  • grating specification cad
  • 3 inch channel depth pdf
  • 3 inch channel depth cad
  • 8 inch channel depth pdf
  • 8 inch channel depth cad
  • installation brochure

Product Description

Product Description

Our Slot drains systems are the leading in the market currently. And now we introduce our TWIN slot series. Coming with our 8" internal width channels, with channel depth options of 8 inch depth, or 3 inch depth. Twin slots are perfect for low profile drainage that will accept DOUBLE the flow and volume of the normal slot drain system. The openings in the Twin Slot system are 5/8 inch which widens towards the channel. This patent feature allows debris to pass throw the slot and never get stuck. Perfect for pools, porches, and any situation where grating is not necessary. The Heel Proof slot grate options are also compatible with the Twin Slot System.

The 8 inch depth channel option has 4 inch outlet on the end cap, and a 4 and 6 inch outlet option out of the bottom.

The 3 inch depth channel option has a 4 and 6 inch bottom outlet out of each channel.


Channel Length - 3.3 Feet (39 inches) - Connect end to end for longer run

Material ............. PPE Plastic / Galvanized Stamped Steel

Load Class ....... Heavy Duty Load

Article Number......2517-1TT-100


- Channel Depth of choice

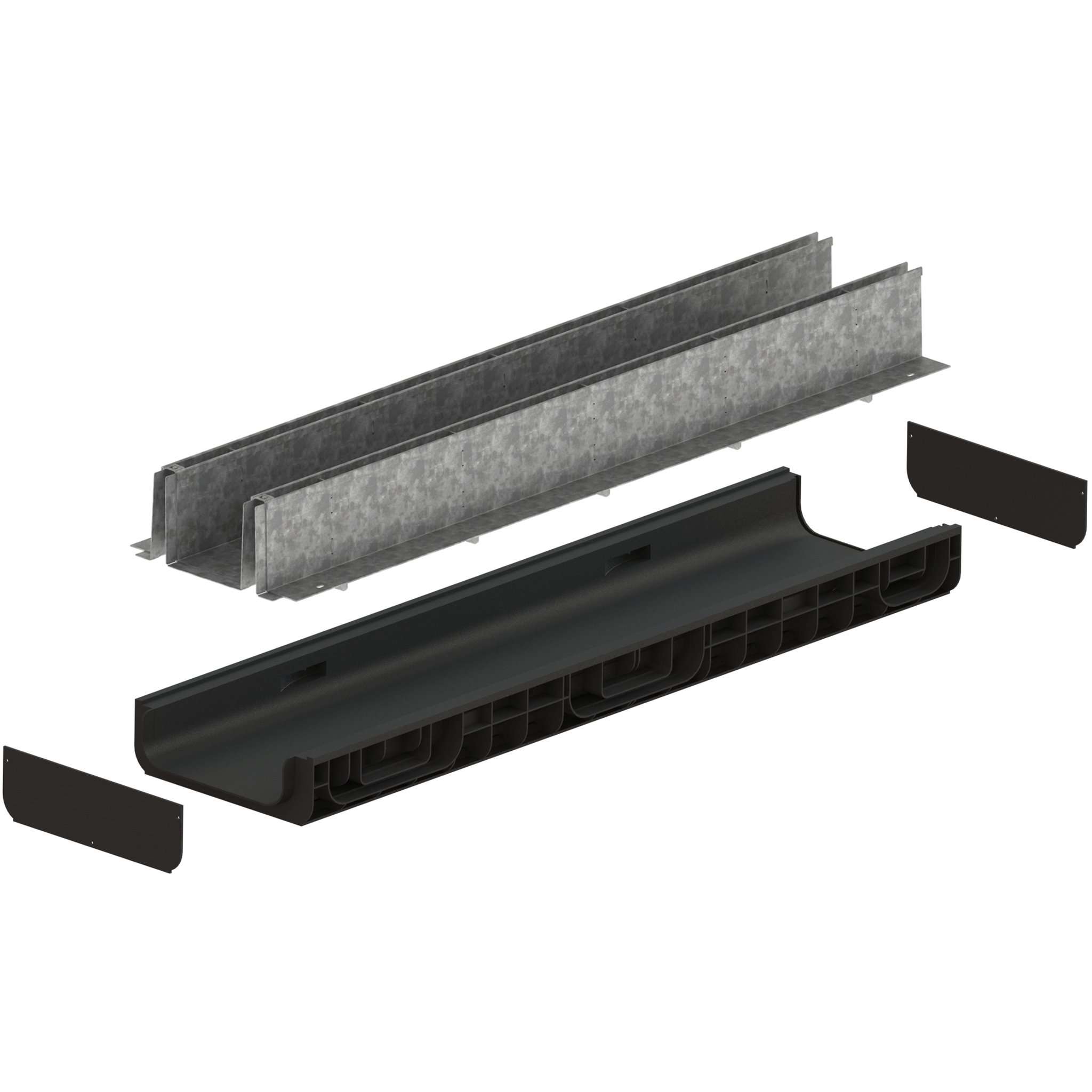

1 - Galvanized Stamped Steel Slot Grating

2 - End Caps (Per Order) - Additional end caps at checkout.
