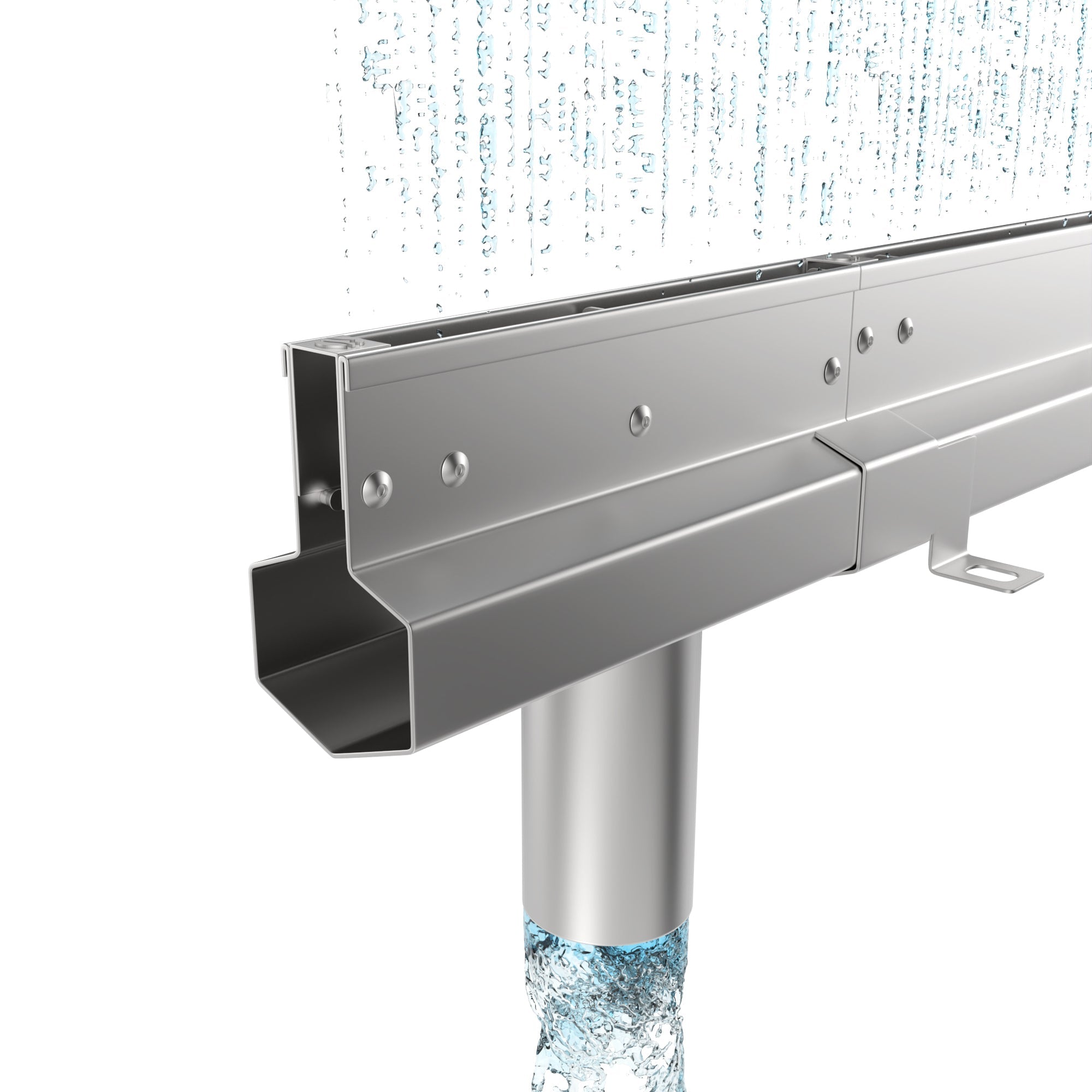

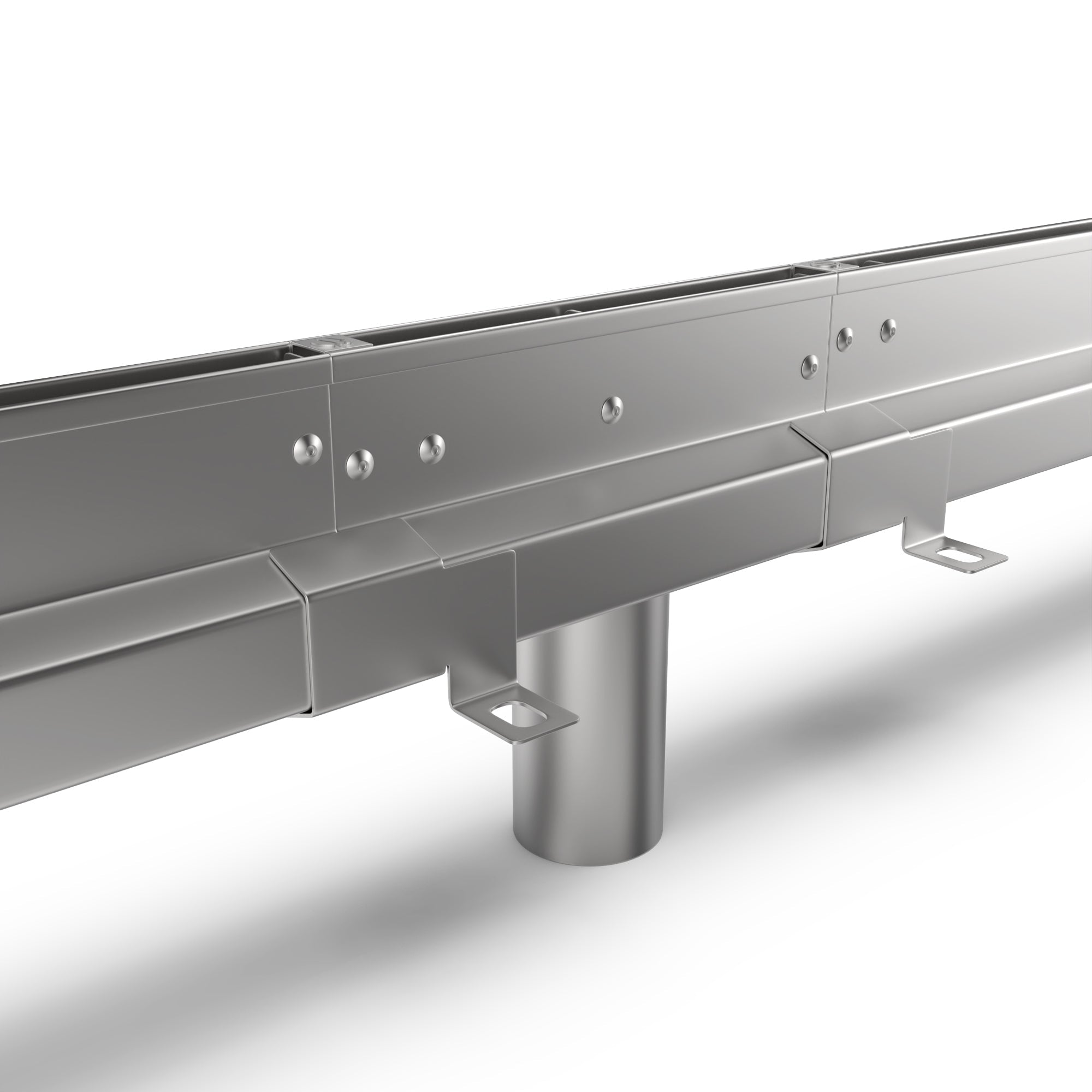

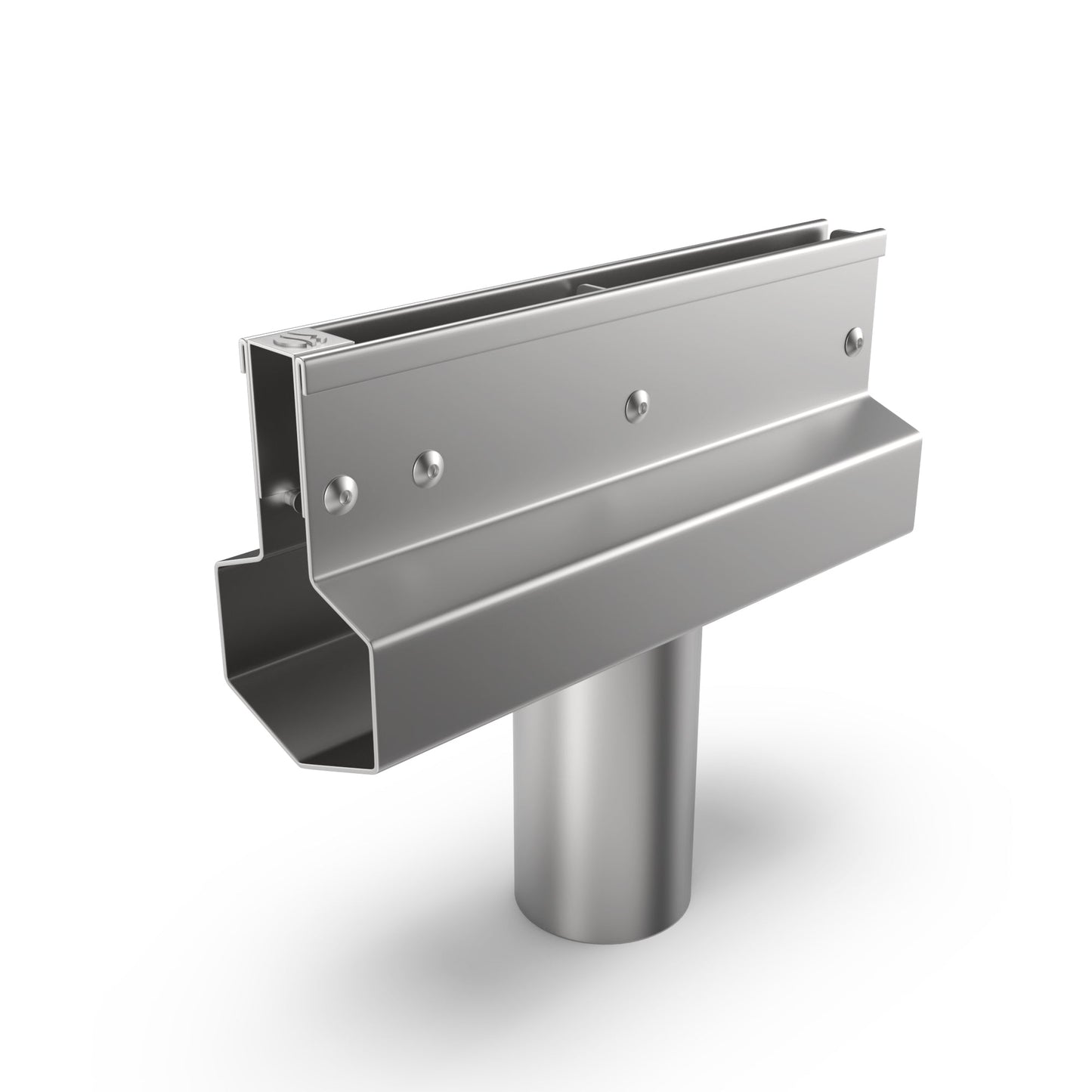

Mini Slot Channel to Channel Outlet
Mini Slot Channel to Channel Outlet
Mini Slot Channel to Channel Outlet
Mini Slot Channel to Channel Outlet
- 994010
- Direct Connection with Mini Slot System
- 304 Stainless Steel
- All Hardware Included for Connection
- Spec Sheet Available Under Downloads
- Trusted by 10,000+ contractors!
Couldn't load pickup availability
FAQ’s




Product Details
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
- Direct connection with Mini Slot System
- ADA Compliant Grating
- Made with 304 grade stainless steel
- All hardware included for connection
- Removable grating for easy cleaning (optional)
For more product information please see product description above

Product Description
Product Description
Mini Slot Channel to Channel Outlet
This Mini Slot Channel to Channel Outlet is designed to manage water while providing a discreet and clean style making it ideal for pedestrian-friendly spaces.
Key Features:
● Made from 304 Stainless Steel - Rust and corrosion-resistant for long-term outdoor use.
● ADA Compliant Design - Ensures safe, trip-free walking surfaces.
● Mini Slot System Compatibility - Connects seamlessly with the Mini Slot Channels by
using channel connectors
● Chemical and Corrosion Resistant - Resists chemical damage and corrosion.
Expanded Product Overview:
Smart, sleek, and built for tight spaces- the Mini Slot Channel to Channel Outlet delivers discreet drainage without sacrificing performance. It includes a bottom vertical connection to a 2” pvc pipe. Ideal for patios, pool decks, and outdoor living areas. Its narrow opening captures water efficiently while maintaining a clean, modern aesthetic. Made from high-quality materials for strength and durability, the Mini Slot System is the go-to solution for subtle surface drainage that lasts.
Common Applications: - (Designed only to be used with Mini Slot System)
● Residential and Commercial Pools
● Sidewalks and Driveways
● Patios and Walkways
Technical Specifications:
● Material: 304 Stainless Steel
● Length: 7.875”
● Width: 2.375”
● Slot Opening: ⅝”
● Compliance: ADA
● Compatible Systems: Mini Slot Channel, Slot Drain Grate Covers
Technical Resources: Load Class Compliance
Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
