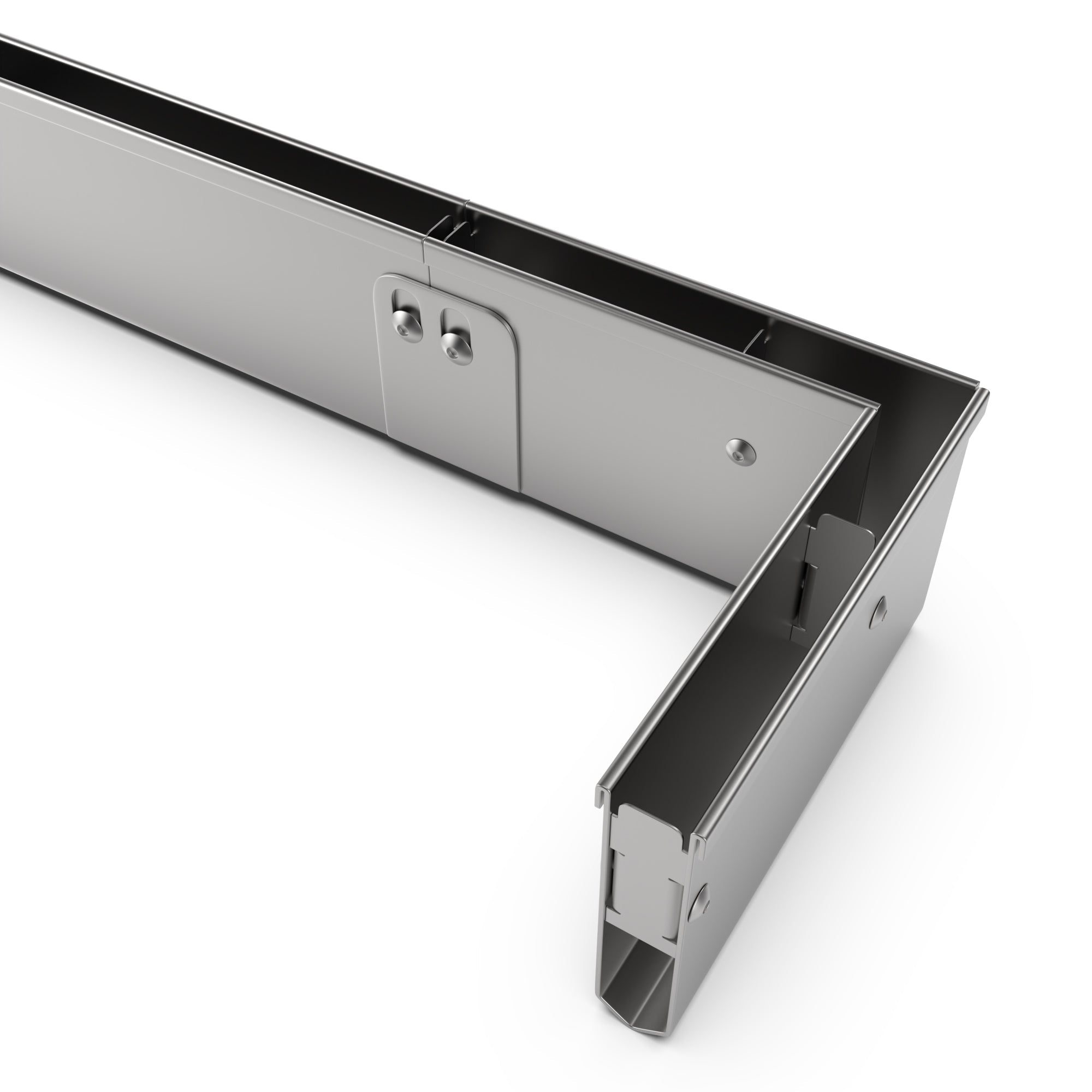

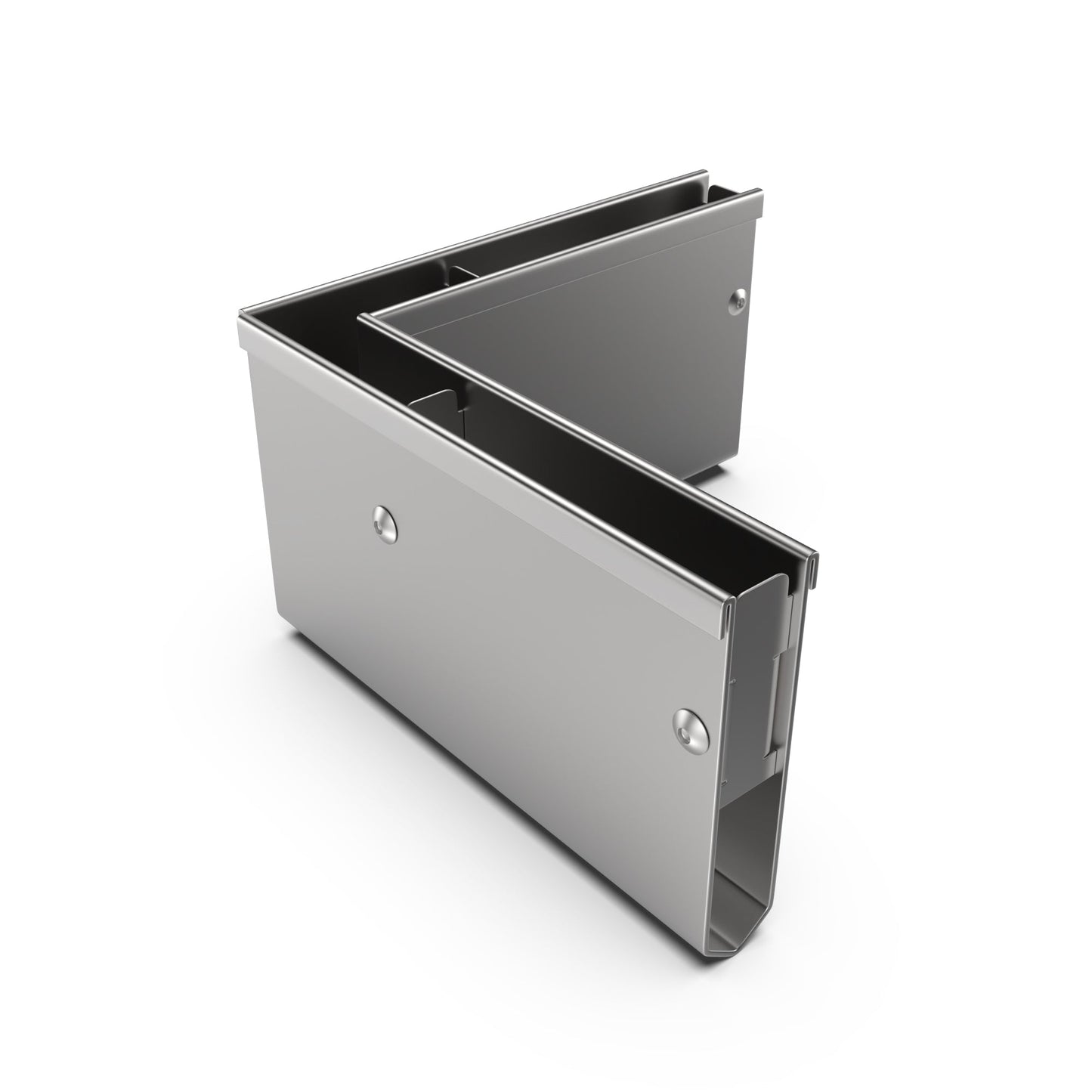

Mini Slot SLIM 90 Degree Adapter
Mini Slot SLIM 90 Degree Adapter
Mini Slot SLIM 90 Degree Adapter
Mini Slot SLIM 90 Degree Adapter
- 994021
- Direct Connection with Our Mini Slot Slim System
- 304 Stainless Steel
- All Hardware Included for Connection
- Spec Sheets Available Under Downloads
- Trusted by 10,000+ contractors!
Regular price
$76.00
Regular price
Sale price
$76.00
Unit price
per
free shipping over $999
3-5 days delivered
×
×
Product Details
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
- Direct connection with Mini Slot SLIM System
- ADA Compliant Grating
- Made with 304 grade stainless steel
- All hardware included for connection
- 90 degree turn with ease
- Removable grating for easy cleaning (optional)
For more product information please see product description above
Downloads
PDF
DWG
BIM
Adapter Specification Sheet
Product Description
Product Description
Mini Slot SLIM 90 Degree Adapter
This Mini Slot SLIM 90 Degree Adapter is designed to manage water while providing a discreet and clean style making it ideal for pedestrian-friendly spaces.
This Mini Slot SLIM 90 Degree Adapter is designed to manage water while providing a discreet and clean style making it ideal for pedestrian-friendly spaces.
Key Features:
● Made from 304 Stainless Steel - Rust and corrosion-resistant for long-term outdoor use.
● ADA Compliant Design - Ensures safe, trip-free walking surfaces.
● Load Class A-C Rated - Light to heavy duty applications.
● Chemical and Corrosion Resistant - Resists chemical damage and corrosion.
● Mini Slot SLIM System Compatibility - Connects seamlessly with the Mini Slot SLIM
Channels
Expanded Product Overview:

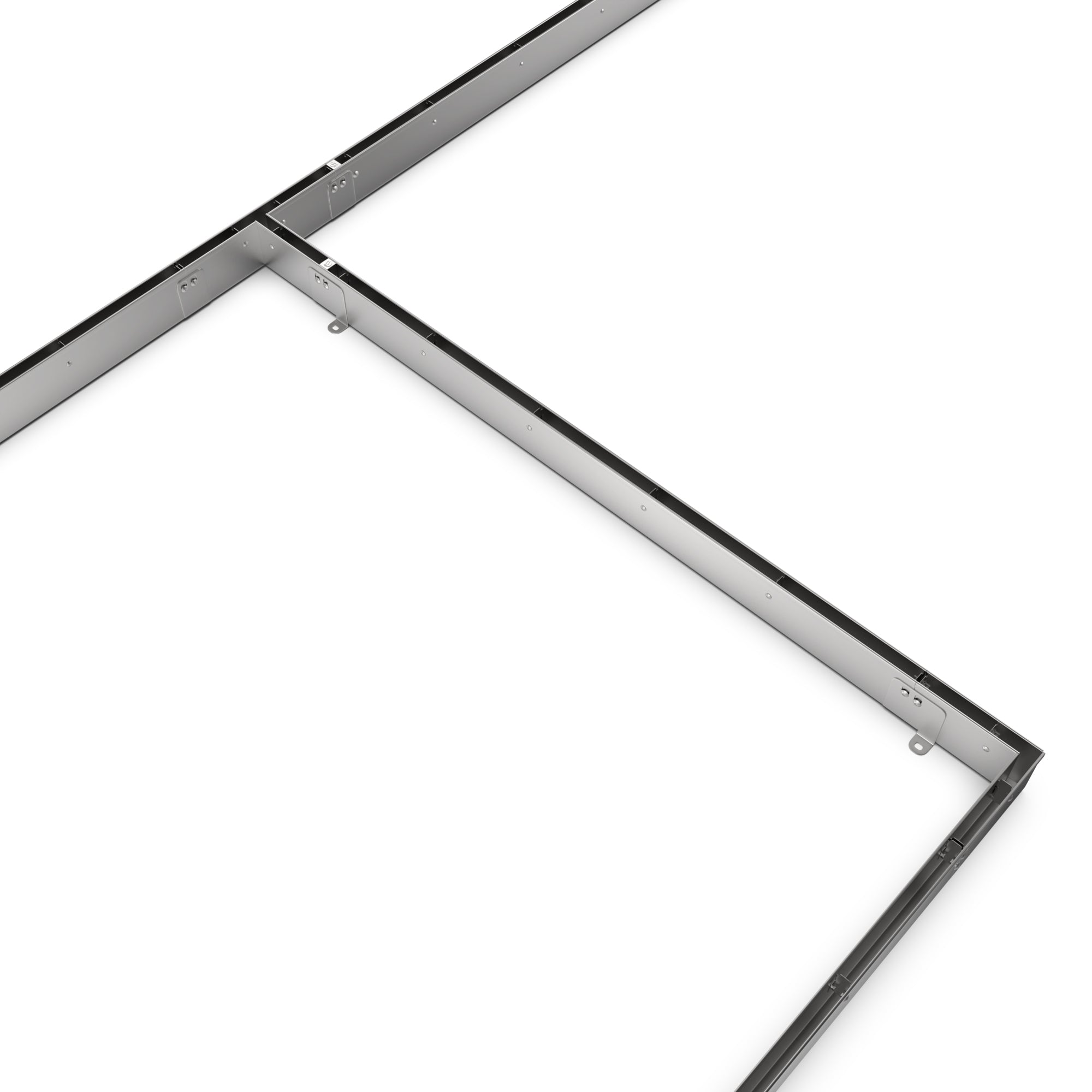

Smart, sleek, and built for tight spaces- the Mini Slot SLIM 90 Adapter delivers discreet
drainage without sacrificing performance. This 90 Adapter will allow a run to turn 90 degrees without the need for an inline basin. Ideal for patios, pool decks, and outdoor living areas. Its narrow opening captures water efficiently while maintaining a clean, modern aesthetic. Made from high-quality materials for strength and durability, the Mini Slot SLIM System is the go-to solution for subtle surface drainage that lasts.
Common Applications: - (Designed only to be used with Mini Slot SLIM System)
● Residential and Commercial Pools
● Sidewalks and Driveways
● Patios and Walkways
Technical Specifications:
● Material: 304 Stainless Steel
● Length: 6”
● Width: 6”
● Slot Opening: ⅝”
● Load Rating: A-C Class (Light to Heavy Duty)
● Compliance: ADA
● Compatible Systems: Mini Slot SLIM Channel, Slot Drain Grate Covers
