Easy ONE - 3 Inch channel Black

Easy ONE - 3 Inch channel Black

Skip to product information
1 of 5
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads



  • 3" Internal trench drain system with plastic grating
  • 2" Pipe outlet option out of the end caps
  • 3" or 4" pipe outlet options out of the bottom adapter
  • Pedestrian load rated



For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Easy 1 Specification Sheet
PDF :
DWG :
Installation Guide
PDF :
Supplemental Installation Guide
PDF :

Product Description

Product Description

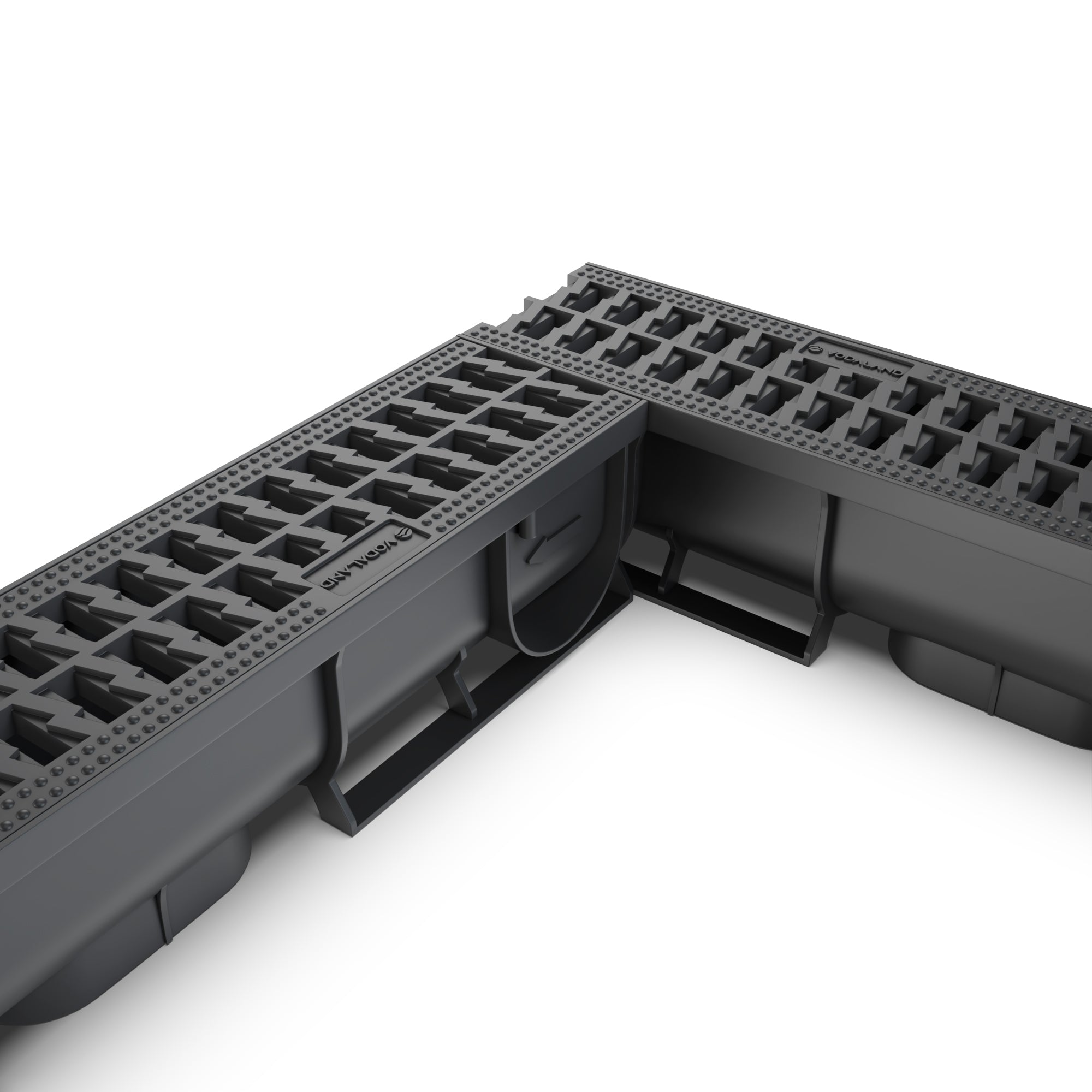

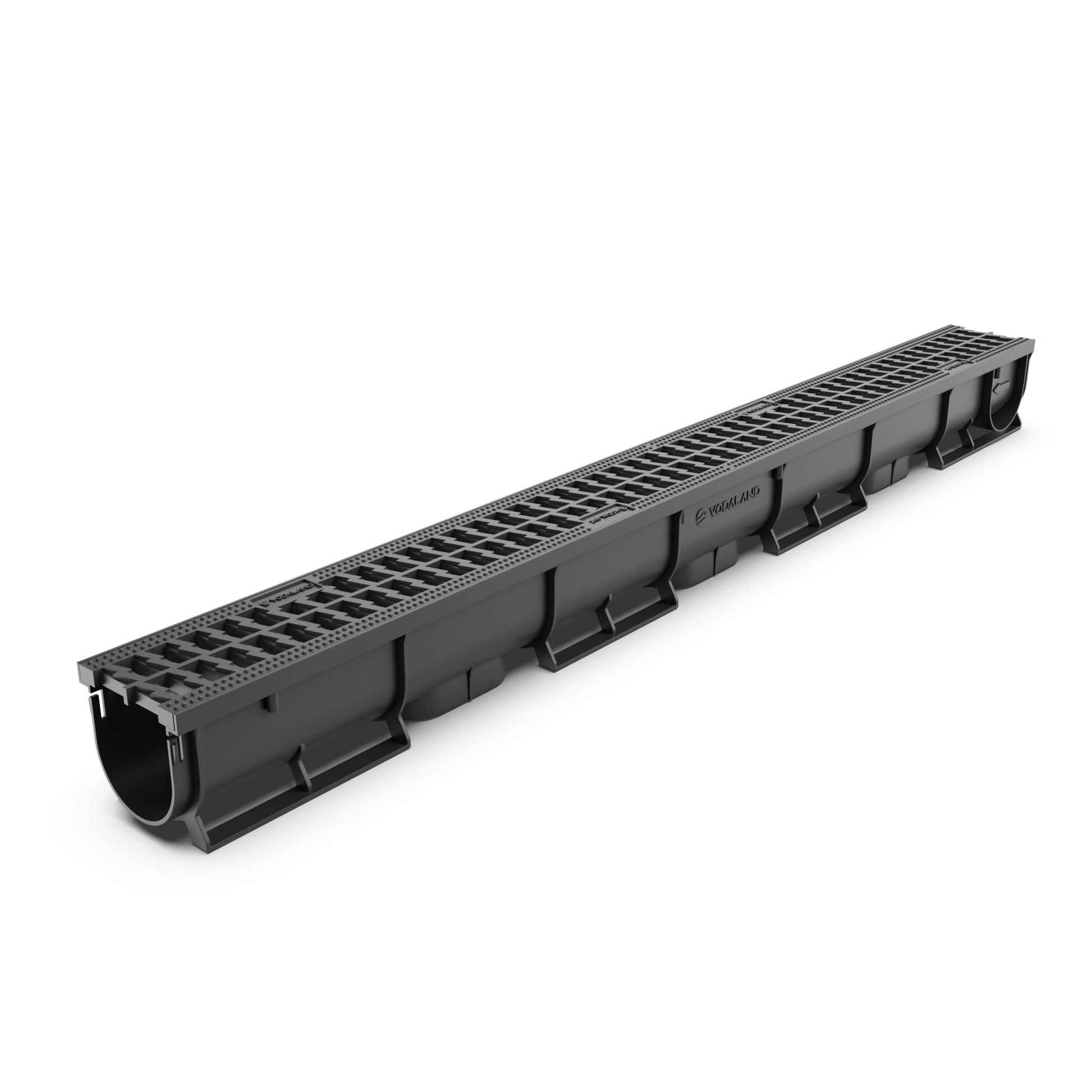

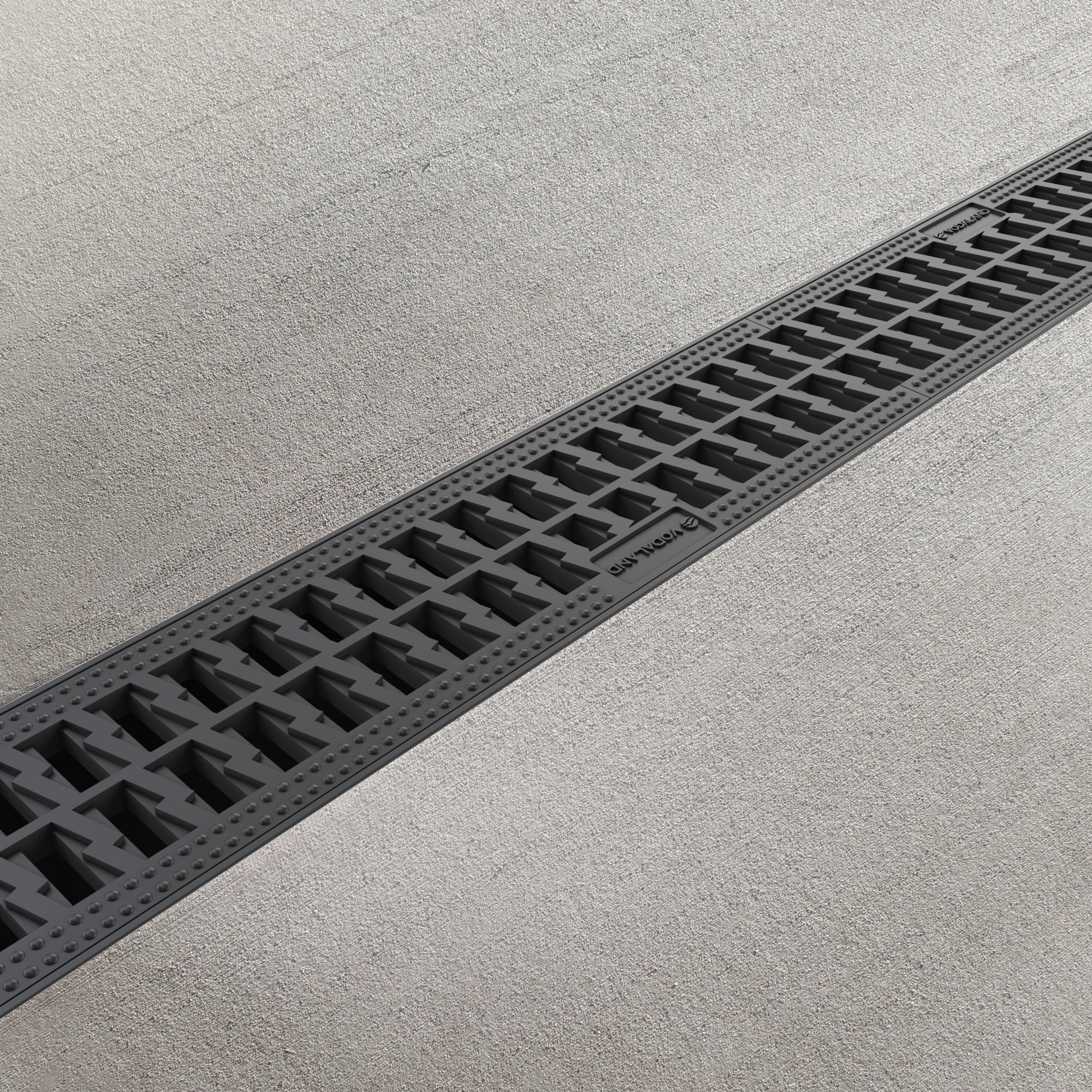

Easy ONE - 3” Channel Black

Vodaland designed and engineered the Easy ONE - 3 Inch Channel Black to provide a drainage solution system that is easy, reliable, and suitable for all types of residential application.

Key Features:
A-Load Classification - Suitable for pedestrian applications

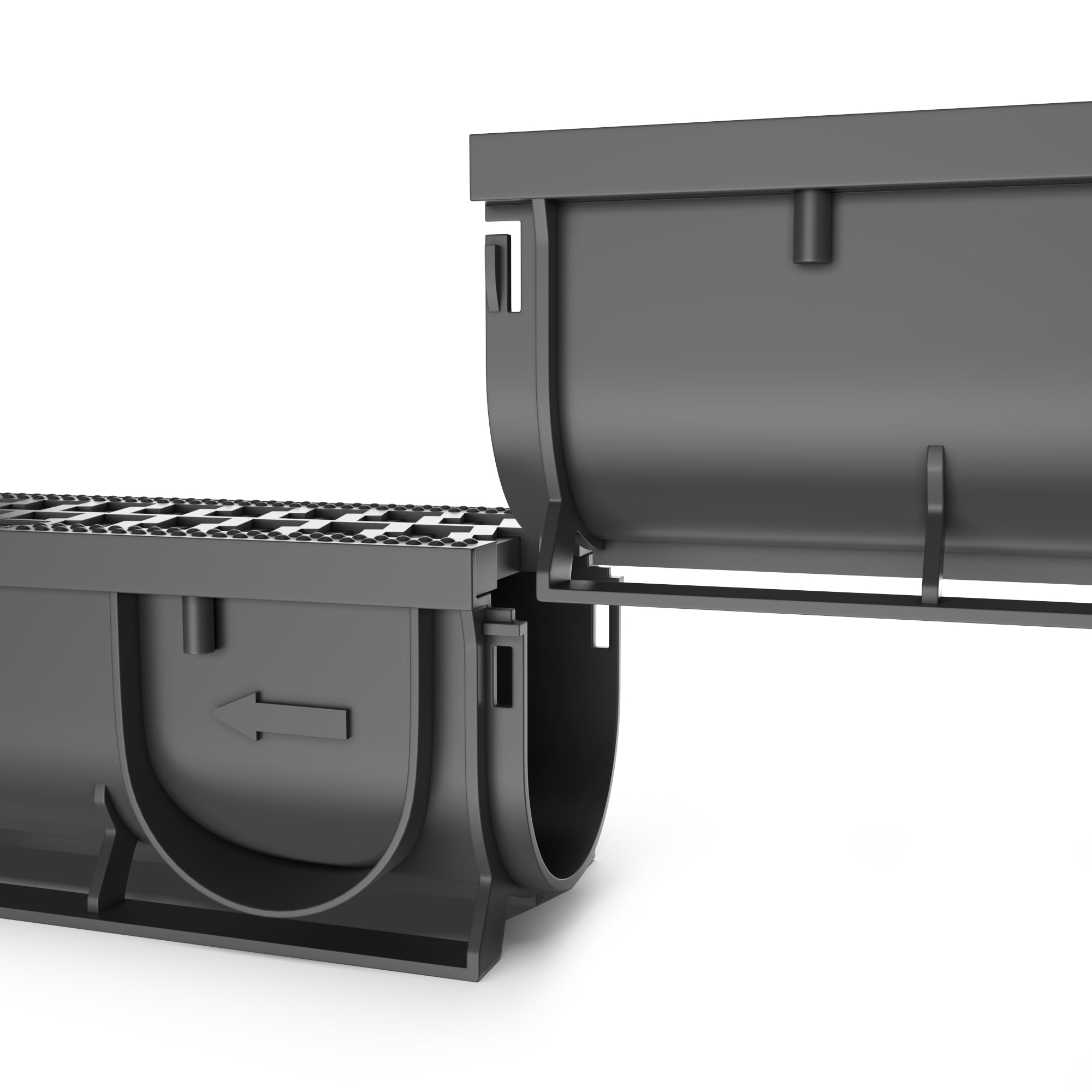

Snap & Lock Connection - Provides an easy and fast installation
PPE Plastic Channel & Grate - Lightweight handling system and corrosion resistant.

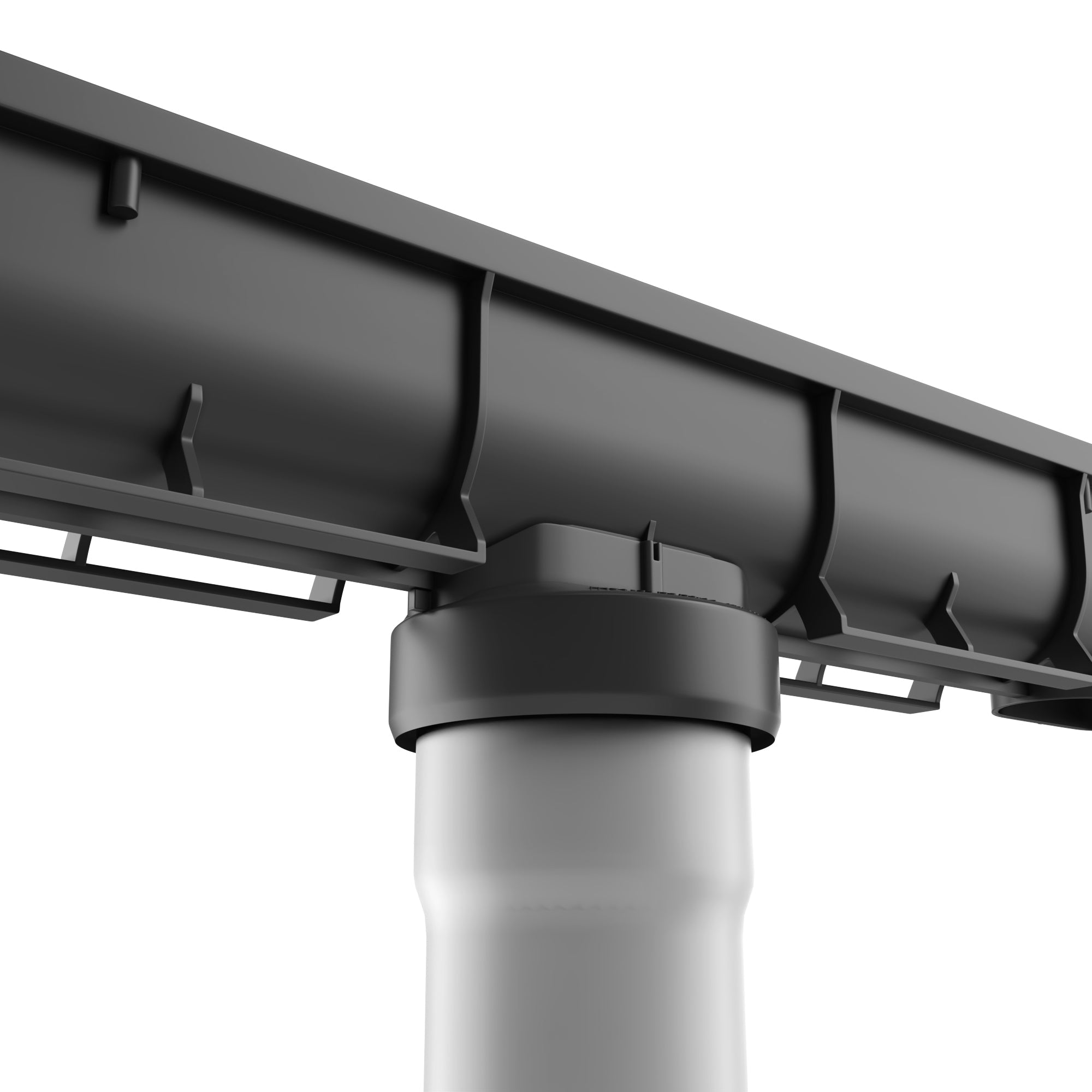

Modular Outlets - Supports multiple pipe connections options at both ends, on either side, and bottom of the channel.

Expanded Product Overview:
The Easy ONE - 3” Channel Black System is a 3” Internal width channel drain with a length of 3.3 FT (39 Inches) in length. This system comes with a hundred percent recycled PPE plastic grating material, supporting up to 3,300 LBS of weight, making it suitable for any pedestrian foot traffic application. An A-Load Classification that is perfect to use for around the pools, patients, gardens, walkways, and more.

Common Application:
Patios
Gardens
Pool Installation
Walkways

Technical Specifications:
Material: PPE Plastic Channel & Grate
Channel Length: 3.3 FT (39 Inches)
Channel Width: 3” Internal & 3.5” External
Weight: 1.7 LBS
Load Class: A Load Rate - 3,300 LBS
Color: Black

Vodaland delivers reliable and high performance water solution systems. Backed by expert engineers and trusted by professionals nationwide. Systems that are designed and certified to meet the demands of every project so you can build with confidence.
