Easy 2 - 4 Inch Channel Ivory

Easy 2 - 4 Inch Channel Ivory

Regular price $43.00
Regular price Sale price $43.00
Sale Sold out
free shipping over $999
3-5 days delivered
View full details
  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 4" Internal trench drain system with plastic grating
  • Snap and lock connections
  • 4" pipe outlet out of the included bottom adapter
  • Pedestrian load rated

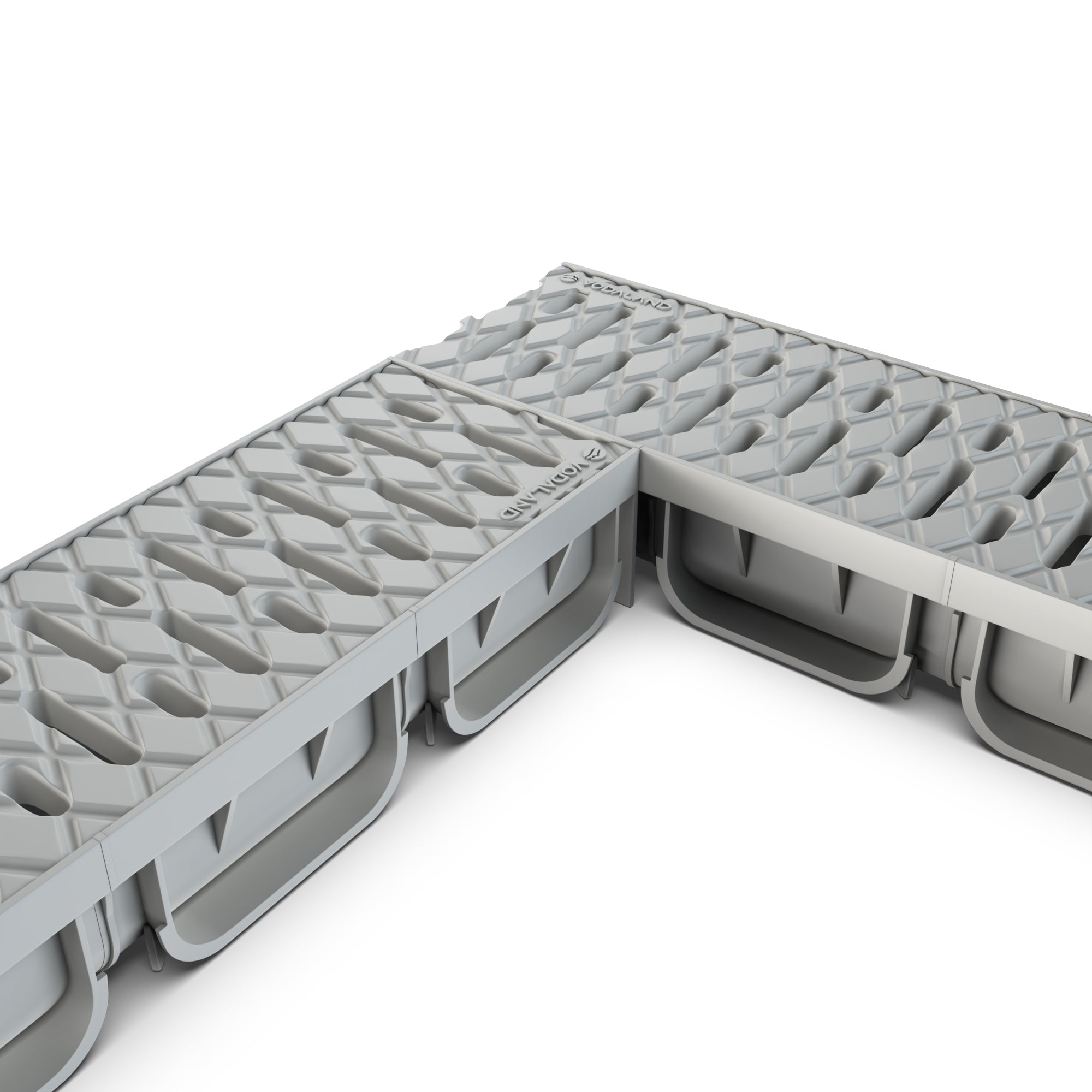

  • 90 degree turns anywhere on both sides

INCLUDED IN PACKAGE

Easy 2 Trench Drain Units - Each unit is 3.3 FT in length

2 - Easy 2 End Caps Per Package

1 - Easy 2 Bottom outlet nozzle (for multiple drain packages only)

For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Easy 2 Specification Sheet
PDF :
DWG :
Installation Guide
PDF :
Supplemental Installation Guide
PDF :

Product Description

Product Description

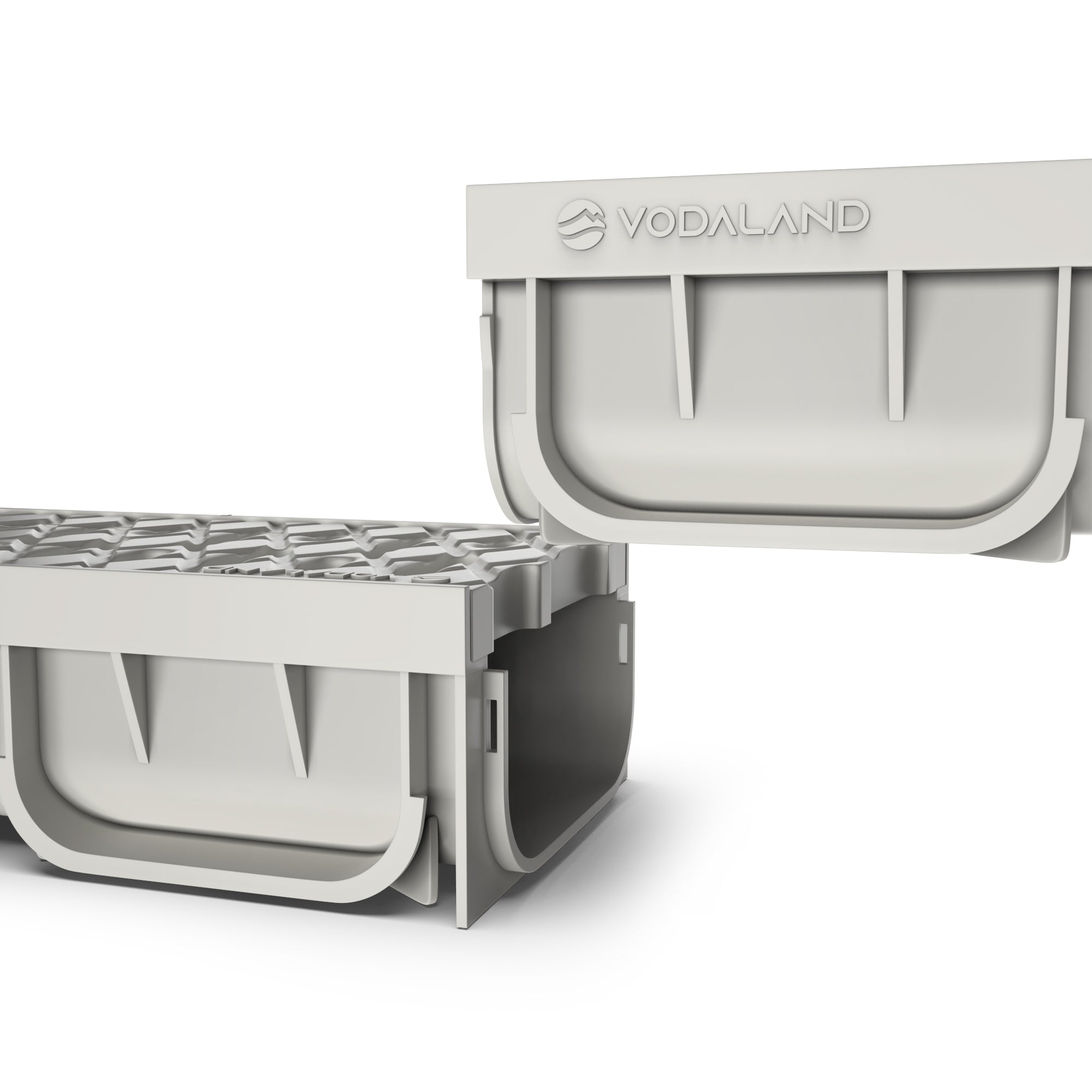

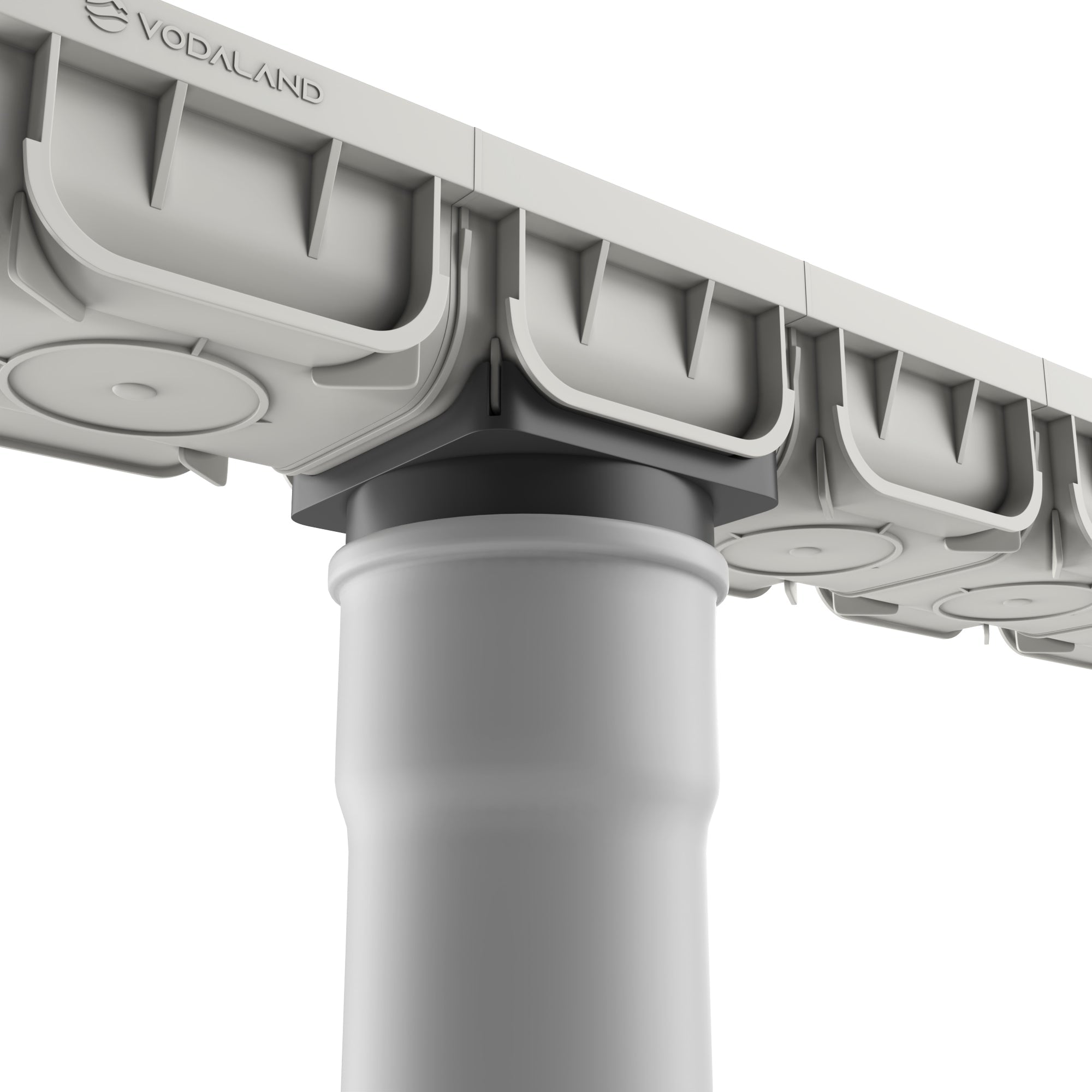

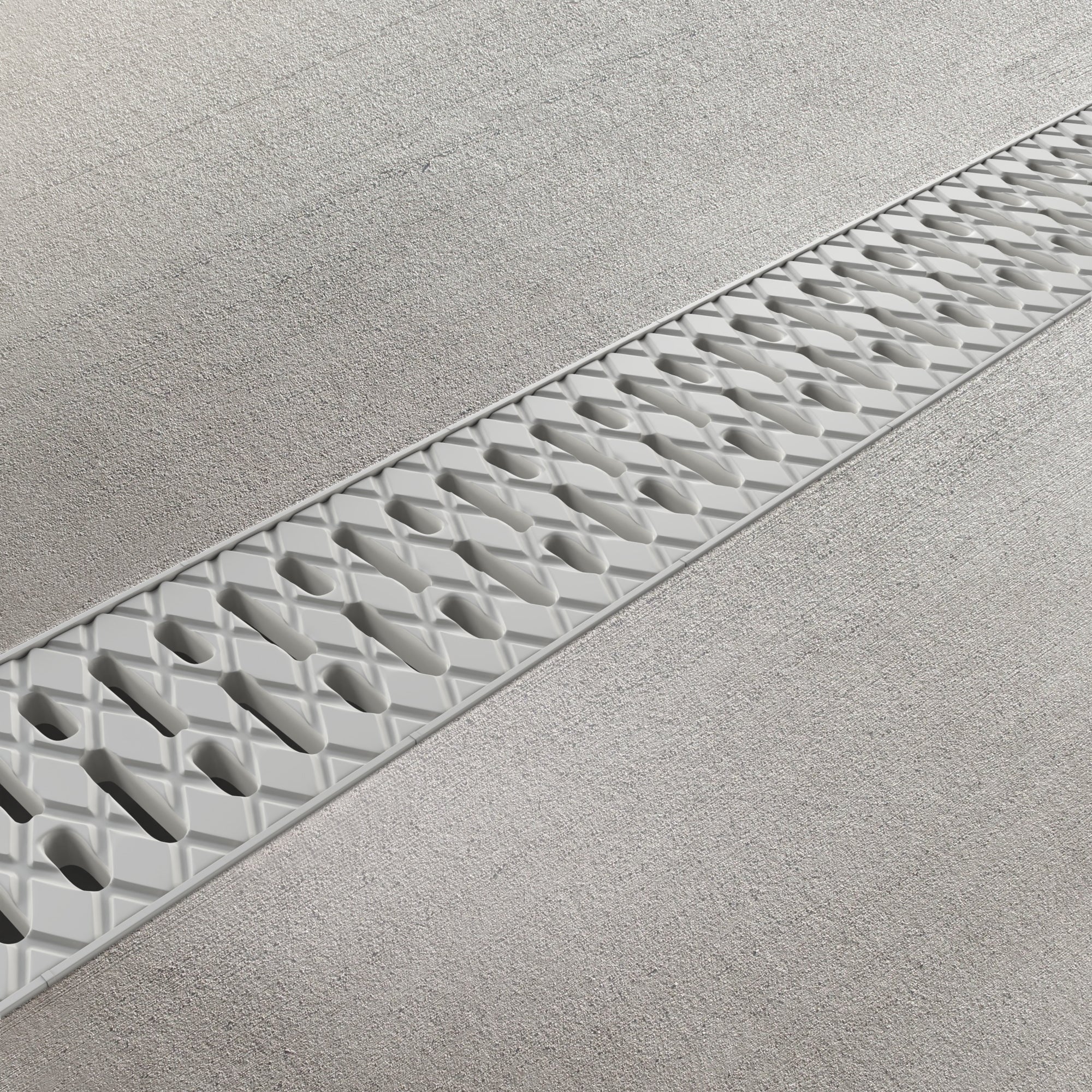

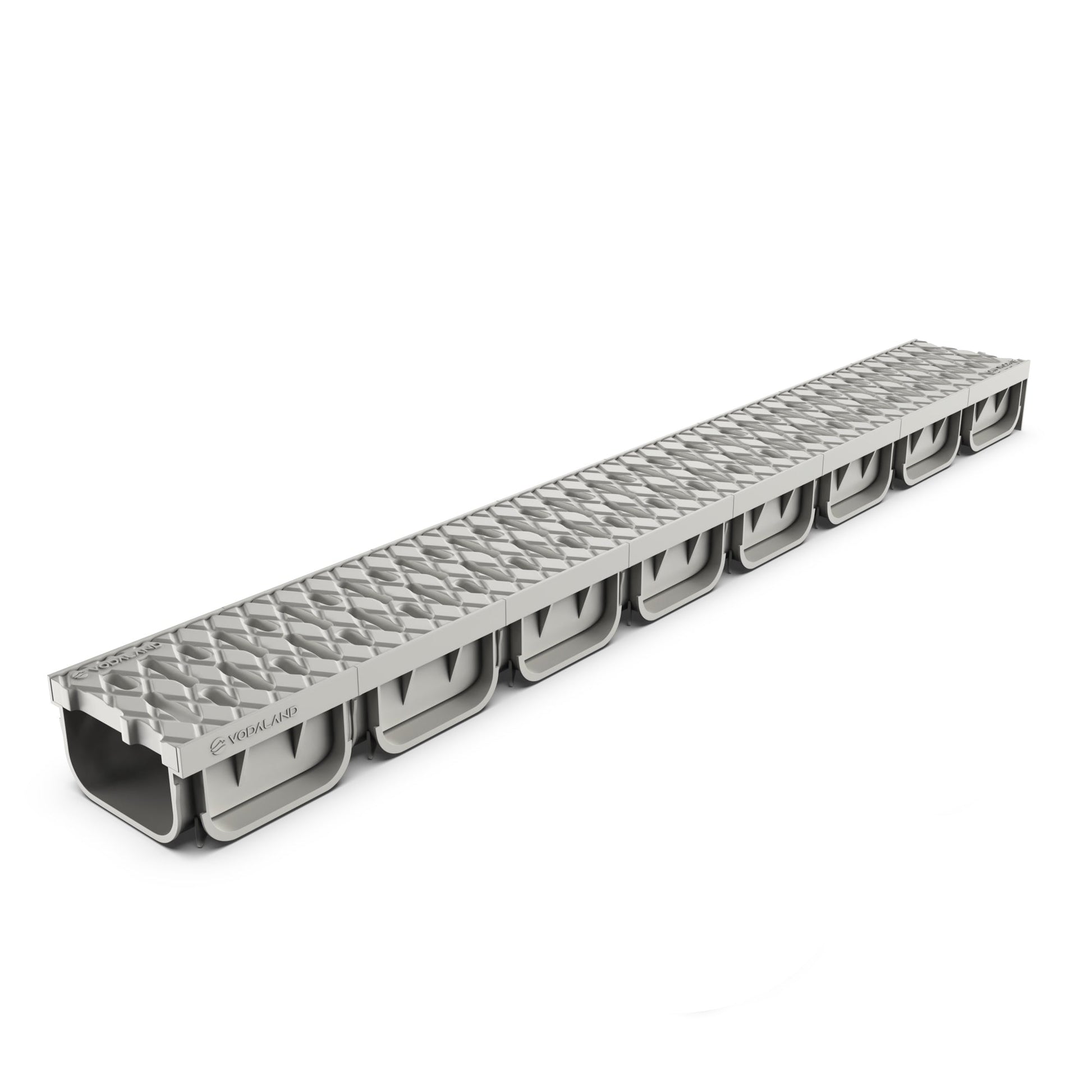

Our Easy 2 channel is the perfect solution to your home or garden needs. Channels lock end to end with a snap connection for easy installation. 90 degree turn attachments are all the way down both sides of the channel. Meaning you can turn right or left anywhere with snap connections on either side. Gratings snap into place and are easy to remove for cleaning. Channels are 39 inches in length, and 5 inches in width. Multiple placement options for 4" outlet out of bottom of channel with the Easy 2 outlet nozzle, or the Easy 2 Outlet Adapter sold separately for 4" outlet out of end of run. This is for pedestrian and garden use.

PARAMETERS

Article ............ 08818-GY

Material ......... PPE Plastic

Dimensions ... 39.5”L x 4.87”W x 2.87” H

Weight ........... 1.4 LBS

Load Class .... A15 - 3,300 LBS

INCLUDED IN PACKAGE

Easy 2 Channels

2 - End Caps

1 - Easy Bottom Outlet Nozzle (in multiple drain packages only)
