Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 4" Internal trench drain system with Stainless Steel grating
  • Snap and lock connections

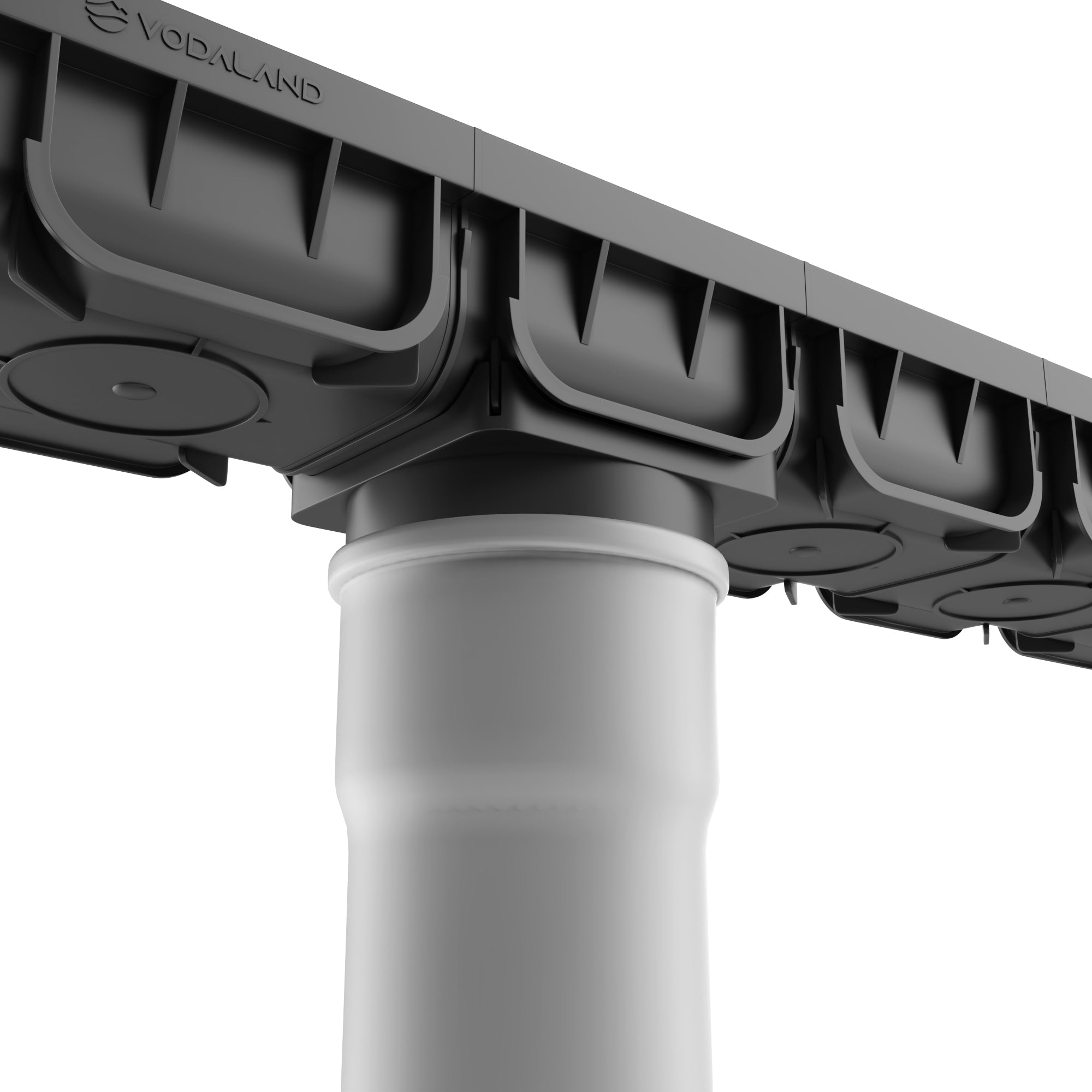

  • 4" pipe outlet out of the bottom adapter
  • Pedestrian load rated

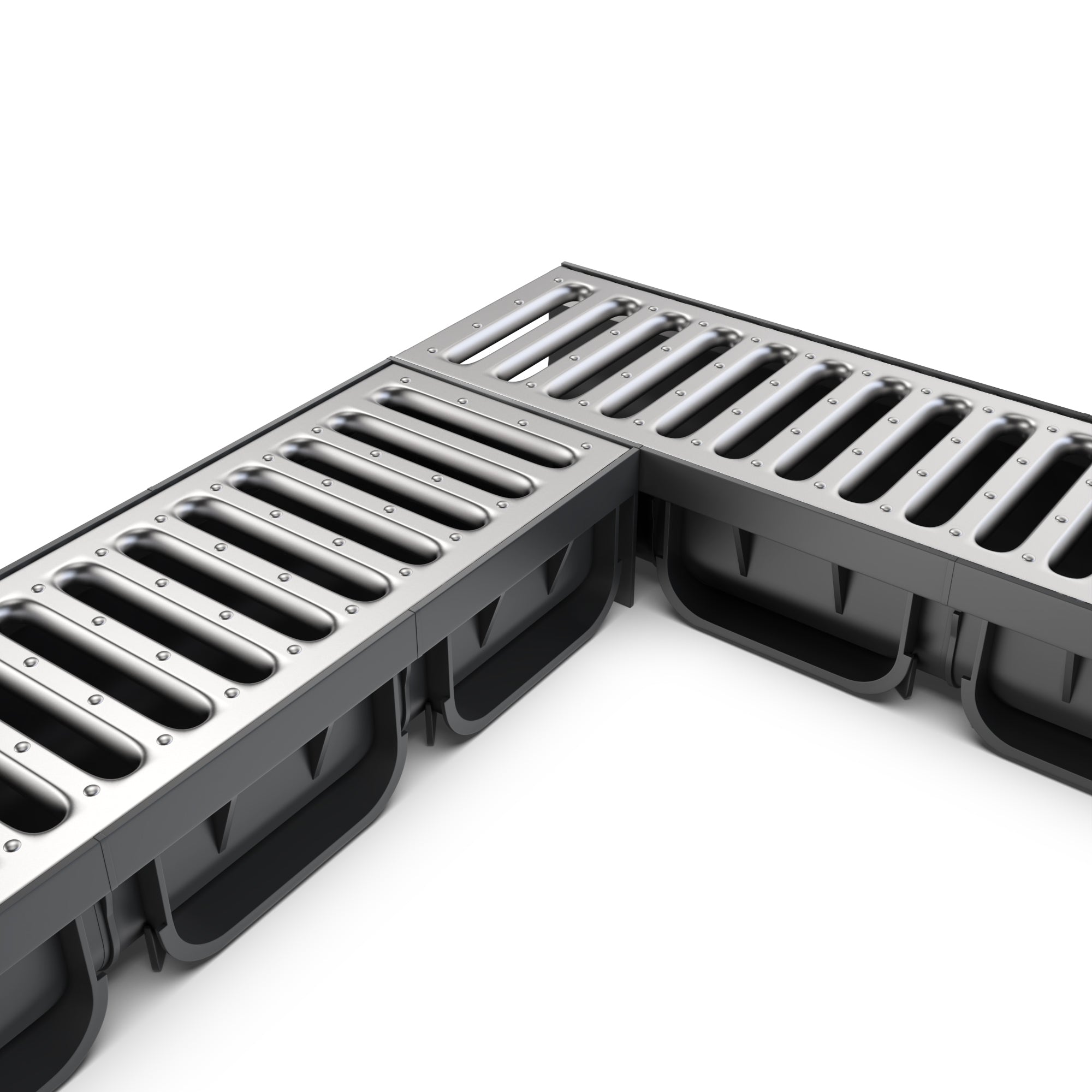

  • 90 degree turns anywhere on both sides

For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Easy 2 Stainless Specification Sheet
PDF :
DWG :
Installation Guide
PDF :
Supplemental Installation Guide
PDF :

Product Description

Product Description

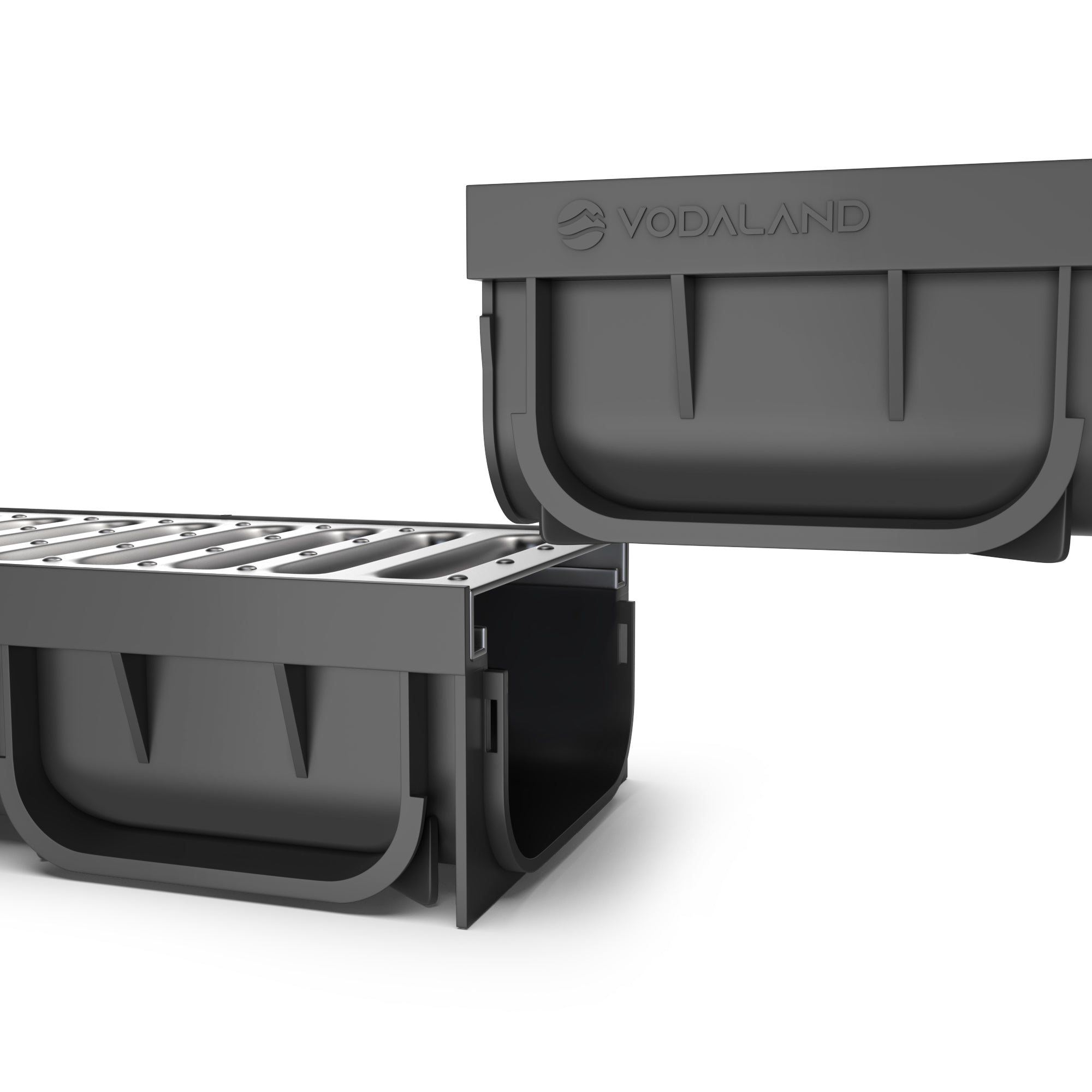

Easy TWO - 4 Inch Stainless Pro Channels - User friendly and reliable

This Easy Two - 4 Inch Stainless Pro Channel drain system is designed to provide easy installation and reliable water drainage solutions for homeowners.

Key Features:
Grate is made from 304 stainless steel - Rust and corrosion resistant for long-term outdoor use
Snap and lock connection – Allows for an easy and fast installation
Sleek brushed finish Offers a professional look for modern landscaping
● Bottom outlet adapter – Optional add-on - bottom outlet adapter that is compatible with a 4” pipe

Expanded Product Overview:

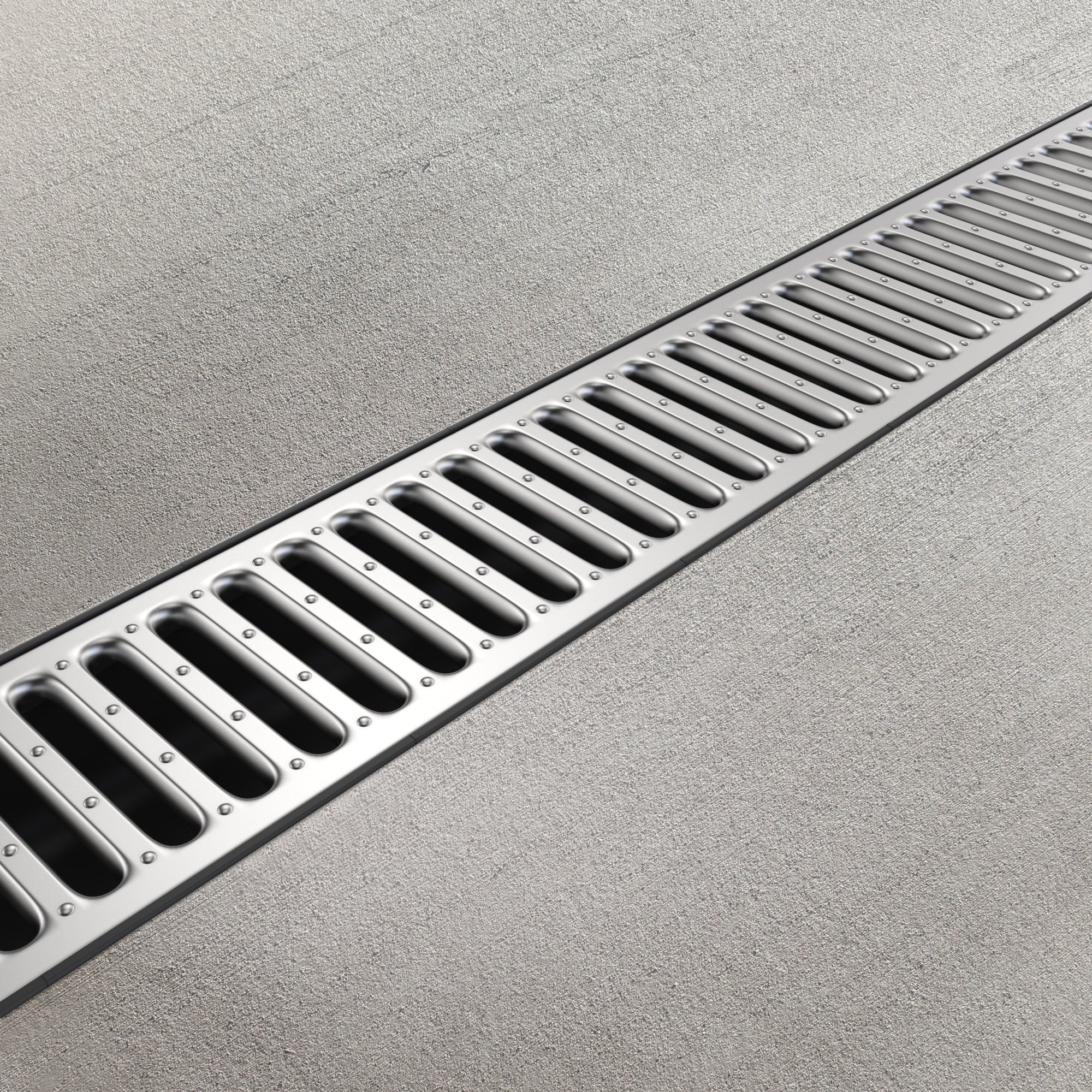

Vodaland’s 4 Inch Stainless Pro Channels comes with 304 stainless steel grating, combining durability with visual aesthetic. With a shallow-profile, the system offers a low-impact, easy to install solution for a wide range of outdoor landscape applications. The 304 stainless steel grate provides resistance to rust and corrosion while maintaining a modern, sleek appearance.

Common Applications:
Walkways
Gardens
Patios
Court yards
Landscaping

Technical Specifications:
 Material: PPE Plastic and Stainless Steel (Grating)
 Dimensions: 39.5” L X 4.87” W X 2.87” H
 Weight: 5.5 LBS
 Load Capacity: A Load Class – 3,300 LBS
 Connection type: Snap and Lock
 Color: Black

Technical Resources: Load Class Compliance

Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-
performance solutions designed to meet the demands of every project so you can build with confidence.
