Stainless Steel Pre Slope Channel System 4 Inch

Stainless Steel Pre Slope Channel System 4 Inch

Skip to product information
1 of 8
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

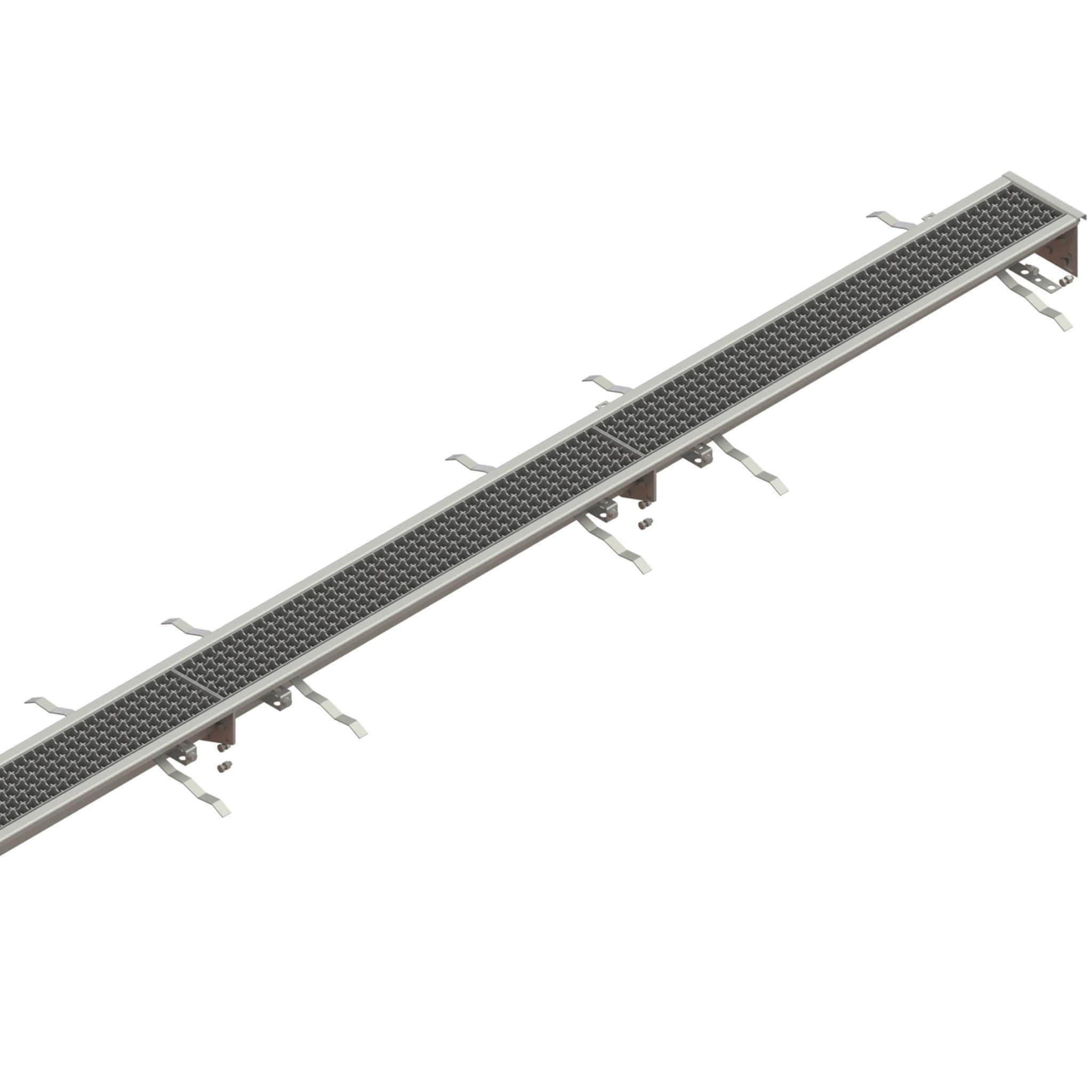

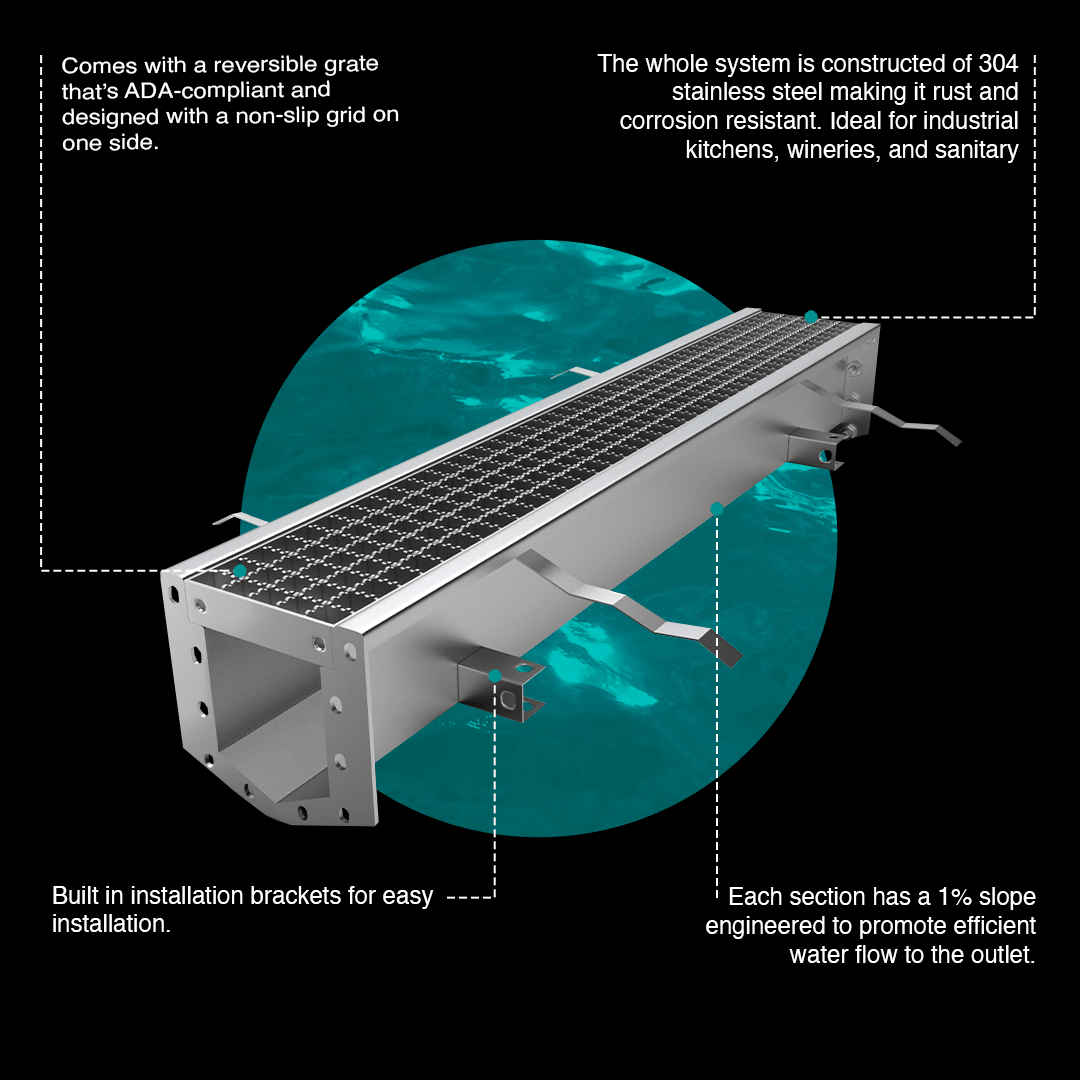

  • 4" internal 100% stainless steel pre slope trench drain system
  • Composed of highest grade 304 stainless steel
  • Reversible ADA gratings for anti-slip option on entire system
  • Chemical, acid, and corrosion resistant

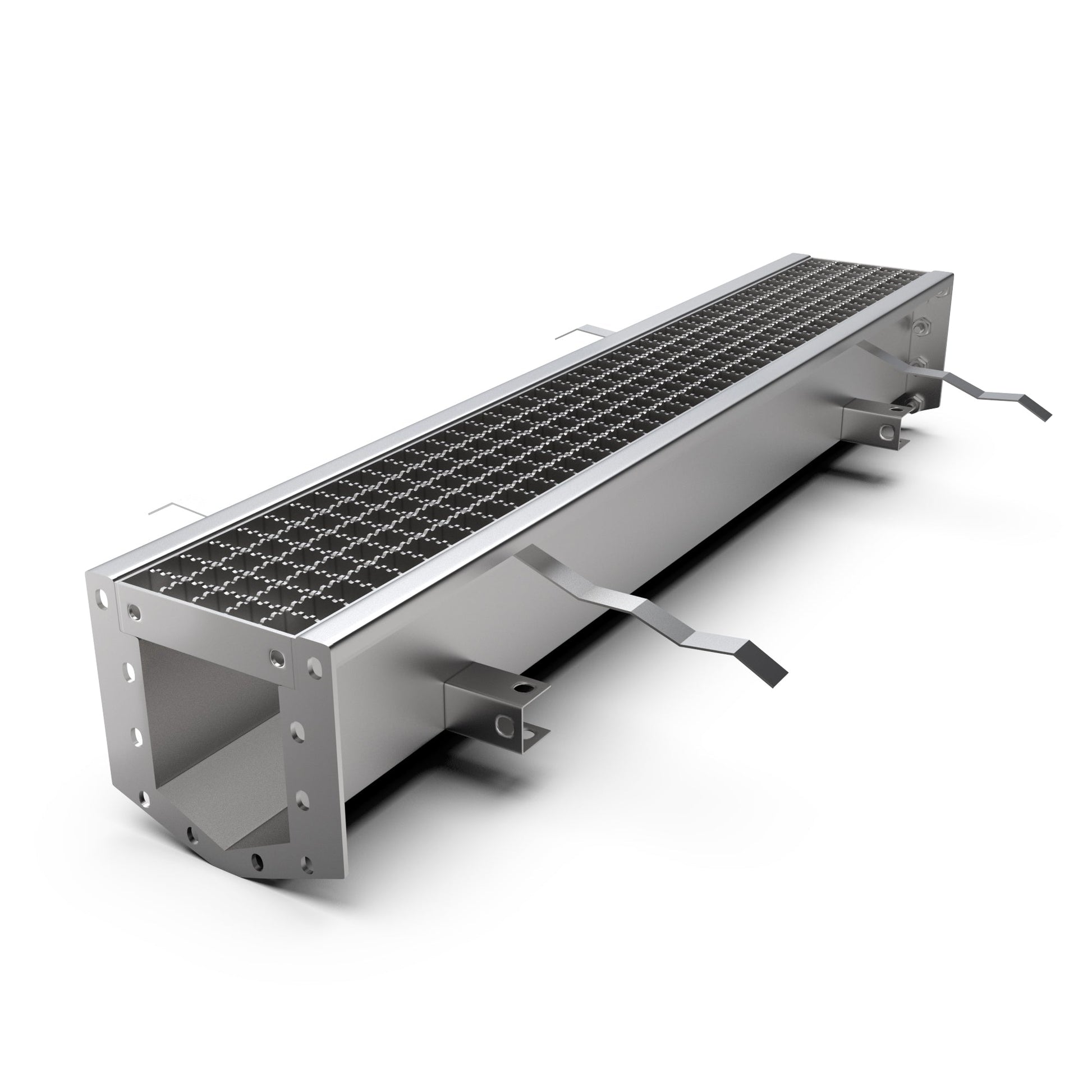

  • Equipped with leveling rebar brackets already on the system

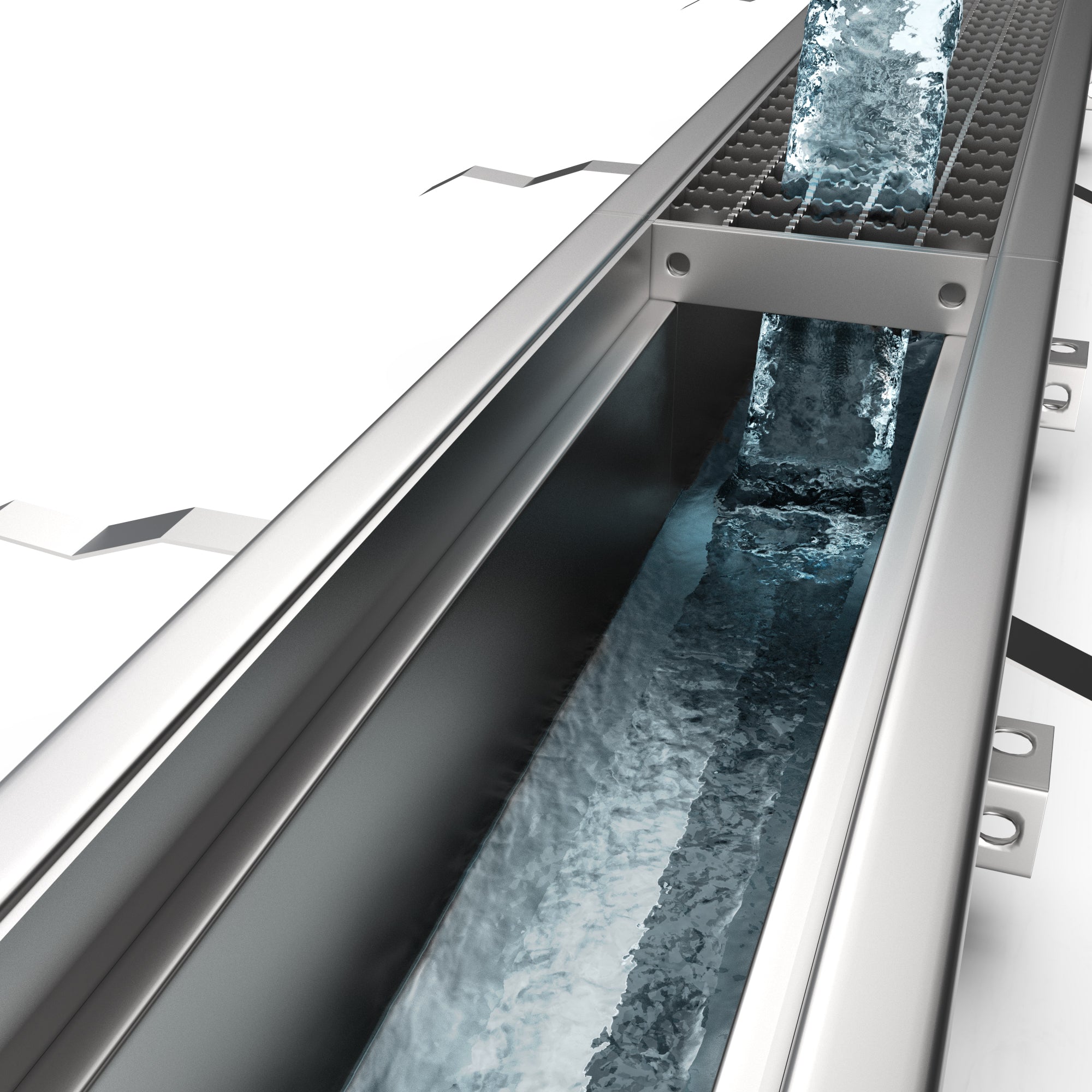

  • V-Convex bottom enables faster water movement
  • Perfect for kitchens, plants, wineries, and sanitary locations
  • C Class load rated for heavy duty load

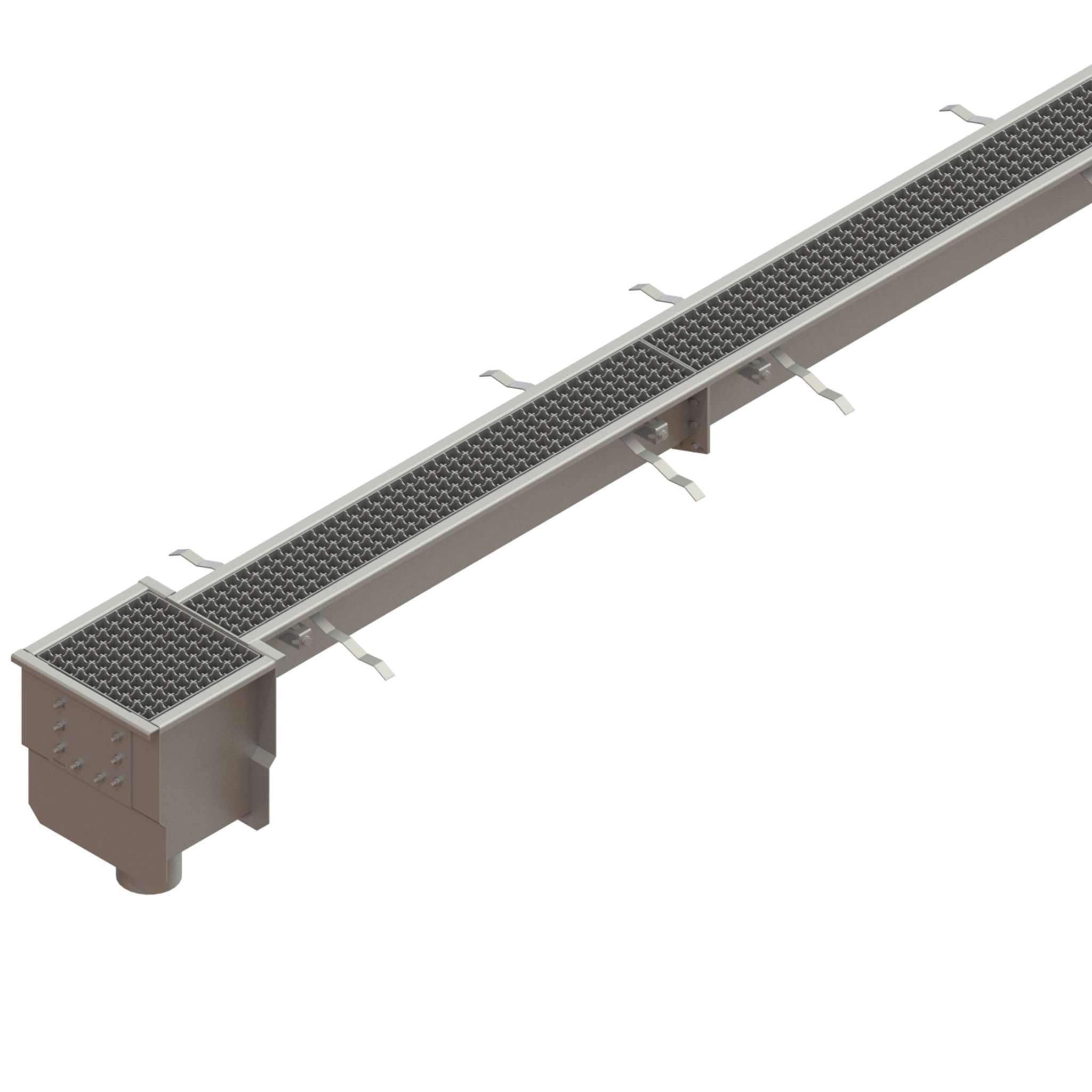

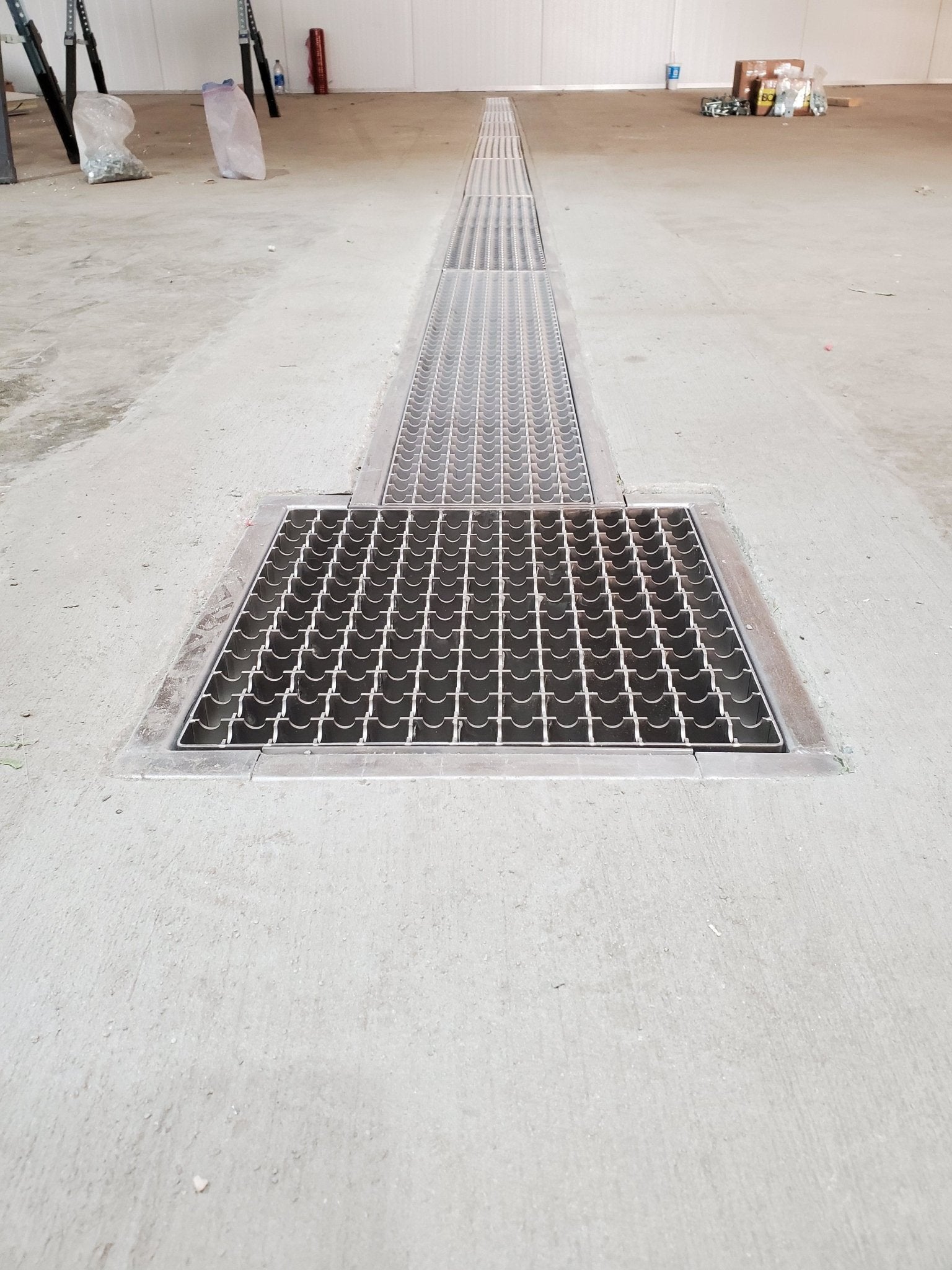

  • Can be used with our 100% Stainless steel inline basin

We offer in-house engineering services to provide custom technical drawings for precise drain layout designs, ensuring optimal performance and seamless integration.

INCLUDED IN PACKAGE

1 - Number of Channels needed for length

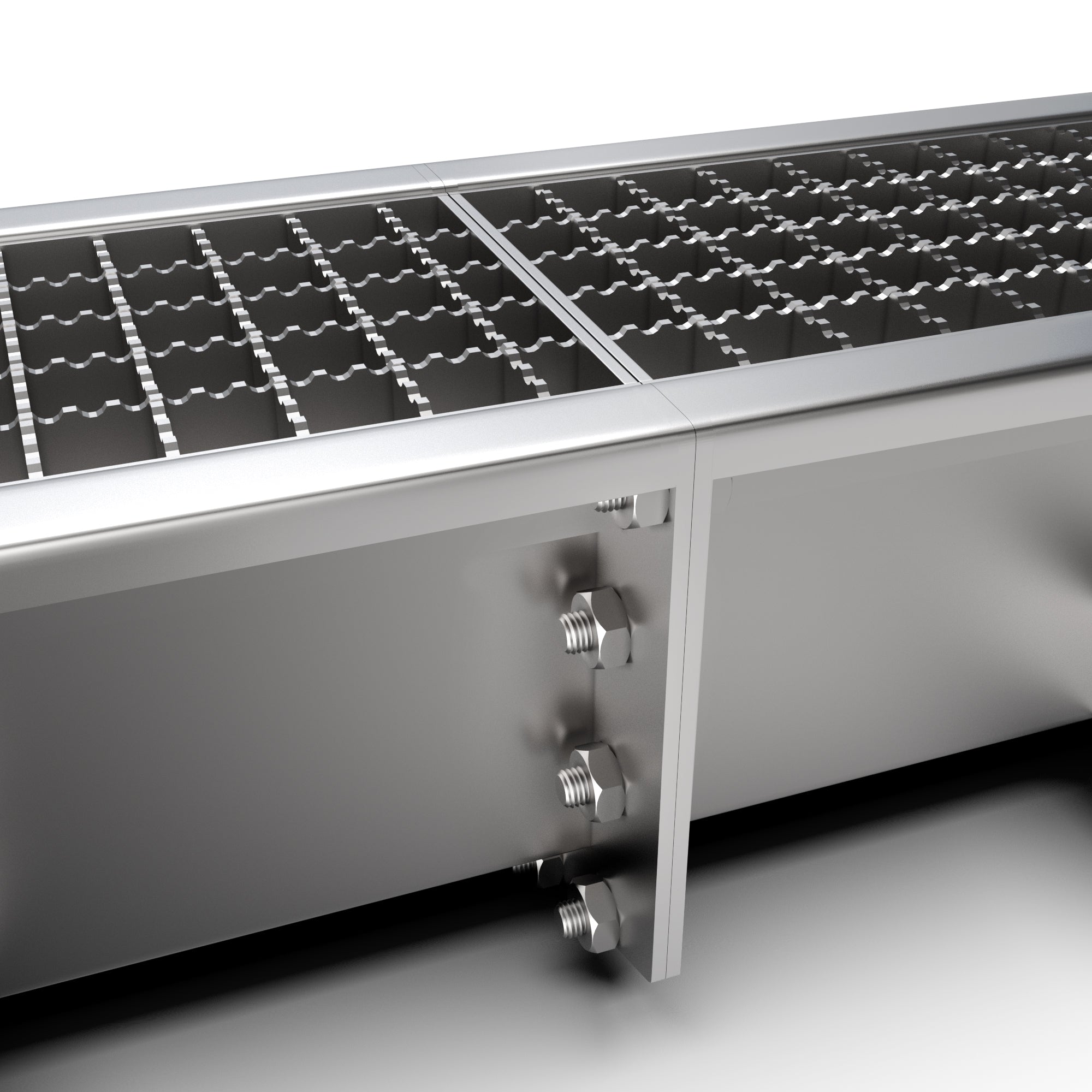

- 100% Stainless Steel Bolts and fasteners for connections

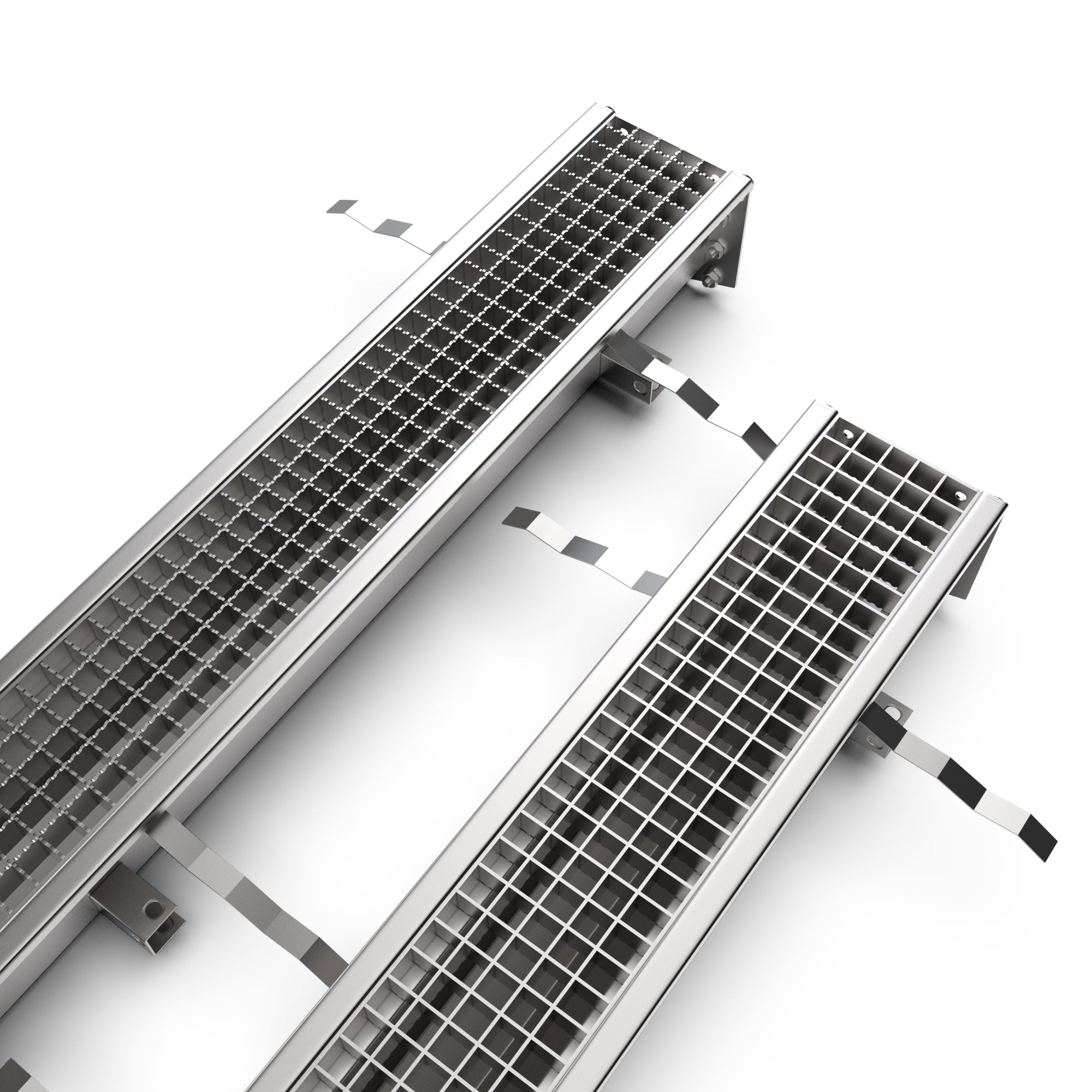

3 - 1 unit per channel of reversible grating (100% Stainless steel - one side is anti-slip , other side is mesh pattern as per specification sheets below)

** if any requests are to be made, please contact us directly, or specify in notes during checkout, we are here to completely accommodate you**

For more product information please see product description tab above

Downloads
PDF
DWG
BIM
Specification Sheet
PDF :
DWG :
BIM :
Channel Lineup
PDF :
Outlet Specification Sheets
PDF :
BIM :
Channel Flow Rates
PDF :
Grating Specification Sheet
PDF :
Installation Guide
PDF :
Supplemental Installation Guide
PDF :
System Layout
PDF :

Product Description

Product Description

Stainless Steel Pre Sloped System 4 Inch

This Stainless Steel Pre Sloped 4 Inch System is designed to manage water while providing a clean style making it ideal for pedestrian-friendly spaces as well as demanding commercial or industrial areas.

Key Features:
Made from 304 Stainless Steel - Rust and corrosion-resistant for long-term outdoor use.
Load Class C Rated - Light to heavy duty applications.
Chemical, Corrosion, and UV Resistant - Prevent corrosion from many substances
ADA Compliant Design - Ensures safe, trip-free walking surfaces.

Expanded Product Overview:
Strong, durable, and engineered for heavy use - the Stainless Steel Pre Sloped 4 Inch System delivers discreet drainage without sacrificing performance. Ideal for commercial and industrial environments. Its simple grate openings capture water efficiently while maintaining a clean, modern aesthetic. Made from high-quality materials for strength and durability, the Stainless Pre Sloped System is the go-to solution for subtle surface drainage that you can rely on.

Common Applications:
Kitchens and Food Processing Plants

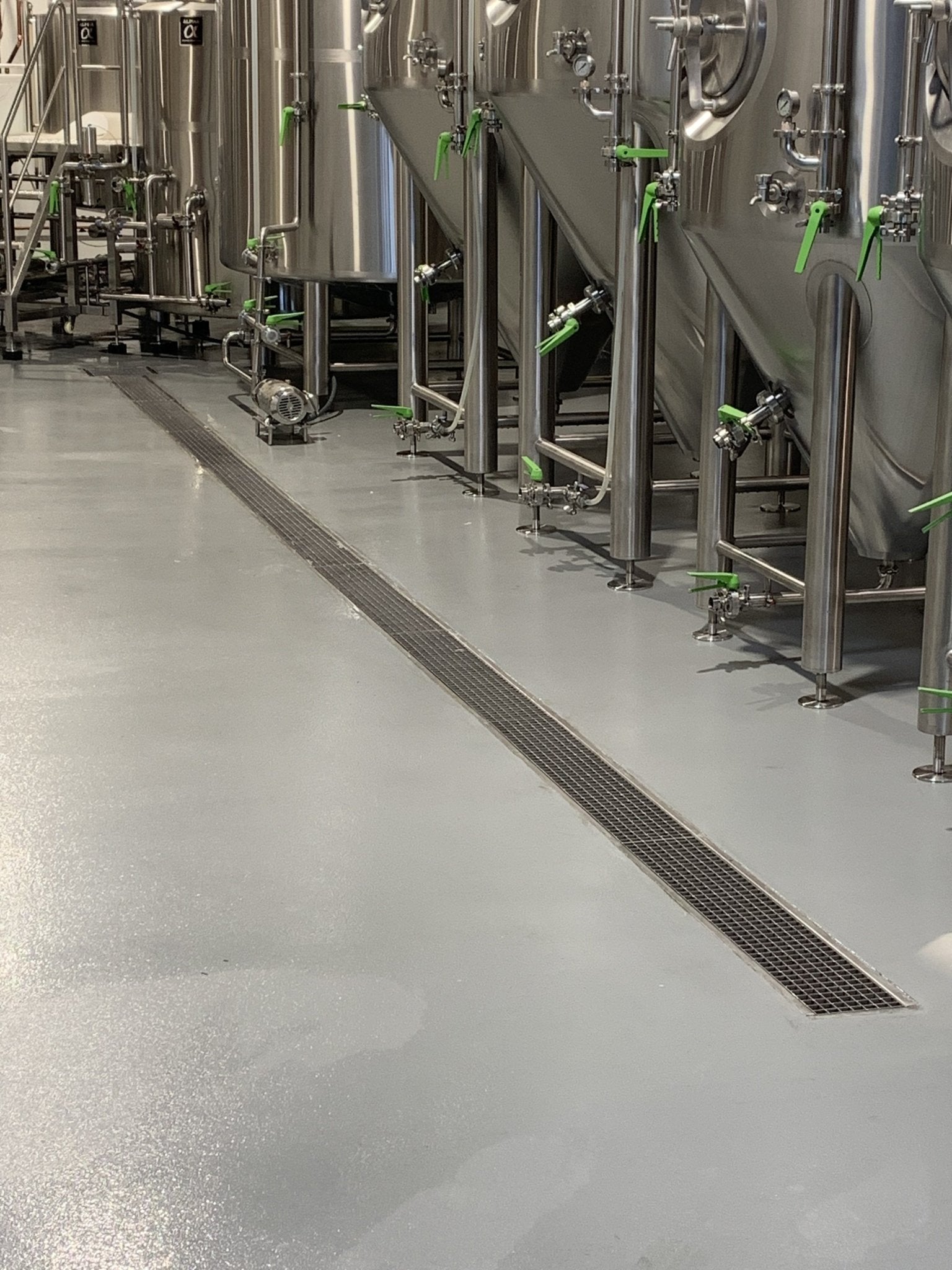

Wineries and Breweries
Sanitary locations

Technical Specifications:
Material: 304 Stainless Steel
Length: 39.375”
Width: 6.25”
Load Rating: C Class (Heavy Duty)
Optional Accessories: 90 Degree Turn Adapter, End caps and outlets, Inline Basin with 4” Bottom Outlet

Technical Resources:
Load Classification

Vodaland systems are designed with performance, durability, and style in mind. Our products perform under pressure, install with ease, and ship quickly. Vodaland is the dependable choice for long-term results.

** if any requests are to be made, please contact us directly, or specify in notes during checkout, we are here to completely accommodate you**
