Triple Slot System Basin Grates
Triple Slot System Basin Grates
Triple Slot System Basin Grates
Triple Slot System Basin Grates
- 304 Stainless Steel

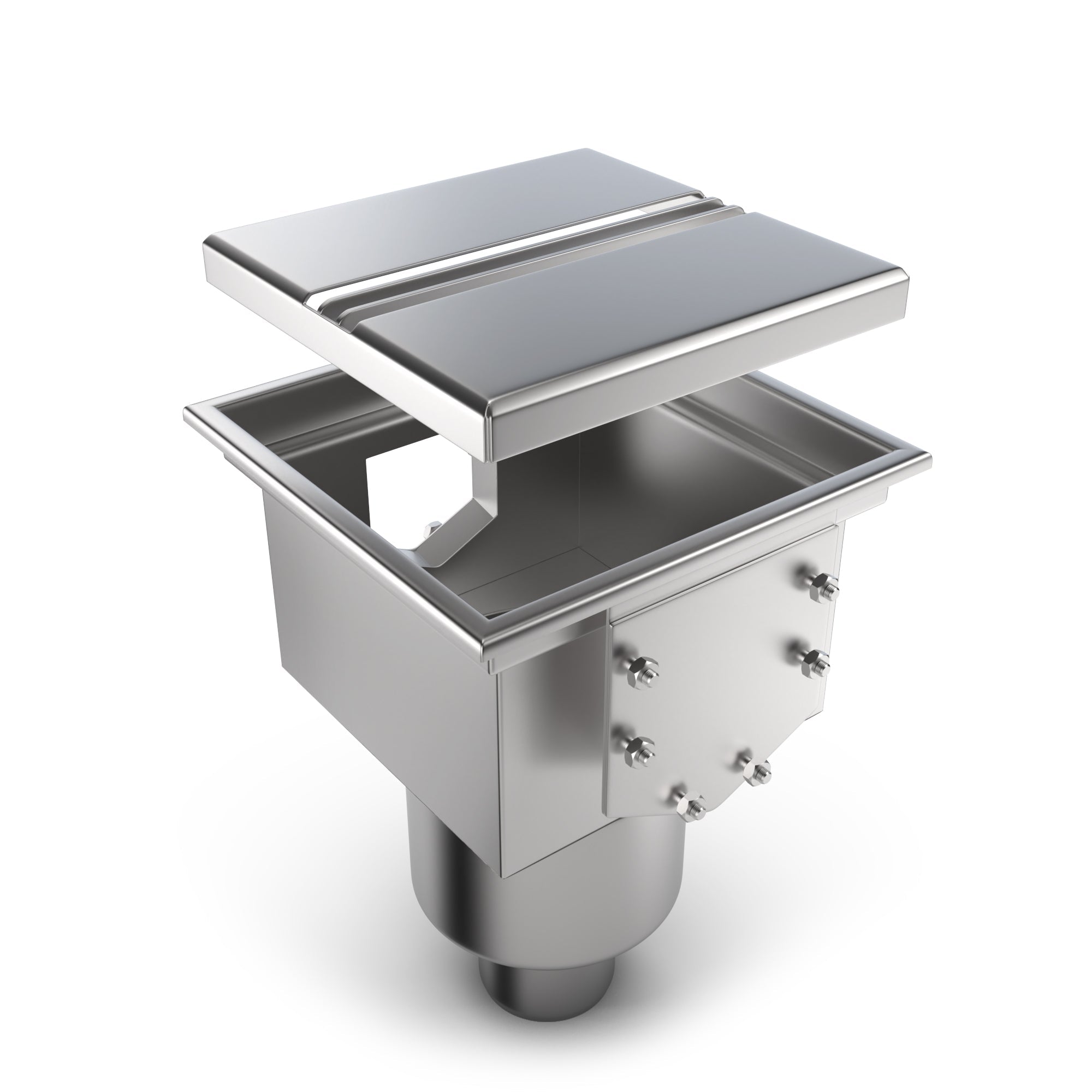

- Used with the 4" Inline Stainless Steel Basin
- Triple slot grated
- 10.5x10.5
- Spec Sheets Available Under Downloads
- Trusted by 10,000+ contractors!
Regular price
$103.00
Regular price
Sale price
$103.00
Unit price
per
free shipping over $999
3-5 days delivered
Product Details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- Direct connection with Triple Slot System
- ADA Compliant Grating
- Made with 304 grade stainless steel
For more product information please see product description above
Downloads
PDF
DWG
BIM
Fillable Basin Grate Specification Sheet
Solid Basin Grate Specification Sheet
Product Description
Product Description
Triple Slot System Basin Grates
This 304 Stainless Steel Triple Slot System Basin Grate is designed to provide ADA-compliant drainage for both public and commercial drainage projects.
Key Features:
● Made from 304 Stainless Steel - Rust and corrosion resistant for long lasting
performance.
● ADA Compliant - Ensures safe and trip-free walking surfaces.
● Supports up to 28,100 LBS per sq. ft. - Provides strength for light vehicular traffic.
● Convex Bottom - Ensures efficient water movement through the channel.
● Bolt on Connection - Allows for easy attachment to the Triple Slot System.
Expanded Product Overview:

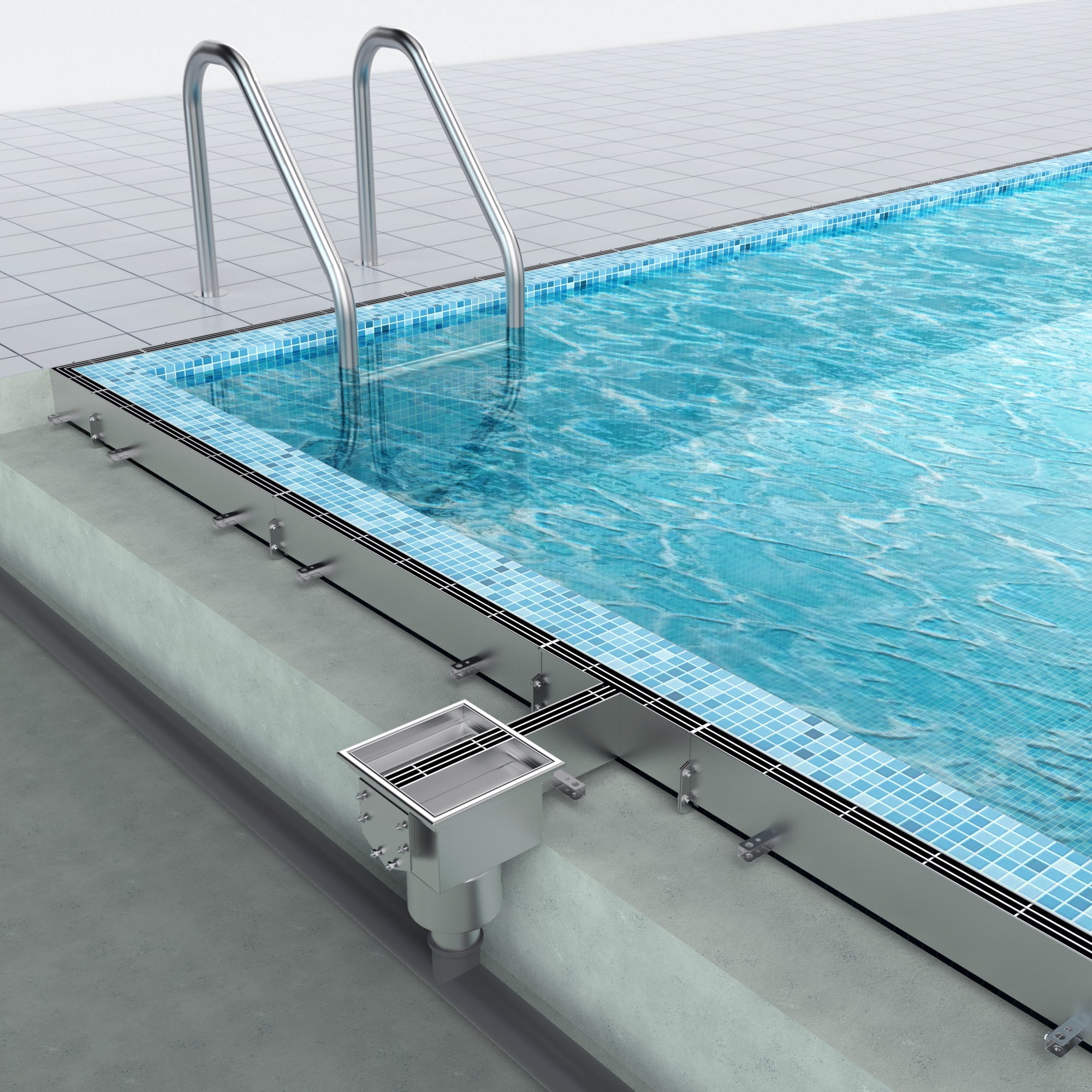

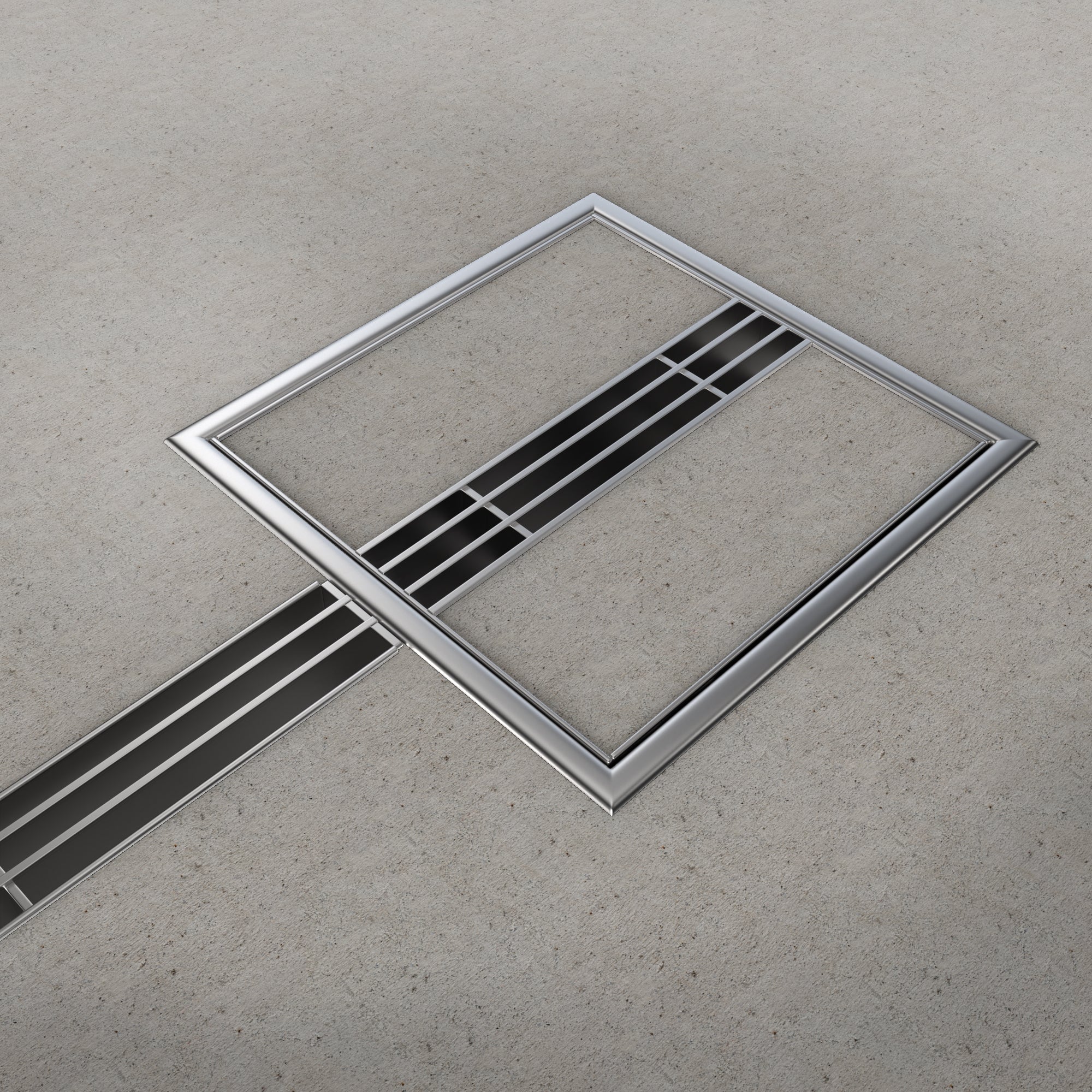

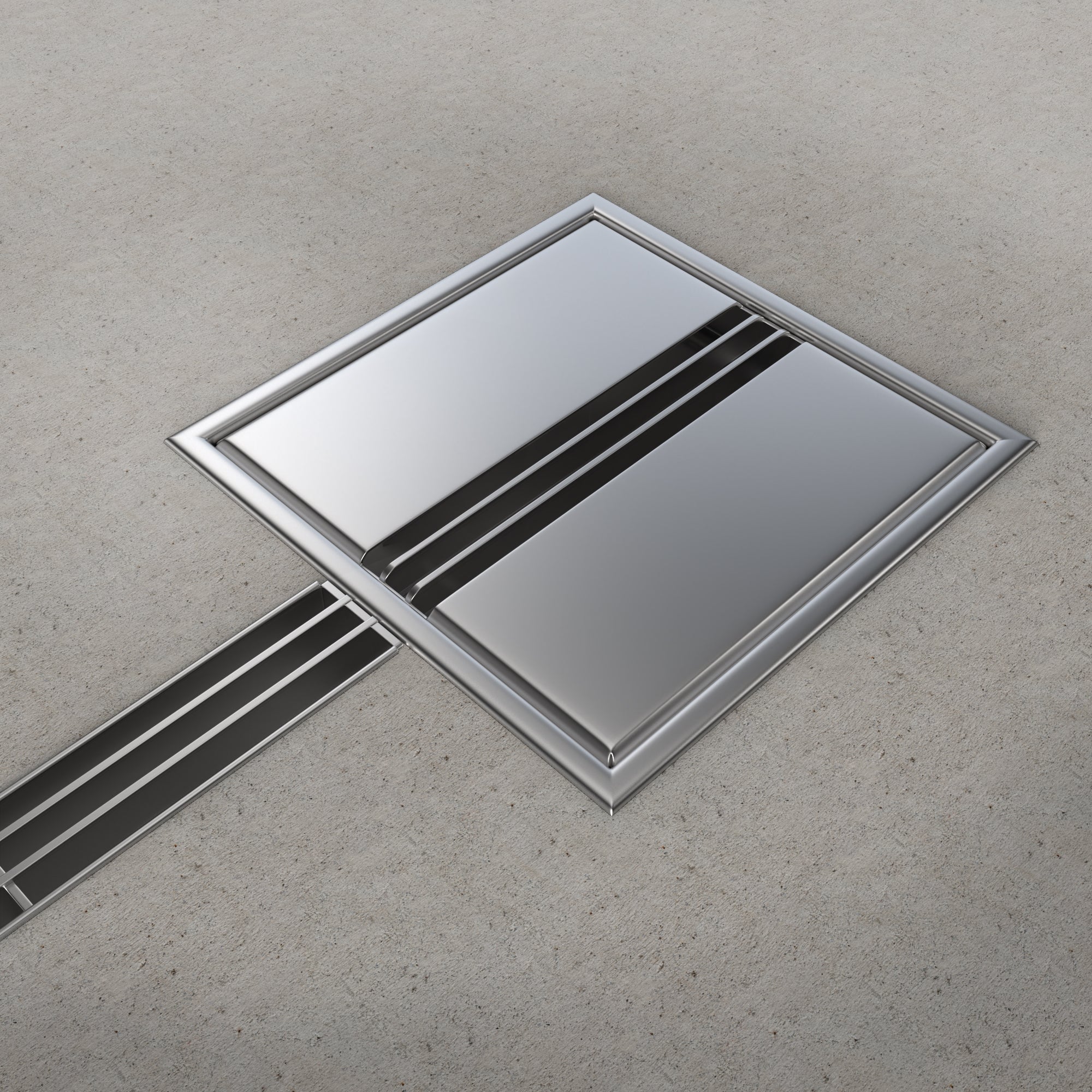

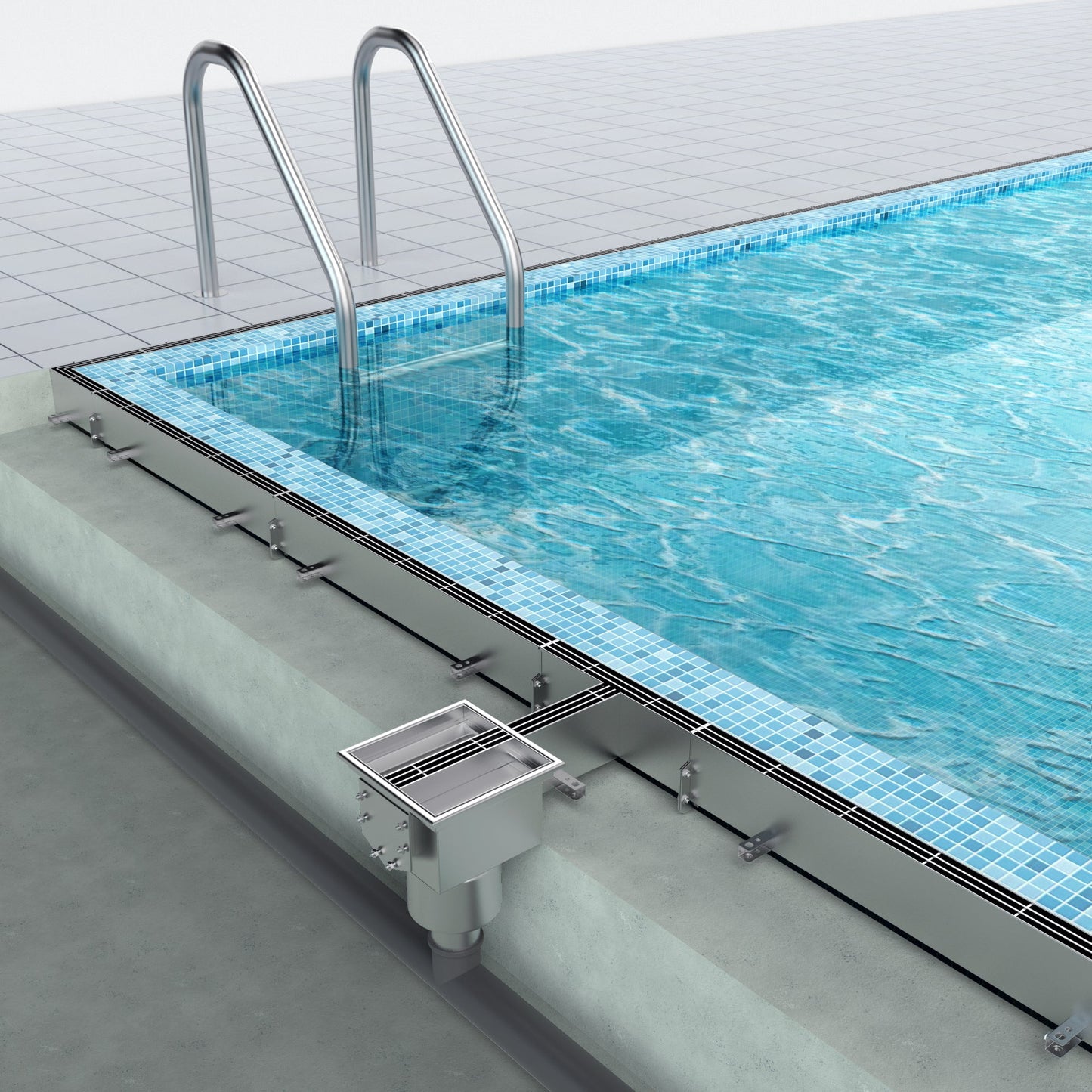

Built to withstand light vehicular traffic, Triple Slot System Basin Grates are manufactured from 304-grade stainless steel that come in two options, a Solid Grate and a Fillable Grate. This is a neutral channel system (non-pre sloped) that is physically lightweight, ensures efficient drainage with its convex bottom, and prevents costly water damage. It is designed for pool installations, patios, sidewalks, and driveways. This system is low profile, providing both functionality and
aesthetics. With three ½” inch slot openings, this system provides a compliant drainage system that ensures safety without sacrificing aesthetics or durability.
Common Applications: - Designed for use with only the Triple Slot System:
● Pool Installations
● Patios
● Sidewalks
● Driveway
Technical Specifications:
● Material - 304 Stainless Steel
● Size: 10 ½” x 10 ½”
● Load Class - B (Light Vehicular Traffic)
● Compliance - ADA Compliant
● Article Number -
○ Fillable: 994243
○ Solid: 994242
Like all Vodaland products, this Triple Slot System Basin Grate is designed to provide a long lasting, highly durable drainage solution. At Vodaland, our meticulous craftsmanship and commitment to quality is why our premier terrain solutions are known for their durability and performance.
