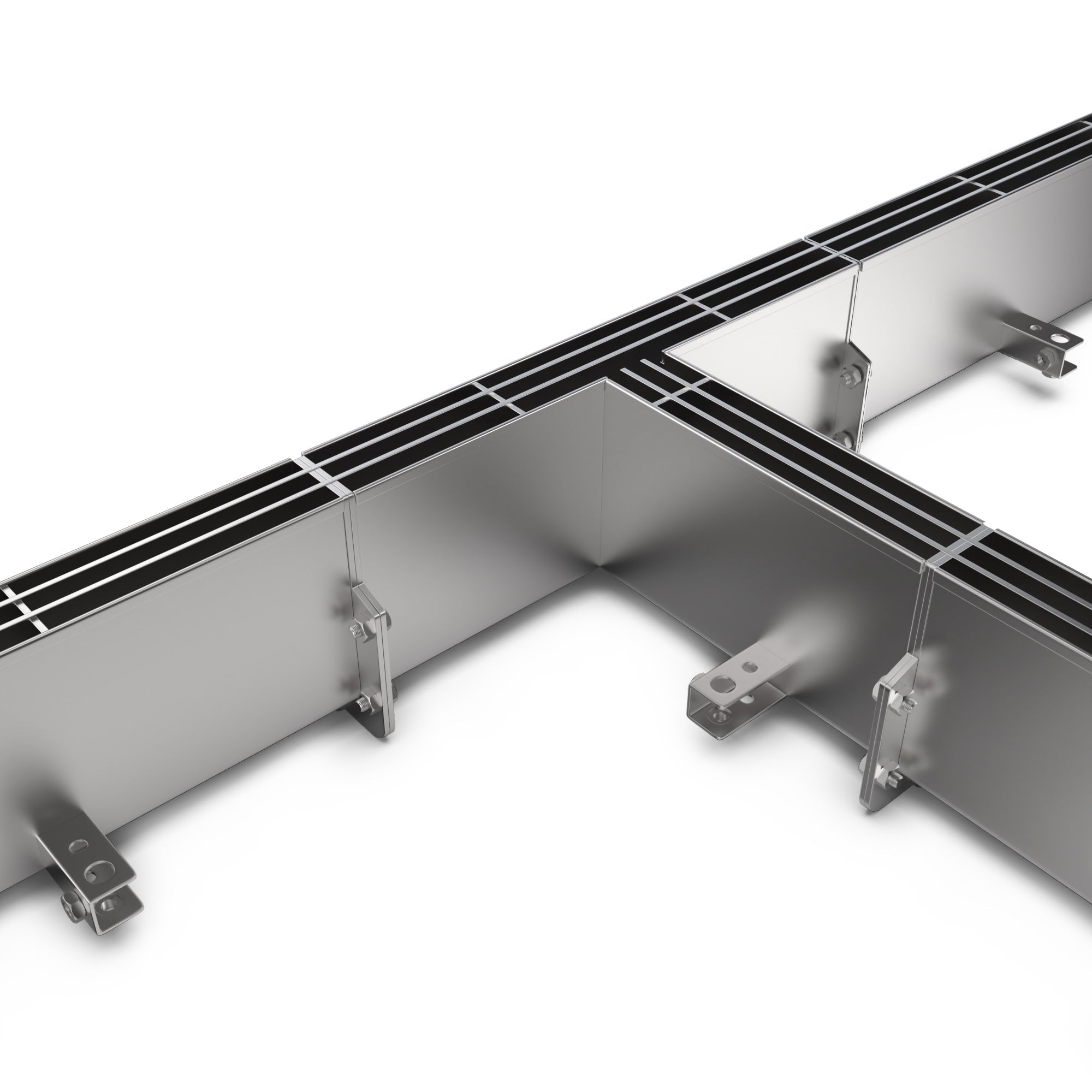

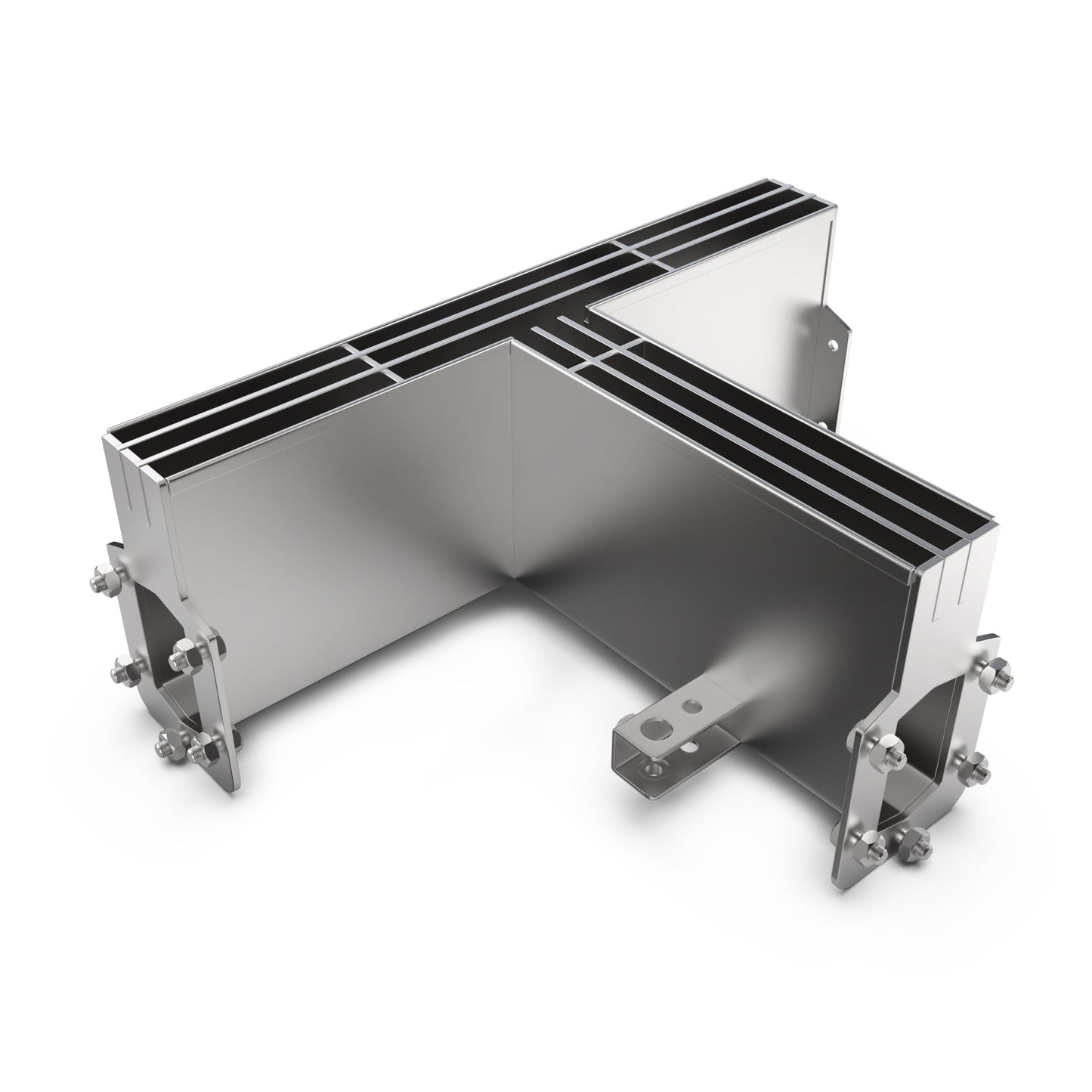

Triple Slot System T Adapter

This 304 Stainless Steel Triple Slot System T Adapter is designed to split a run into two different directions in our Triple Slot System.

Key Features:
● Made from 304 Stainless Steel - Rust and corrosion resistant for long lasting
performance.
● ADA Compliant - Ensures safe and trip-free walking surfaces.
● Supports up to 28,100 LBS per sq. ft. - Provides strength for light vehicular traffic.
● Convex Bottom - Ensures efficient water movement through the channel.
● Bolt on Connection - Allows for easy attachment to the Triple Slot System.

Expanded Product Overview:
Built to withstand light vehicular traffic, this stainless steel Triple Slot System T Adapter is manufactured from 304-grade stainless steel. This T Adapter will allow a run to be split in different directions without the need for an inline basin. This is a neutral channel system (non- pre sloped) that is physically lightweight, ensures efficient drainage with its convex bottom, and prevents costly water damage. It is designed for pool installations, patios, sidewalks, and driveways. This system is low profile, providing both functionality and aesthetics. With three ½” inch slot openings, this system provides a compliant drainage system that ensures safety without sacrificing aesthetics or durability.

Common Applications: - Designed for use with only the Triple Slot System:

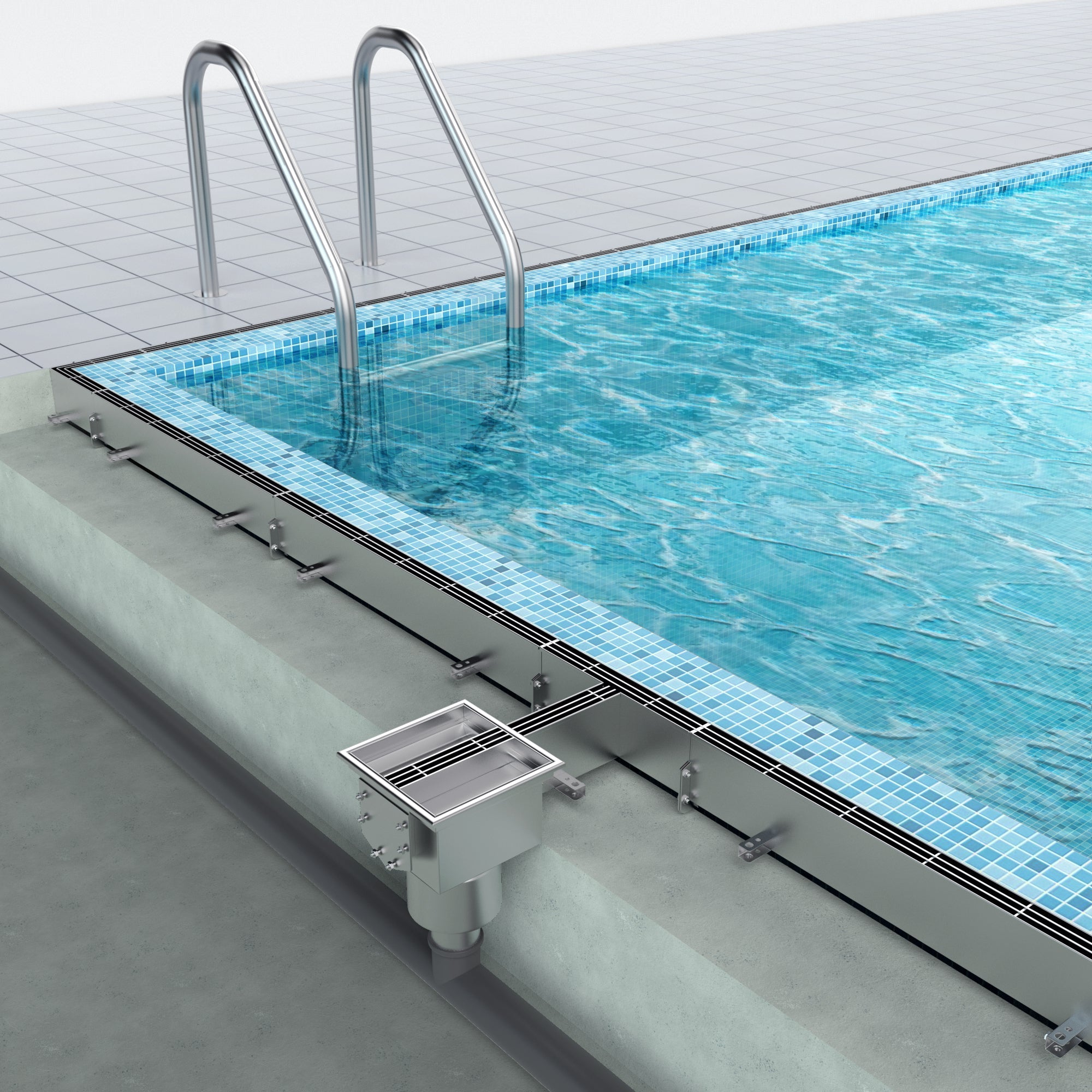

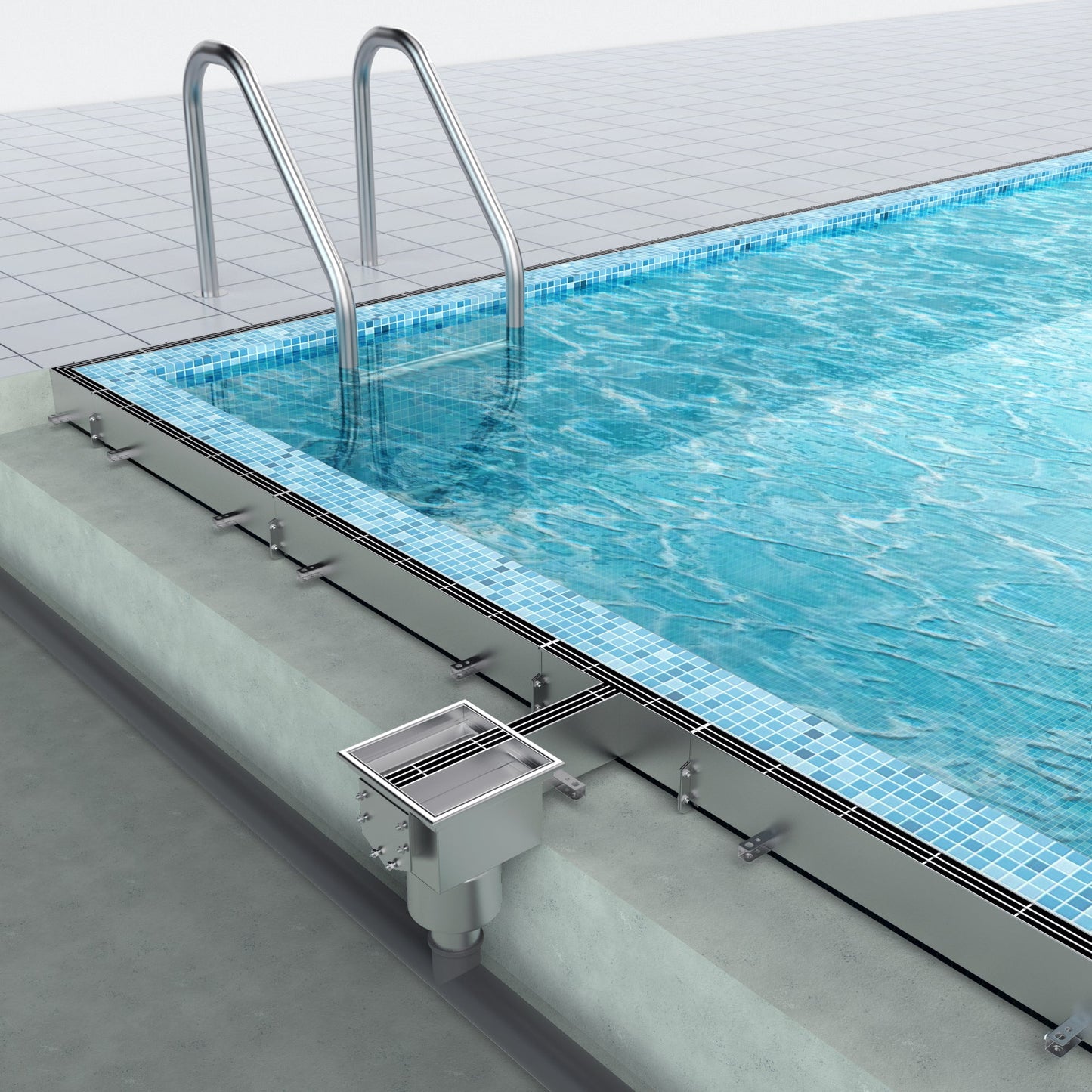

● Pool Installations
● Patios
● Sidewalks
● Driveway

Technical Specifications:
● Material - 304 Stainless Steel
● Size: 15 ¾”L x 11”L x 1 ⅞”W
● Load Class - B (Light Vehicular Traffic)
● Compliance - ADA Compliant
● Article Number - 994028
