12" Fiber Reinforced Pre Slope Channel 1% Slope
12" Fiber Reinforced Pre Slope Channel 1% Slope
12" Fiber Reinforced Pre Slope Channel 1% Slope
12" Fiber Reinforced Pre Slope Channel 1% Slope
- Fiber Reinforced Concrete / Ductile Cast Iron
- 3.3" (39 Inches) - Length per section
- E Load Class
- Roads, Parking lots, Parking Garages and more
- More Product Information Below
- Trusted by 10,000+ contractors!
Regular price
$742.00
Regular price
Sale price
$742.00
Unit price
per
free shipping over $999
3-5 days delivered
×
×
Product Details
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
- 12" Internal - 15" External 1% Pre Slope System
- Price per linear foot decreases with longer run length.
- Extra Heavy Duty Load E Class System
We offer in-house engineering services to provide custom technical drawings for precise drain layout designs, ensuring optimal performance and seamless integration.
INCLUDED IN PACKAGE
1 - Number of Channels needed for length
2 - Number of rebar installation brackets needed for length (1 per system ordered)
For more product information please see product description tab above
Downloads
PDF
DWG
BIM
Channel Specification Sheet
Channel Lineup Sheet
Installation Bracket Specification
Installation Guide
Supplemental Installation Guide
System Layout
Product Description
Product Description
12” Fiber Reinforced Pre Slope Channel 1% Slope
This Extra Heavy Duty trench drain system is designed to provide adequate drainage for larger commercial or industrial spaces.
Key Features:
● Supports up to 134,800 LBS per sq. ft. - Provides exceptional strength for airports,
parking lots, garages, and heavy duty traffic areas.
● Prevents Corrosion - This system is chemical resistant and will help to prevent rusting
● Temperature Resistant - The fiber reinforced concrete will help maintain the water
temperature to help prevent freezing and overheating
● Installation Brackets INCLUDED - Package will come with correct quantity of
installation brackets to ensure an easy installation
● Bulk Orders Discounted - The price per linear foot decreases as the run gets longer
Expanded Product Overview:

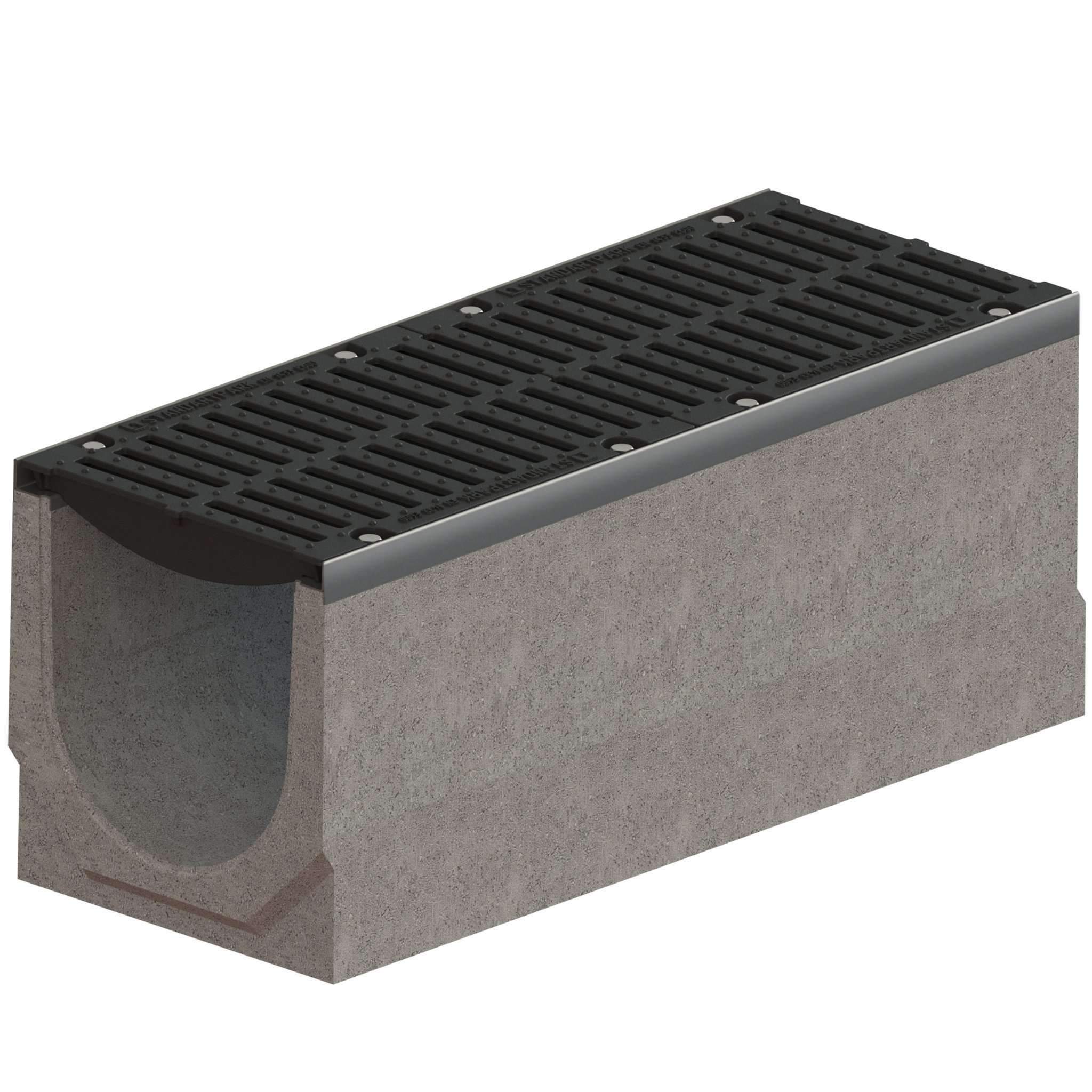

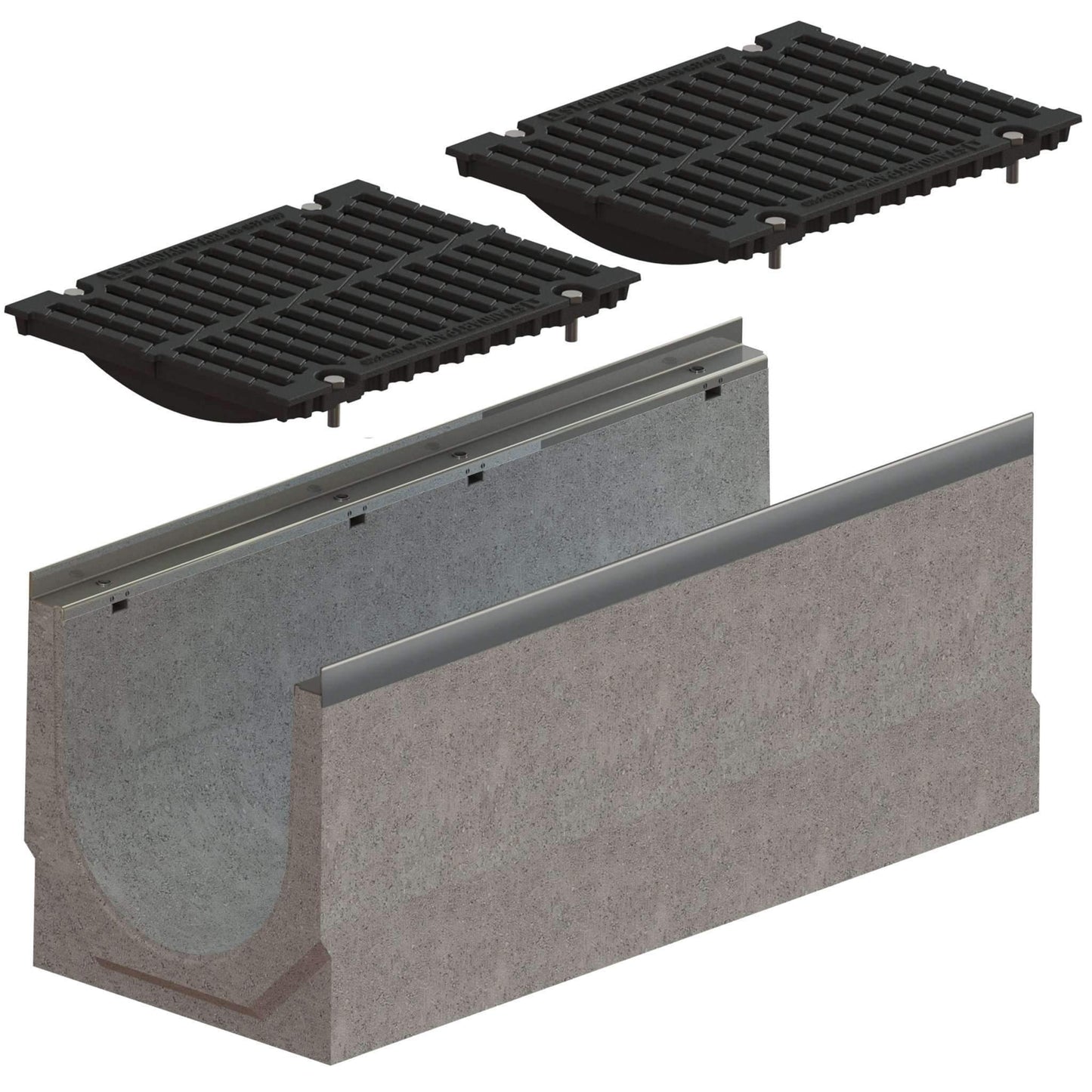

Our 12" Internal Fiber Reinforced Concrete channel comes with a Class E Ductile Cast Iron Grating. The Fiber Reinforced concrete will withstand varying temperatures to help maintain the water from overheating or freezing. The system has a reinforced steel edge to support extra heavy duty traffic whether it is needed for an airport, industrial warehouse, or large commercial area. This system is a product that provides a highly durable drainage solution made to support sizable amounts of water at a quicker rate considering its 1% built in pre slope. With the built in pre slope, the worry of adequate drainage can be put to ease.
Common Applications:
● Roads
● Parking Garages
● Warehouses
● Airports
● Parking Lots
Technical Specifications:
● Material - Fiber Reinforced Concrete / Ductile Cast Iron Grating / Galvanized Steel
Edging
● Length - 3.3 Feet (39.4”)
● Width - 12” internal (15” External Width)
● Load Class - E (Extra Heavy Duty)
● Article Number - 04700
● Material - Fiber Reinforced Concrete / Ductile Cast Iron Grating / Galvanized Steel
Edging
● Length - 3.3 Feet (39.4”)
● Width - 12” internal (15” External Width)
● Load Class - E (Extra Heavy Duty)
● Article Number - 04700
Like all Vodaland products this concrete system is designed to provide a long lasting, highly durable drainage solution.
