12x12 Catch Basin Brass ADA / Heel Package

12x12 Catch Basin Brass ADA / Heel Package

Skip to product information
1 of 4
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • Connects to 2,3,4, and 6 inch piping on all 4 sides
  • ADA compliant on all grating options
  • Heel Proof
  • Optional 4 inch riser is available as well

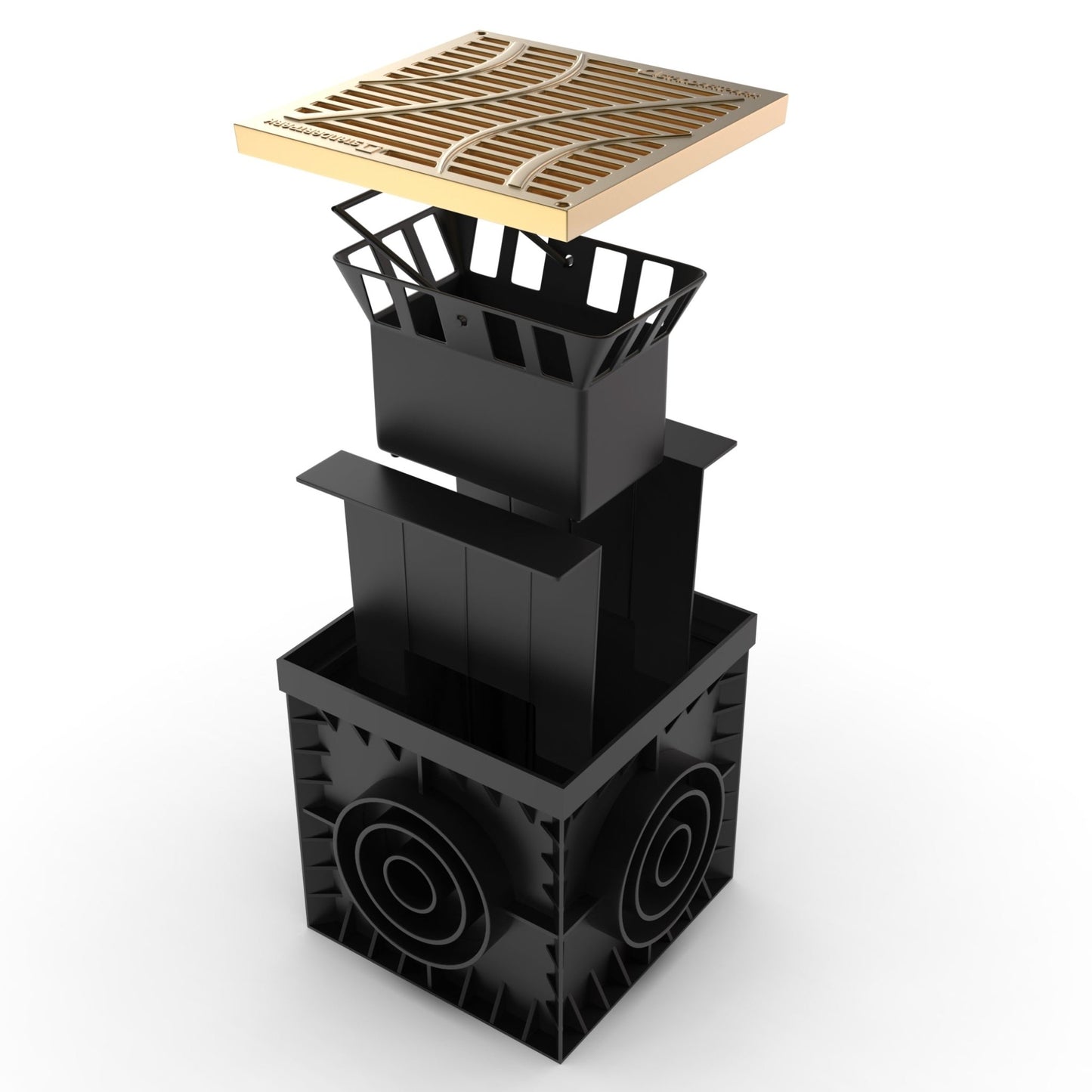

INCLUDED IN PACKAGE

1 - 12x12 Catch Basin

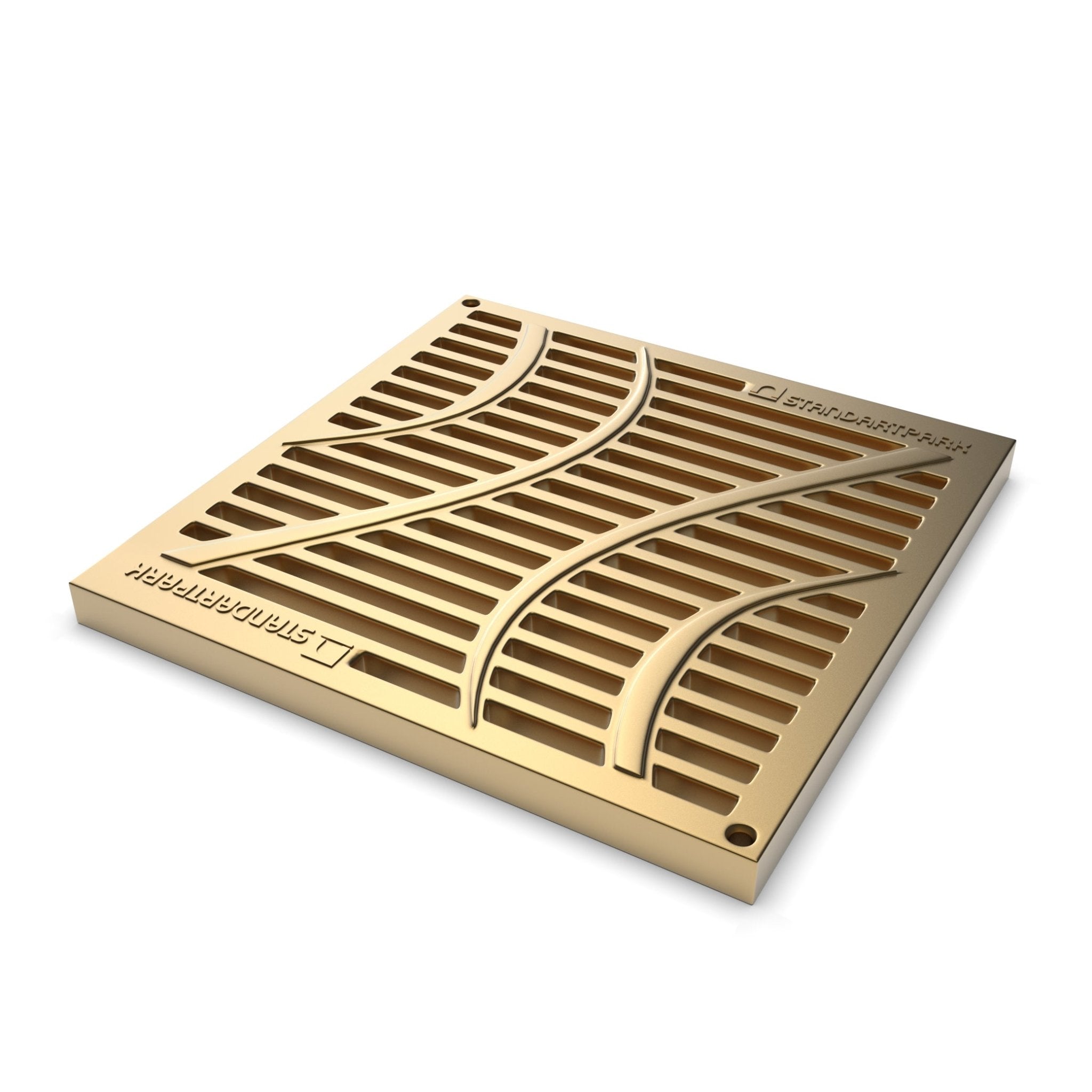

- ADA / HEEL Proof 100% Brass Grate

- Debris Basket

- Partitions

For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Basin Specification Sheet
PDF :
DWG :
Grate Specification Sheet
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

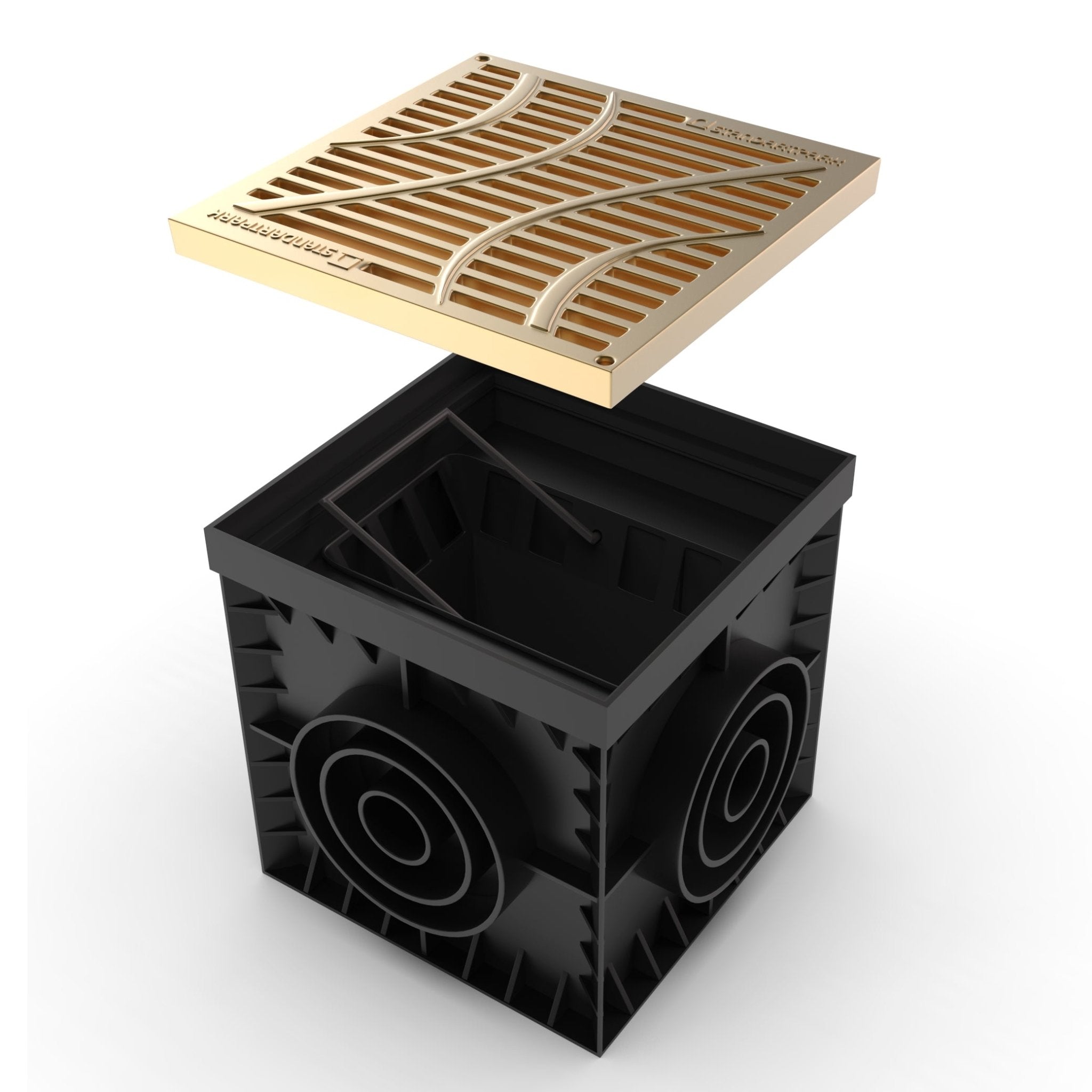

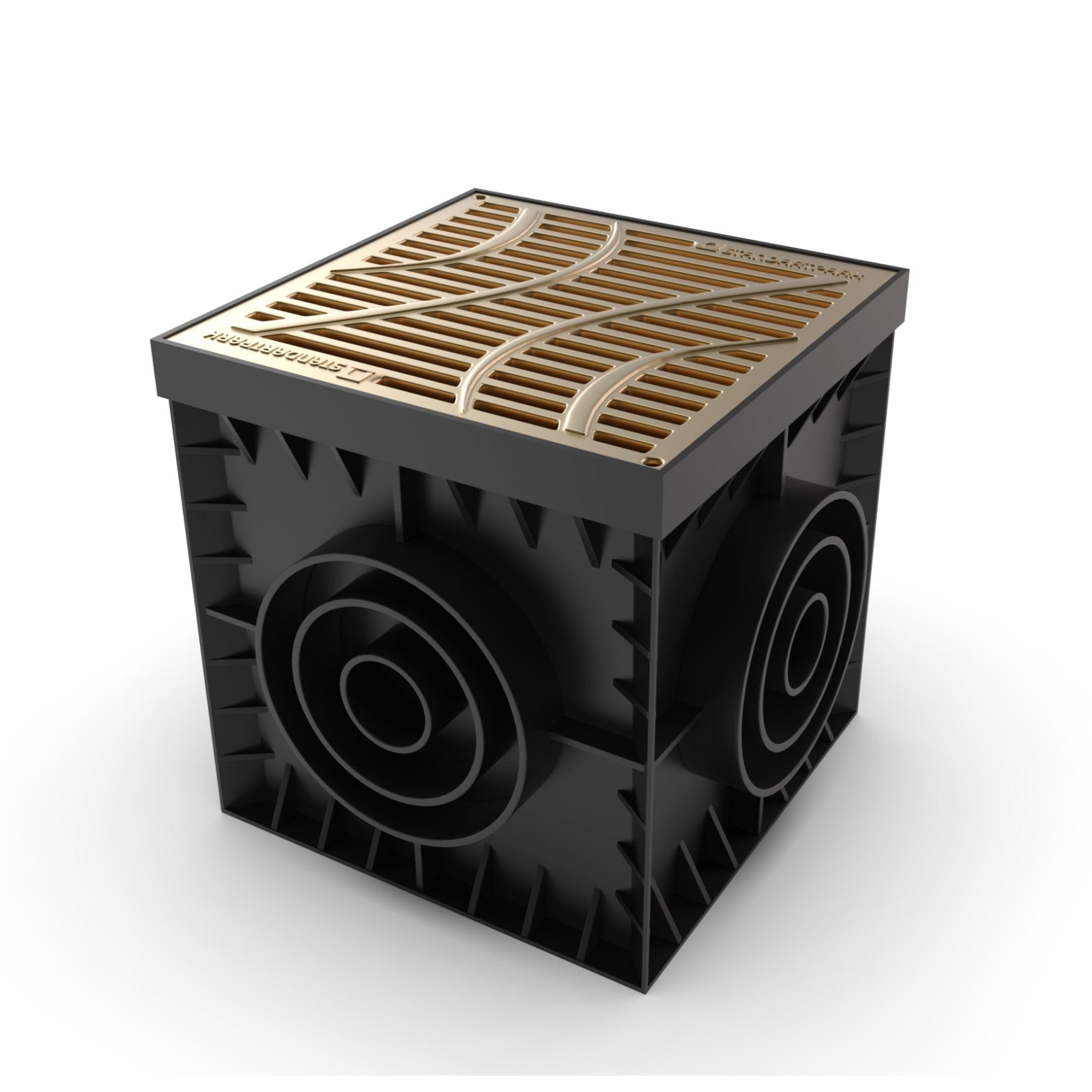

12x12 Catch Basin Brass ADA / Heel Package

A heavy duty Catch Basin Package designed to provide a one point drainage solution in driveways, garages, parking lots, walkways, and more.

Key Features:
C load Class - Supports up to 56,200 lbs per foot
ADA Compliant/Heel Proof- Ensures a safe, trip free surface
Multiple Connection Sizes- Connects to 2,3,4, and 6 inch piping on all 4 sides
Debris Basket- Plastic Debris basket to catch leaves and debris
Removable Grate- Easy access to debris basket

The 12x12 Catch Basin Brass ADA / Heel Package is designed to fit and work with all your drainage needs. In addition to 2", 3",4" and 6" pipe outlet connections, the 12x12 Catch Basin Brass ADA / Heel Package will come with two partitions and a debris basket to catch those leaves and debris from getting into your system. The 100% brass grating will stand the test of time with no rust or corrosion. We pride ourselves with our unique grating options and style.

Common Installations:
Driveways
Garages
Parking Lots
Walkways

Technical Specifications:
Size- Basin: 12" L x 12" W x 12" H, Grate: 11x11
Material- PPE Plastic Basin/100% Brass Grate
Load Class- C Load Class
Outlet Size- 2", 3",4" and 6"

Technical Resources: Load Class Compliance
