250 Gallon Oil / Water Separator OB1-3
250 Gallon Oil / Water Separator OB1-3
250 Gallon Oil / Water Separator OB1-3
250 Gallon Oil / Water Separator OB1-3
- 6 ft Height x 5.3 ft Width
- Fiberglass Heavy Duty / PPE Coalescent Filter
- 6 Inch Input / Output
- Coalescent Filter for Perfect Oil Separation
- More Product Information Below
- Trusted by 10,000+ contractors!
Regular price
$4,825.00
Regular price
Sale price
$4,825.00
Unit price
per
free shipping over $999
3-5 days delivered
×
×
Product Details
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
The Power of Vodaland Oil/Water Separators
Experience the efficiency, durability, and outstanding performance of our 215-gallon oil/water separator. This reliable system effectively removes oil, prevents environmental contamination, and ensures compliance with regulations. Trust our expertise to deliver superior solutions for oil-water separation in ground systems.
Oil Water Separator Specifications
- Built-in coalescent filter for perfect oil separation
- Made with fiberglass, super light for installation
- 215 gallon tank holding size
- 180 GPM Removal
- Includes an extension inspection riser
- SPECIFICATION SHEET PDF
- SPECIFICATION SHEET CAD
Downloads
PDF
DWG
BIM
Specification Sheet
Specification with Bypass
Technical Document
Product Description
Product Description

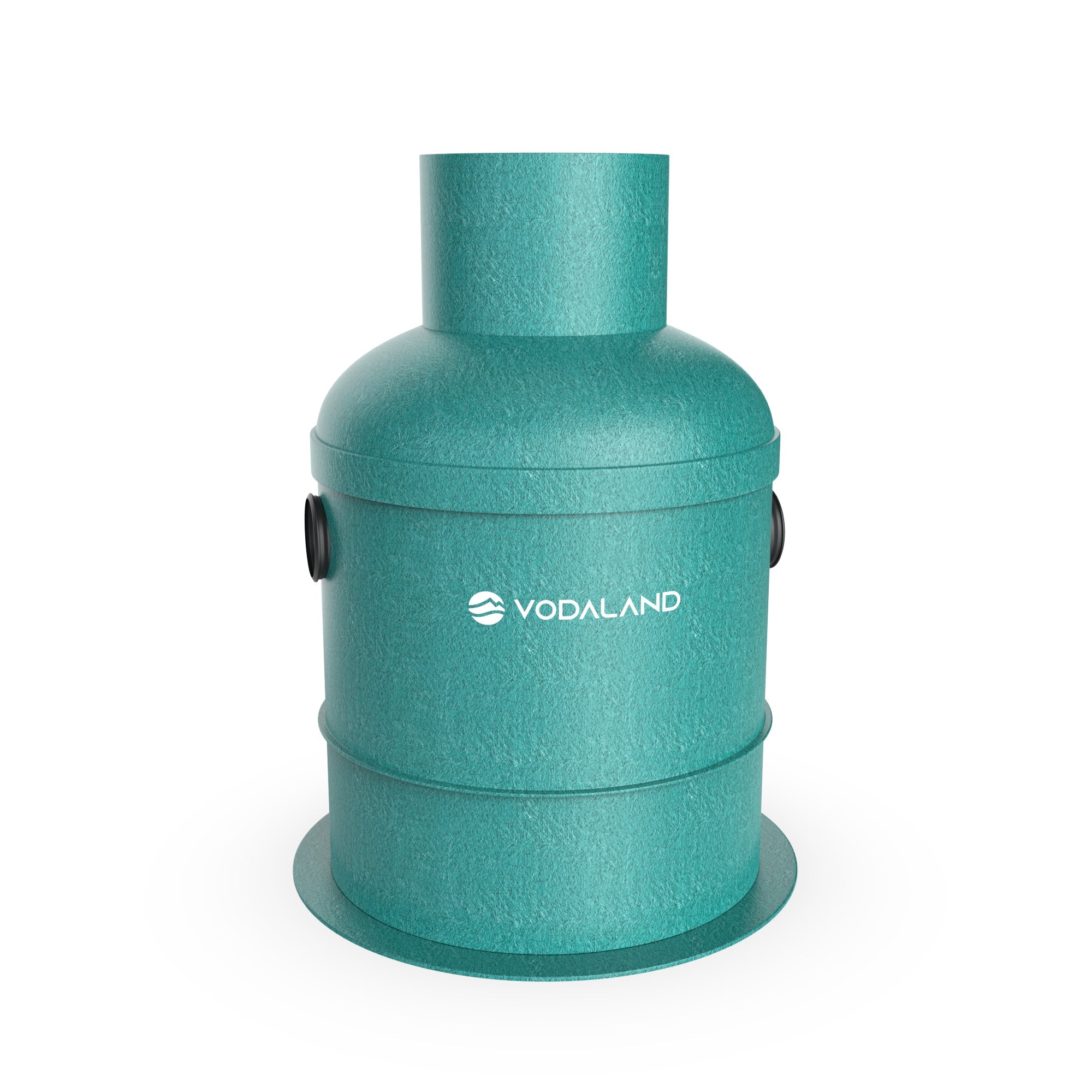

250 Gallon Oil / Water Separator OB1-3
This 250 Gallon Oil / Water Separator OB1-3 is designed to provide separation of oil from water in car washes, washing facilities and auto shops.
Key Features:
● Made from Fiberglass Heavy Duty - Durable and light weight for installation.
● PPE Coalescent Filter - Perfect Oil Separation.
● Discrete Input / Outlet - 6 inch Input / Output
● Corrosive and UV Resistant - Great for long-term use.
Expanded Product Overview:

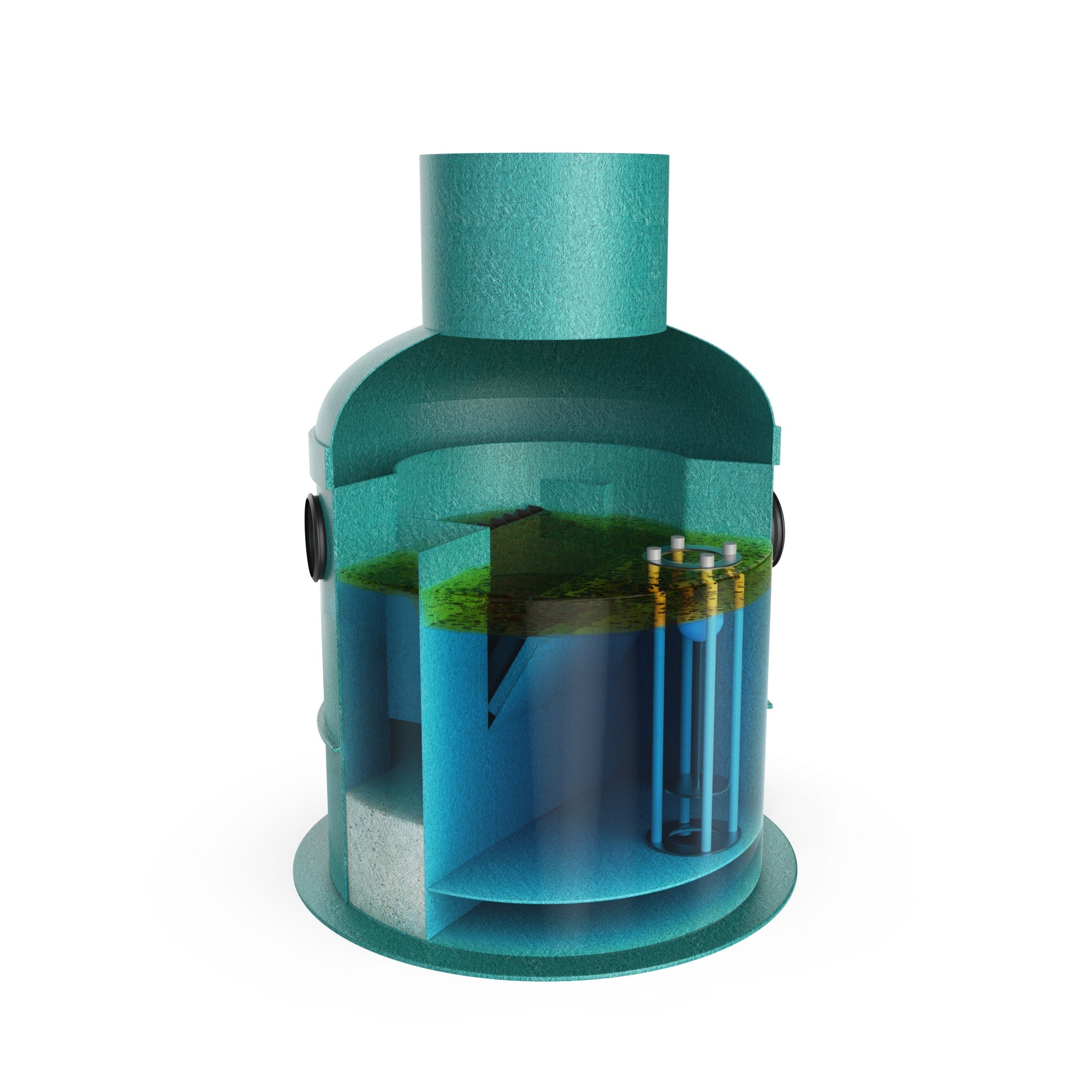

This 250 Gallon Oil / Water Separator OB1-3 is manufactured from 100% Fiberglass which makes this system lightweight and simple to install. Its coalescent filter is perfect for oil separation, as it separates by creating oil pockets. This system is designed for any car wash, washing facility or auto shop. This 250 Gallon Oil / Water Separator is designed to efficiently remove free oil droplets and suspended solids from wastewater, ensuring a clean and eco-friendly operation. Our innovative solution will allow your facility to process water efficiently. This system comes with a top flange adapter and is also compatible for use with our Manhole Covers.
This system offers a “Bypass” option, which is built-in to the Oil / Water Separator and has the shape of a tray. It is designed for quick drainage when an excess of water comes into the system, it bypasses the filtration and exits out the outlet. This is beneficial during storm and surface wastewater. Upon individual request, it is possible to manufacture a bypass for 10 times the capacity of the separator.
Common Applications:
● Car Washes
● Washing Facilities
● Auto Shops
Technical Specifications:
● Material - HDPE - High Density Polyethylene

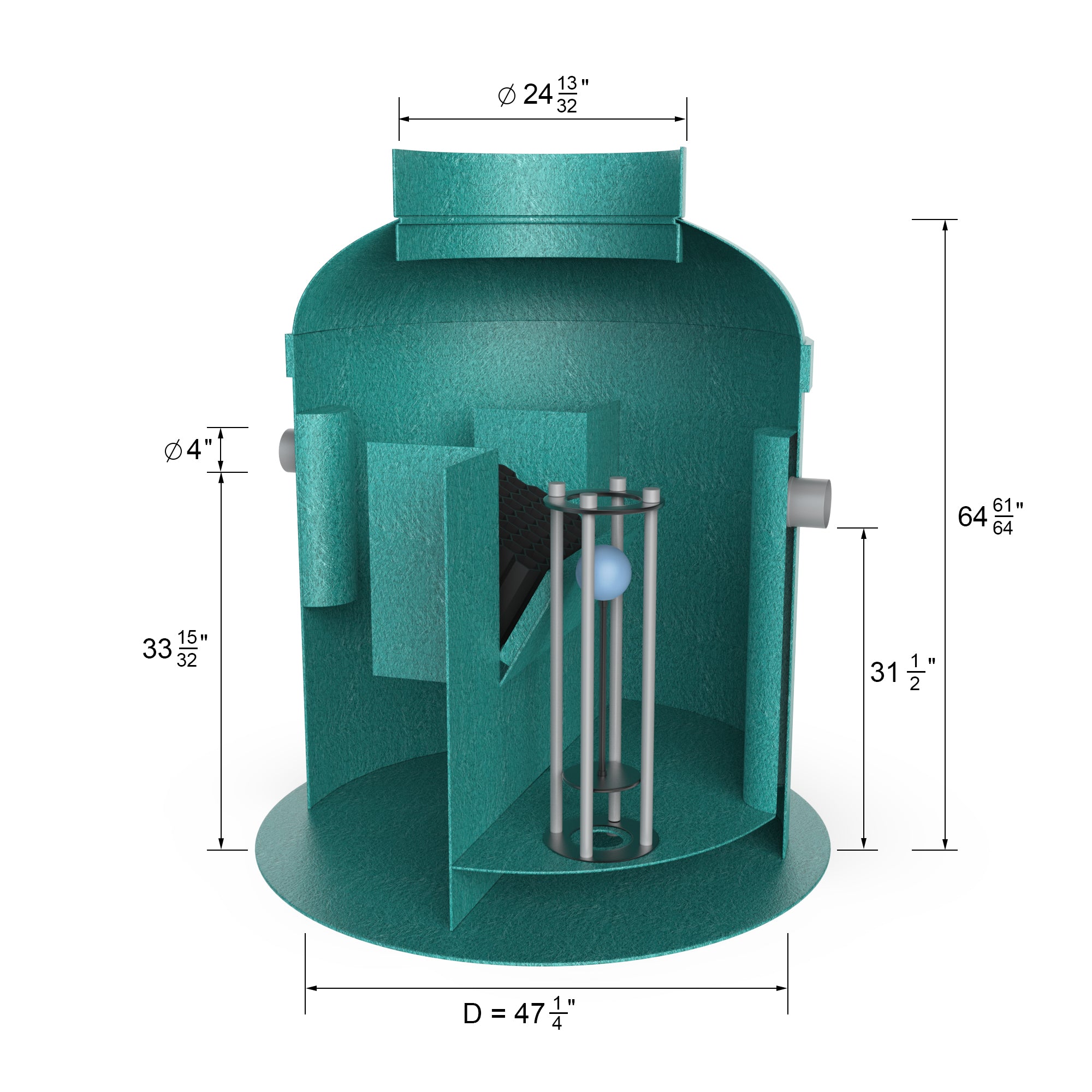

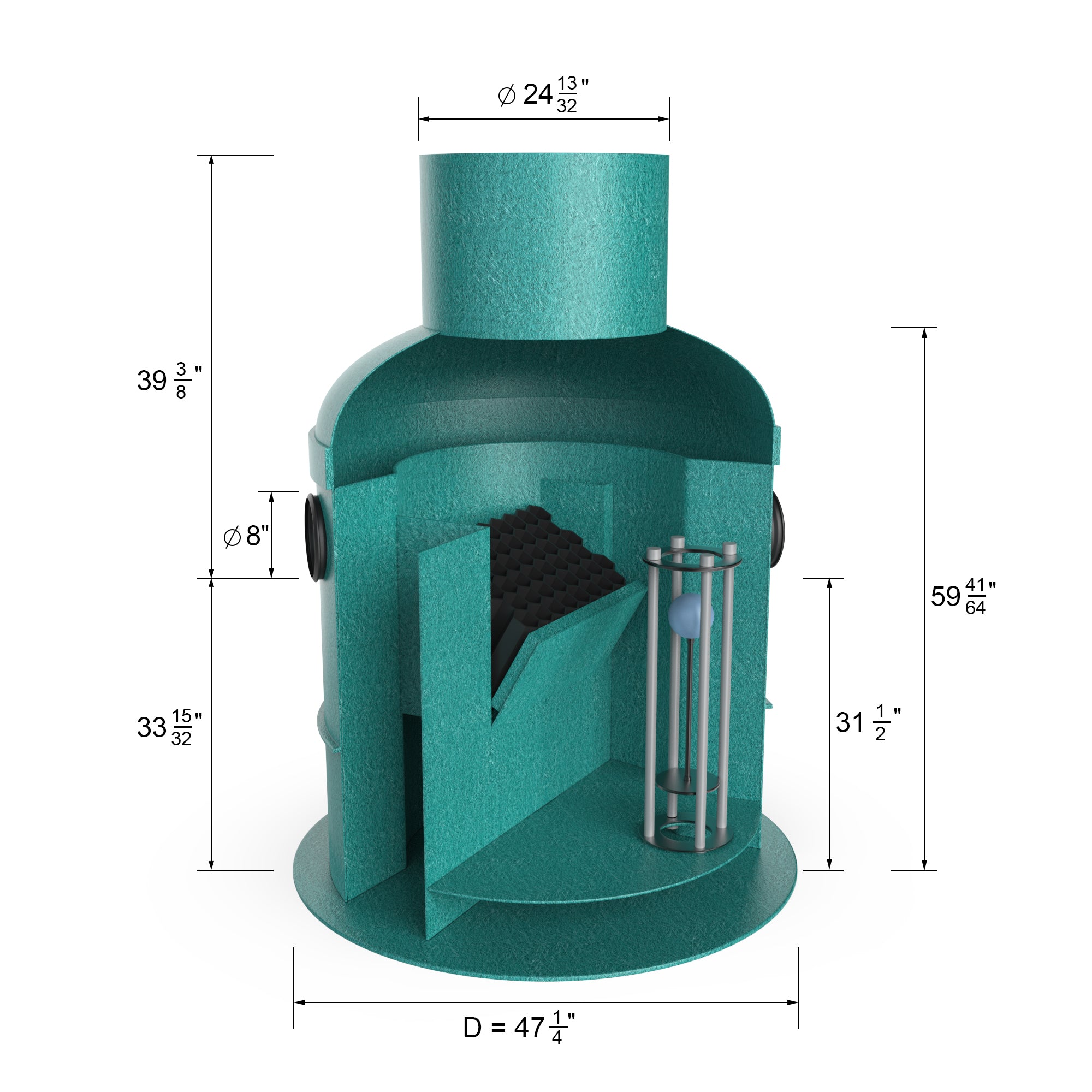

● Dimensions: 6 ft Height x 5.3 ft Width
● Flow Rate Capacity - 50 gallon per min water / oil movement
● Tank Holding Size - 215 gallons
● Article Number - OB1-3
Like all Vodaland products, this heavy duty system is designed to provide a long lasting, highly durable drainage solution. At Vodaland, our meticulous craftsmanship and commitment to quality is why our premier terrain solutions are known for their durability and performance.
