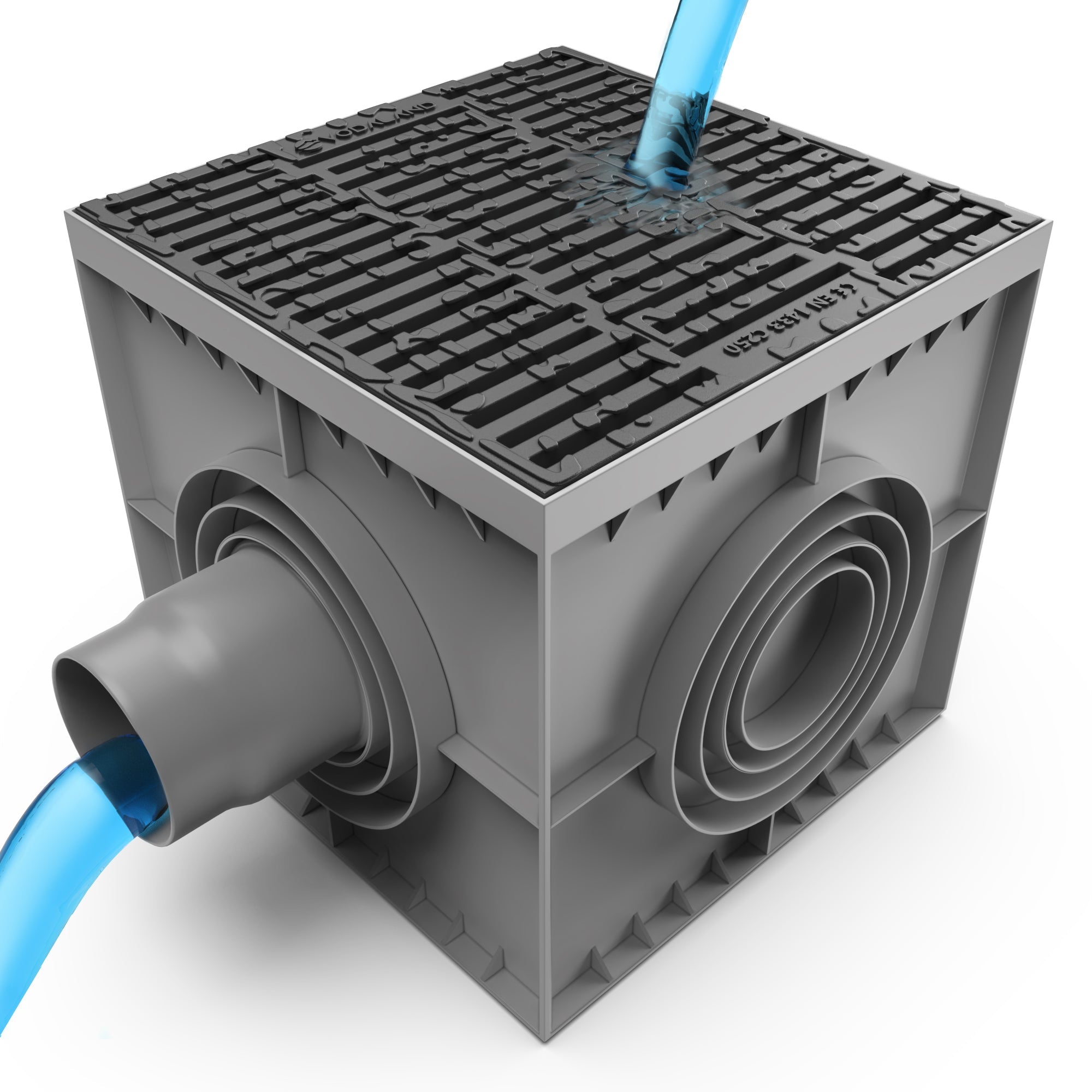

22x22 Cast Iron River Grate Package

This traffic rated Catch Basin Stainless Steel ADA / Heel Proof Type C-Class Package Catch Basin Package designed to provide a single point drainage solution in driveways, garages, roads and more.

Key Features:
● C load Class - Supports up to 56,200 lbs per foot
● ADA Compliant / Heel Proof - Ensures a safe, trip free surface
● Multiple Connection Sizes- Connects to 6,8,10, and 12 inch piping on all 4 sides

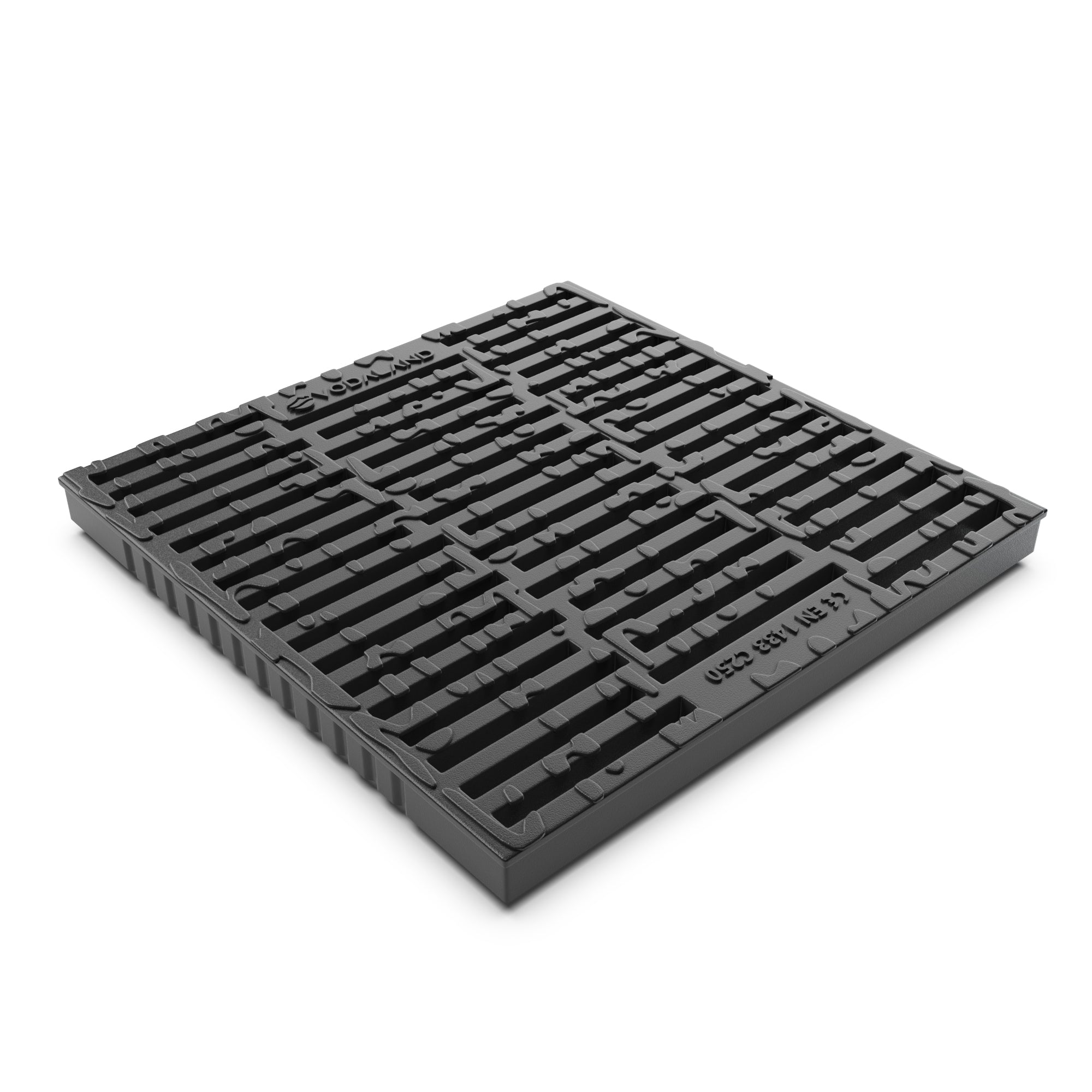

● Removable Grate

Expanded Product Overview:
The 22x22 Cast Iron River Grate Package is designed to fit and work with all your drainage needs. In addition to 6,8,10, and 12 inch pipe outlet connections, his traffic rated catch basin is C Class road rated, making it ideal for vehicles and heavy-duty traffic. We pride ourselves with our unique grating options and style.

Common Installations:
● Driveways
● Garages
● Roads

Technical Specifications:

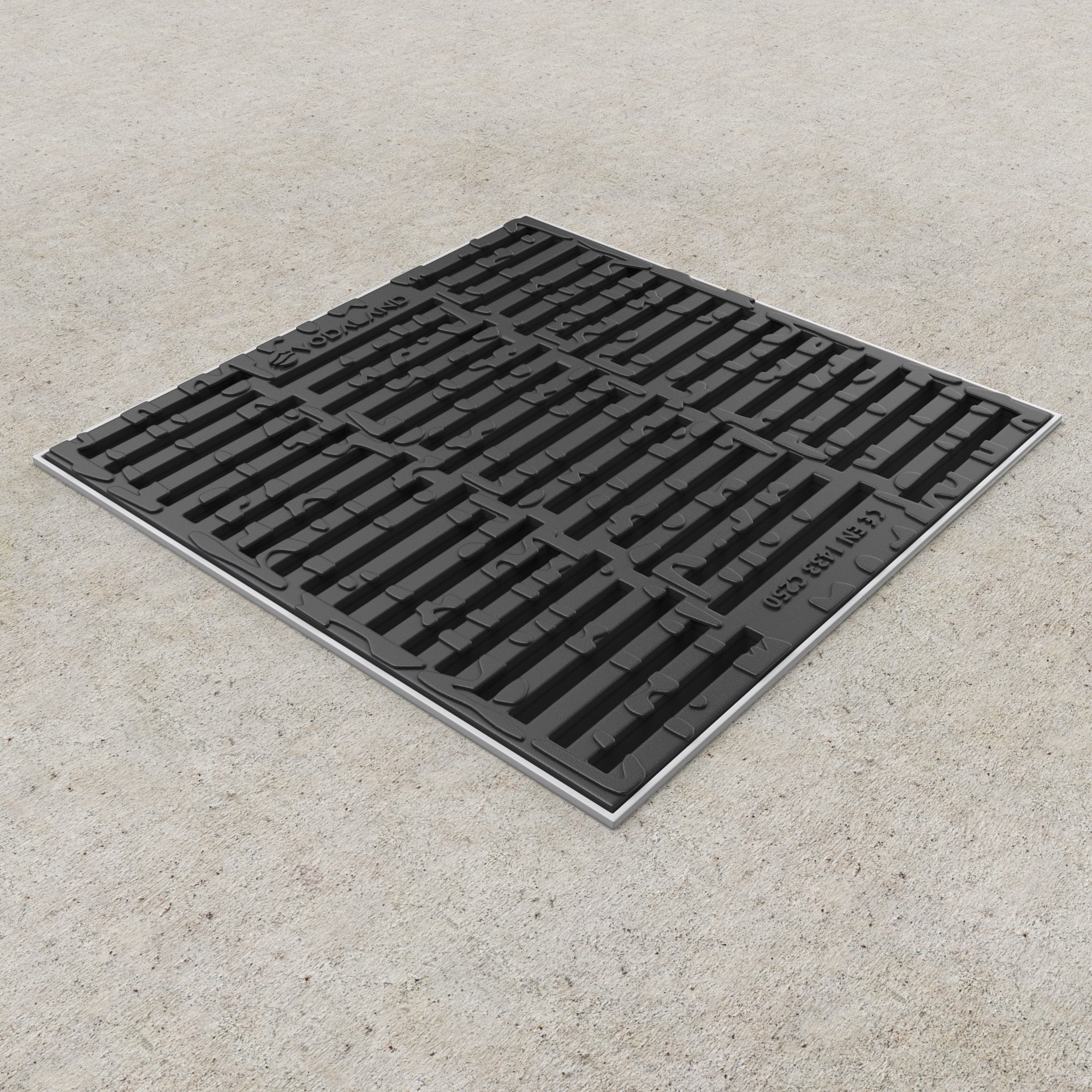

● Size- Basin: 22" L x 22" W x 22" H Grate: 21”x21"
● Material- PPE Plastic Basin / Cast Iron
● Load Class- C-Load Class
● Outlet Size- 6,8,10, and 12 inch
● Flow Rate- 187 GPM

Technical Resources: Load Class Compliance

Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
