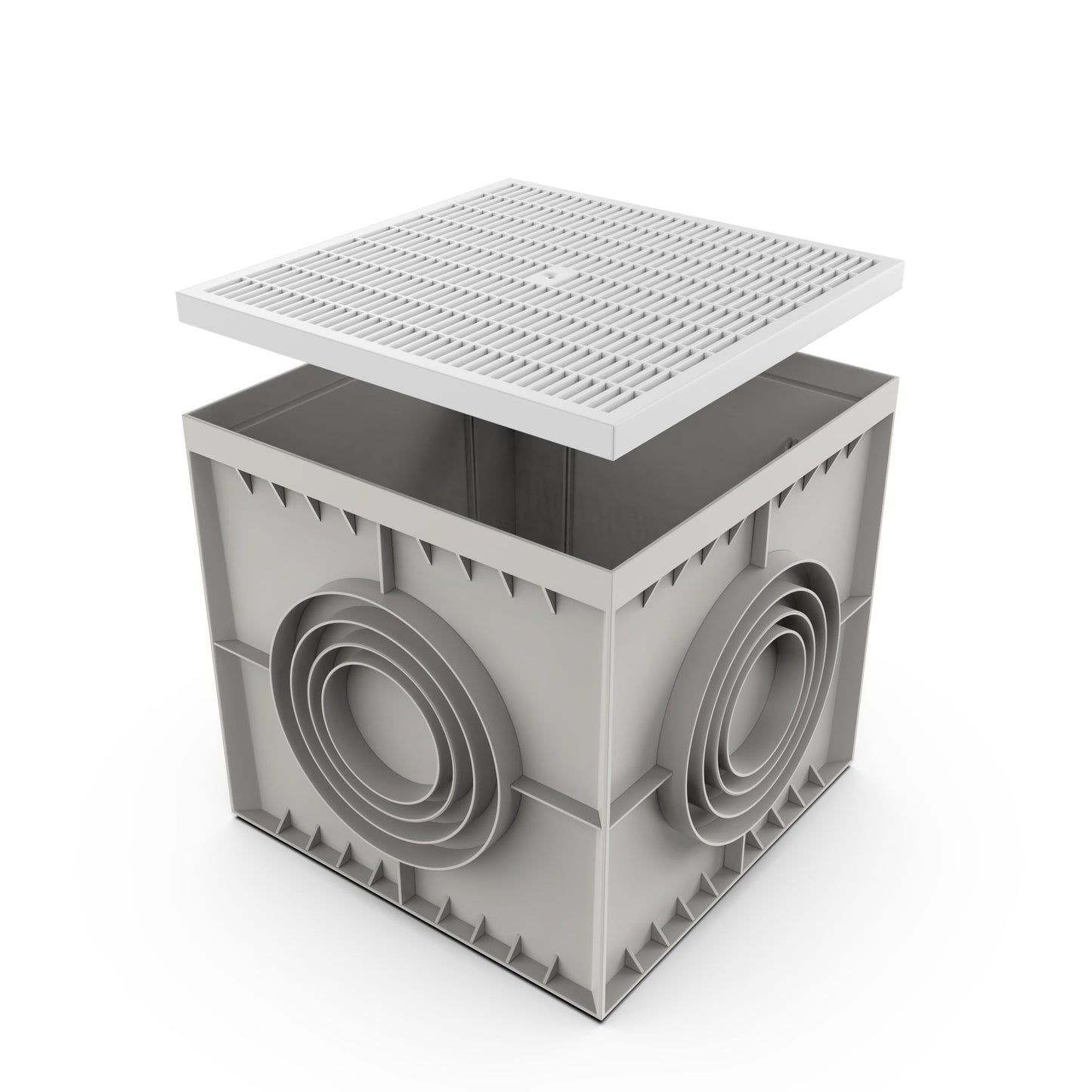

22x22 Catch Basin Plastic Grate Package / A Load Class

A Catch Basin Package designed to provide a one point drainage catch basin solution in patios, porches, walkways and more.

Key Features:
A load Class - Supports up to 3,372 lbs per foot
ADA Compliant / Heel Proof - Ensures a safe, trip free surface
Multiple Connection Sizes- Connects to 6,8,10, and 12 inch piping on all 4 sides
Removable Grate

Expanded Product Overview:
The 22x22 Catch Basin Plastic Grate Package is designed to fit and work with all your drainage needs. In addition to 6,8,10, and 12 inch pipe outlet connections, the 22x22 Catch Basin Plastic Grate Package is ADA Compliant, and Heel Proof. Please note that a Schedule 40 adapter is recommended for the outlet connections. We pride ourselves with our unique grating options and style.

Common Installations:
Patios
Porches
Walkways

Technical Specifications:
Size- Basin: 22" L x 22" W x 22" H Grate: 21”x21"
Material- PPE Plastic Basin / PPE Plastic Grating
Load Class- A-Load Class
Outlet Size- 6,8,10, and 12 inch

Technical Resources: Load Class Compliance

Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
