22x22 Catch Basin Stainless Steel A Class Package

22x22 Catch Basin Stainless Steel A Class Package

Skip to product information
1 of 2
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • Connects to 6, 8, 10, and 12 inch piping on all four sides of the basin
  • ADA compliant grate
  • Sediment basket available as optional purchase

INCLUDED IN PACKAGE

1 - 22x22 Catch Basin

- Stainless Steel Grating

For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Specification Sheet
PDF :
DWG :
Grate Specification
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

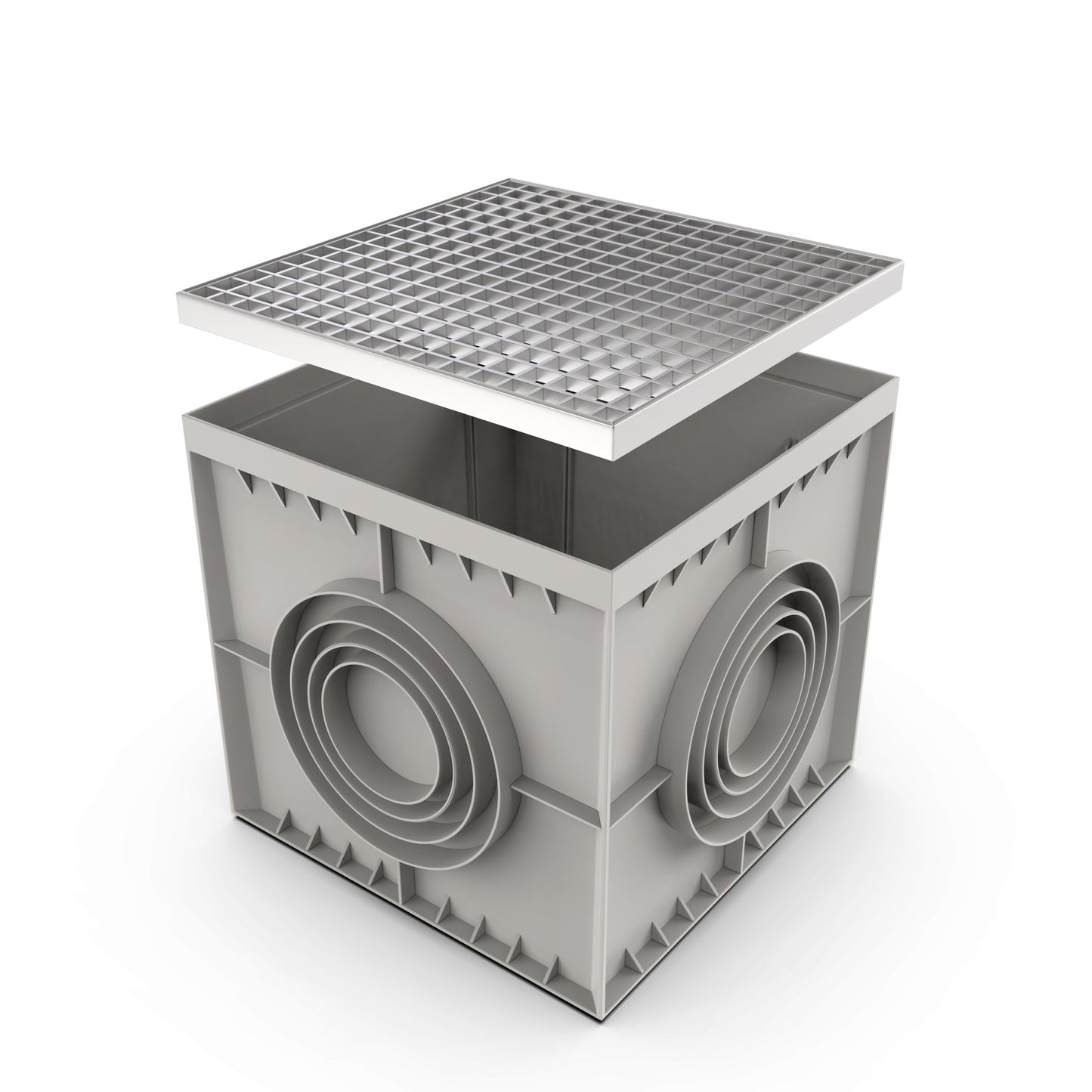

22x22 Catch Basin Stainless Steel A Class Package

A Catch Basin Package designed to provide a one point drainage solution in patios, porches, walkways and more.

Key Features:
A load Class - Supports up to 3,372 lbs per foot
ADA Compliant- Ensures a safe, trip free surface

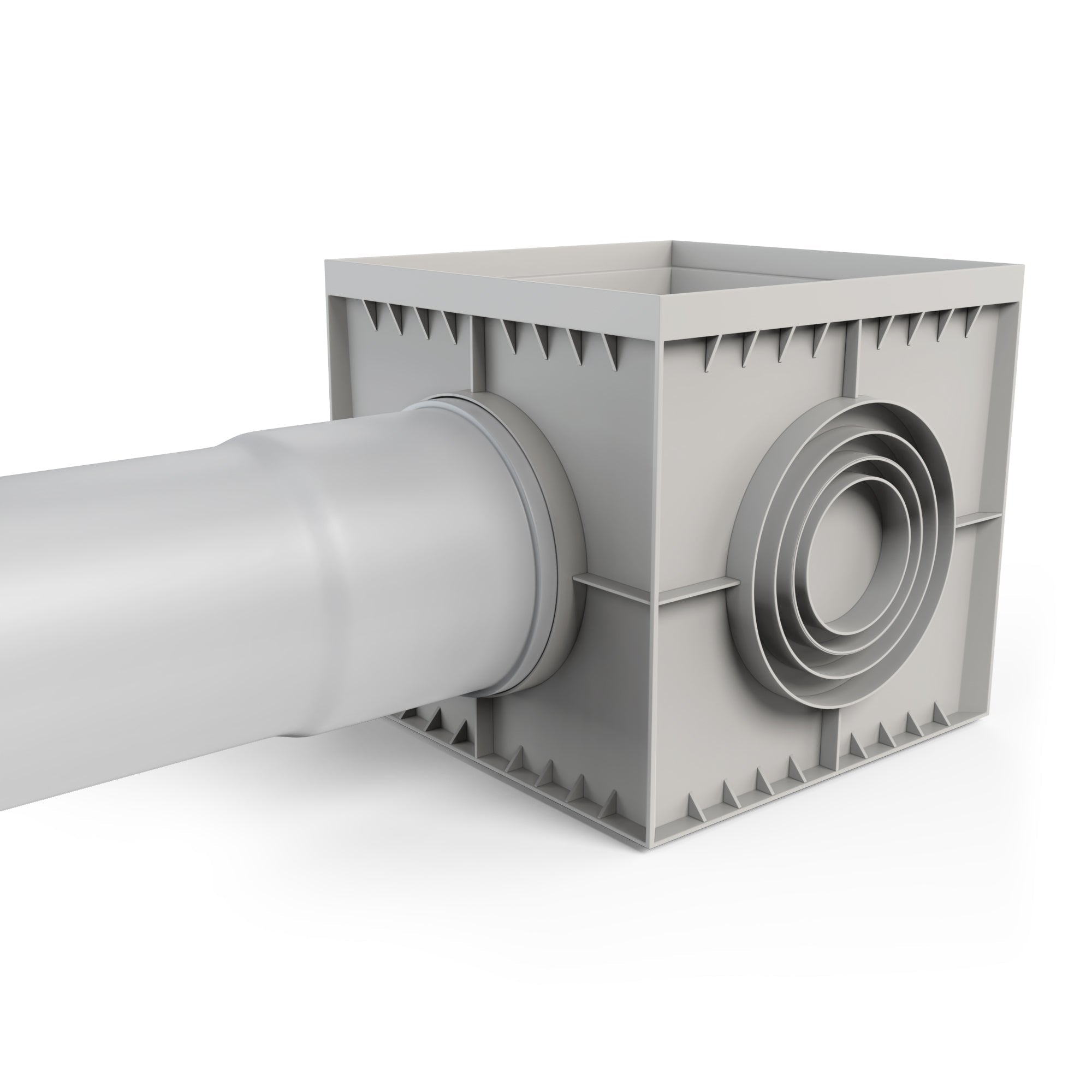

Multiple Connection Sizes- Connects to 6,8,10, and 12 inch piping on all 4 sides
Removable Grate

The 22x22 Catch Basin Stainless Steel A Class Package is designed to fit and work with all your drainage needs. In addition to 6,8,10, and 12 inch pipe outlet connections, 22x22 Catch Basin Stainless Steel A Class Package is ADA Compliant. We pride ourselves with our unique grating options and style.

Common Installations:
Patios
Porches
Walkways

Technical Specifications:
Size- Basin: 22" L x 22" W x 22" H Grate: 21”x21"
Material- PPE Plastic Basin / 304 Stainless Steel Grate
Load Class- A-Load Class
Outlet Size- 6,8,10, and 12 inch

Technical Resources: Load Class Compliance
