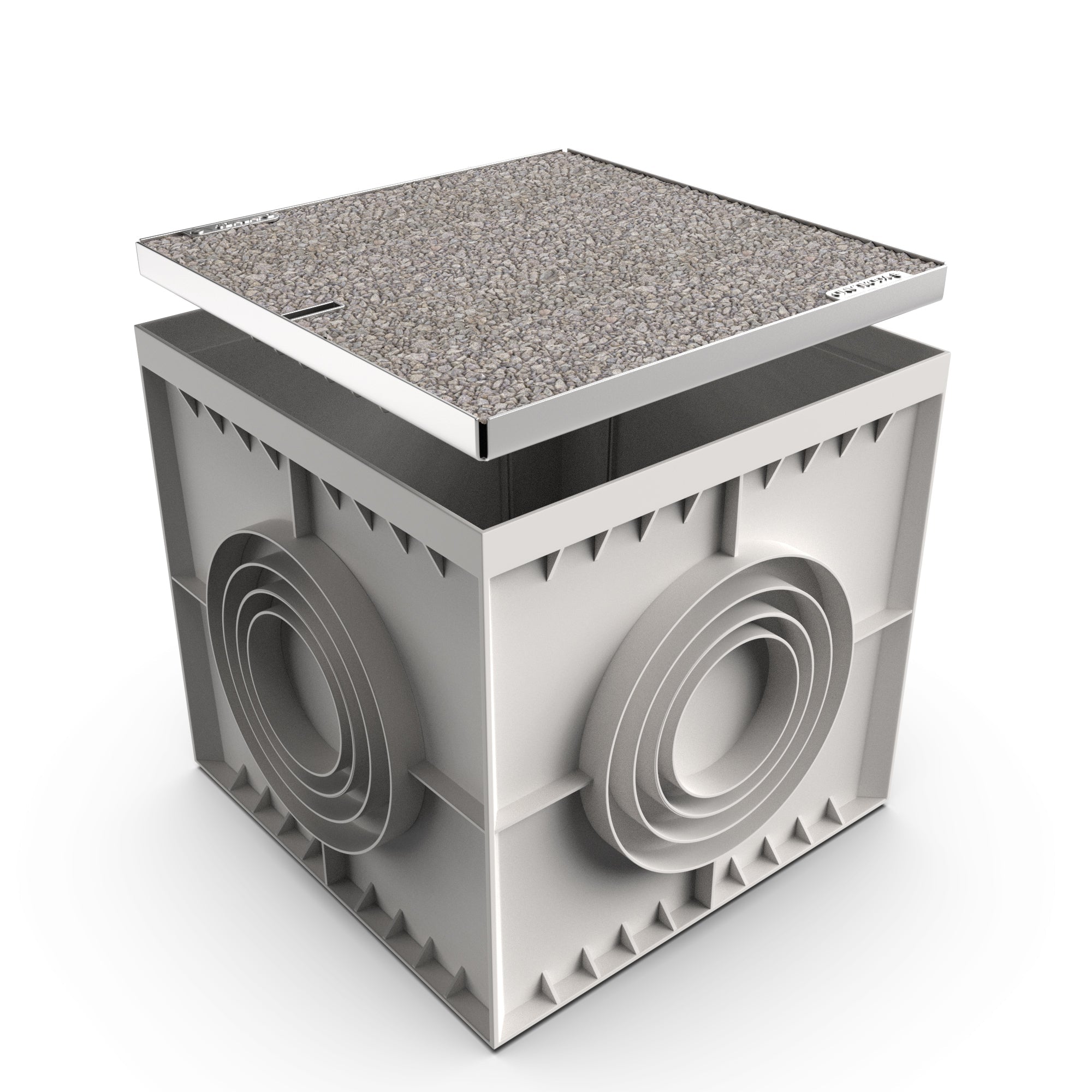

22x22 Catch Basin Gravel Grate Package

22x22 Catch Basin Gravel Grate Package

Skip to product information
1 of 5
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • Epoxied Gravel & Stainless Steel Grate
  • Permeable

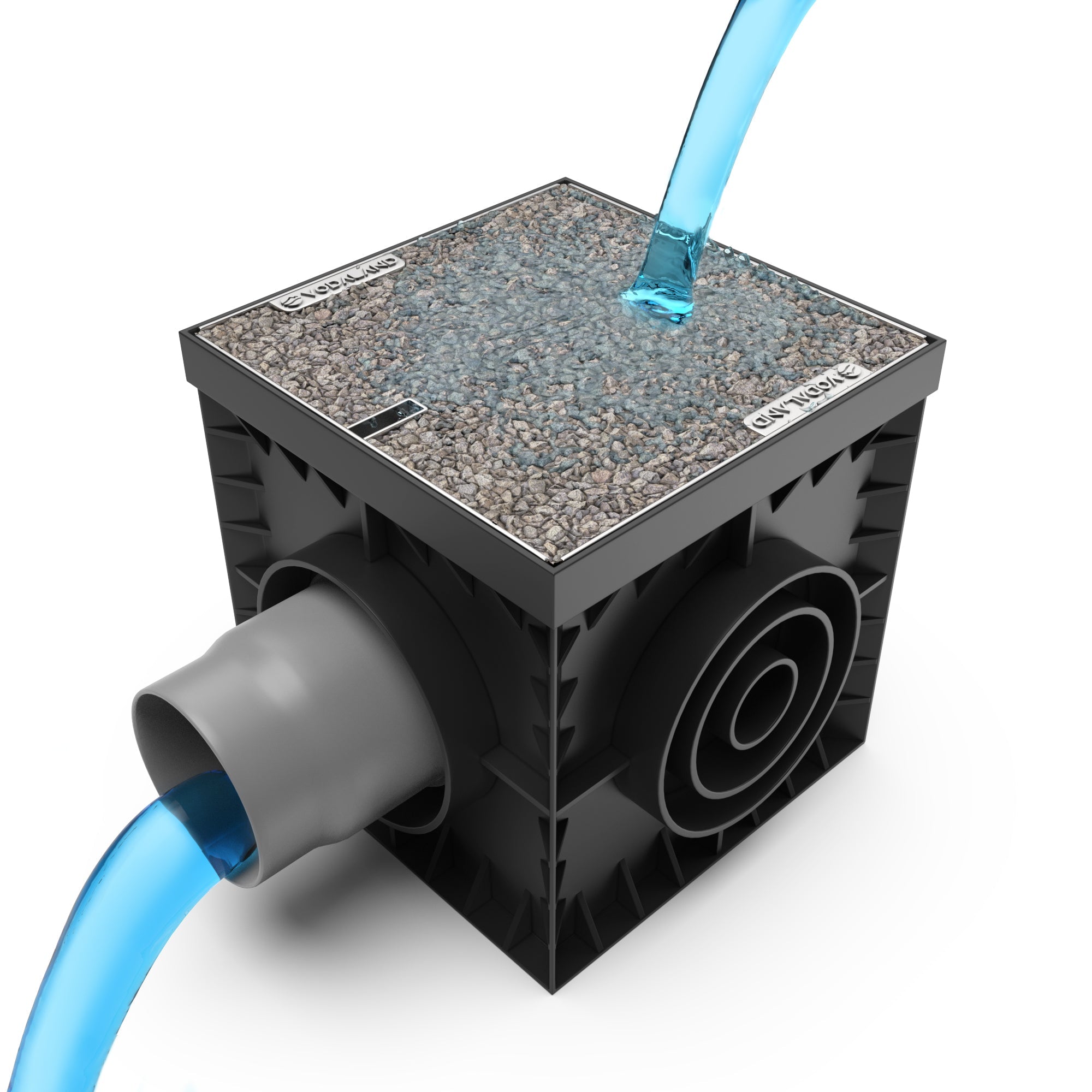

  • Connects to 6,8,10, and 12 inch piping on all four sides of the basin
  • ADA compliant grate
  • Sediment basket available as optional purchase

INCLUDED IN PACKAGE

1 - 22x22 Catch Basin

- Epoxied Gravel & Stainless Steel Grating

For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Specification Sheet
PDF :
DWG :

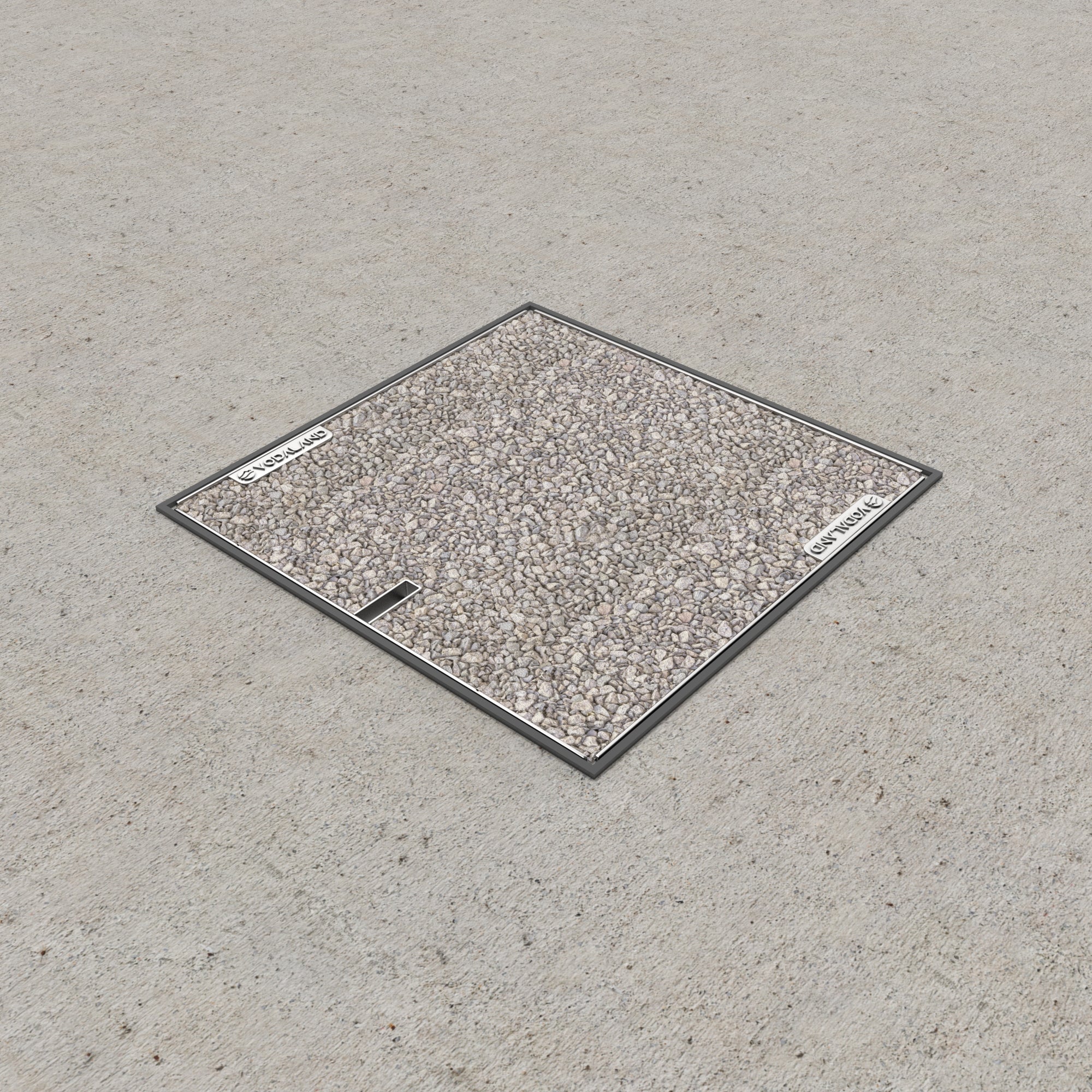

Gray Grate Specification
PDF :
DWG :

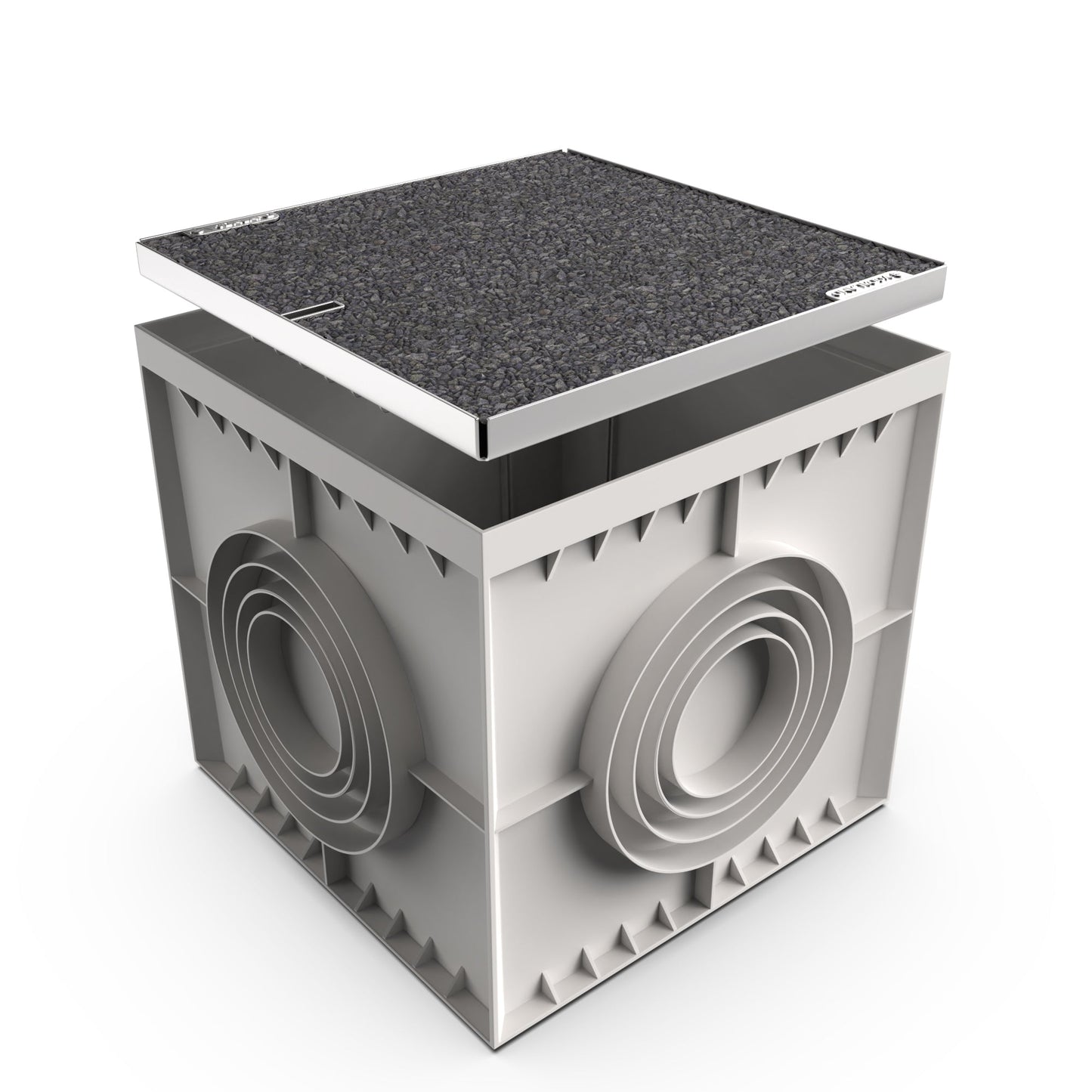

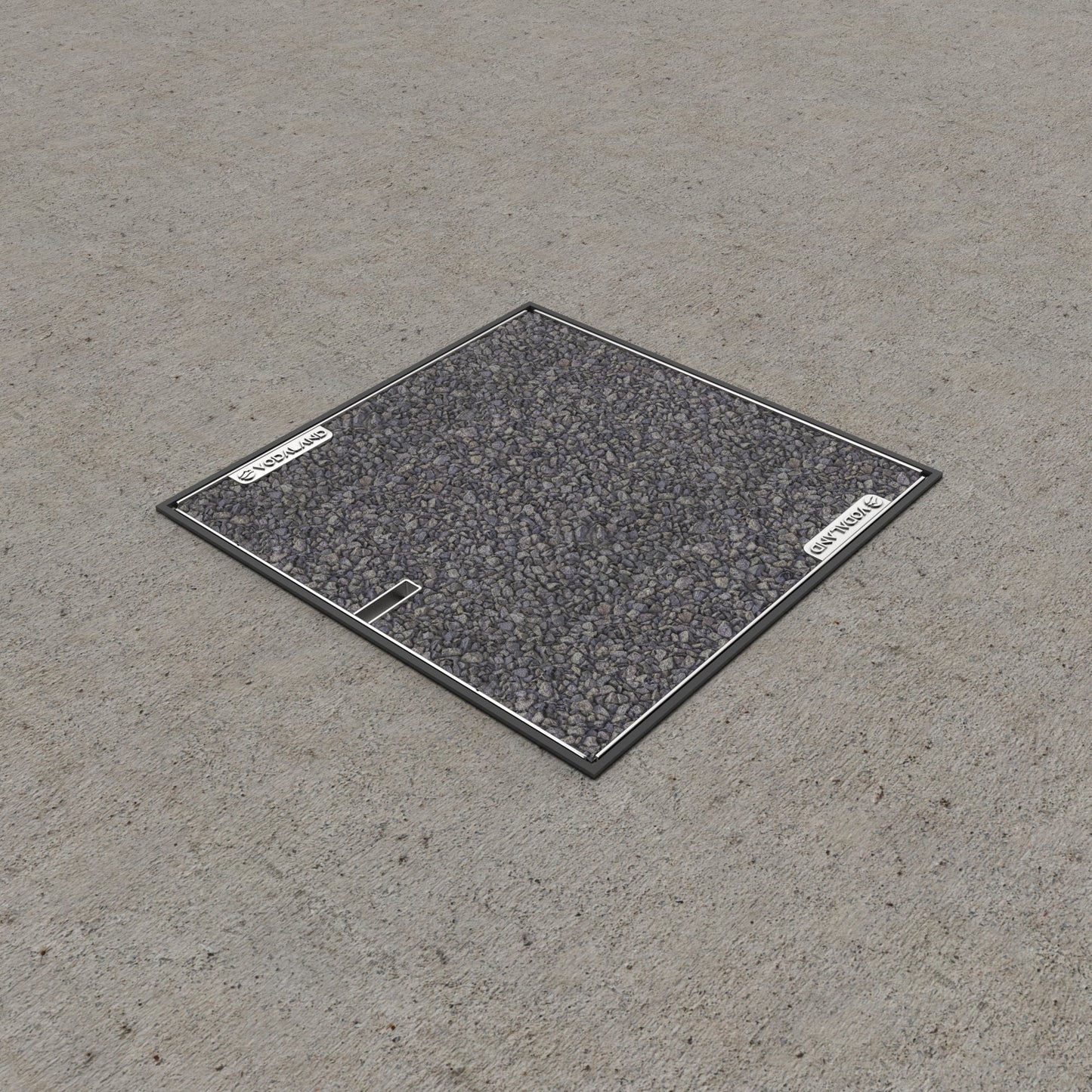

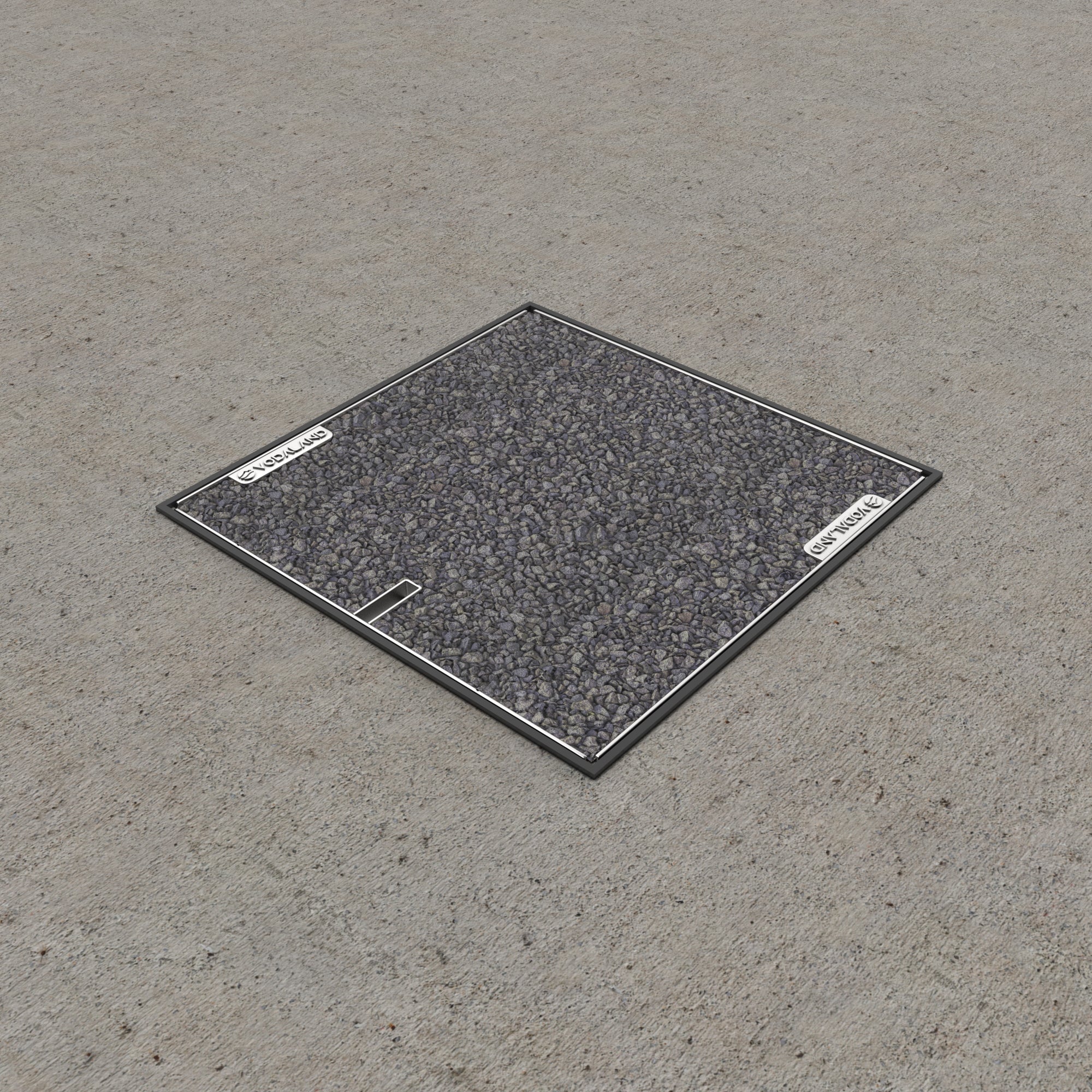

Dark Grate Specification
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

22x22 Catch Basin Gravel Grate Package / A Load Class

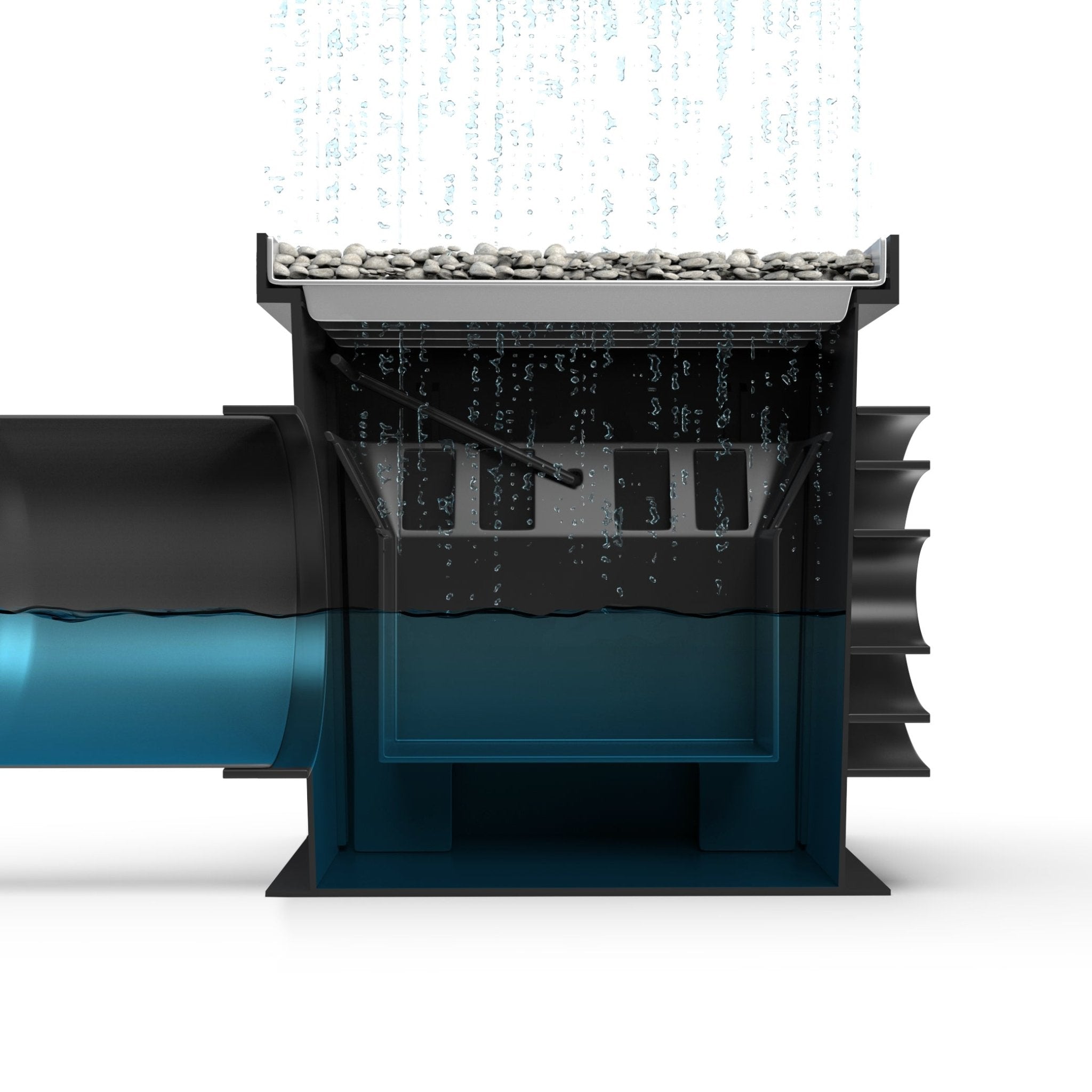

A Catch Basin Package designed to provide a one point drainage solution in patios, porches, walkways and more.

Key Features:
A load Class - Supports up to 3,372 LBS per foot
ADA Compliant / Heel Proof - Ensures a safe, trip free surface
Multiple Connection Sizes- Connects to 6,8,10, and 12 inch piping on all 4 sides
Removable Grate

The 22x22 Catch Basin Gravel Grate Package is designed to fit and work with all your drainage needs. In addition to 6,8,10, and 12 inch pipe outlet connections, the 22x22 Catch Basin Gravel Grate Package is ADA Compliant, and Heel Proof. We pride ourselves with our unique grating options and style.

Common Installations:
Patios
Porches
Walkways

Technical Specifications:
Size- Basin: 22" L x 22" W x 22" H Grate: 21”x21"
Material- PPE Plastic Basin / Epoxied Gravel & Stainless Steel Grating
Load Class- A-Load Class
Outlet Size- 6,8,10, and 12 inch


Technical Resources: Load Class Compliance

INCLUDED IN PACKAGE

1 - 22x22 Catch Basin

- Epoxied Gravel Grate
