22x22 Fillable Slot Basin Package

22x22 Fillable Slot Basin Package

Skip to product information
1 of 4
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • Connects to 6,8,10, and 12 inch piping on all four sides of the basin
  • ADA compliant grate
  • Sediment basket available as optional purchase

INCLUDED IN PACKAGE

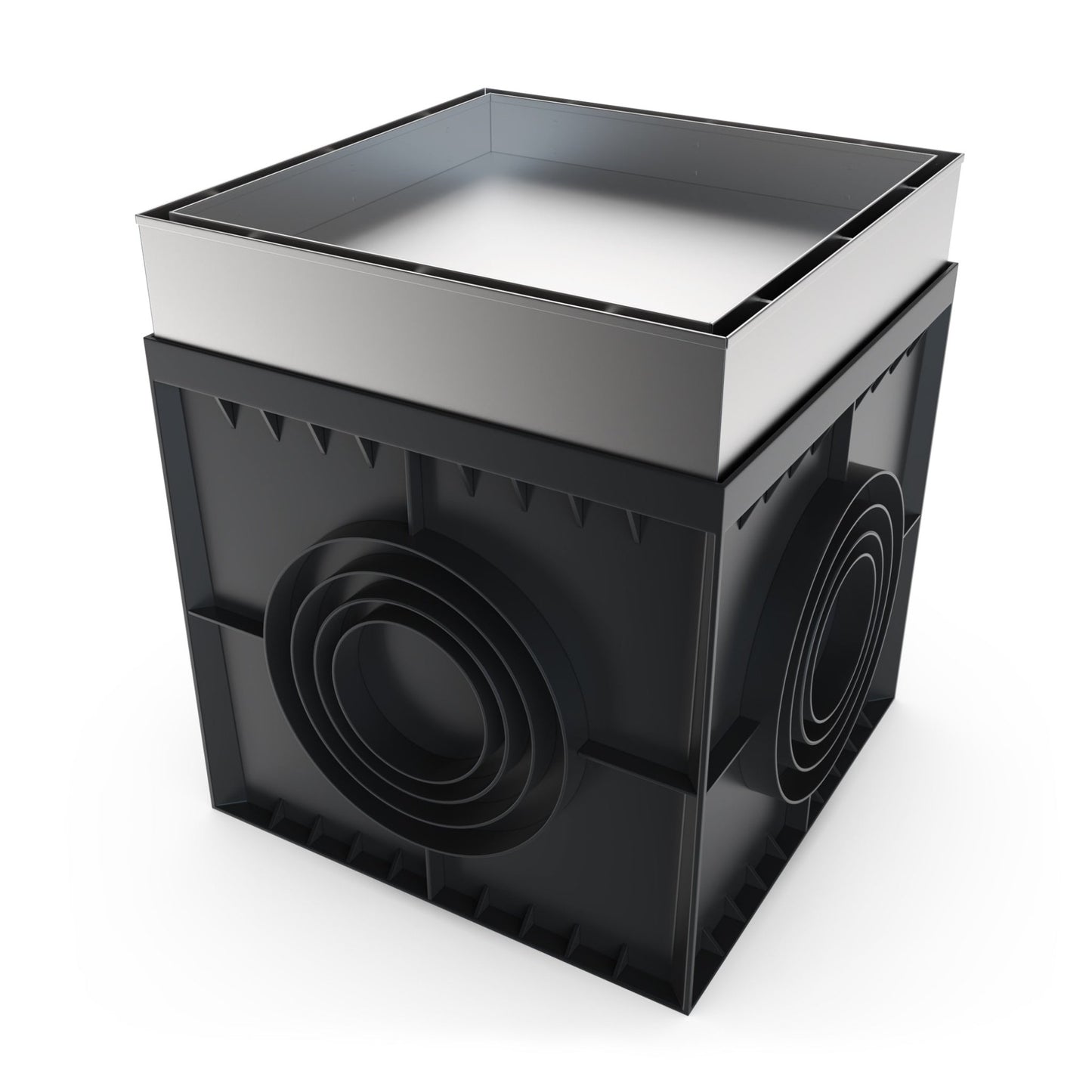

1 - 22x22 Catch Basin

- Stainless Steel Grating

For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Basin Specification Sheet
PDF :
DWG :
Slot Grate Specification Sheet
PDF :
Installation Guide
PDF :

Product Description

Product Description

22x22 Fillable Slot Basin Package / C Load Class

A heavy duty Catch Basin Package designed to provide a one point drainage solution in driveways, garages, parking lots, walkways, and more.

Key Features:

C load Class - Supports up to 56,200 lbs per foot
ADA Compliant- Ensures a safe, trip free surface
Multiple Connection Sizes- Connects to 6,8,10, and 12 piping on all 4 sides

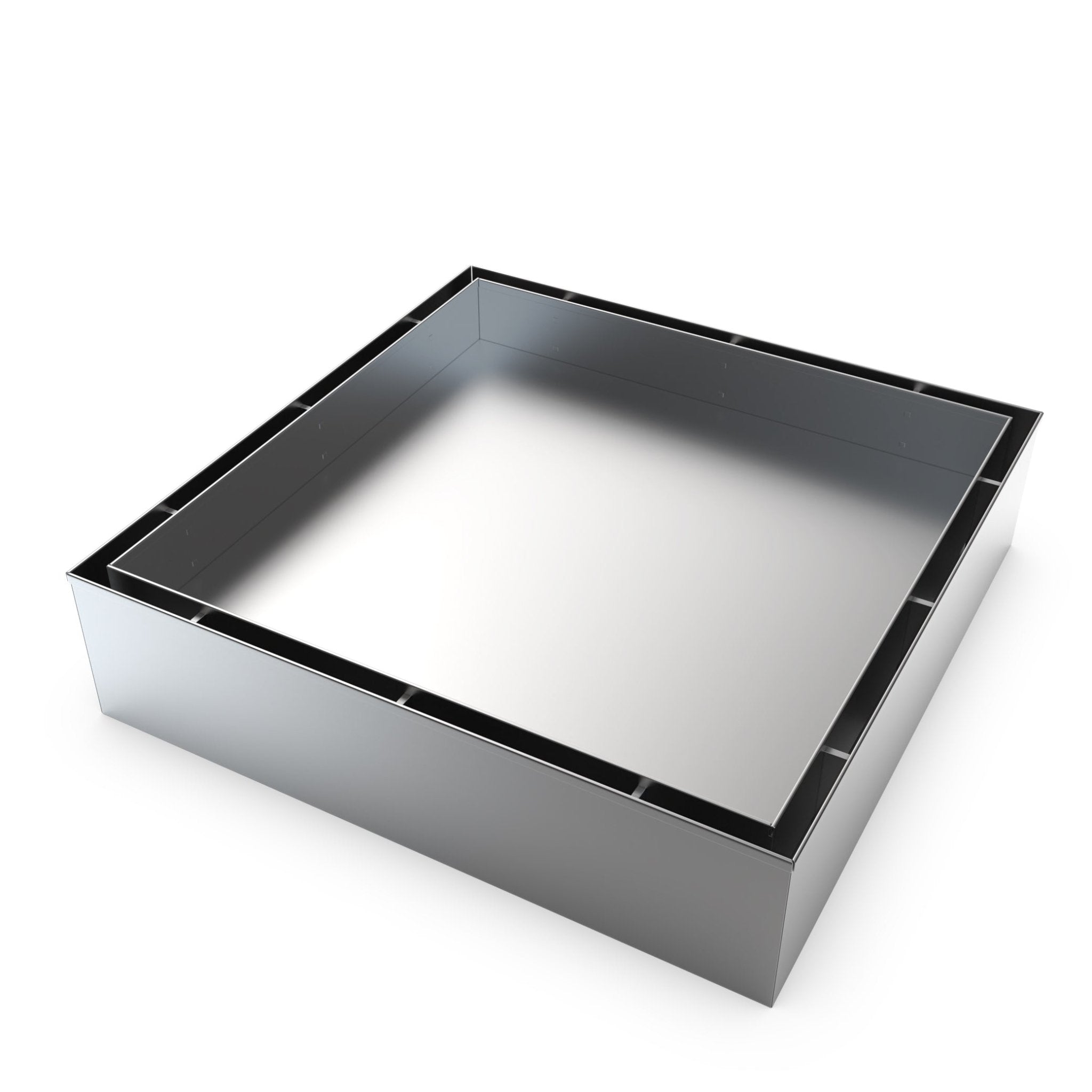

Fillable Grate- Can be blended in w/surroundings
Removable Grate

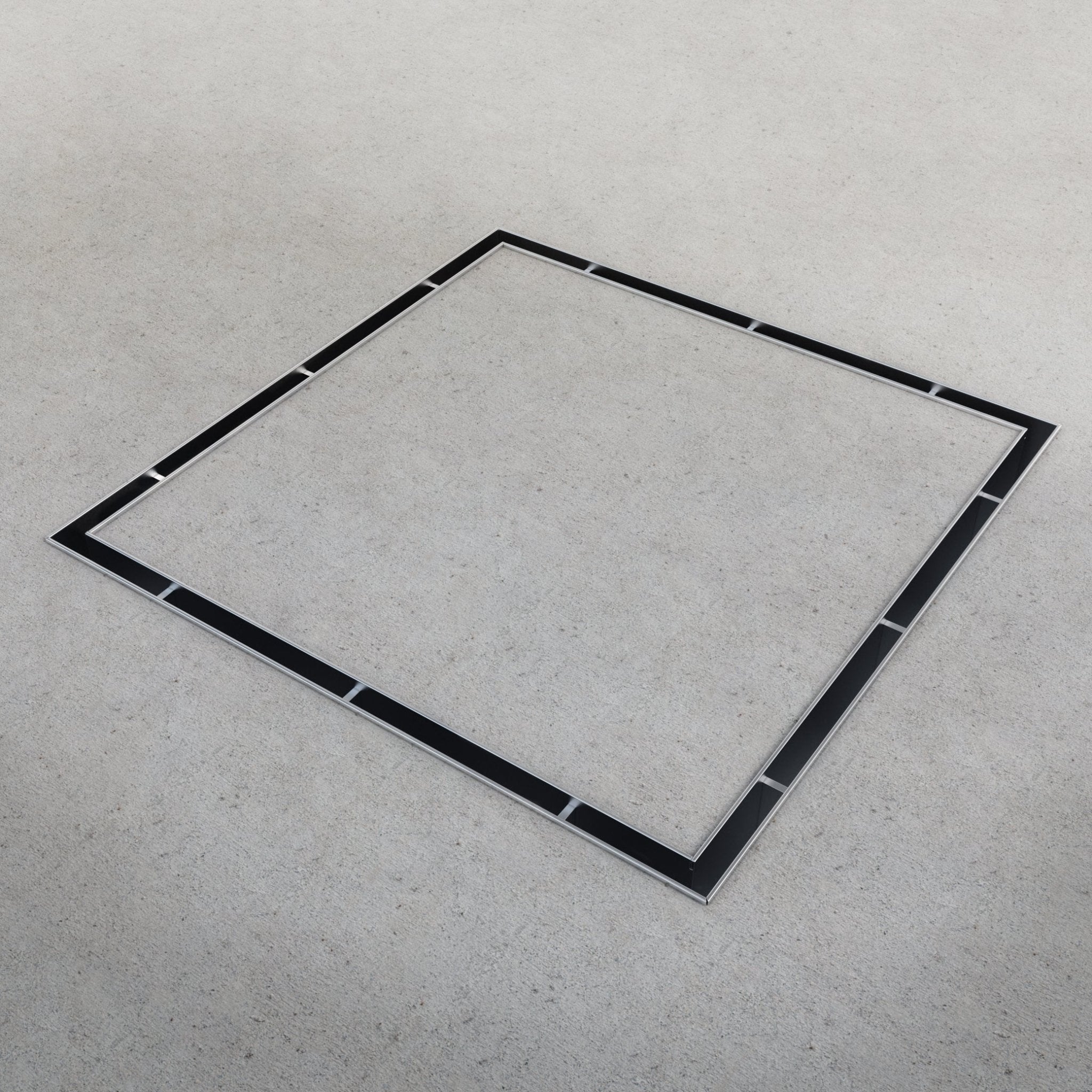

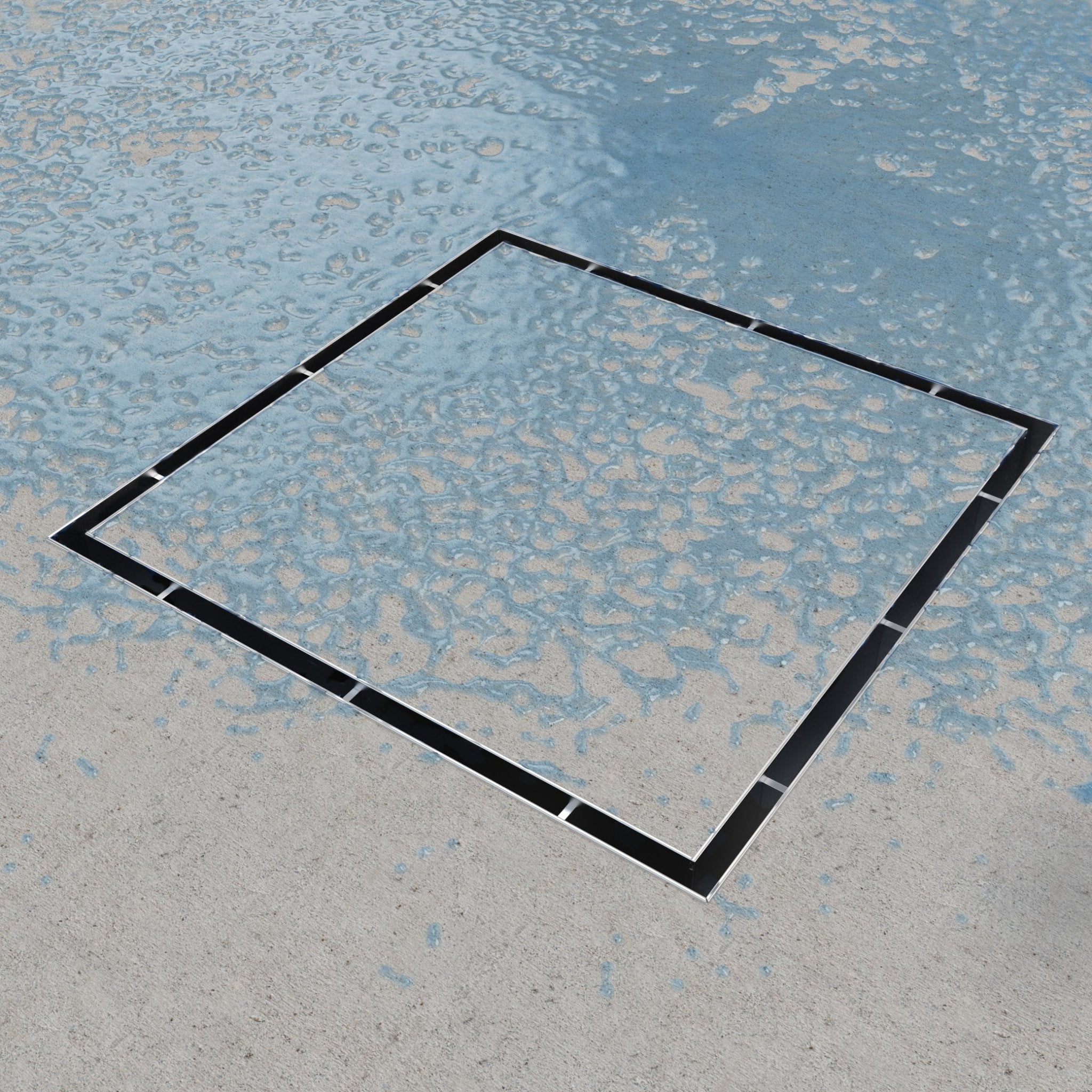

The 22x22 Fillable Slot Basin Package is designed to fit and work with all your drainage needs providing 6,8,10, and 12” pipe outlet connections. This Stainless Steel Grating is fillable and designed to create a discrete but functional catch basin. The center of this grating can be filled with concrete, gravel, or anything else to help it blend in with the surroundings. We pride ourselves with our unique grating options and style.

Common Installations:

Driveways
Garages
Parking Lots
Walkways

Technical Specifications:

Size- Basin: 22" L x22" W x 22 H, Grate: 21 ⅝” x 21 ⅝”, x 5 1/8” - ⅝ ” Opening
Material- PPE Plastic Basin / 304 Stainless Steel Fillable Grate
Load Class- C Load Class
Outlet Size- 6,8,10, and 12”

Technical Resources: Load Class Compliance
