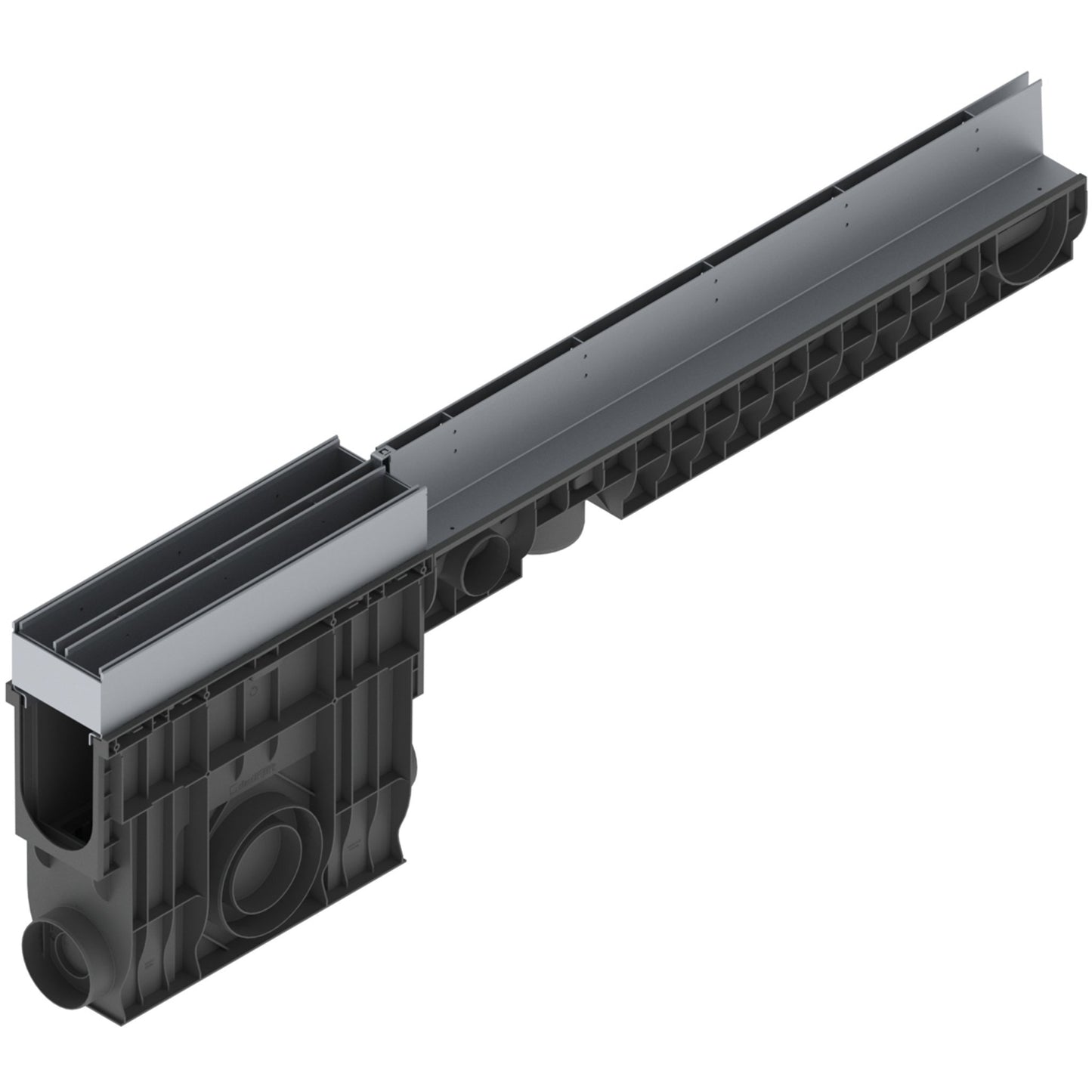

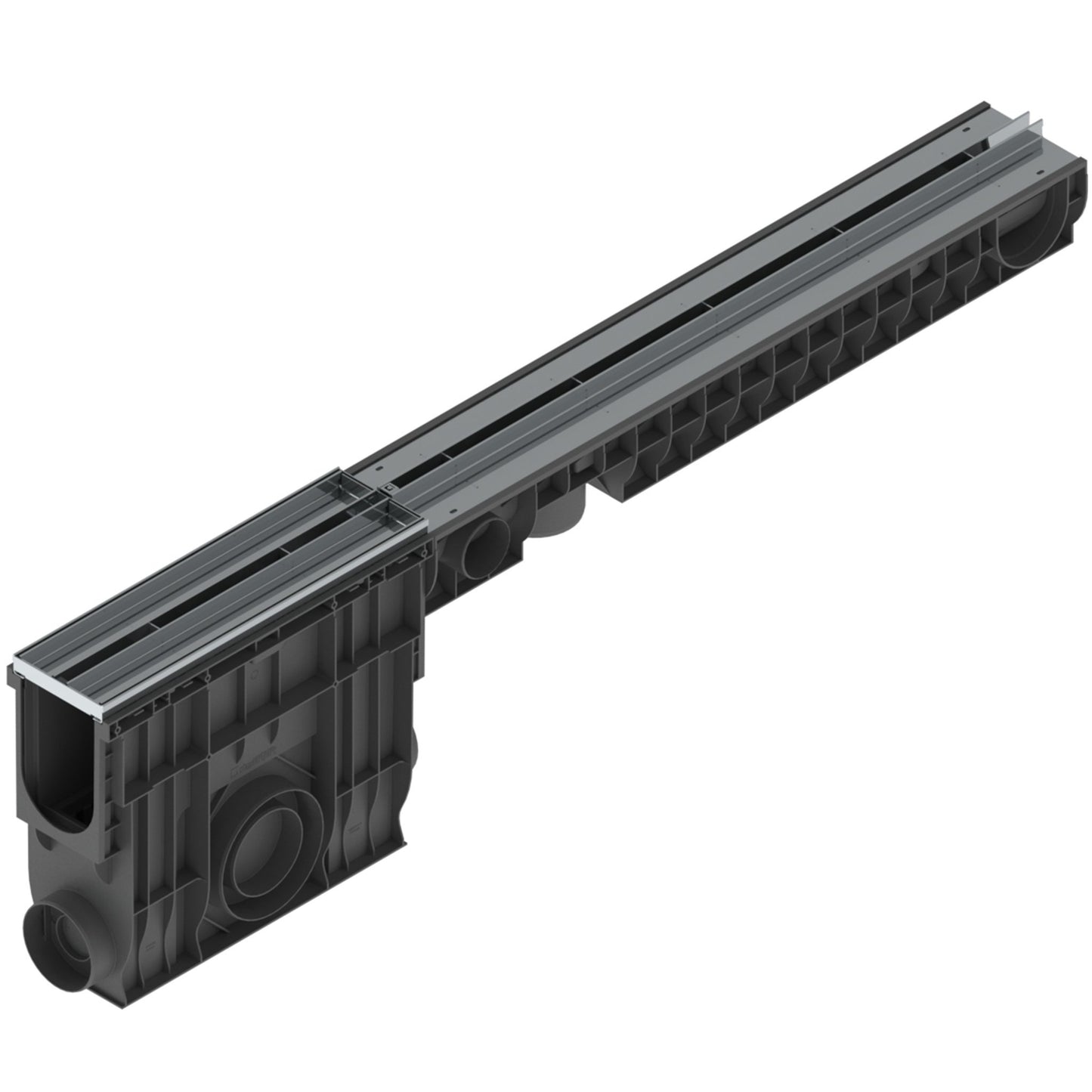

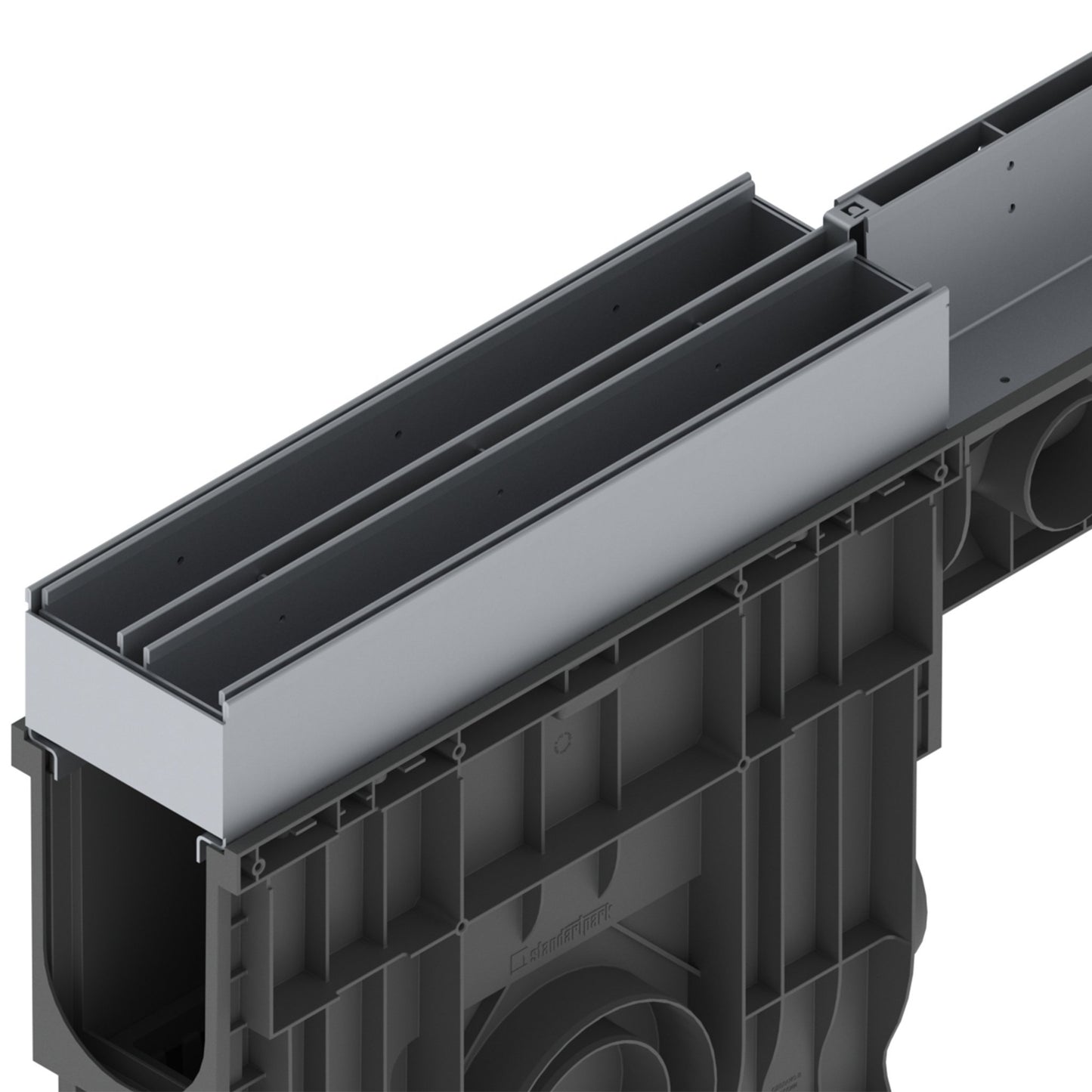

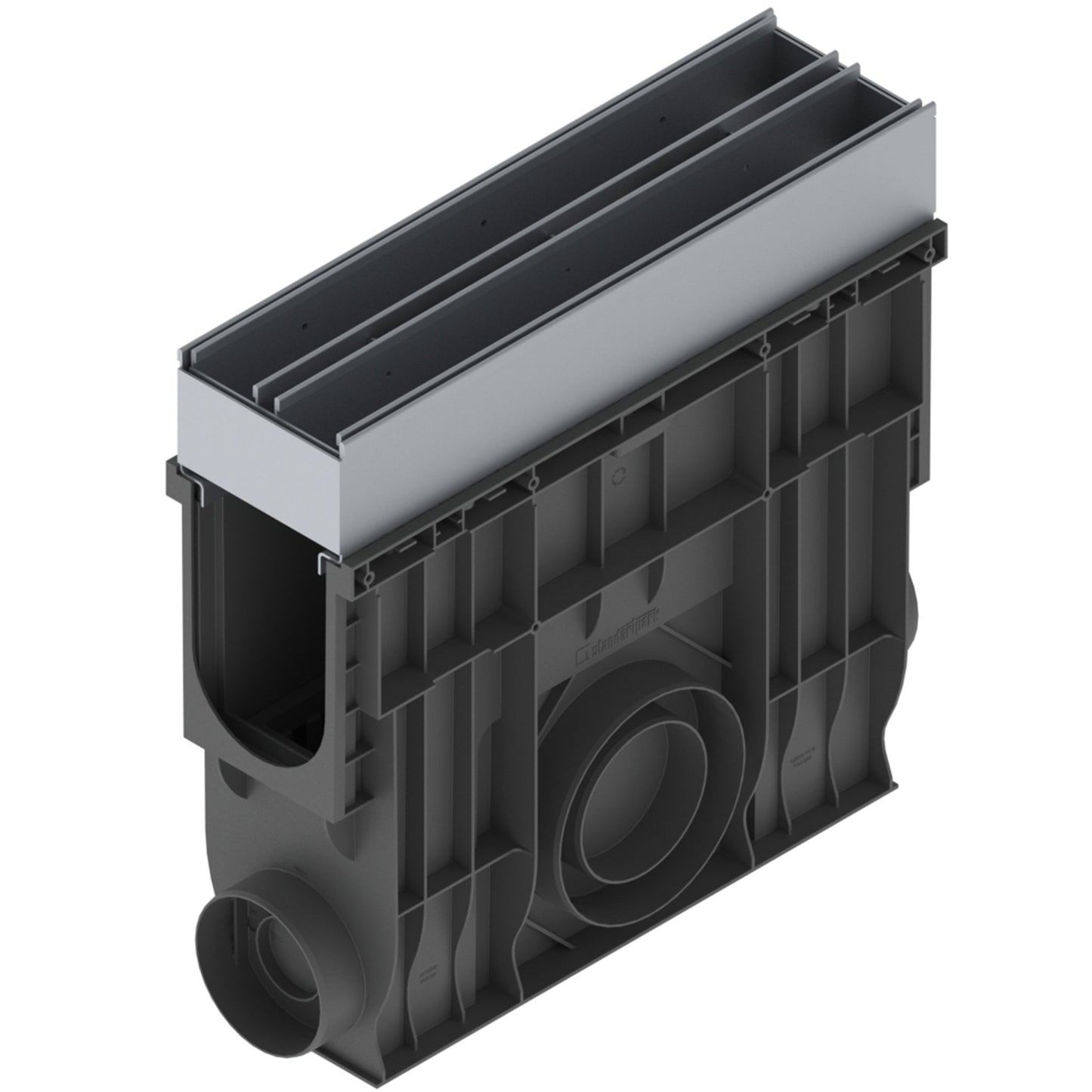

Galvanized Steel Slot Drain Clean Out System | D - Load Class |

Vodaland designed and manufactures the Galvanized Steel Slot Drain Clean Out System to provide access for maintenance. A high performance system that assures easy accessibility for cleaning.

Key Features:
● PPE Plastic & Galvanized Steel Material

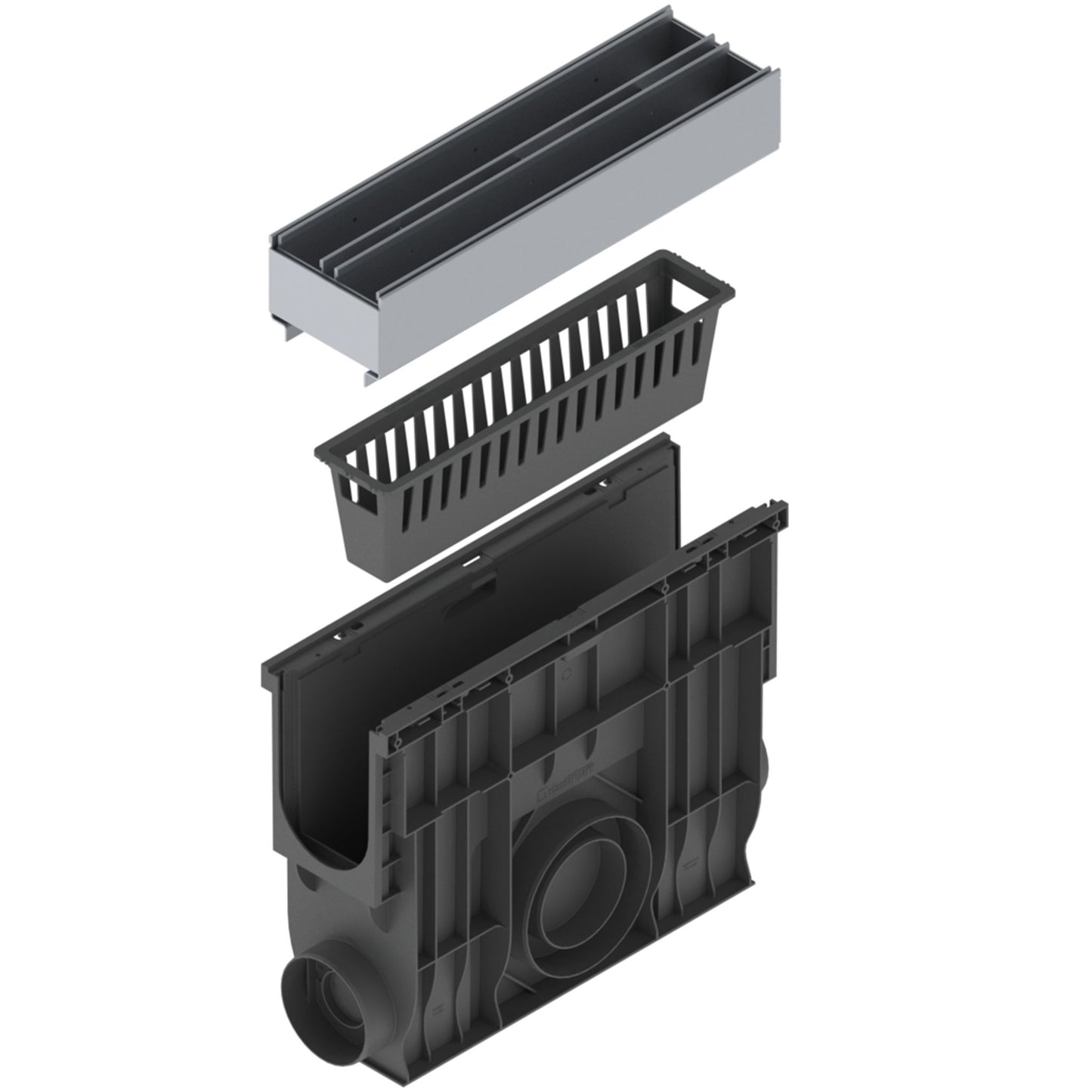

● Includes with Debris Basket - Prevents clog drain and catches any sediment or leaves.
● Removable Grate - Allows you to have easy access for maintenance or cleaning.
● Suitable for any 4” Base Channel Depths.

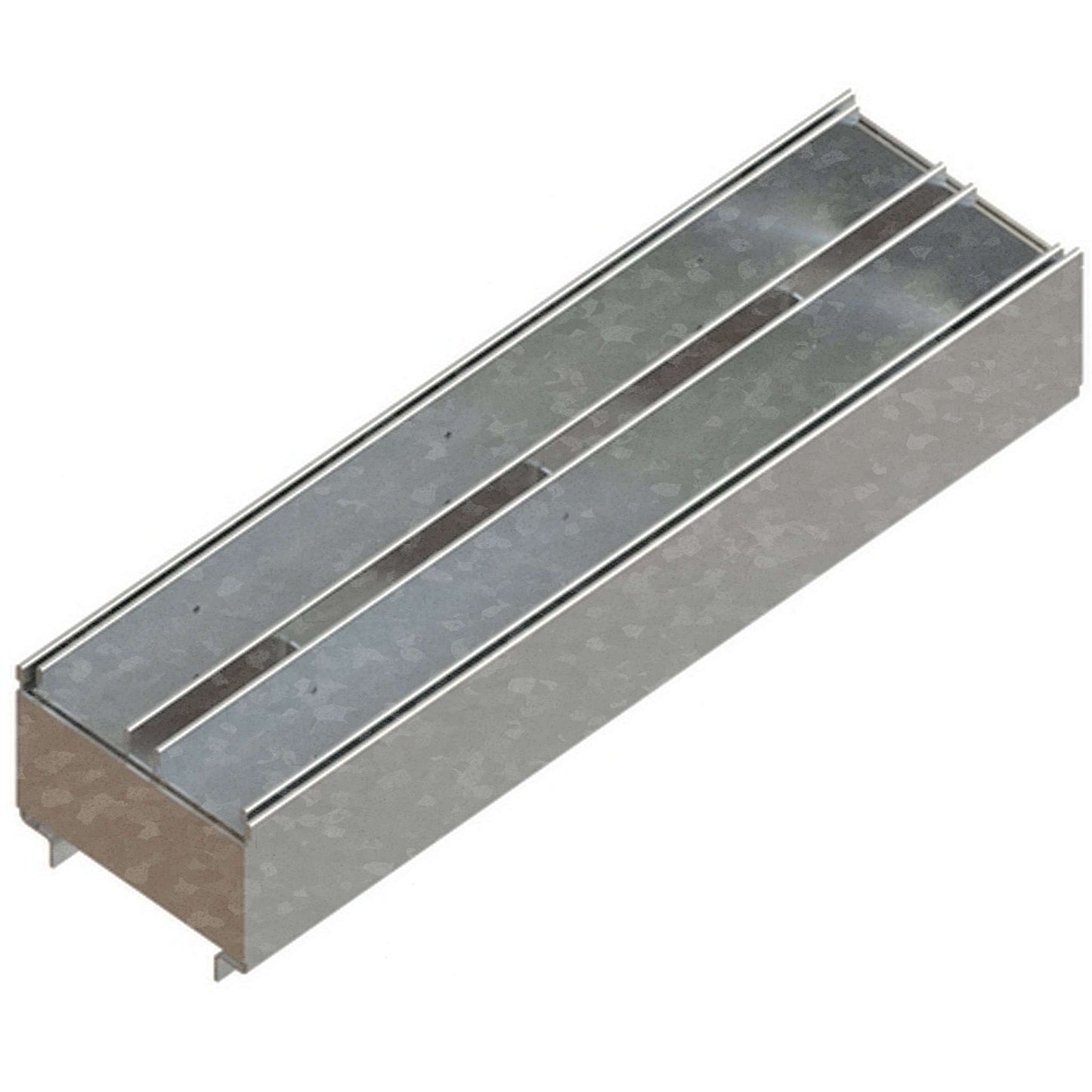

● Fillable Grate - Allows you to fill with any aggregate or material of your choice.
● 4” & 6” Outlet Connection - Provides different Outlet size options for water drainage.

Expanded Product Overview:
The Galvanized Steel Slot Drain Clean Out System is an excellent drainage system that allows you to have easy access for cleaning, as well as includes a removable grate and debris basket for sediment or leaves, preventing any clog drainage. A system that offers compatibility with Vodaland’s 4” Channel
Drain System.

A durable system that is made out of PPE Plastic Body and 100% Galvanized Steel Grate. For features, this system comes with a fillable grate that you can fill in with any aggregate or materials that can match with your surface flooring. Provides you an incredible finish and esthetically suiting with the rest of your application finishes.

Common Application:
● Access Point for Maintenance (Standard & Micro Plastic Slot Drain System)
● Pools
● Porches
● Patios

Technical Specifications:
● Material: PPE Plastic and Galvanized Steel
● Sand Trap: 4” Internal Width with a Length of 19-⅝ of an inch
● Outlet Size: 4” * 6” Pipe Connection
● Load Class: D - Load Classification

Technical Resources: Load Class Compliance
